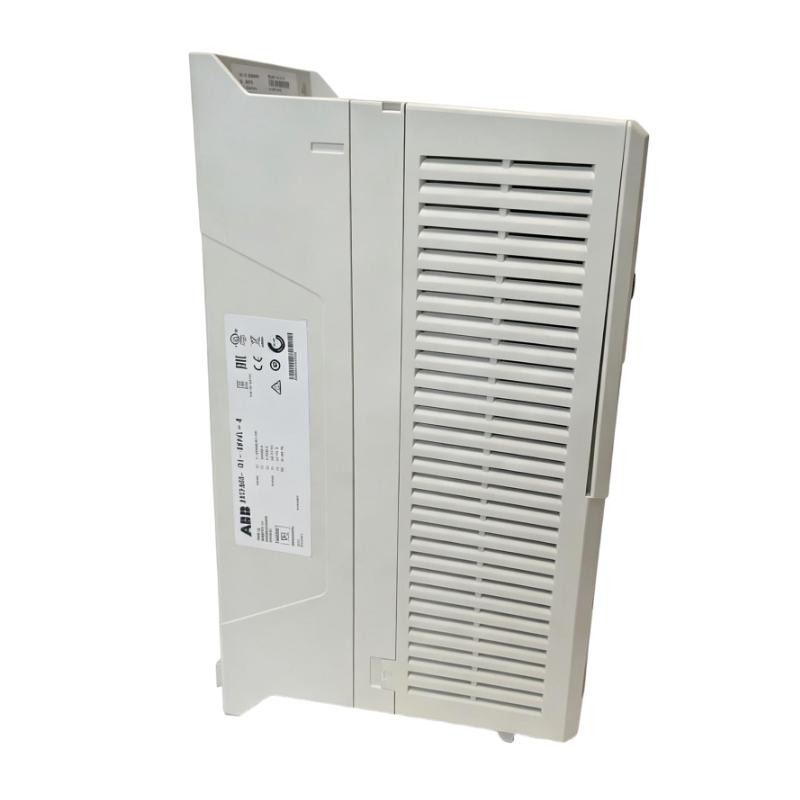

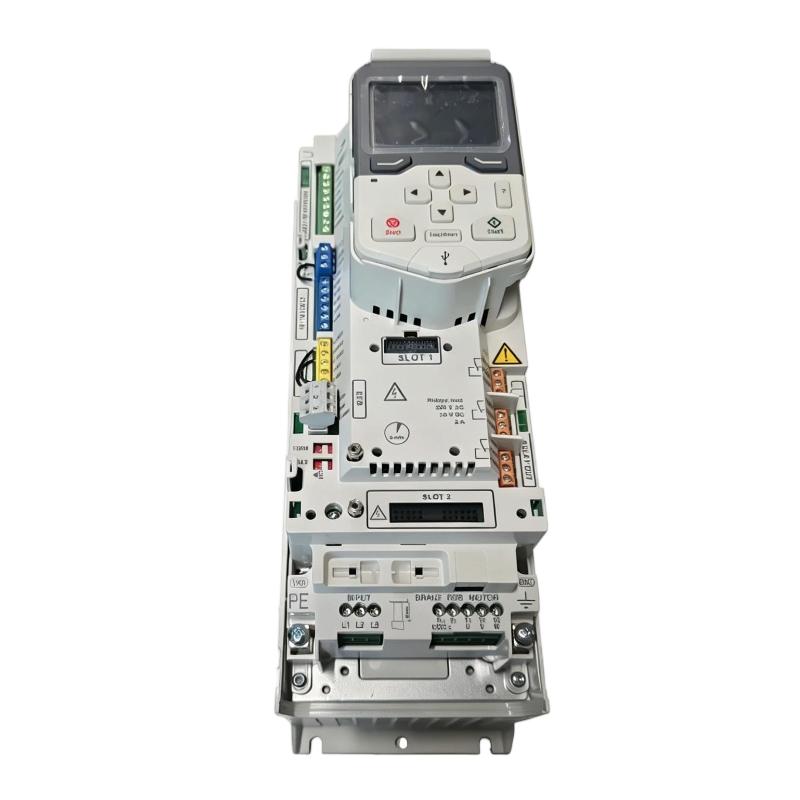

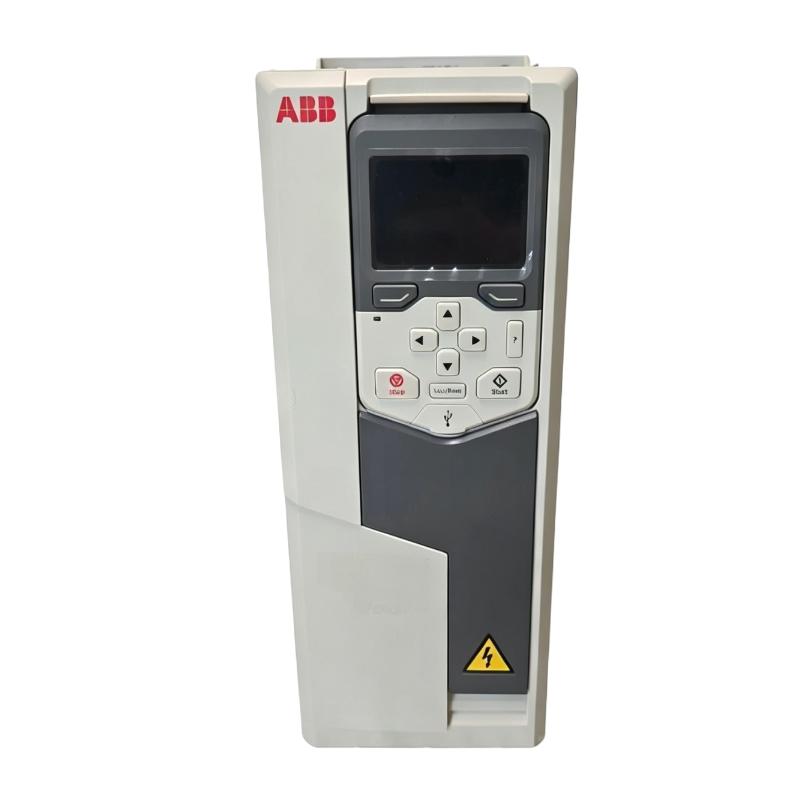

ABB ACS580-01-04A1-4 3AXD50000038939 Frequency Converter_ABB PLC

Introduction

The ABB ACS580-01-04A1-4 Frequency Converter is a general-purpose AC drive developed to deliver efficient and reliable motor control for modern industrial applications. As part of the ACS580 series, it provides a practical combination of performance, flexibility, and simplified operation.

Designed for wall-mounted installation, this frequency converter offers an excellent solution for applications where compact size and dependable control performance are required. Its intelligent drive functions help improve system efficiency, simplify maintenance, and support stable equipment operation.

With its reliable construction and versatile application capability, the ACS580-01-04A1-4 provides an effective motor control solution for industries seeking improved productivity, energy optimization, and long-term operational value.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB

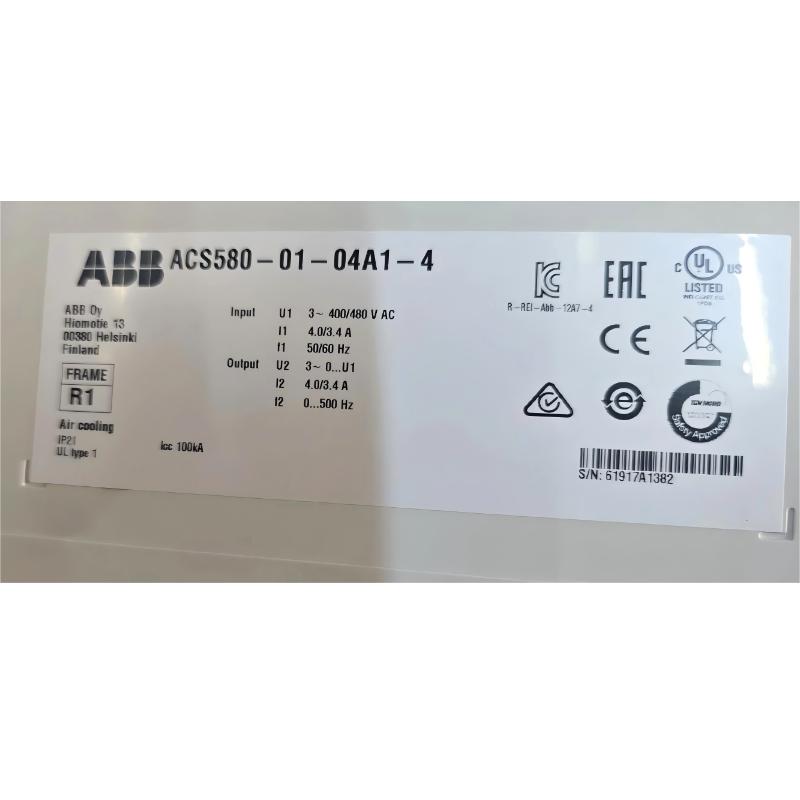

Model Number	ACS580-01-04A1-4
Product ID	3AXD50000038939
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	4.1A
Rated Power	1.5 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	47.5–63 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R1
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	373 × 125 × 223 mm
Weight	4.6 kg (10.14 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-02A7-4	Compact frequency converter for smaller motor applications
ABB ACS580-01-03A4-4	Efficient drive solution for low-power industrial equipment
ABB ACS580-01-05A7-4	General-purpose frequency converter for increased motor loads
ABB ACS580-01-07A3-4	Flexible industrial drive for expanded application requirements

Popular Related Models

Model	Description
ABB ACS580-01-018A-4	Industrial frequency converter for medium-duty applications
ABB ACS580-01-026A-4	Reliable AC drive for automation systems
ABB ACS580-01-033A-4	General-purpose frequency converter for industrial machinery
ABB ACS880-01-045A-3	Advanced industrial drive for demanding motor control
ABB ACS580-04-050A-4	Modular frequency converter for industrial applications

Applications

The ABB ACS580-01-04A1-4 Frequency Converter is a compact industrial drive designed to provide reliable motor control, efficient operation, and flexible automation performance for low-power applications. With its optimized design and stable control capability, this frequency converter offers an effective solution for equipment requiring precise speed adjustment and smooth motor operation.

This model is widely used in pumps, fans, conveyors, compressors, mixers, HVAC systems, and light industrial machinery. By controlling motor speed according to actual operating requirements, it helps improve energy efficiency, reduce mechanical stress, and maintain consistent equipment performance.

The ACS580-01-04A1-4 is well suited for OEM equipment, machine builders, and industrial users who need a dependable drive solution with easy integration, reliable functionality, and long-term operational stability.

Advantages

The ABB ACS580-01-04A1-4 combines advanced drive technology with a compact industrial structure to deliver efficient and dependable motor control.

Compact Installation Design: The space-saving structure allows flexible mounting in control cabinets and machinery systems.
Reliable Motor Performance: Provides stable speed regulation and smooth motor operation for various industrial applications.
Energy Efficient Control: Helps optimize power consumption by adjusting motor speed based on actual process requirements.
Easy Configuration: Simplified commissioning functions make setup and operation more convenient.
Flexible Application Range: Suitable for different low-power motor-driven equipment and automation systems.
Integrated Drive Functions: Reduces system complexity by providing essential control and monitoring features.
Stable Industrial Operation: Designed for continuous performance in manufacturing and automation environments.

Technical FAQs

1. What is the ABB ACS580-01-04A1-4 Frequency Converter mainly used for?
It is used to control the speed and operation of three-phase AC motors in industrial applications.

2. What types of motors are compatible with this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial machinery.

3. Does the ACS580-01-04A1-4 support advanced motor control functions?
Yes. It provides reliable motor control functions for accurate speed regulation and stable operation.

4. Can this frequency converter be integrated with PLC systems?
Yes. It can be integrated into automation systems through supported industrial communication solutions.

5. What applications are suitable for this model?
Typical applications include pumps, fans, conveyors, compressors, mixers, and general industrial equipment.

6. Does this drive include motor protection functions?
Yes. It provides monitoring and protection functions to improve system reliability.

7. How are parameters configured on the ACS580-01-04A1-4?
Parameters can be adjusted through the drive interface and compatible configuration tools.

8. Can this frequency converter improve energy efficiency?
Yes. It helps reduce energy usage by allowing motors to operate according to actual load conditions.

9. Is this model suitable for continuous industrial operation?
Yes. It is designed for reliable long-term operation in industrial environments.

10. Can the ACS580-01-04A1-4 be used for equipment upgrades?
Yes. It can be applied in suitable modernization projects where electrical requirements are compatible.
