Introduction

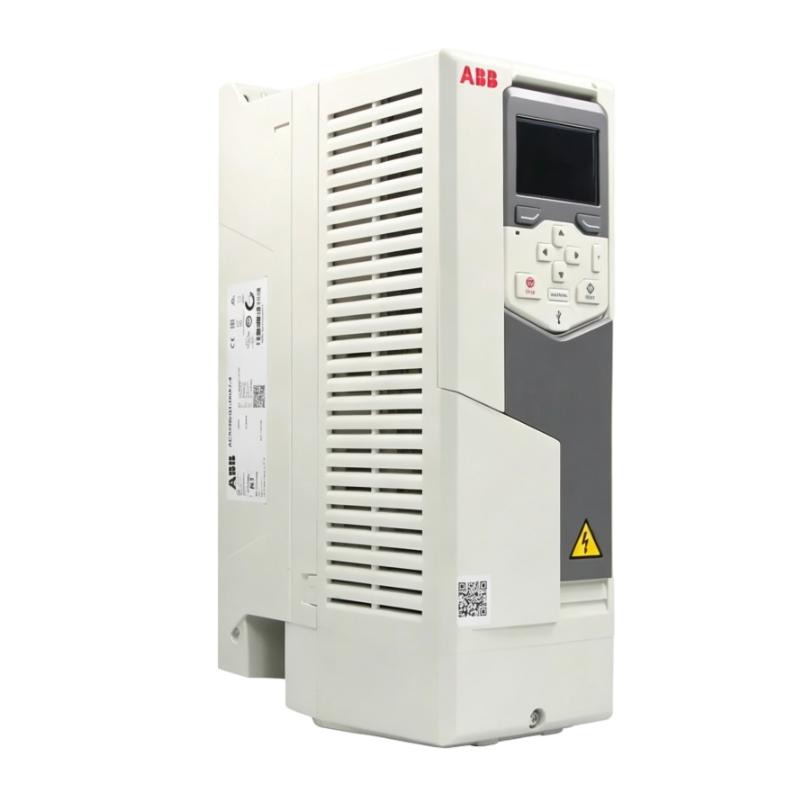

The ABB ACS580-01-05A7-4 Frequency Converter is a general-purpose AC drive developed to provide efficient and dependable motor control for modern industrial applications. It combines practical functionality, flexible operation, and reliable performance to support a wide range of automation requirements.

Designed with a compact wall-mounted structure, this frequency converter provides an effective solution for controlling low-power motors while maintaining excellent operational stability. Its intelligent control features help simplify installation, improve energy management, and enhance overall equipment efficiency.

With its balance of performance, reliability, and application flexibility, the ACS580-01-05A7-4 is an ideal choice for industries seeking efficient motor control solutions and consistent long-term operation.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-05A7-4
Product ID	3ABD50000038940
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	5.6A
Rated Power	2.2 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	47.5–63 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R1
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	303 × 125 × 223 mm
Weight	4.6 kg (10.14 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-04A1-4	Compact frequency converter for low-power motor applications
ABB ACS580-01-05A6-4	General-purpose drive for efficient motor control
ABB ACS580-01-07A3-4	Flexible frequency converter for increased motor requirements
ABB ACS580-01-09A4-4	Industrial drive for expanded application needs

Popular Related Models

Model	Description
ABB ACS580-01-018A-4	Reliable frequency converter for industrial automation systems
ABB ACS580-01-026A-4	General-purpose AC drive for machinery applications
ABB ACS580-01-033A-4	Medium-power motor control solution for industrial equipment
ABB ACS880-01-045A-3	Advanced drive solution for demanding applications
ABB ACS580-04-050A-4	Modular frequency converter for industrial systems

Applications

The ABB ACS580-01-05A7-4 Frequency Converter is a compact and efficient industrial drive designed to deliver reliable motor control, smooth speed adjustment, and optimized energy performance for various automation systems. With its practical structure and dependable control capability, this frequency converter provides an excellent solution for applications requiring stable operation and flexible motor management.

This model is widely used in pumps, fans, conveyors, compressors, mixers, HVAC systems, and general industrial machinery. It enables precise motor speed regulation according to process requirements, helping improve energy efficiency, reduce equipment stress, and maintain consistent production performance.

The ACS580-01-05A7-4 is suitable for OEM equipment manufacturers, machine builders, and industrial users who require a reliable frequency converter with easy installation, efficient operation, and long-term service performance.

Advantages

The ABB ACS580-01-05A7-4 combines advanced drive technology with a compact industrial design to provide dependable motor control and efficient system performance.

Reliable Motor Regulation: Provides accurate speed and torque control for smooth equipment operation.
Energy Efficient Performance: Helps reduce energy consumption by adjusting motor output according to actual application demand.
Compact Installation Design: Supports flexible mounting in control panels and machinery with limited space.
Simple Commissioning: User-friendly setup functions make configuration faster and easier.
Flexible Industrial Applications: Suitable for both variable torque and constant torque motor systems.
Integrated Drive Functions: Built-in features simplify system design and reduce additional hardware requirements.
Stable Long-Term Operation: Designed for dependable performance in industrial automation environments.

Technical FAQs

1. What is the ABB ACS580-01-05A7-4 Frequency Converter used for?
It is used to control the speed and performance of three-phase AC motors in industrial applications.

2. What motor types are suitable for this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial equipment.

3. Does the ACS580-01-05A7-4 support vector control?
Yes. It provides advanced motor control functions for improved speed accuracy and torque response.

4. Can this frequency converter be connected to PLC systems?
Yes. It supports integration with industrial automation systems through compatible communication solutions.

5. What applications are commonly used with this model?
It is suitable for pumps, fans, conveyors, compressors, mixers, and other motor-driven equipment.

6. Does this drive include motor protection functions?
Yes. It provides monitoring and protection functions to improve operational reliability.

7. How are parameters configured on the ACS580-01-05A7-4?
Parameters can be adjusted through the drive interface and supported configuration tools.

8. Can this frequency converter improve energy efficiency?
Yes. It helps optimize motor operation by controlling speed according to actual load requirements.

9. Is the ACS580-01-05A7-4 suitable for continuous industrial operation?
Yes. It is designed for reliable and stable operation in industrial environments.

10. Can this model be used for replacing older drive systems?
Yes. It can be applied in suitable upgrade projects when electrical specifications and application requirements are compatible.
