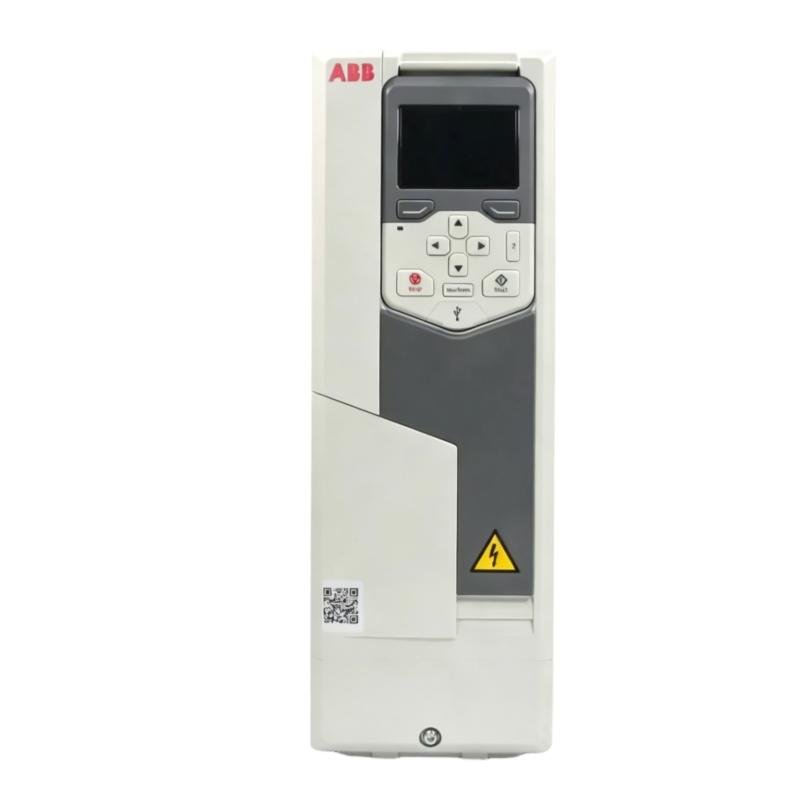

ABB ACS580-01-05A7-4 3AXD50000038940 Frequency Converter
ABB ACS580-01-05A7-4 3AXD50000038940 Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS580-01-05A7-4 Product Origin:Sweden (SE) Product Dimensions:373 x 125 x 223 mm Product Weight:4.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS580-01-05A7-4 Frequency Converter is a general-purpose AC drive designed to deliver reliable motor control and efficient operation for modern industrial systems. As part of the ACS580 series, it combines practical functionality, flexible application capability, and user-friendly operation.
Featuring a compact wall-mounted design, this frequency converter provides an effective solution for controlling low-power industrial motors while maintaining excellent stability and performance. Its integrated features support easier installation, improved energy management, and enhanced equipment reliability.
With its dependable construction and adaptable performance, the ACS580-01-05A7-4 provides a professional drive solution for industries seeking efficient automation control and long-term operational benefits.
Technical Specifications
Specification
Details
Product Type
Frequency Converter
Manufacturer
ABB
Model Number
ACS580-01-05A7-4
Product ID
3AXD50000038940
Drive Series
ACS580
Module Type
Frequency Converter Module
Rated Output Current
5.6A
Rated Power
2.2 kW
Input Voltage
380–480V AC
Input Phase
Three-phase
Frequency Range
47.5–63 Hz
Control Method
Scalar Control, Vector Control
Communication Interface
Industrial Communication Options
Safety Function
Safe Torque Off (STO)
Mounting Type
Wall-mounted
Protection Class
IP21
Frame Size
R1
Operating Temperature
-15°C to +50°C
Dimensions (H × W × D)
373 × 125 × 223 mm
Weight
4.6 kg (10.14 lb)
Recommended Related Models
Model
Description
ABB ACS580-01-04A1-4
Compact frequency converter for low-power motor applications
ABB ACS580-01-05A6-4
Efficient drive solution for general industrial control
ABB ACS580-01-07A3-4
Frequency converter for higher low-power requirements
ABB ACS580-01-09A4-4
Flexible drive solution for expanded applications
Popular Related Models
Model
Description
ABB ACS580-01-018A-4
General-purpose industrial frequency converter
ABB ACS580-01-026A-4
Reliable AC drive for automation equipment
ABB ACS580-01-033A-4
Medium-power motor control solution
ABB ACS880-01-045A-3
Advanced industrial drive for demanding applications
ABB ACS580-04-050A-4
Modular frequency converter for industrial systems
Applications
The ABB ACS580-01-05A7-4 Frequency Converter is a compact industrial drive designed to provide efficient motor control, reliable speed adjustment, and stable performance for a wide range of automation applications. With its flexible design and advanced control functions, this frequency converter helps improve operational efficiency while maintaining smooth and precise motor performance.
This model is commonly applied in pumps, fans, conveyors, compressors, mixers, HVAC systems, and general industrial machinery. It allows motors to operate according to actual process requirements, helping reduce unnecessary energy consumption, minimize mechanical stress, and improve overall system productivity.
The ACS580-01-05A7-4 is an ideal choice for OEM manufacturers, machine builders, and industrial operators requiring a dependable frequency converter with simple installation, reliable control, and long-term performance.
Advantages
The ABB ACS580-01-05A7-4 combines a compact structure with powerful drive technology to provide efficient and dependable motor management.
High-Performance Motor Control: Provides accurate speed regulation and smooth torque control for consistent equipment operation.
Energy Optimization Capability: Improves system efficiency by adjusting motor speed based on actual application demand.
Compact Installation Design: Suitable for applications where space-saving solutions are required.
Easy Commissioning Process: Simplifies configuration and reduces setup time for faster deployment.
Flexible Application Support: Designed for various variable torque and constant torque industrial applications.
Integrated Drive Functions: Built-in control features help reduce system complexity.
Reliable Industrial Operation: Supports stable performance in manufacturing, automation, and process environments.
Technical FAQs
1. What is the ABB ACS580-01-05A7-4 Frequency Converter mainly used for?
It is used for controlling the speed and operation of three-phase AC motors in industrial applications.
2. What type of motors can be controlled by this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial equipment.
3. Does the ACS580-01-05A7-4 support vector control?
Yes. It provides advanced control functions for improved motor response and operational accuracy.
4. Can this frequency converter be integrated with industrial automation systems?
Yes. It supports communication solutions for integration with PLC and automation platforms.
5. What equipment is suitable for this model?
It is suitable for pumps, fans, compressors, conveyors, mixers, and general machinery.
6. Does this drive provide motor protection functions?
Yes. It includes monitoring and protection features to improve system reliability.
7. How are operating parameters adjusted?
Parameters can be configured through the drive interface and compatible commissioning tools.
8. Can this frequency converter reduce motor energy consumption?
Yes. It improves efficiency by allowing motors to operate according to actual load requirements.
9. Is this model suitable for continuous industrial operation?
Yes. It is designed for reliable operation in industrial environments.
10. Can the ACS580-01-05A7-4 be used in system upgrade projects?
Yes. It can replace suitable existing drives when electrical specifications and application conditions are compatible.
