Introduction

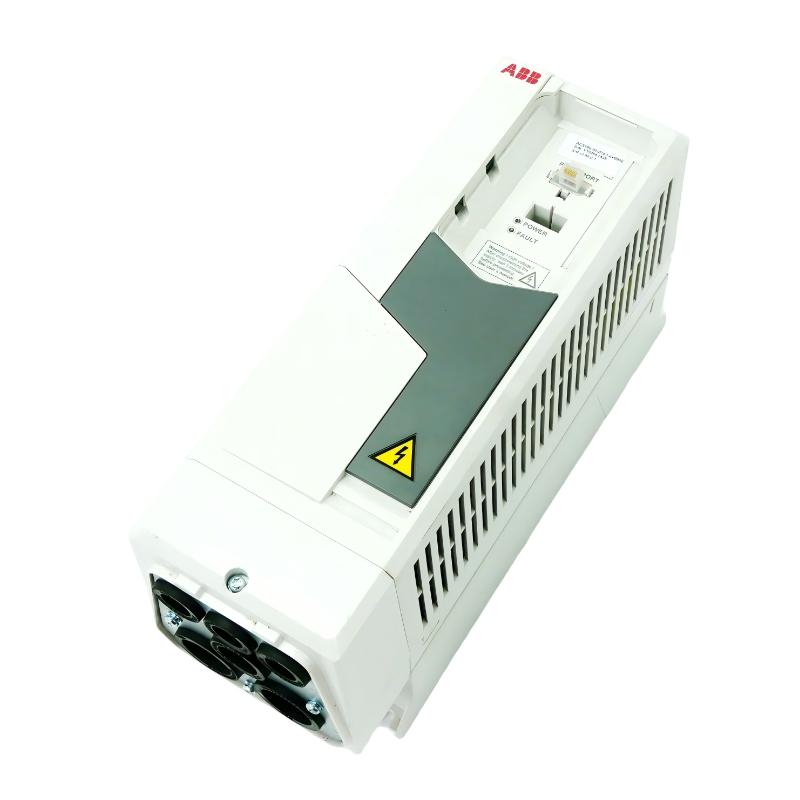

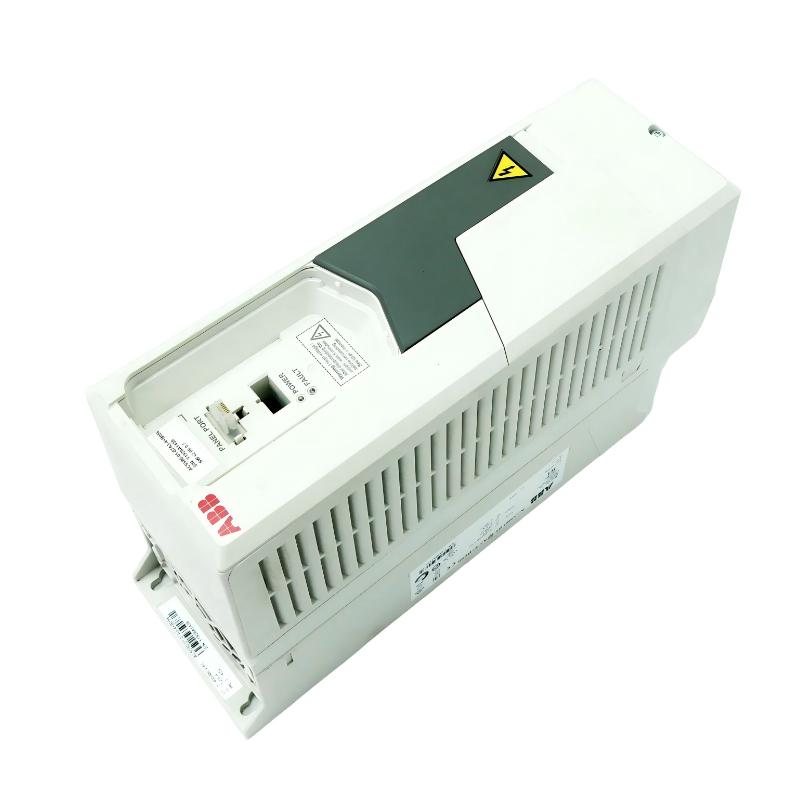

The ABB ACS580-01-07A3-4 Frequency Converter is a general-purpose AC drive developed to provide reliable and efficient motor control for modern industrial applications. As part of the ACS580 series, it offers a strong combination of performance, flexibility, and simplified operation.

Designed with a compact wall-mounted structure, this frequency converter provides an effective solution for controlling low-power motors while maintaining excellent stability and efficiency. Its integrated drive functions support easier installation, improved energy management, and enhanced equipment reliability.

With its practical design and dependable performance, the ACS580-01-07A3-4 delivers a professional motor control solution for industries seeking improved productivity, reduced operating costs, and reliable automation performance.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-07A3-4
Product ID	3AXD50000038951
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	7.2A
Rated Power	3 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	47.5–63 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R1
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	373 × 125 × 223 mm
Weight	4.6 kg (10.14 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-05A7-4	Compact frequency converter for smaller motor applications
ABB ACS580-01-09A4-4	Flexible drive solution for increased motor requirements
ABB ACS580-01-12A7-4	General-purpose frequency converter for expanded applications
ABB ACS580-01-018A-4	Higher-capacity drive for medium industrial systems

Popular Related Models

Model	Description
ABB ACS580-01-026A-4	Reliable frequency converter for industrial automation systems
ABB ACS580-01-033A-4	General-purpose motor control solution for machinery
ABB ACS580-01-046A-4	Efficient drive solution for medium-power applications
ABB ACS880-01-061A-3	Advanced industrial drive for demanding motor control
ABB ACS580-04-585A-4	Heavy-duty frequency converter for large industrial systems

Applications

The ABB ACS580-01-07A3-4 Frequency Converter is a compact industrial drive designed to deliver efficient motor control, reliable speed adjustment, and stable performance for a wide range of automation applications. With its optimized design and advanced control functions, this frequency converter provides a practical solution for industries requiring smooth motor operation, energy optimization, and dependable process control.

This model is suitable for applications including pumps, fans, conveyors, compressors, mixers, HVAC equipment, and general industrial machinery. It helps regulate motor speed according to actual operating conditions, improving energy efficiency while reducing mechanical wear and maintaining consistent equipment performance.

The ACS580-01-07A3-4 is an ideal choice for OEM manufacturers, machine builders, and industrial operators looking for a flexible frequency converter with compact installation, reliable functionality, and long-term operational stability.

Advantages

The ABB ACS580-01-07A3-4 combines efficient drive technology with a compact structure to provide reliable and flexible motor management.

Efficient Motor Control: Provides precise speed regulation and stable motor operation for improved process performance.
Energy Saving Capability: Helps reduce energy consumption by adjusting motor output according to application requirements.
Compact Installation Design: Allows convenient integration into control cabinets and machinery systems with limited space.
Easy System Setup: Simplifies commissioning and configuration for faster deployment.
Flexible Industrial Applications: Supports various motor-driven equipment including pumps, fans, and conveyors.
Integrated Drive Functions: Reduces system complexity by providing essential control and monitoring features.
Reliable Operation Performance: Designed for continuous industrial use with stable and dependable operation.

Technical FAQs

1. What is the ABB ACS580-01-07A3-4 Frequency Converter mainly used for?
It is used to control the speed and operation of three-phase AC motors in industrial automation systems.

2. What motor types are compatible with this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial equipment.

3. Does the ACS580-01-07A3-4 support advanced motor control functions?
Yes. It provides accurate motor control functions for improved speed regulation and operational stability.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication options for connection with automation control systems.

5. What applications are suitable for this model?
It is commonly used for pumps, fans, conveyors, compressors, mixers, and general machinery.

6. Does this drive include motor protection functions?
Yes. It includes monitoring and protection features to improve equipment reliability.

7. How are parameters configured on the ACS580-01-07A3-4?
Parameters can be configured through the drive interface and compatible commissioning tools.

8. Can this frequency converter improve energy efficiency?
Yes. It helps optimize motor operation by adjusting speed according to actual load requirements.

9. Is this model suitable for continuous industrial operation?
Yes. It is designed to provide reliable performance in industrial environments requiring long operating periods.

10. Can the ACS580-01-07A3-4 be used in equipment modernization projects?
Yes. It can be applied in suitable upgrade projects when electrical and application requirements are compatible.
