Introduction

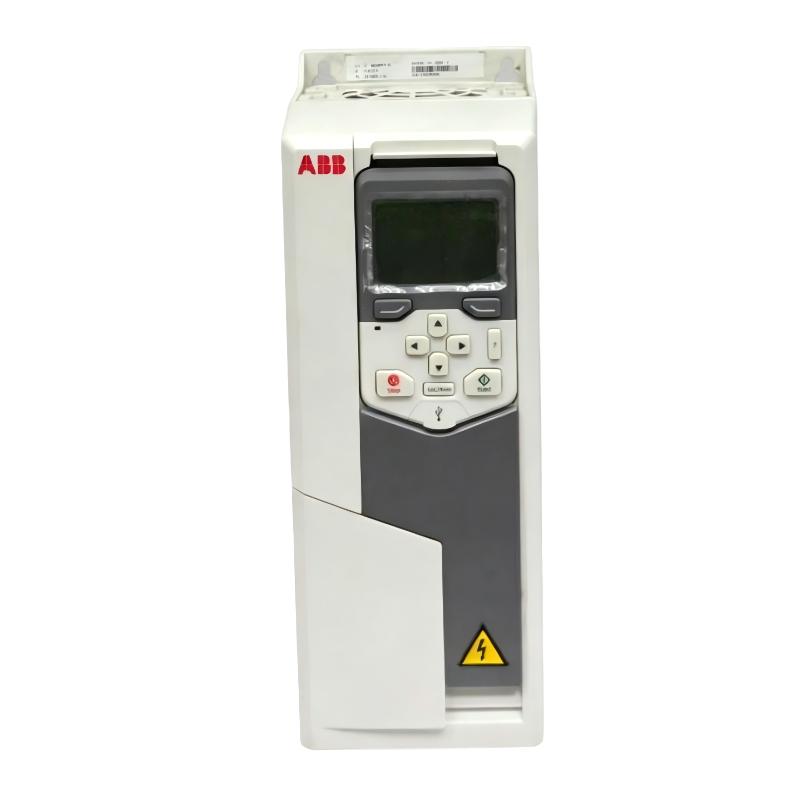

The ABB ACS580-01-09A5-4 Frequency Converter is a general-purpose AC drive designed to deliver efficient and dependable motor control for modern industrial applications. As part of the ACS580 family, it combines practical functionality, flexible operation, and reliable performance to support various automation requirements.

Featuring a compact wall-mounted design, this frequency converter provides an effective solution for low-power motor applications while maintaining excellent operational stability. Its intelligent control features help simplify installation, improve energy management, and enhance overall equipment efficiency.

With its reliable construction and broad application capability, the ACS580-01-09A5-4 provides a professional drive solution for industries seeking improved productivity, reduced energy costs, and dependable motor control performance.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-09A5-4
Product ID	3ABD50000038952
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	9.4A
Rated Power	4 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	50/60 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R1
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	303 × 125 × 223 mm
Weight	4.6 kg (10.14 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-05A7-4	Compact frequency converter for low-power motor applications
ABB ACS580-01-07A3-4	Efficient drive solution for industrial automation systems
ABB ACS580-01-12A7-4	Higher-capacity frequency converter for expanded motor requirements
ABB ACS580-01-018A-4	Reliable industrial drive for medium applications

Popular Related Models

Model	Description
ABB ACS580-01-026A-4	General-purpose frequency converter for automation equipment
ABB ACS580-01-033A-4	Reliable motor control solution for industrial machinery
ABB ACS580-01-046A-4	Flexible drive solution for medium-power applications
ABB ACS880-01-061A-3	Advanced industrial drive for demanding applications
ABB ACS580-04-585A-4	Heavy-duty frequency converter for large industrial systems

Applications

The ABB ACS580-01-09A5-4 Frequency Converter is a compact industrial drive designed to provide efficient motor control, smooth operation, and reliable performance for a wide range of automation applications. With its flexible control capability and practical design, this frequency converter delivers stable speed regulation and optimized motor management for industrial systems requiring dependable operation.

This model is widely applied in pumps, fans, conveyors, compressors, mixers, HVAC equipment, and general machinery. By adjusting motor speed according to actual process requirements, it helps improve energy efficiency, reduce mechanical stress, and maintain consistent equipment performance.

The ACS580-01-09A5-4 is suitable for OEM manufacturers, machine builders, and industrial users who need a reliable frequency converter with easy integration, efficient operation, and long-term service capability.

Advantages

The ABB ACS580-01-09A5-4 combines advanced drive technology with a compact industrial structure to deliver efficient and stable motor control performance.

Accurate Motor Control: Provides precise speed and torque regulation for smooth equipment operation.
Energy Saving Operation: Helps optimize power consumption by adjusting motor performance according to actual load demand.
Compact Design: Supports flexible installation in control panels and machinery systems with limited space.
Simple Commissioning: Reduces setup complexity through user-friendly configuration functions.
Versatile Application Support: Suitable for various industrial equipment requiring variable-speed control.
Integrated Protection Functions: Helps improve system reliability through built-in monitoring and control features.
Reliable Industrial Performance: Designed for continuous operation in automation and manufacturing environments.

Technical FAQs

1. What is the ABB ACS580-01-09A5-4 Frequency Converter mainly used for?
It is used to control the speed and operation of three-phase AC motors in industrial applications.

2. What motor types are compatible with this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial machinery.

3. Does the ACS580-01-09A5-4 support advanced motor control functions?
Yes. It provides accurate motor control functions for improved speed regulation and stable performance.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication options for connection with automation control systems.

5. What applications are suitable for this model?
It is suitable for pumps, fans, conveyors, compressors, mixers, and general industrial equipment.

6. Does this drive include motor protection features?
Yes. It provides monitoring and protection functions to improve equipment reliability.

7. How are parameters configured on the ACS580-01-09A5-4?
Parameters can be configured through the drive interface and compatible commissioning tools.

8. Can this frequency converter improve energy efficiency?
Yes. It helps reduce unnecessary energy consumption by optimizing motor speed according to operating conditions.

9. Is this model suitable for continuous industrial operation?
Yes. It is designed to provide reliable performance in industrial environments requiring long operating periods.

10. Can the ACS580-01-09A5-4 be used for upgrading existing systems?
Yes. It can be applied in suitable modernization projects when electrical specifications and application requirements are compatible.
