Where It Excels in Industrial Use

• Compact Shaft Vibration and Position Monitoring:

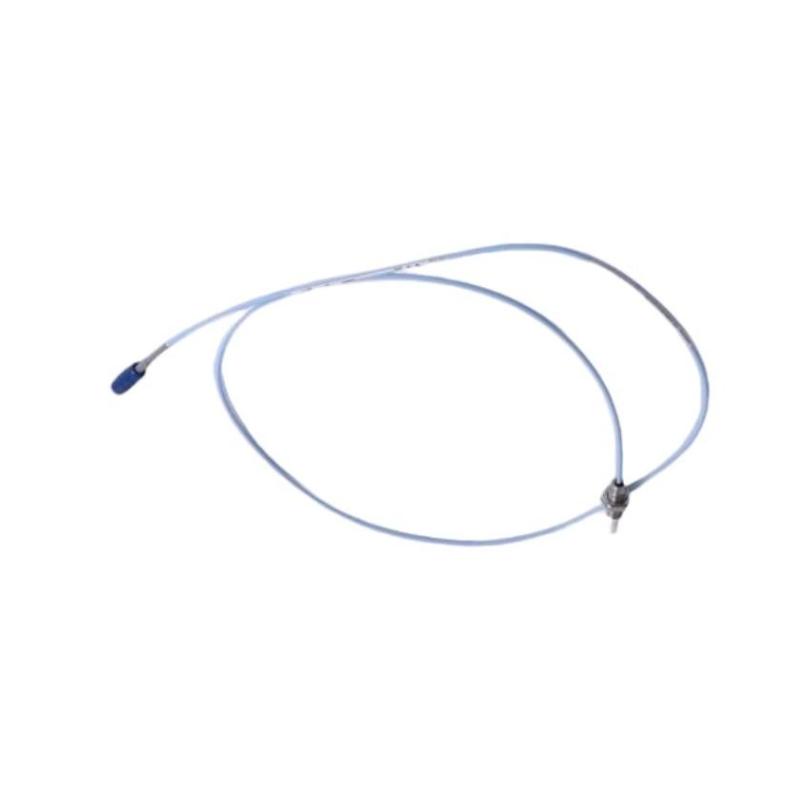

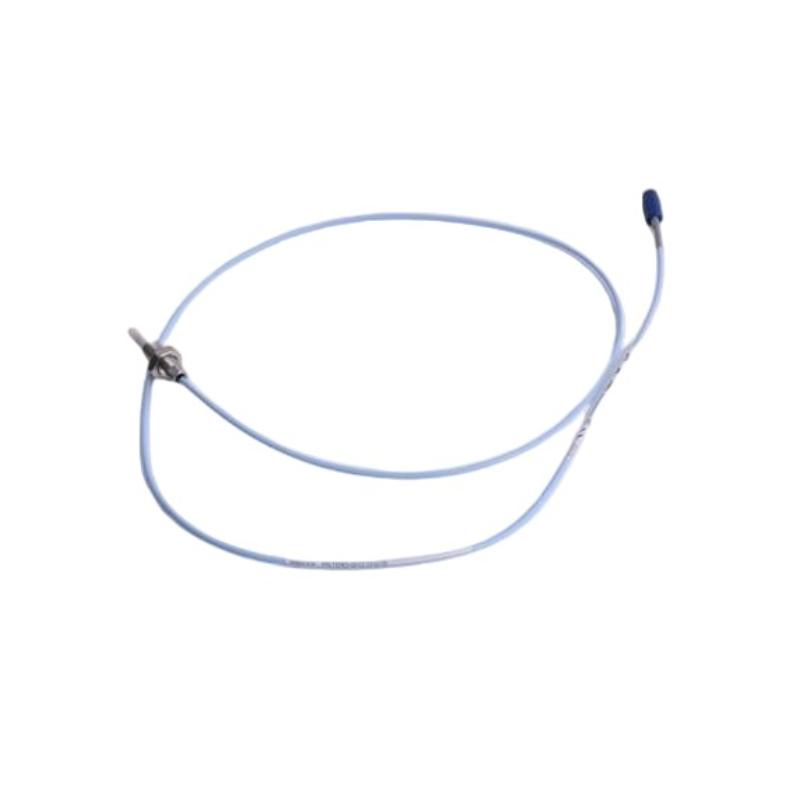

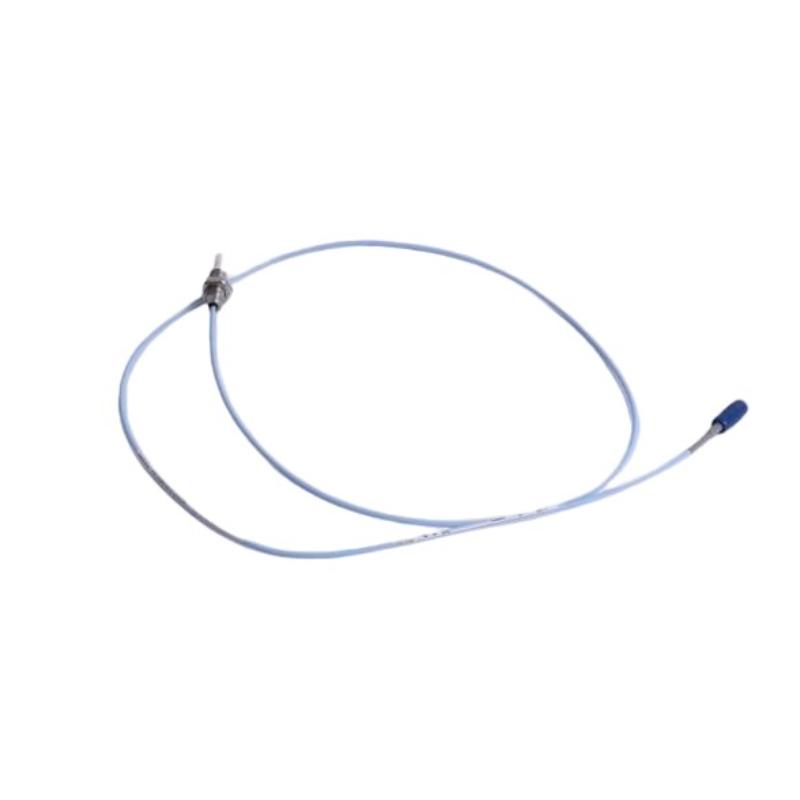

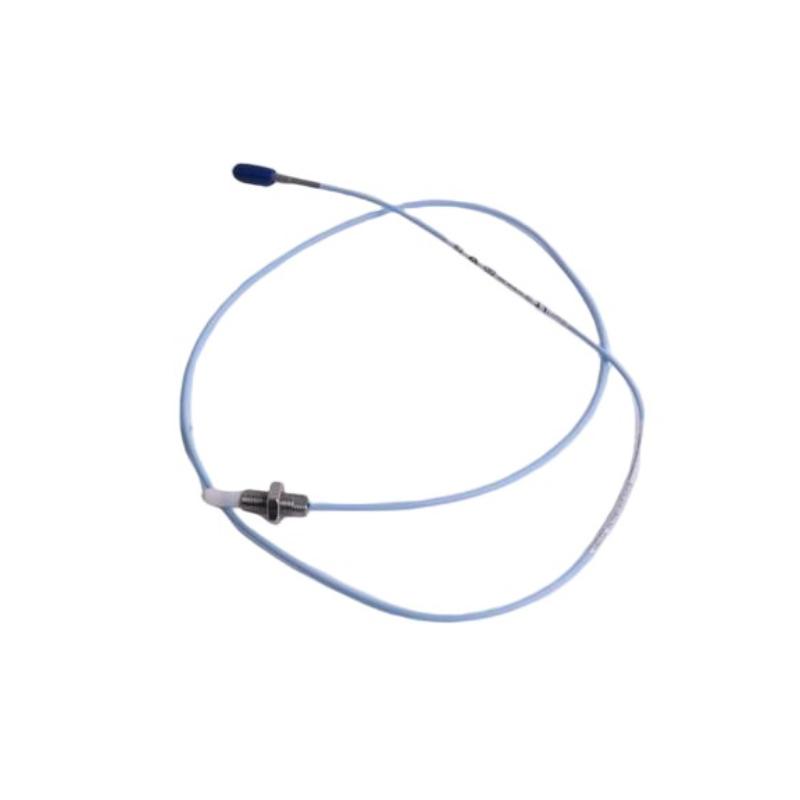

The Bently Nevada 330905-02-10-05-02-CN is a 3300 NSv Proximity Probe designed for non-contact measurement of shaft displacement, radial vibration, and rotor position. It uses eddy-current sensing technology and is typically installed with compatible Bently Nevada Proximitor sensors and machinery protection systems.

• Small Rotating Machinery Protection Applications:
This M10 × 1 metric probe is designed for compact machinery installations where mounting space is limited. Typical applications include compressors, pumps, motors, turbines, and auxiliary rotating equipment requiring reliable shaft monitoring.

• Short Cable Installation Requirements:
The model uses a 0.5 m total length configuration, making it suitable for installations where the probe is mounted close to the Proximitor sensor or where a short probe assembly is preferred.

• Machinery Condition Monitoring and Protection:
When combined with a compatible monitoring module, the probe provides vibration and displacement signals used for detecting imbalance, misalignment, shaft instability, and other mechanical conditions in critical rotating assets.

Key Advantages at a Glance

• High-Accuracy Eddy Current Measurement:
Provides non-contact shaft measurement without mechanical wear, enabling continuous monitoring of high-speed rotating equipment.

• 3300 NSv M10 × 1 Metric Design:
The probe uses an M10 × 1 thread and a non-armored construction, making it suitable for compact machinery applications.

• 20 mm Unthreaded Length:
The first configuration option 02 identifies a 20 mm unthreaded length design, allowing flexible mounting depth adjustment.

• 100 mm Overall Case Length:
The 10 option specifies a 100 mm overall case length configuration.

• Miniature Coaxial ClickLoc Connector:
The 02 connector option uses a miniature coaxial ClickLoc connector with standard cable for reliable signal transmission.

• CN Approval Configuration:
The -CN suffix indicates a country-specific approval option for installations requiring regional certification compliance.

Technical FAQs

1. What is the primary function of the Bently Nevada 330905-02-10-05-02-CN?
It measures shaft displacement and vibration using non-contact eddy-current proximity sensing technology.

2. Which product family does this probe belong to?
It belongs to the Bently Nevada 3300 NSv Proximity Probe family.

3. What thread type does this probe use?
It uses an M10 × 1 metric thread without armor.

4. What does the "-02" first option represent?
It represents the 20 mm unthreaded length configuration.

5. What does the "-10" option represent?
It represents the 100 mm overall case length configuration.

6. What does the "-05" option represent?
It represents the 0.5 m (20 in) total length configuration.

7. What connector type is included?
It uses a miniature coaxial ClickLoc connector with standard cable.

8. Does the probe operate independently?
No. It requires a compatible Bently Nevada Proximitor Sensor and monitoring system for signal conditioning and analysis.

9. What machines commonly use this probe?
Typical applications include:

• Centrifugal compressors.
• Pumps.
• Motors.
• Small turbines.
• Process rotating equipment.

10. What should be checked before replacement?
Verify:

• Thread specification (M10 × 1).
• Unthreaded length.
• Case length.
• Total system length.
• Connector type.
• Approval requirements.
• Compatibility with the installed Proximitor system.
