Brand:Bently Nevada PLC Item No.:330905-06-14-10-02-00 Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

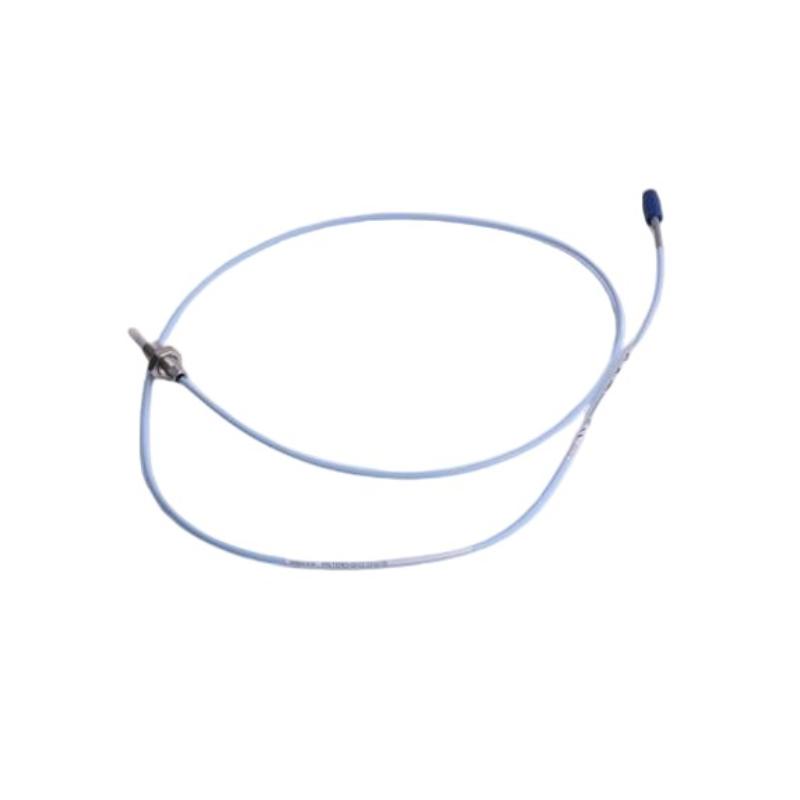

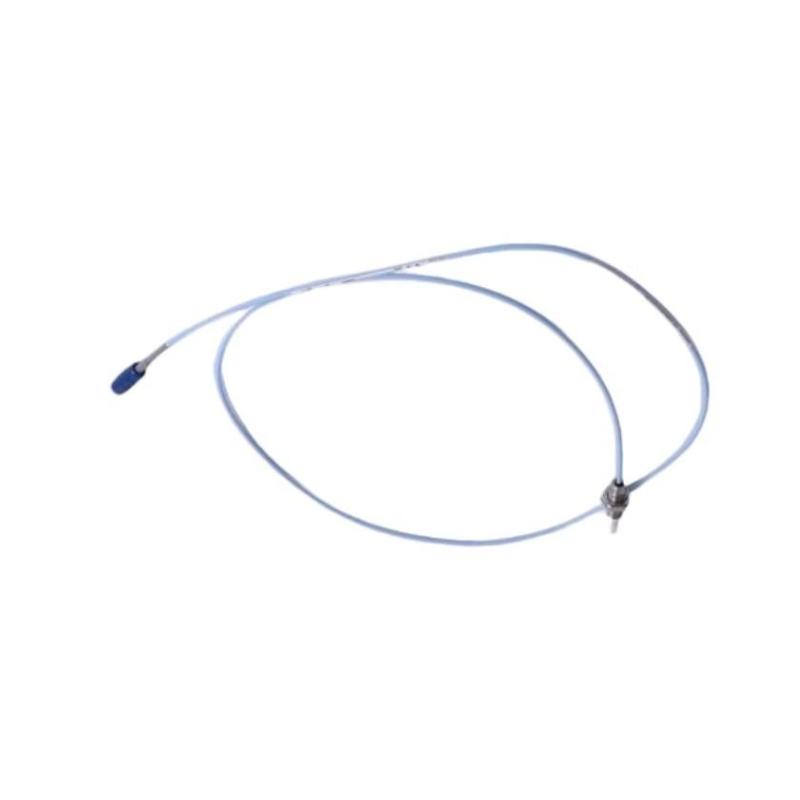

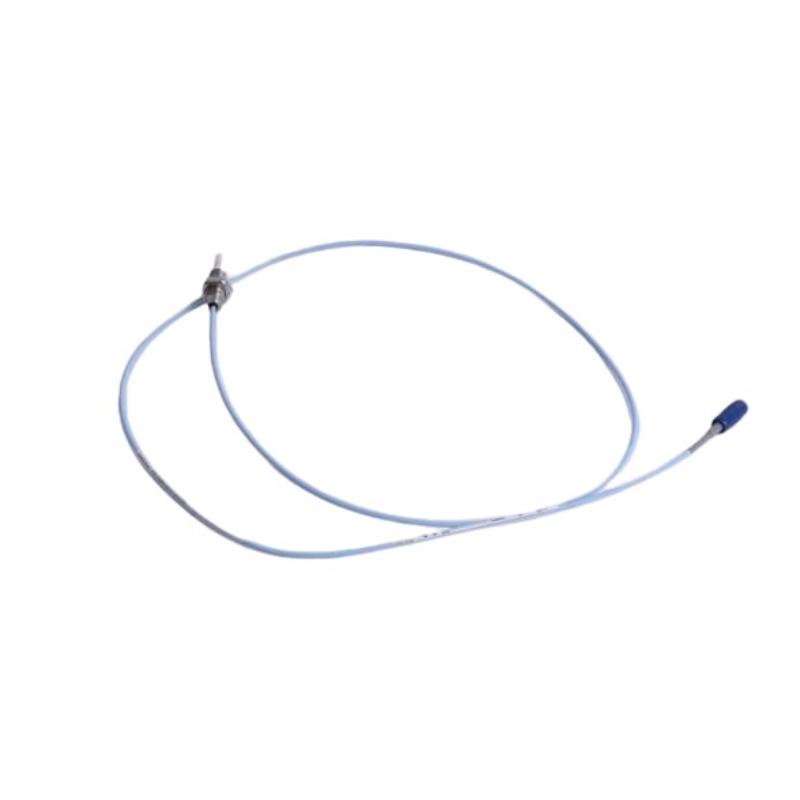

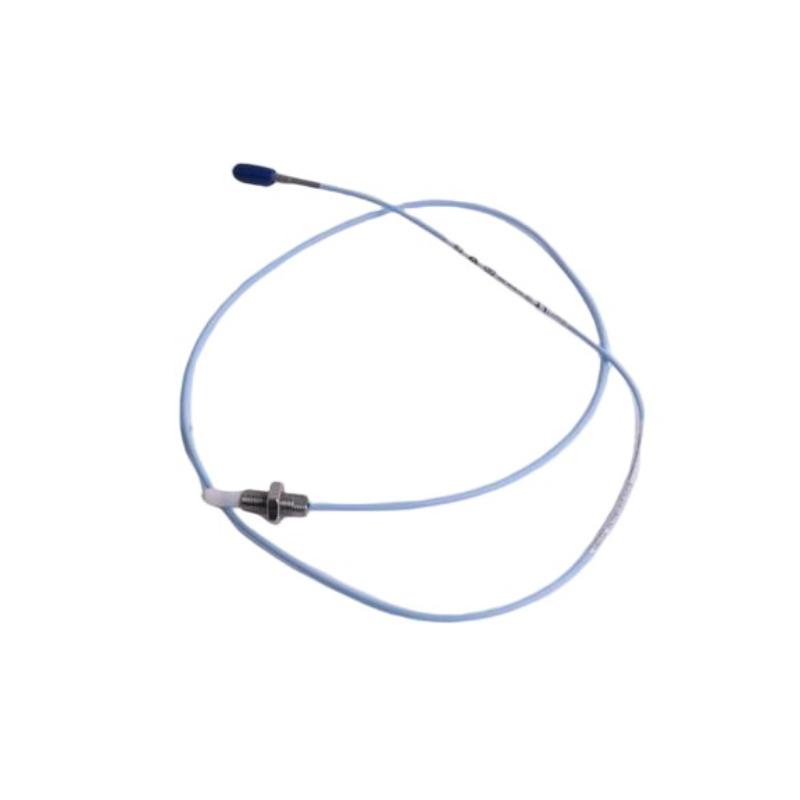

The Bently Nevada 330905-06-14-10-02-00 Proximity Probe is a 3300 NSv series sensor designed for precise shaft vibration and displacement monitoring in industrial rotating equipment. Featuring an M10 × 1 metric thread, 140 mm probe case length, 1.0 m total length, and standard ClickLoc cable connection, it provides a reliable monitoring solution for applications requiring accurate shaft measurement and flexible installation.
Built for integration with Bently Nevada machinery protection systems, this proximity probe helps improve equipment availability by delivering consistent vibration and position data for condition monitoring and predictive maintenance applications.
Technical Specifications
Specification
Details
Manufacturer
Bently Nevada
Model
330905-06-14-10-02-00
Product Type
3300 NSv Proximity Probe
Measurement Technology
Eddy Current Non-Contact Displacement Measurement
Thread Type
M10 × 1 Metric
Probe Construction
Without Armor
Unthreaded Length
60 mm
Overall Case Length
140 mm
Total Length
1.0 m
Connector Type
Miniature Coaxial ClickLoc Connector
Cable Type
Standard Cable
Approval Option
No Agency Approval Required
Compatible System
3300 XL NSv Proximity Transducer System
Application
Shaft Vibration and Position Monitoring
Operating Temperature
-34°C to +177°C
Dimensions
Approx. 140 mm probe case length with 1.0 m total system length
Weight
Approx. 0.15 kg
Recommended Companion Models
Model
Product Name
330180-51-00
3300 XL NSv Proximitor Sensor
330130-040-00-00
3300 XL Extension Cable Assembly
3500/40M-01
Proximitor Monitor Module
3500/42M-01
Proximitor/Seismic Monitor Module
Frequently Selected Alternatives
Model
Product Name
330905-06-10-10-02-00
3300 NSv Proximity Probe with 100 mm Case Length
330905-06-14-05-02-00
3300 NSv Proximity Probe with 0.5 m Total Length
330905-06-14-10-02-05
3300 NSv Proximity Probe with Multiple Approvals
330905-06-25-10-02-00
3300 NSv Proximity Probe with 250 mm Case Length
Where It Excels in Industrial Use
• Rotating Equipment Vibration Monitoring:
Designed for continuous shaft vibration and displacement measurement, this 3300 NSv proximity probe supports reliable monitoring of compressors, pumps, motors, turbines, and other rotating machinery.
• Applications Requiring Extended Probe Reach:
The 140 mm case length configuration provides additional installation flexibility for equipment where standard probe lengths are not suitable.
• Compact Machinery Protection Systems:
The M10 × 1 threaded design enables installation in limited spaces while maintaining accurate shaft position and vibration measurement performance.
• Industrial Predictive Maintenance Programs:
Provides dependable shaft movement data for detecting imbalance, misalignment, rotor instability, and other mechanical conditions before equipment failure occurs.
Key Strengths at a Glance
• High-Accuracy Eddy Current Technology:
Delivers stable, non-contact displacement measurement with excellent repeatability for demanding rotating equipment applications.
• 3300 NSv Compact Sensor Design:
Combines a small physical footprint with reliable measurement performance, making it suitable for applications with restricted mounting space.
• Flexible Mechanical Configuration:
The 60 mm unthreaded length and 140 mm case length configuration provide installation adaptability for various machinery designs.
• Reliable Standard Cable Interface:
The miniature coaxial ClickLoc connector with standard cable ensures dependable signal transmission and convenient system integration.
Technical FAQs
1. What is the primary function of the Bently Nevada 330905-06-14-10-02-00?
The probe measures shaft vibration, radial displacement, and shaft position through non-contact eddy current sensing technology.
2. Which product family does this proximity probe belong to?
This model belongs to the Bently Nevada 3300 NSv Proximity Probe family.
3. What sensing principle does this probe use?
The probe uses eddy current technology to measure the distance between the probe tip and the rotating shaft surface.
4. Which electronic module is required for this probe to operate?
The probe requires a compatible Bently Nevada Proximitor Sensor to condition the signal and interface with a monitoring system.
5. What industrial equipment can use this proximity probe?
It is commonly used on compressors, pumps, motors, turbines, and other critical rotating machinery.
6. What type of signals can this probe provide?
It provides dynamic vibration signals and static shaft position measurements for machinery protection and condition monitoring.
7. Can this probe directly connect to a PLC or DCS system?
No, the probe must operate through a compatible Proximitor Sensor before connection to a control or monitoring platform.
8. What advantages does the 3300 NSv series provide?
The 3300 NSv series provides compact installation capability with accurate measurement performance for small and medium rotating machinery applications.
9. What should be checked before replacing an existing proximity probe?
Users should verify probe model family, thread type, cable configuration, total length, and compatibility with the existing monitoring system.
10. Why are proximity probes important for machinery protection?
They provide real-time shaft movement information that helps identify developing mechanical problems and supports preventive maintenance decisions.
