Brand:Bently Nevada PLC Item No.:330905-07-17-05-02-05 Product Origin:USA Product Dimensions:650 × 120 × 90 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

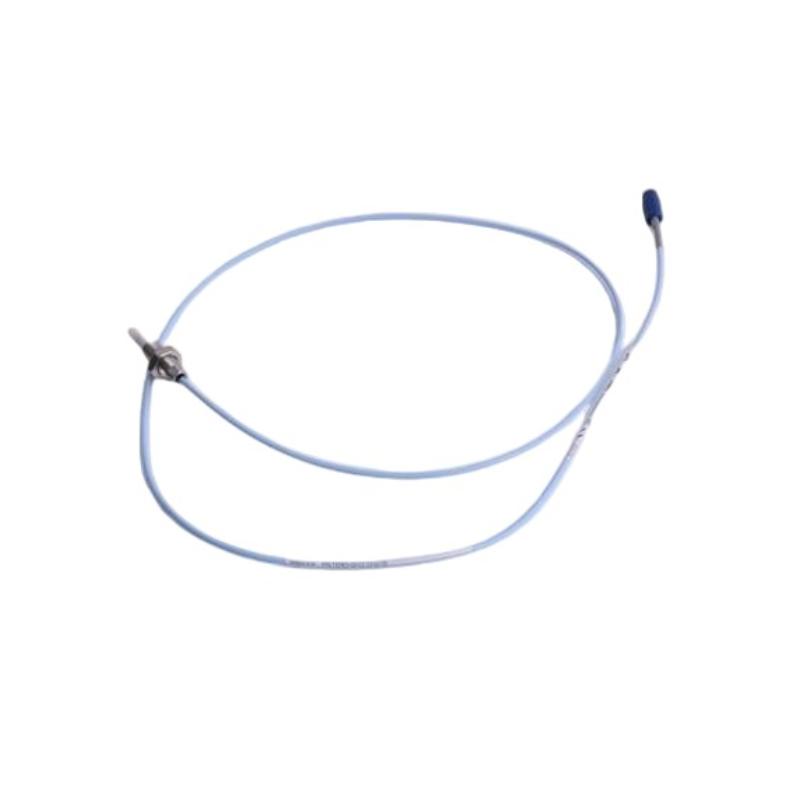

The Bently Nevada 330905-07-17-05-02-05 Proximity Probe is a 3300 NSv series sensor engineered for accurate shaft vibration and displacement monitoring in compact rotating machinery applications. Featuring an M10 × 1 threaded design, narrow side view construction, 170 mm case length, and 0.5 m total system length, it delivers dependable performance where installation space and measurement accuracy are critical.
Designed for integration with Bently Nevada machinery protection systems, this proximity probe provides reliable condition monitoring data to improve equipment availability, enhance maintenance planning, and protect valuable rotating assets.
Technical Specifications
Specification
Details
Manufacturer
Bently Nevada
Model
330905-07-17-05-02-05
Product Type
3300 NSv Proximity Probe
Measurement Technology
Eddy Current Non-Contact Displacement Measurement
Probe Design
Narrow Side View (NSv)
Thread Type
M10 × 1 Metric
Probe Construction
Without Armor
Unthreaded Length
70 mm
Overall Case Length
170 mm
Total Length
0.5 m
Connector Type
Miniature Coaxial ClickLoc Connector
Cable Type
Standard Cable
Approval Option
Multiple Approvals
Compatible System
3300 XL NSv Proximity Transducer System
Application
Shaft Vibration and Position Monitoring
Dimensions
Approx. 170 mm probe case length with 0.5 m total system length
Weight
Approx. 0.15 kg
Recommended Companion Models
Model
Product Name
330180-51-00
3300 XL NSv Proximitor Sensor
330130-040-00-00
3300 XL Extension Cable Assembly
3500/40M-01
Proximitor Monitor Module
3500/42M-01
Proximitor/Seismic Monitor Module
Frequently Selected Alternatives
Model
Product Name
330905-07-17-05-02-00
3300 NSv Proximity Probe with Standard Approval Configuration
330905-07-10-05-02-05
3300 NSv Proximity Probe with 100 mm Case Length
330905-07-17-10-02-05
3300 NSv Proximity Probe with 1.0 m Total Length
330905-07-25-05-02-05
3300 NSv Proximity Probe with 250 mm Case Length
Where It Excels in Industrial Use
• Compact High-Speed Machinery Monitoring:
Designed for rotating equipment with limited installation space, this 3300 NSv proximity probe provides accurate shaft vibration and position measurement for compressors, turbines, gearboxes, and other high-speed machinery.
• Precision Shaft Displacement Measurement:
Uses non-contact eddy current technology to monitor radial vibration, shaft position, and clearance changes with reliable measurement stability in demanding operating environments.
• Restricted Installation Area Applications:
The narrow side view design allows installation flexibility in compact machinery structures where conventional proximity probes may not be suitable.
• Continuous Machinery Protection Systems:
Integrates with Bently Nevada 3300 XL NSv Proximitor Sensors and monitoring platforms to support predictive maintenance and equipment protection strategies.
Key Strengths at a Glance
• Advanced Non-Contact Sensing Technology:
Provides accurate shaft movement measurement without mechanical contact, reducing wear and improving long-term monitoring reliability.
• 3300 NSv Narrow Side View Design:
Offers a compact sensing solution for applications requiring installation flexibility around smaller shafts and confined mounting locations.
• Multiple Approval Configuration:
The -05 approval option supports installations requiring additional certification flexibility for industrial applications.
• Reliable Long-Distance Signal Transmission:
The standard ClickLoc connector and extended cable configuration support dependable connection between the probe and Proximitor Sensor.
Technical FAQs
1. What is the primary function of the Bently Nevada 330905-07-17-05-02-05?
The probe measures shaft vibration, displacement, and position using non-contact eddy current sensing technology.
2. Which product family does this probe belong to?
This model belongs to the Bently Nevada 3300 NSv Proximity Probe family.
3. What sensing principle does this probe use?
It uses eddy current technology to detect changes in the distance between the probe tip and the rotating shaft.
4. Which Proximitor Sensor is compatible with this probe?
The probe is designed to operate with compatible 3300 XL NSv Proximitor Sensors.
5. What type of machinery commonly uses this proximity probe?
It is commonly used on compressors, turbines, gearboxes, refrigeration compressors, and other rotating equipment requiring shaft monitoring.
6. What measurements can this probe provide?
It can provide shaft vibration, radial displacement, axial position, and clearance measurement signals when integrated with a suitable monitoring system.
7. Can this probe operate without a Proximitor Sensor?
No, the probe requires a compatible Proximitor Sensor to convert the raw displacement signal into a usable output.
8. Why is the 3300 NSv series suitable for compact machinery?
The series uses a smaller probe design optimized for applications where installation space and target size are limited.
9. What should be confirmed before replacing this probe?
Users should verify the probe series, thread configuration, cable length, approval option, and compatibility with the existing monitoring system.
10. Why are proximity probes important in predictive maintenance systems?
They provide continuous shaft condition information that helps identify mechanical problems before they lead to unexpected equipment downtime.
