Introduction

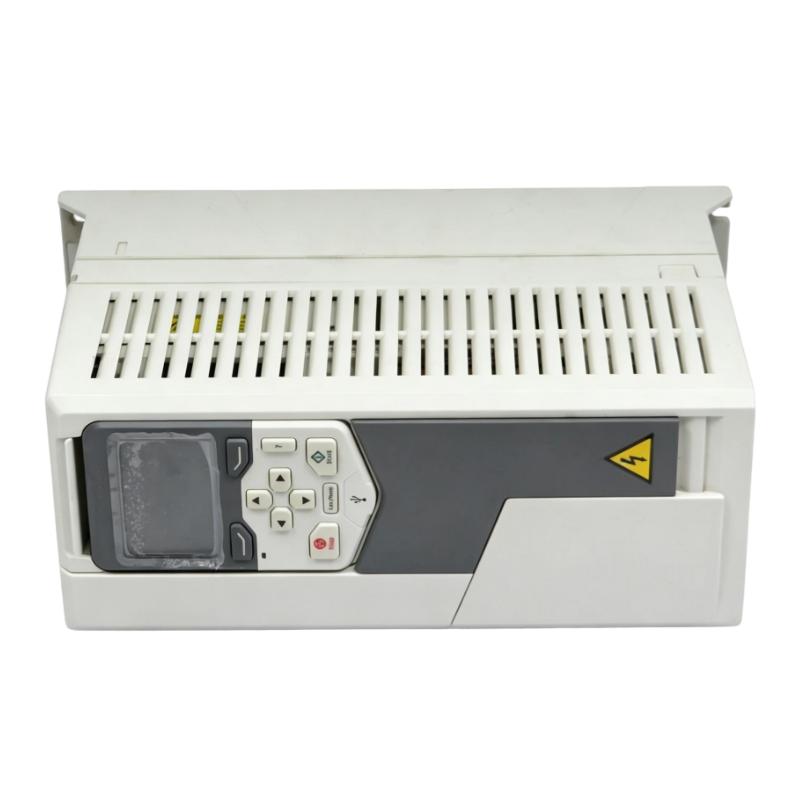

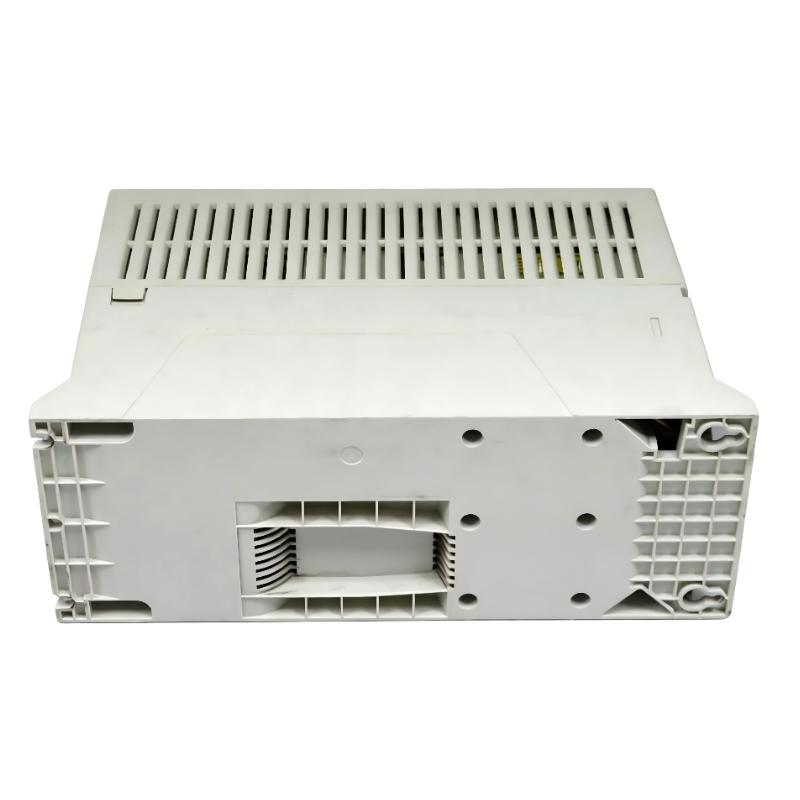

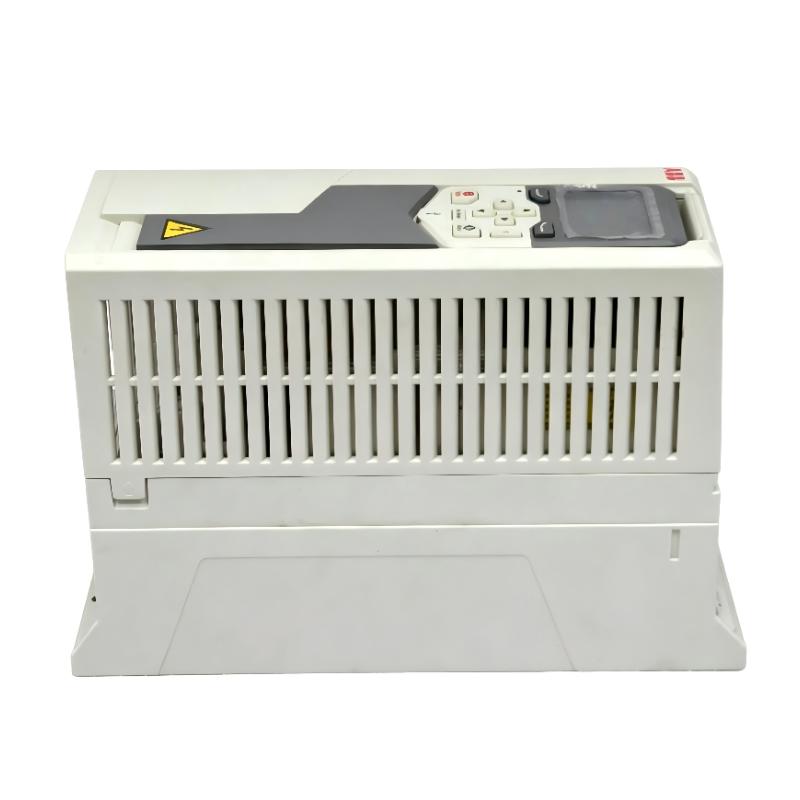

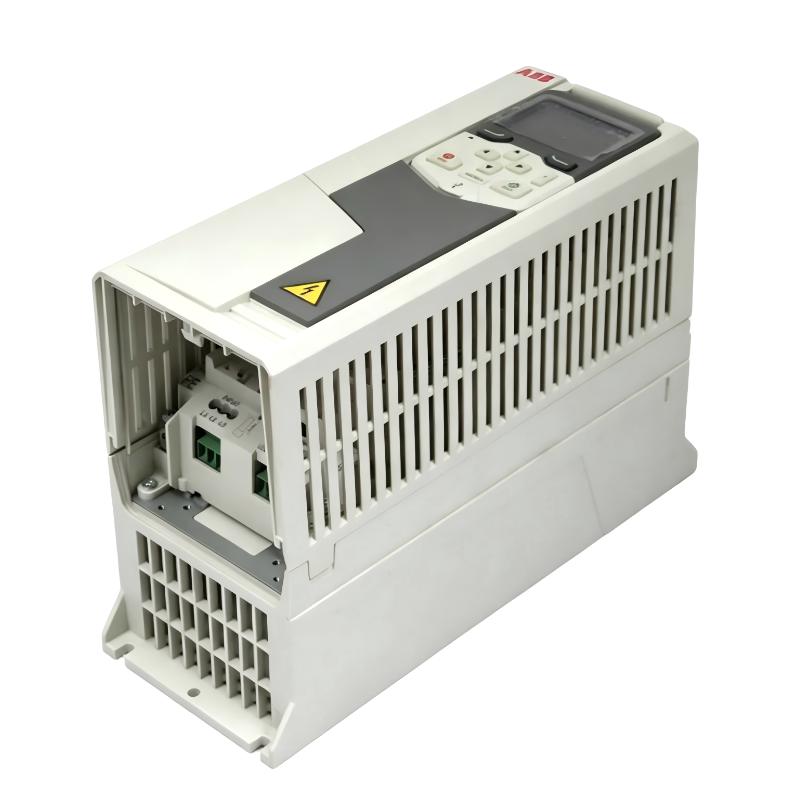

The ABB ACS580-01-09A5-4 Frequency Converter is a general-purpose AC drive developed to deliver efficient and dependable motor control for industrial automation applications. As part of the ACS580 series, it combines practical functionality, flexible operation, and reliable performance to meet the needs of various industries.

Designed with a compact wall-mounted structure, this frequency converter provides an effective solution for controlling low-power motors while maintaining excellent stability and efficiency. Its integrated features help simplify installation, improve process management, and enhance overall equipment performance.

With its balanced combination of reliability, efficiency, and ease of use, the ACS580-01-09A5-4 provides a professional motor control solution for industries seeking improved productivity and dependable automation operation.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-09A5-4
Product ID	3AXD50000038952
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	9.4A
Rated Power	4 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	50/60 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R1
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	373 × 125 × 223 mm
Weight	4.6 kg (10.14 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-05A7-4	Compact frequency converter for low-power applications
ABB ACS580-01-07A3-4	Efficient drive solution for industrial automation systems
ABB ACS580-01-12A7-4	Higher-capacity frequency converter for expanded applications
ABB ACS580-01-018A-4	Reliable drive solution for medium industrial systems

Popular Related Models

Model	Description
ABB ACS580-01-026A-4	General-purpose frequency converter for industrial equipment
ABB ACS580-01-033A-4	Flexible motor control solution for machinery applications
ABB ACS580-01-046A-4	Efficient drive for medium-power industrial systems
ABB ACS880-01-061A-3	Advanced industrial drive for demanding applications
ABB ACS580-04-585A-4	Heavy-duty frequency converter for large industrial systems

Applications

The ABB ACS580-01-09A5-4 Frequency Converter is a compact and efficient industrial drive designed to provide precise motor control, smooth speed regulation, and reliable performance for modern automation systems. With its practical design and flexible control capability, this frequency converter supports stable operation across a wide range of industrial applications.

This model is commonly used in pumps, fans, conveyors, compressors, mixers, extruders, and general machinery. It helps optimize motor performance by adjusting speed according to actual process requirements, improving energy efficiency while reducing unnecessary mechanical stress and operational costs.

The ACS580-01-09A5-4 is suitable for OEM equipment manufacturers, machine builders, and industrial operators requiring a dependable drive solution with simple commissioning, compact installation, and consistent long-term performance.

Advantages

The ABB ACS580-01-09A5-4 combines reliable drive technology with a compact industrial structure to deliver efficient motor control and flexible application performance.

Advanced Motor Control: Provides accurate speed and torque regulation for smooth equipment operation.
Energy Optimization: Helps reduce energy consumption by matching motor speed with actual process requirements.
Space-Saving Design: Compact structure allows flexible installation in automation cabinets and machinery systems.
Easy Configuration: Simplifies commissioning through intuitive setup and parameter adjustment.
Broad Application Flexibility: Suitable for variable torque and constant torque industrial applications.
Integrated Drive Functions: Reduces system complexity with built-in control and monitoring features.
Reliable Operation: Designed to support stable performance in industrial environments.

Technical FAQs

1. What is the ABB ACS580-01-09A5-4 Frequency Converter used for?
It is used to control the speed and operation of three-phase AC motors in industrial automation systems.

2. What type of motors can be controlled by this frequency converter?
It is designed for three-phase AC induction motors commonly applied in industrial equipment.

3. Does the ACS580-01-09A5-4 support vector control?
Yes. It provides advanced motor control functions for improved speed accuracy and torque response.

4. Can this frequency converter communicate with PLC systems?
Yes. It supports industrial communication options for integration with automation control systems.

5. What applications are suitable for this model?
It is suitable for pumps, fans, conveyors, compressors, mixers, and other motor-driven equipment.

6. Does this drive include protection functions?
Yes. It provides monitoring and protection functions to improve system reliability.

7. How are parameters configured on the ACS580-01-09A5-4?
Parameters can be adjusted through the drive interface and compatible commissioning tools.

8. Can this frequency converter improve energy efficiency?
Yes. It helps optimize motor operation by controlling speed according to actual load demand.

9. Is this model suitable for continuous industrial operation?
Yes. It is designed for reliable performance in industrial environments requiring long operating periods.

10. Can the ACS580-01-09A5-4 be used in equipment upgrade projects?
Yes. It can be applied in suitable modernization projects when electrical specifications and application requirements are compatible.
