Introduction

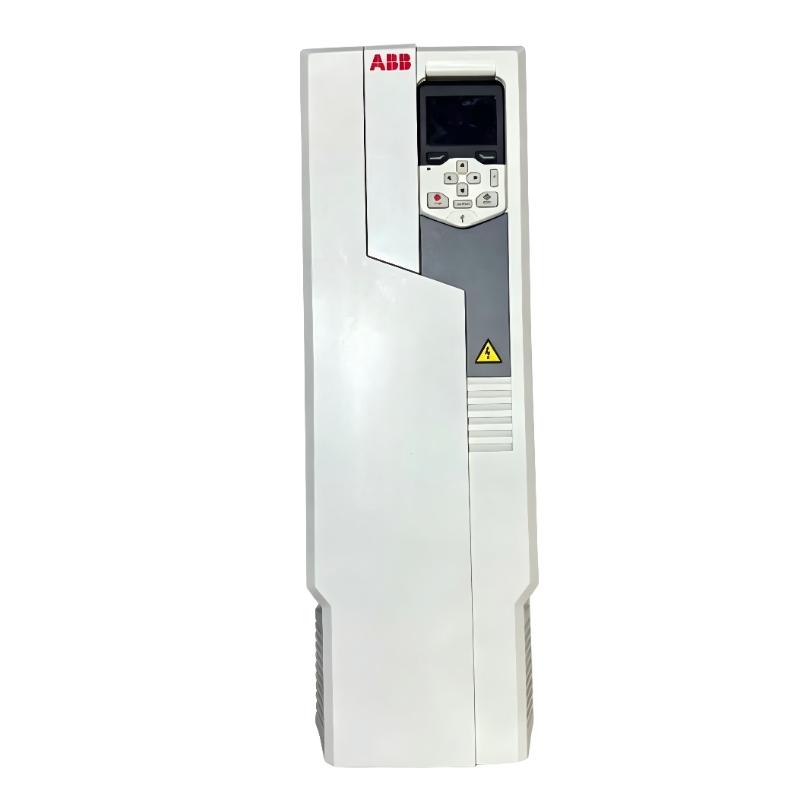

The ABB ACS580-01-106A-4 Frequency Converter is a general-purpose AC drive developed to provide reliable and efficient motor control for modern industrial automation systems. As part of the ACS580 series, it combines strong performance, flexible functionality, and simplified operation to support a wide range of industrial applications.

Designed for medium-power motor systems, this frequency converter delivers excellent control performance while improving energy efficiency and process stability. Its practical wall-mounted structure allows easier installation, maintenance, and integration into industrial systems.

With its reliable construction and versatile application capability, the ACS580-01-106A-4 provides a professional motor control solution for industries requiring improved productivity, optimized energy usage, and dependable automation performance.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-106A-4
Product ID	3ABD00045436-D
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	106A
Rated Power	55 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	50/60 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R5
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	732 × 203 × 295 mm
Weight	37 kg (81.57 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-088A-4	Medium-power frequency converter for industrial motor control
ABB ACS580-01-073A-4	Reliable drive solution for medium-power applications
ABB ACS580-01-145A-4	Higher-capacity frequency converter for larger systems
ABB ACS580-01-169A-4	Heavy-duty industrial drive for demanding applications

Popular Related Models

Model	Description
ABB ACS580-01-033A-4	General-purpose frequency converter for industrial machinery
ABB ACS580-01-046A-4	Flexible motor control solution for automation systems
ABB ACS580-01-062A-4	Reliable drive solution for medium-power equipment
ABB ACS880-01-061A-3	Advanced industrial drive for high-performance applications
ABB ACS580-04-585A-4	Heavy-duty frequency converter for large industrial systems

Applications

The ABB ACS580-01-106A-4 Frequency Converter is a high-performance industrial drive designed to provide efficient motor control, reliable operation, and optimized energy management for medium-power industrial systems. With advanced control capability and a robust design, this frequency converter delivers stable performance for applications requiring accurate speed regulation, smooth torque control, and continuous operation.

This model is widely used in pumps, fans, compressors, conveyors, mixers, extruders, processing equipment, and general industrial machinery. It helps improve system efficiency by adjusting motor speed according to actual operating conditions, reducing unnecessary energy consumption while maintaining reliable equipment performance.

The ACS580-01-106A-4 is an ideal solution for OEM manufacturers, machine builders, and industrial operators seeking a dependable frequency converter with flexible application capability, simplified operation, and long-term industrial reliability.

Advantages

The ABB ACS580-01-106A-4 combines advanced drive technology with a durable industrial structure to provide efficient and stable motor control performance.

High-Performance Motor Control: Provides accurate speed and torque regulation for demanding industrial applications.
Energy Efficient Operation: Helps optimize power usage by matching motor performance with actual process requirements.
Reliable Industrial Construction: Designed for stable operation in manufacturing, automation, and process environments.
Flexible Application Support: Suitable for various variable torque and constant torque applications.
Simplified Commissioning: Reduces setup complexity through user-friendly configuration functions.
Integrated Drive Functions: Supports efficient system design with built-in monitoring and control features.
Long-Term Operational Stability: Provides dependable performance for continuous industrial operation.

Technical FAQs

1. What is the ABB ACS580-01-106A-4 Frequency Converter mainly used for?
It is used to control the speed and operation of medium-power three-phase AC motors in industrial applications.

2. What motor types are compatible with this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial machinery.

3. Does the ACS580-01-106A-4 support advanced motor control functions?
Yes. It provides accurate motor control functions for improved speed regulation and torque performance.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication solutions for connection with automation control systems.

5. What applications are suitable for this model?
It is suitable for pumps, fans, compressors, conveyors, mixers, extruders, and industrial process equipment.

6. Does this drive include motor protection features?
Yes. It provides monitoring and protection functions to improve system reliability.

7. How are parameters configured on the ACS580-01-106A-4?
Parameters can be adjusted through the drive interface and compatible commissioning tools.

8. Can this frequency converter improve energy efficiency?
Yes. It helps optimize motor energy consumption by adjusting speed according to actual operating conditions.

9. Is this model suitable for continuous industrial operation?
Yes. It is designed for reliable performance in industrial environments requiring extended operation.

10. Can the ACS580-01-106A-4 be used for industrial equipment upgrades?
Yes. It can be applied in suitable modernization projects where electrical specifications and application requirements are compatible.
