Introduction

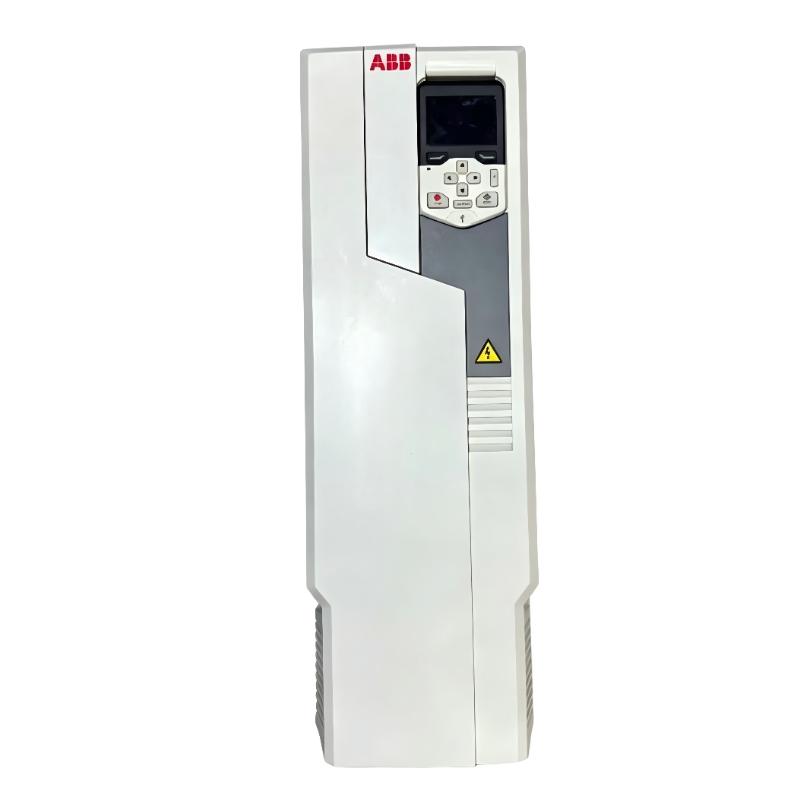

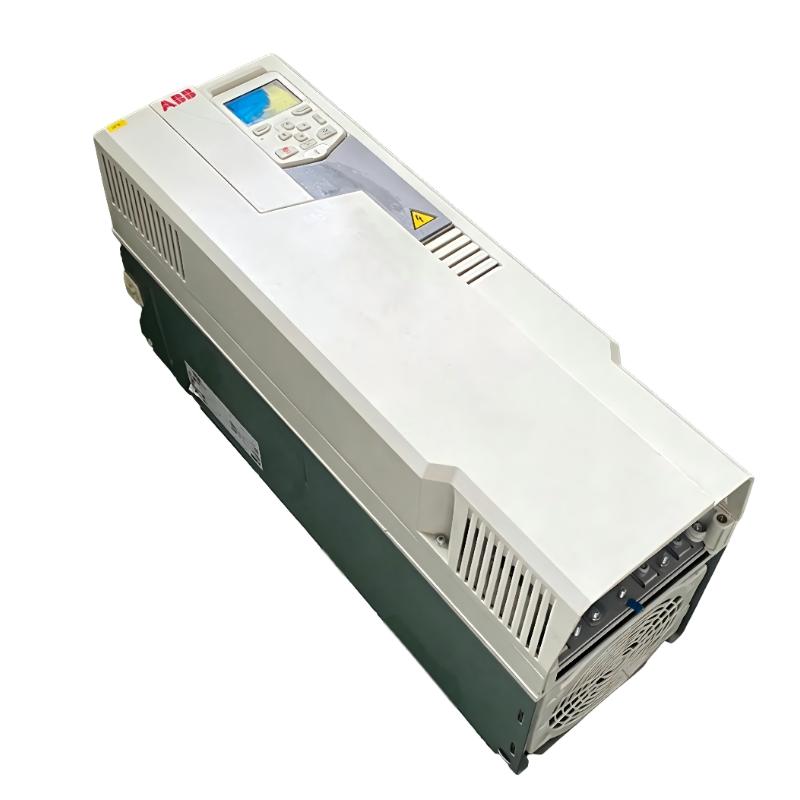

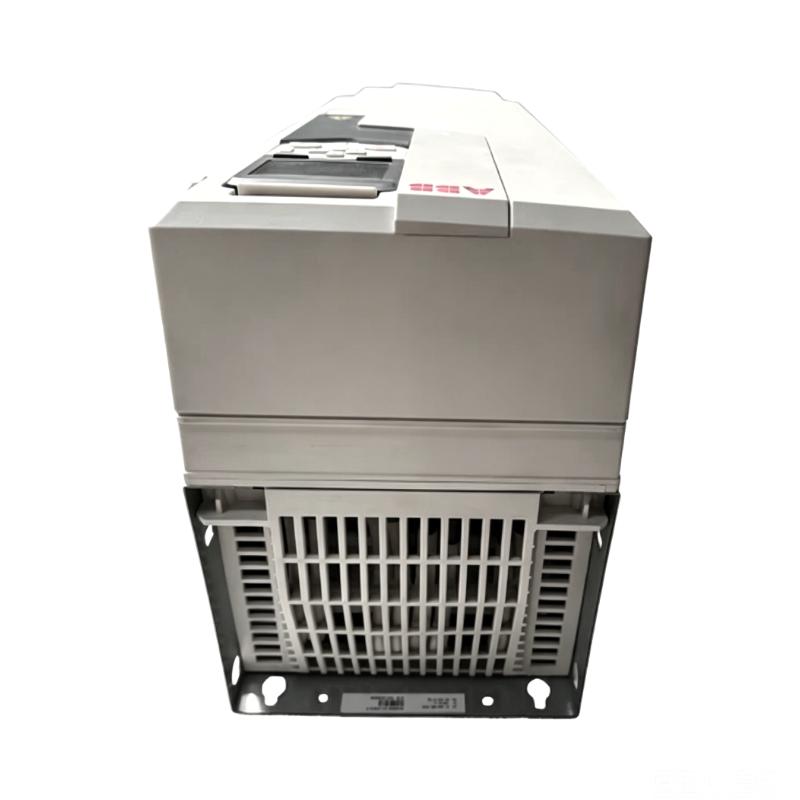

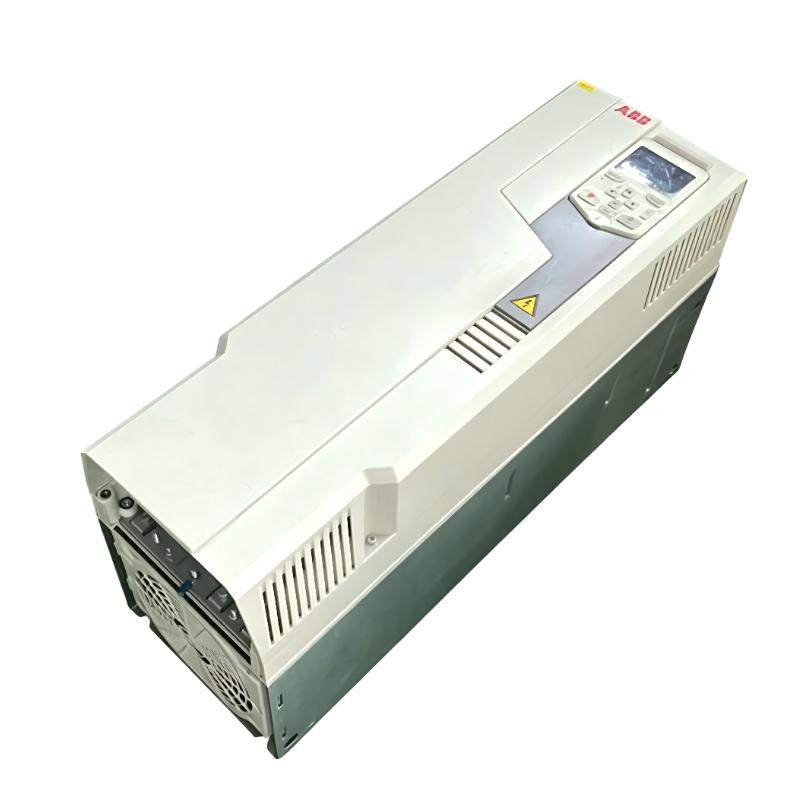

The ABB ACS580-01-106A-4 Frequency Converter is a general-purpose AC drive developed for efficient and reliable motor management in modern industrial environments. Designed as part of the ACS580 series, it provides a balanced combination of performance, flexibility, and simplified operation for various automation requirements.

This frequency converter delivers dependable control for medium-power motors while supporting improved energy management and process efficiency. Its wall-mounted structure and integrated functions help simplify installation, reduce system complexity, and enhance overall equipment reliability.

With its strong industrial capability and versatile application range, the ACS580-01-106A-4 provides a professional motor control solution for industries requiring efficient operation, stable performance, and long-term value.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-106A-4
Product ID	3AUA0000080503
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	106A
Rated Power	55 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	50/60 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R5
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	732 × 203 × 295 mm
Weight	28.3 kg (62.39 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-088A-4	Medium-power frequency converter for industrial motor systems
ABB ACS580-01-073A-4	Reliable drive solution for general industrial applications
ABB ACS580-01-145A-4	Higher-capacity frequency converter for larger motor systems
ABB ACS580-01-169A-4	Heavy-duty industrial drive for demanding applications

Popular Related Models

Model	Description
ABB ACS580-01-026A-4	Compact frequency converter for automation equipment
ABB ACS580-01-033A-4	Efficient motor control solution for industrial machinery
ABB ACS580-01-046A-4	Flexible drive solution for medium-power applications
ABB ACS880-01-061A-3	Advanced industrial drive for high-performance systems
ABB ACS580-04-585A-4	Heavy-duty frequency converter for large industrial applications

Applications

The ABB ACS580-01-106A-4 Frequency Converter is a high-performance industrial drive designed to provide reliable motor control, energy-efficient operation, and stable performance for medium-power automation systems. With its advanced control functions and robust industrial design, this frequency converter offers an effective solution for applications requiring accurate speed regulation, smooth motor operation, and dependable process control.

This model is widely used in pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and various industrial processing equipment. It helps optimize motor performance by adjusting operating speed according to process requirements, improving system efficiency while reducing mechanical stress and unnecessary energy consumption.

The ACS580-01-106A-4 is an excellent choice for OEM manufacturers, machine builders, and industrial users seeking a reliable frequency converter with flexible functionality, simplified operation, and long-term industrial performance.

Advantages

The ABB ACS580-01-106A-4 combines powerful drive technology with a practical industrial design to deliver efficient and dependable motor control.

High-Capacity Motor Control: Provides accurate speed and torque management for medium-power industrial applications.
Energy Optimization Performance: Helps improve energy efficiency by adapting motor operation to actual system demand.
Reliable Industrial Design: Built for stable operation in manufacturing, process control, and automation environments.
Flexible Application Capability: Supports a wide range of variable torque and constant torque applications.
Easy Commissioning Process: Simplifies setup and configuration through intuitive drive functions.
Integrated Control Features: Reduces system complexity with built-in monitoring and drive functions.
Stable Long-Term Operation: Designed to maintain consistent performance in continuous industrial environments.

Technical FAQs

1. What is the ABB ACS580-01-106A-4 Frequency Converter used for?
It is used to control the speed, torque, and operation of three-phase AC motors in industrial applications.

2. What motor types can be controlled by this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial machinery.

3. Does the ACS580-01-106A-4 support advanced motor control functions?
Yes. It provides precise motor control functions for improved operating stability and performance.

4. Can this frequency converter be connected to automation systems?
Yes. It supports industrial communication options for integration with PLC and control systems.

5. What industries commonly use this model?
It is commonly applied in manufacturing, material handling, HVAC, water treatment, and process industries.

6. Does this drive provide motor protection features?
Yes. It includes monitoring and protection functions to improve system reliability.

7. How are drive parameters configured?
Parameters can be adjusted through the drive control interface and compatible commissioning tools.

8. Can this frequency converter reduce motor energy consumption?
Yes. It improves efficiency by controlling motor speed according to actual load requirements.

9. Is the ACS580-01-106A-4 suitable for continuous operation?
Yes. It is designed for reliable performance in industrial applications requiring extended operation.

10. Can this model be integrated into existing automation systems?
Yes. It can be used in suitable system upgrades and industrial automation projects.
