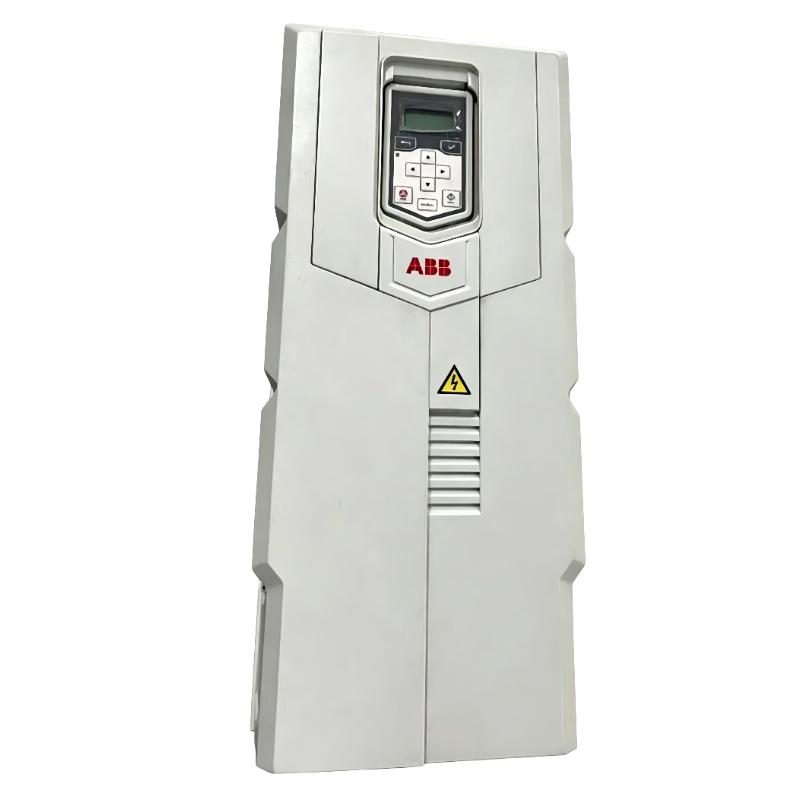

ABB ACS580-01-145A-4 3ABD00045437-D Frequency Converter_ABB PLC

Introduction

The ABB ACS580-01-145A-4 Frequency Converter is a general-purpose AC drive engineered to provide efficient and dependable motor control for modern industrial applications. As part of the ACS580 series, it combines high performance, flexible functionality, and simplified operation to meet the requirements of various automation systems.

Designed for larger motor applications, this frequency converter delivers stable control performance while supporting improved energy management and process efficiency. Its practical wall-mounted design allows convenient installation and helps simplify system maintenance.

With its strong industrial capability and reliable operating characteristics, the ACS580-01-145A-4 provides a professional motor control solution for industries requiring consistent performance, reduced operating costs, and enhanced automation efficiency.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-145A-4
Product ID	3ABD00045437-D
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	145A
Rated Power	75 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	50/60 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R6
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	727 × 252 × 369 mm
Weight	45 kg (99.21 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-106A-4	Medium-power frequency converter for industrial motor control
ABB ACS580-01-169A-4	Higher-capacity drive solution for larger motor systems
ABB ACS580-01-206A-4	Advanced frequency converter for demanding industrial applications
ABB ACS580-01-246A-4	Heavy-duty drive solution for large industrial equipment

Popular Related Models

Model	Description
ABB ACS580-01-062A-4	Reliable frequency converter for medium industrial applications
ABB ACS580-01-073A-4	Efficient drive solution for automation systems
ABB ACS580-01-088A-4	Flexible motor control solution for industrial equipment
ABB ACS880-01-145A-3	Advanced industrial drive for high-performance applications
ABB ACS580-04-585A-4	Heavy-duty frequency converter for large-scale industrial systems

Applications

The ABB ACS580-01-145A-4 Frequency Converter is a powerful industrial drive designed to deliver reliable motor control, high efficiency, and stable performance for demanding medium-power applications. With advanced drive technology and a robust industrial structure, this frequency converter provides precise speed regulation and smooth motor operation for systems requiring continuous and dependable performance.

This model is widely applied in pumps, fans, compressors, conveyors, mixers, production machinery, and industrial process equipment. It helps optimize motor operation by adjusting speed according to real-time application requirements, improving energy efficiency while reducing mechanical stress and operating costs.

The ACS580-01-145A-4 is an excellent choice for OEM manufacturers, system integrators, and industrial facilities seeking a durable frequency converter solution with flexible configuration, simplified operation, and long-term reliability.

Advantages

The ABB ACS580-01-145A-4 combines strong drive capability with intelligent control functions to support efficient and reliable industrial motor management.

High-Power Motor Control: Provides accurate speed and torque control for medium-power motor applications.
Energy Optimization Capability: Helps reduce energy consumption by matching motor speed with actual process demand.
Industrial-Grade Reliability: Designed for stable operation in manufacturing and automation environments.
Flexible System Integration: Supports various industrial applications with adaptable control features.
Simplified Operation: Provides user-friendly commissioning and configuration functions.
Enhanced Process Efficiency: Helps improve productivity through stable motor performance and optimized operation.
Long Service Performance: Built for continuous industrial use with dependable operating capability.

Technical FAQs

1. What is the ABB ACS580-01-145A-4 Frequency Converter mainly used for?
It is used to control the speed and performance of medium-power three-phase AC motors in industrial systems.

2. What motor types are compatible with this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial machinery.

3. Does the ACS580-01-145A-4 support advanced motor control functions?
Yes. It provides accurate motor control capability for improved speed regulation and torque performance.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication solutions for connection with automation and control systems.

5. What applications are suitable for this model?
It is suitable for pumps, fans, compressors, conveyors, mixers, and industrial processing equipment.

6. Does this drive provide motor protection functions?
Yes. It includes monitoring and protection features to improve equipment safety and reliability.

7. How are parameters configured on the ACS580-01-145A-4?
Parameters can be adjusted through the drive interface and compatible commissioning tools.

8. Can this frequency converter improve energy efficiency?
Yes. It helps optimize motor energy usage by controlling speed according to actual load requirements.

9. Is this model suitable for continuous industrial operation?
Yes. It is designed for reliable operation in industrial environments requiring extended running periods.

10. Can the ACS580-01-145A-4 be used for industrial equipment upgrades?
Yes. It can be integrated into suitable modernization projects when electrical requirements are compatible.
