Introduction

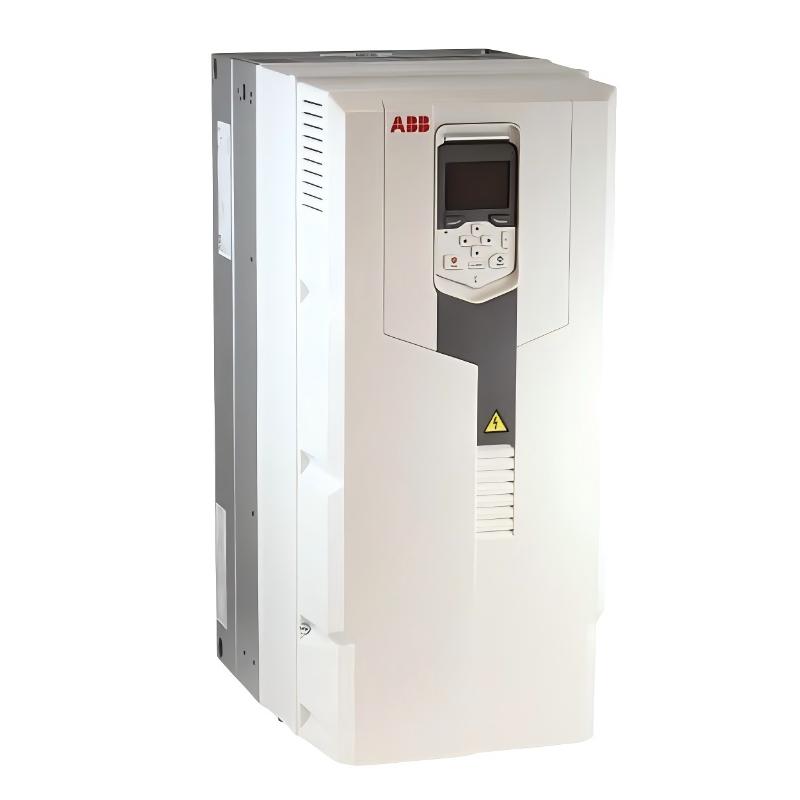

The ABB ACS580-01-169A-4 Frequency Converter is a general-purpose AC drive developed to provide efficient and dependable motor control for modern industrial applications. As part of the ACS580 series, it combines strong performance, flexible functionality, and simplified operation to meet the requirements of advanced automation systems.

Designed for larger motor applications, this frequency converter delivers excellent control capability while supporting energy optimization and improved process stability. Its robust wall-mounted structure provides a practical solution for industrial installations requiring reliable performance and efficient system management.

With its powerful operating capability and versatile application support, the ACS580-01-169A-4 offers a professional motor control solution for industries seeking enhanced productivity, reduced operating costs, and dependable automation performance.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-169A-4
Product ID	3ABD00045438-D
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	169A
Rated Power	90 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	47.5–63 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R7
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	880 × 284 × 370 mm
Weight	54 kg (119.05 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-106A-4	Medium-power frequency converter for industrial motor systems
ABB ACS580-01-145A-4	Reliable drive solution for larger motor applications
ABB ACS580-01-206A-4	Higher-capacity frequency converter for demanding systems
ABB ACS580-01-246A-4	Heavy-duty drive solution for large industrial equipment

Popular Related Models

Model	Description
ABB ACS580-01-062A-4	Efficient frequency converter for medium industrial applications
ABB ACS580-01-073A-4	Reliable motor control solution for automation systems
ABB ACS580-01-088A-4	Flexible drive solution for industrial machinery
ABB ACS880-01-169A-3	Advanced industrial drive for high-performance applications
ABB ACS580-04-585A-4	Heavy-duty frequency converter for large-scale industrial systems

Applications

The ABB ACS580-01-169A-4 Frequency Converter is a powerful industrial drive designed to deliver reliable motor control, efficient energy management, and stable operation for demanding medium-power applications. With its advanced drive technology and strong performance capability, this frequency converter provides precise speed regulation and smooth motor operation for industrial systems requiring continuous productivity and dependable control.

This model is widely used in pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and various process machinery. It helps optimize motor performance by adjusting speed according to actual operating conditions, improving energy efficiency while reducing mechanical stress and unnecessary power consumption.

The ACS580-01-169A-4 is an excellent solution for OEM manufacturers, machine builders, and industrial facilities requiring a reliable frequency converter with flexible application capability, simplified operation, and long-term industrial durability.

Advantages

The ABB ACS580-01-169A-4 combines powerful drive performance with intelligent control features to provide efficient and reliable motor management.

High-Capacity Motor Control: Provides accurate speed and torque regulation for large industrial motor applications.
Energy Optimization Capability: Helps reduce operating costs by improving motor efficiency and adapting output to process requirements.
Reliable Industrial Performance: Designed for stable operation in manufacturing, processing, and automation environments.
Flexible Application Range: Supports various constant torque and variable torque applications.
Simplified System Integration: Provides practical functions that help reduce installation complexity.
Advanced Monitoring Functions: Supports improved operational visibility and system reliability.
Durable Construction: Built to maintain dependable performance during long-term industrial operation.

Technical FAQs

1. What is the ABB ACS580-01-169A-4 Frequency Converter mainly used for?
It is used to control the speed and operation of high-power three-phase AC motors in industrial systems.

2. What motor types are compatible with this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial machinery.

3. Does the ACS580-01-169A-4 support advanced motor control?
Yes. It provides precise motor control functions for stable speed regulation and improved torque performance.

4. Can this frequency converter be connected to PLC systems?
Yes. It supports industrial communication options for integration with automation control systems.

5. What applications are suitable for this model?
It is suitable for pumps, fans, compressors, conveyors, mixers, extruders, and industrial process equipment.

6. Does this drive include motor protection functions?
Yes. It provides monitoring and protection functions to improve equipment reliability.

7. How are parameters configured on the ACS580-01-169A-4?
Parameters can be adjusted through the drive interface and compatible commissioning tools.

8. Can this frequency converter improve energy efficiency?
Yes. It helps optimize motor energy usage by controlling speed according to actual operating requirements.

9. Is this model suitable for continuous industrial operation?
Yes. It is designed for reliable performance in demanding industrial environments.

10. Can the ACS580-01-169A-4 be used for industrial system upgrades?
Yes. It can be applied in suitable modernization projects where electrical and application requirements are compatible.
