Introduction

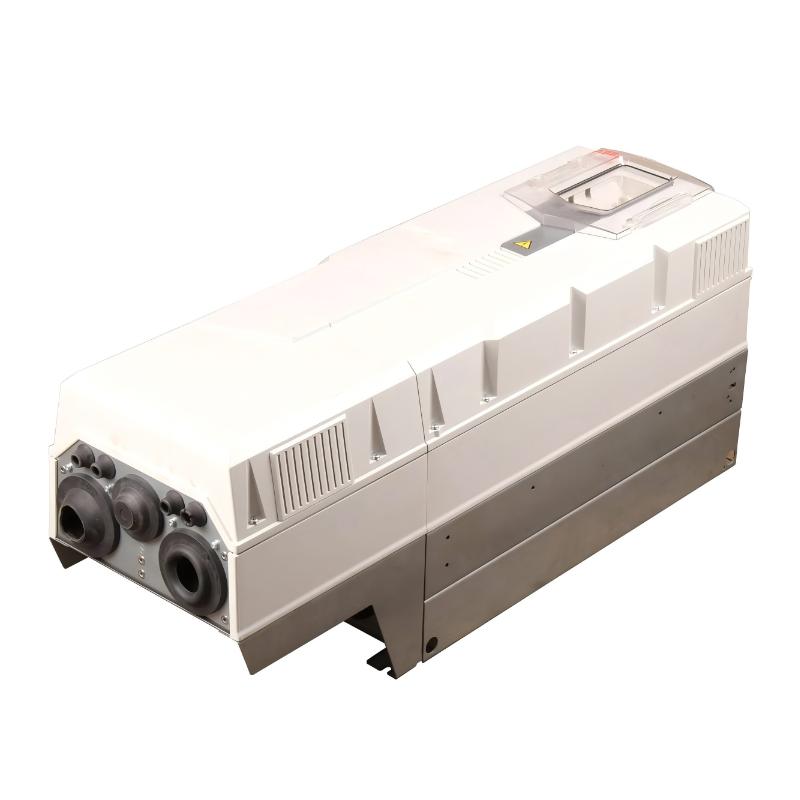

The ABB ACS580-01-169A-4 Frequency Converter is a general-purpose AC drive developed to provide efficient and reliable motor control for modern industrial systems. As part of the ACS580 series, it combines strong performance, flexible functionality, and simplified operation to meet the requirements of various automation applications.

Designed for larger motor systems, this frequency converter delivers stable control performance while supporting improved energy management and process efficiency. Its practical wall-mounted structure allows convenient installation and helps simplify system integration and maintenance.

With its powerful drive capability and dependable industrial performance, the ACS580-01-169A-4 provides a professional motor control solution for industries seeking improved productivity, optimized energy usage, and reliable automation operation.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-169A-4
Product ID	3AUA0000080505
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	169A
Rated Power	90 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	50/60 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R7
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	880 × 284 × 370 mm
Weight	54 kg (119.05 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-106A-4	Medium-power frequency converter for industrial motor systems
ABB ACS580-01-145A-4	Reliable drive solution for larger motor applications
ABB ACS580-01-206A-4	Higher-capacity frequency converter for demanding systems
ABB ACS580-01-246A-4	Heavy-duty drive solution for large industrial equipment

Popular Related Models

Model	Description
ABB ACS580-01-062A-4	Efficient frequency converter for medium industrial applications
ABB ACS580-01-073A-4	Reliable drive solution for automation systems
ABB ACS580-01-088A-4	Flexible motor control solution for industrial machinery
ABB ACS880-01-169A-3	Advanced industrial drive for high-performance applications
ABB ACS580-04-585A-4	Heavy-duty frequency converter for large industrial systems

Applications

The ABB ACS580-01-169A-4 Frequency Converter is a high-performance industrial drive designed to provide efficient motor control, stable operation, and reliable power management for demanding industrial applications. With advanced drive technology and strong control capability, this frequency converter delivers precise speed regulation, smooth torque response, and consistent performance for systems requiring continuous operation.

This model is widely used in pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and industrial processing equipment. By adjusting motor speed according to actual operating requirements, it helps improve energy efficiency, reduce mechanical stress, and enhance overall system productivity.

The ACS580-01-169A-4 is an excellent choice for OEM manufacturers, machine builders, and industrial facilities looking for a dependable frequency converter with flexible application capability, simplified operation, and long-term reliability.

Advantages

The ABB ACS580-01-169A-4 combines powerful drive technology with a robust industrial design to deliver efficient and dependable motor control.

High-Capacity Motor Control: Provides accurate speed and torque regulation for demanding industrial motor applications.
Energy Efficient Performance: Optimizes motor operation by adjusting output according to actual process requirements.
Reliable Industrial Design: Built for stable operation in manufacturing, automation, and process environments.
Flexible Application Capability: Supports a wide range of constant torque and variable torque applications.
Simplified Commissioning: User-friendly configuration functions help reduce installation and setup time.
Integrated Drive Functions: Provides practical control and monitoring features for efficient system management.
Durable Long-Term Operation: Designed to maintain stable performance in continuous industrial environments.

Technical FAQs

1. What is the ABB ACS580-01-169A-4 Frequency Converter mainly used for?
It is used to control the speed and performance of high-power three-phase AC motors in industrial applications.

2. What motor types are compatible with this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial machinery.

3. Does the ACS580-01-169A-4 support advanced motor control functions?
Yes. It provides accurate motor control functions for improved speed regulation and torque performance.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication options for connection with automation control systems.

5. What applications are suitable for this model?
It is suitable for pumps, fans, compressors, conveyors, mixers, extruders, and industrial process equipment.

6. Does this drive include motor protection features?
Yes. It provides monitoring and protection functions to improve system reliability.

7. How are parameters configured on the ACS580-01-169A-4?
Parameters can be adjusted through the drive interface and compatible commissioning tools.

8. Can this frequency converter improve energy efficiency?
Yes. It helps reduce energy consumption by optimizing motor speed according to actual operating conditions.

9. Is this model suitable for continuous industrial operation?
Yes. It is designed for reliable operation in demanding industrial environments requiring extended running periods.

10. Can the ACS580-01-169A-4 be used for replacing older drive systems?
Yes. It can be applied in suitable upgrade projects when electrical specifications and application requirements are compatible.
