Introduction

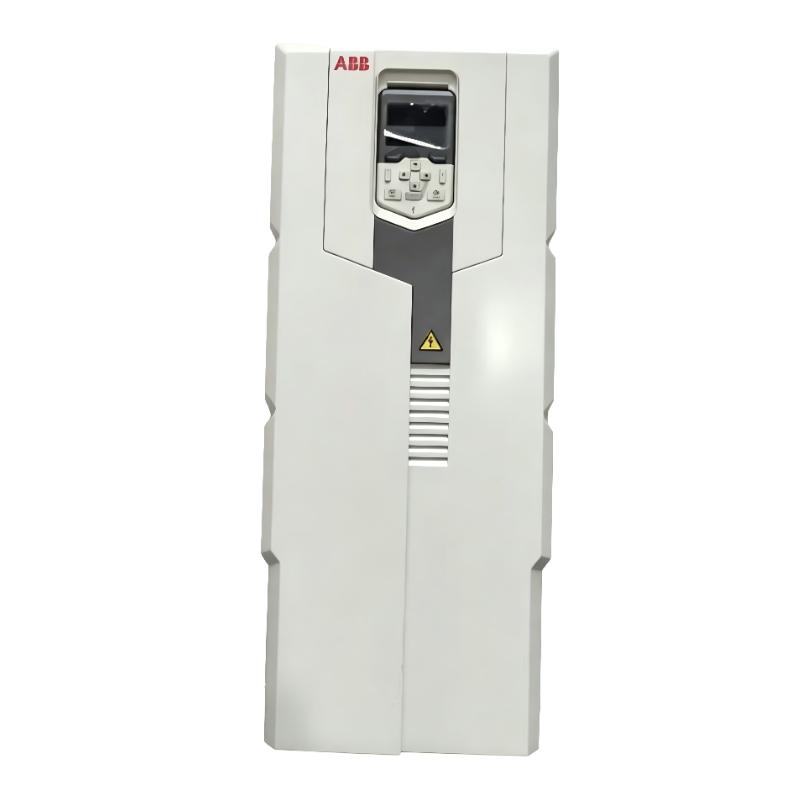

The ABB ACS580-01-246A-4 Frequency Converter is a powerful general-purpose AC drive developed to provide efficient and dependable motor control for modern industrial systems. As part of the ACS580 series, it combines high performance, flexible functionality, and simplified operation to meet the needs of advanced automation applications.

Designed for large motor systems, this frequency converter delivers excellent control capability while supporting improved energy management and process efficiency. Its robust wall-mounted structure provides a practical solution for industrial installations requiring reliable performance and efficient space utilization.

With its strong output capability and durable construction, the ACS580-01-246A-4 provides a professional motor control solution for industries seeking improved productivity, reduced operating costs, and dependable automation performance.

Technical Specifications

Specification	Details
Product Type	Frequency Converter
Manufacturer	ABB
Model Number	ACS580-01-246A-4
Product ID	3ABD00045440-D
Drive Series	ACS580
Module Type	Frequency Converter Module
Rated Output Current	246A
Rated Power	132 kW
Input Voltage	380–480V AC
Input Phase	Three-phase
Frequency Range	50/60 Hz
Control Method	Scalar Control, Vector Control
Communication Interface	Industrial Communication Options
Safety Function	Safe Torque Off (STO)
Mounting Type	Wall-mounted
Protection Class	IP21
Frame Size	R8
Operating Temperature	-15°C to +50°C
Dimensions (H × W × D)	965 × 300 × 393 mm
Weight	69 kg (152.12 lb)

Recommended Related Models

Model	Description
ABB ACS580-01-169A-4	High-performance frequency converter for medium-power applications
ABB ACS580-01-206A-4	Advanced drive solution for larger industrial motor systems
ABB ACS580-01-246A-4	High-capacity drive for demanding industrial applications
ABB ACS580-01-293A-4	Heavy-duty frequency converter for higher-power equipment

Popular Related Models

Model	Description
ABB ACS580-01-073A-4	Reliable frequency converter for industrial automation
ABB ACS580-01-088A-4	Efficient motor control solution for process equipment
ABB ACS580-01-106A-4	Medium-power industrial drive for various applications
ABB ACS580-01-145A-4	High-performance frequency converter for larger motors
ABB ACS880-01-246A-3	Advanced industrial drive for demanding motor control systems

Applications

The ABB ACS580-01-246A-4 Frequency Converter is a high-capacity industrial drive designed to deliver efficient motor control, reliable operation, and optimized energy performance for demanding automation systems. With its powerful output capability and advanced control technology, this frequency converter provides precise speed regulation, smooth torque handling, and stable performance for large industrial equipment.

This model is widely used in heavy-duty applications including pumps, fans, compressors, conveyors, mixers, processing machinery, and industrial production lines. It helps improve system efficiency by adjusting motor speed according to actual operating requirements, reducing unnecessary energy consumption while maintaining consistent equipment performance.

The ACS580-01-246A-4 is an excellent choice for OEM manufacturers, machine builders, and industrial facilities requiring a durable frequency converter with flexible functionality, simplified operation, and dependable long-term performance.

Advantages

The ABB ACS580-01-246A-4 combines advanced drive technology with a robust industrial design to provide efficient and reliable motor control.

High-Power Motor Control: Provides accurate speed and torque regulation for large industrial motor systems.
Energy Optimization Capability: Helps reduce operating costs by matching motor performance with actual process requirements.
Reliable Industrial Construction: Designed for continuous operation in demanding manufacturing and automation environments.
Wide Application Compatibility: Suitable for pumps, fans, compressors, conveyors, and various process applications.
Simplified Commissioning: User-friendly configuration functions help reduce setup time and maintenance complexity.
Integrated Control Functions: Supports efficient system management with built-in monitoring and drive features.
Stable Long-Term Performance: Provides dependable operation for industrial systems requiring extended service life.

Technical FAQs

1. What is the ABB ACS580-01-246A-4 Frequency Converter mainly used for?
It is used to control large three-phase AC motors in industrial automation and process applications.

2. What motor types are compatible with this frequency converter?
It is designed for three-phase AC induction motors commonly used in industrial machinery.

3. Does the ACS580-01-246A-4 support advanced motor control functions?
Yes. It provides accurate speed and torque control functions for improved motor performance.

4. Can this frequency converter be integrated with PLC systems?
Yes. It supports industrial communication options for connection with automation control systems.

5. What applications are suitable for this model?
It is suitable for pumps, fans, compressors, conveyors, mixers, and heavy industrial equipment.

6. Does this drive include motor protection features?
Yes. It provides monitoring and protection functions to improve system reliability.

7. How are parameters configured on the ACS580-01-246A-4?
Parameters can be adjusted through the drive interface and compatible commissioning tools.

8. Can this frequency converter help reduce energy consumption?
Yes. It improves efficiency by adjusting motor speed according to actual load requirements.

9. Is the ACS580-01-246A-4 suitable for continuous industrial operation?
Yes. It is designed for reliable performance in demanding industrial environments.

10. Can this model be used for industrial equipment upgrades?
Yes. It can be applied in suitable modernization projects when electrical specifications and application requirements match.
