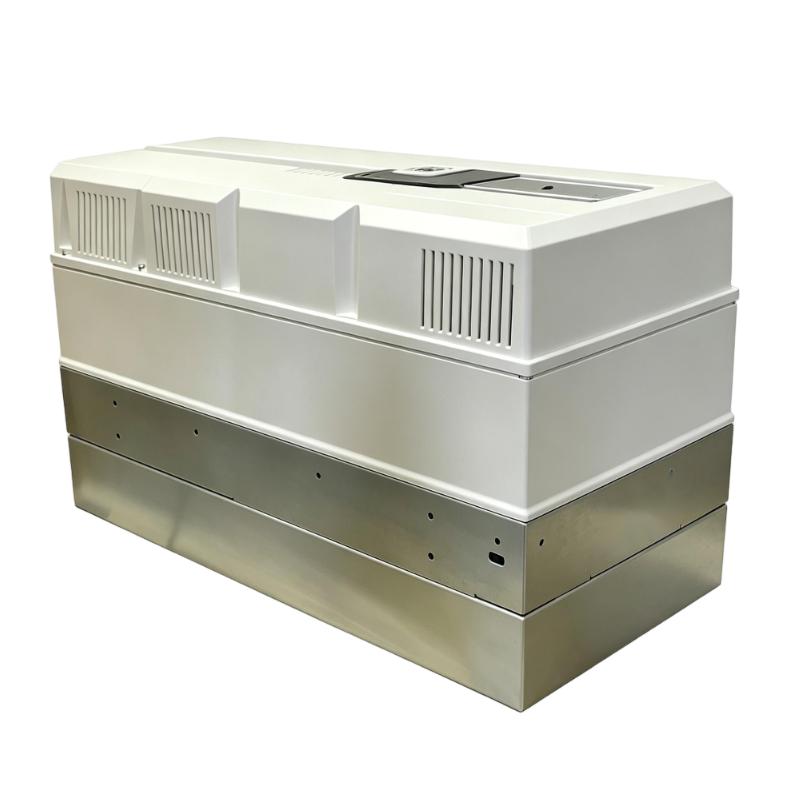

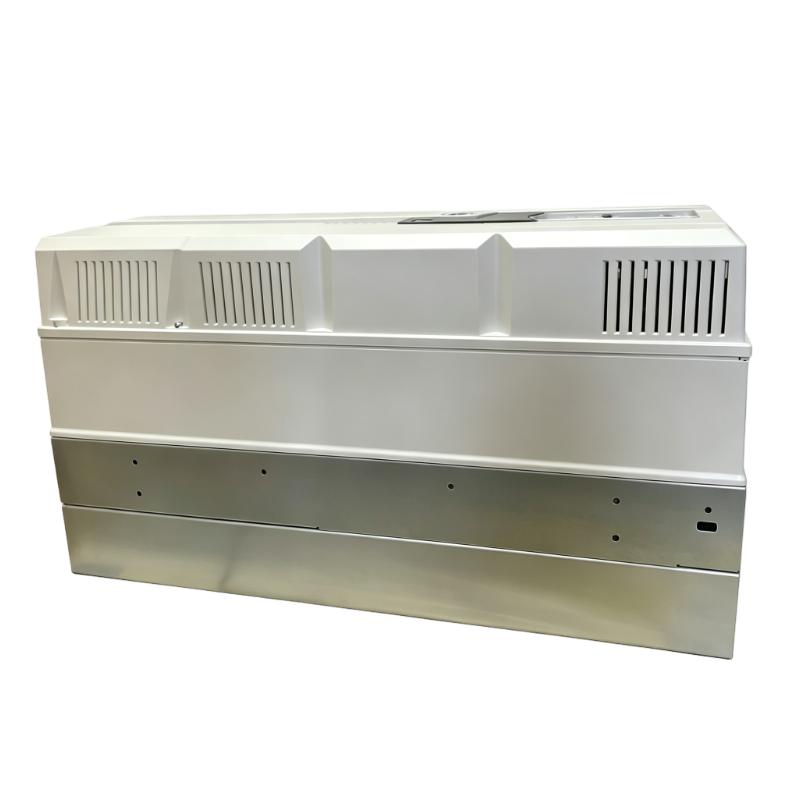

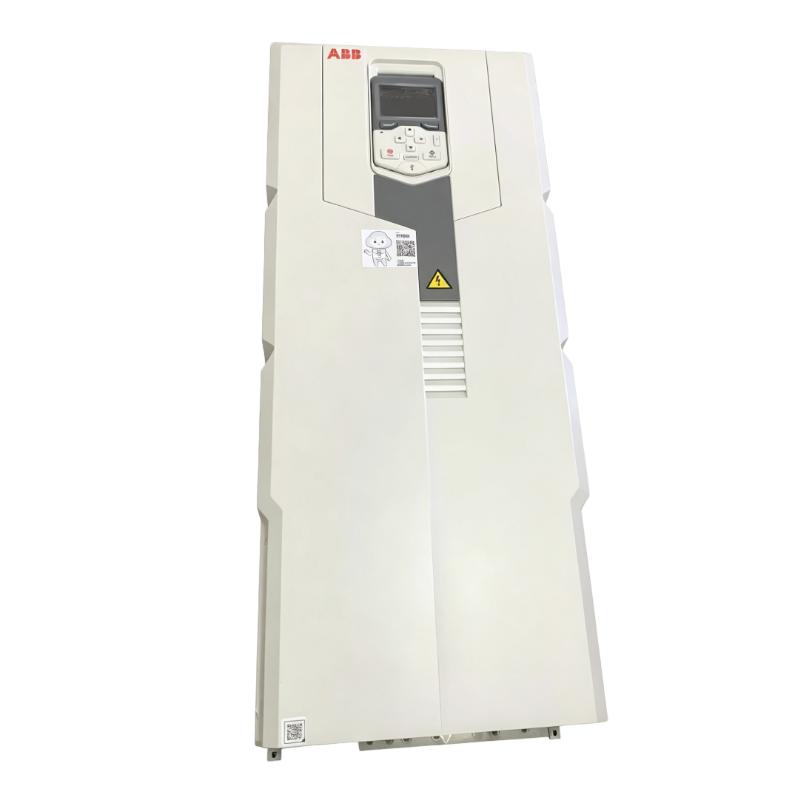

ABB ACS580-01-293A-4 3ABD00045441-D Frequency Converter
ABB ACS580-01-293A-4 3ABD00045441-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS580-01-293A-4 Product Origin:Sweden (SE) Product Dimensions:965 x 300 x 393 mm Product Weight:86 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS580-01-293A-4 3ABD00045441-D Frequency Converter Module is a high-performance motor control solution designed for industrial applications requiring efficiency, reliability, and precise operation.
As part of the ABB ACS580 family, this frequency converter provides a balanced combination of advanced drive technology and simplified usability. It enables engineers to achieve accurate motor control while maintaining easy installation, configuration, and maintenance.
With its high output capability and robust industrial design, the ACS580-01-293A-4 is well suited for large-scale machinery, infrastructure systems, and process automation applications. It helps improve operational efficiency by optimizing motor performance and supporting stable production environments.
Technical Specifications
Specification
Details
Product Model
ABB ACS580-01-293A-4
Order Code
3ABD00045441-D
Product Type
Frequency Converter Module
Drive Series
ACS580 General Purpose Drive
Rated Output Current
293 A
Rated Power
160 kW
Input Voltage
380–480 V AC
Input Phase
Three Phase
Output Frequency
0–500 Hz
Control Method
Scalar Control / Sensorless Vector Control
Mounting Type
Wall Mounted
Protection Class
IP21
Cooling Method
Forced Air Cooling
Frame Size
R8
Dimensions (H × W × D)
965 × 300 × 393 mm
Weight
86.00 kg (189.60 lb)
Recommended Related Models
Model
Product Type
Application
ABB ACS580-01-246A-4
Frequency Converter
Medium and high-power motor control applications
ABB ACS580-01-363A-4
Frequency Converter
Large industrial drive systems
ABB ACS880-01-293A-3
Industrial Drive
Advanced performance motor control
ABB ACS580-01-206A-4
Frequency Converter
Industrial automation and process equipment
Popular Related Models
Model
Product Type
Main Feature
ABB ACS580-01-073A-4
Frequency Converter
Compact drive solution for general applications
ABB ACS580-01-106A-4
Frequency Converter
Reliable motor speed control
ABB ACS580-01-145A-4
Frequency Converter
Flexible industrial automation support
ABB ACS580-01-169A-4
Frequency Converter
Efficient process control performance
ABB ACS580-01-430A-4
Frequency Converter
High-capacity industrial motor applications
Industrial Applications
The ABB ACS580-01-293A-4 frequency converter is a powerful general-purpose drive designed for demanding industrial motor control applications. With high current capacity and reliable speed regulation performance, it provides an efficient solution for industries requiring stable operation, energy optimization, and precise motor management.
This frequency converter is widely used in industrial environments where continuous operation and dependable performance are essential. Its flexible design makes it suitable for various applications, including:
Application Area
Description
Water and Wastewater Systems
Provides efficient pump control and improves process stability
HVAC and Ventilation Systems
Regulates fan speed to optimize airflow and energy usage
Manufacturing Equipment
Supports precise motor control in automated production lines
Conveyor Systems
Enables smooth acceleration, deceleration, and speed adjustment
Industrial Compressors
Maintains stable operation under variable load conditions
Process Machinery
Provides reliable control for mixers, extruders, and other heavy-duty equipment
The ACS580-01-293A-4 is an ideal choice for industrial users looking for a robust drive solution that combines operational efficiency with simplified system integration.
Key Advantages and Performance Benefits
The ABB ACS580-01-293A-4 delivers a combination of advanced control capability, durable construction, and user-friendly operation. It is engineered to support demanding industrial applications while helping reduce energy consumption and improve overall system performance.
Advantage
Description
High Current Capability
Supports large motor applications with a rated output current of 293 A
Energy Optimization
Helps reduce power consumption by adjusting motor speed according to process requirements
Reliable Motor Control
Provides accurate speed and torque regulation for various load conditions
Easy System Integration
Designed for smooth connection with industrial automation environments
Built for reliable operation in continuous-duty applications
Flexible Application Range
Suitable for pumps, fans, conveyors, compressors, and production equipment
With its strong performance characteristics and practical design, this frequency converter helps businesses improve productivity, reduce downtime, and maintain stable industrial processes.
Technical FAQs
1. What type of motors can the ABB ACS580-01-293A-4 control?
The frequency converter is designed to control compatible AC motors, including standard induction motors used in industrial applications.
2. What voltage range is supported by this frequency converter?
The ACS580-01-293A-4 is designed for three-phase industrial power systems within the 380–480 V AC voltage range.
3. Does the ACS580-01-293A-4 support vector control?
Yes. The drive supports sensorless vector control technology for improved motor speed and torque performance.
4. Can this frequency converter be connected to automation systems?
Yes. It can be integrated into industrial automation systems through compatible communication interfaces and control networks.
5. What types of loads are suitable for this drive?
The unit supports both variable torque applications and constant torque applications, depending on system requirements.
6. How does the drive protect connected motors?
It includes monitoring and protection functions such as overload protection, fault detection, and operational diagnostics.
7. Can operating parameters be customized?
Yes. Users can configure parameters according to motor characteristics, application conditions, and control requirements.
8. Is external programming software required for setup?
The drive can be configured through integrated control functions, while engineering tools may be used for advanced system management.
9. What communication functions are available?
The ACS580 series supports optional communication solutions for integration with industrial control and monitoring systems.
10. Is this model suitable for continuous industrial operation?
Yes. The frequency converter is designed for reliable long-term operation in industrial environments with demanding workloads.
