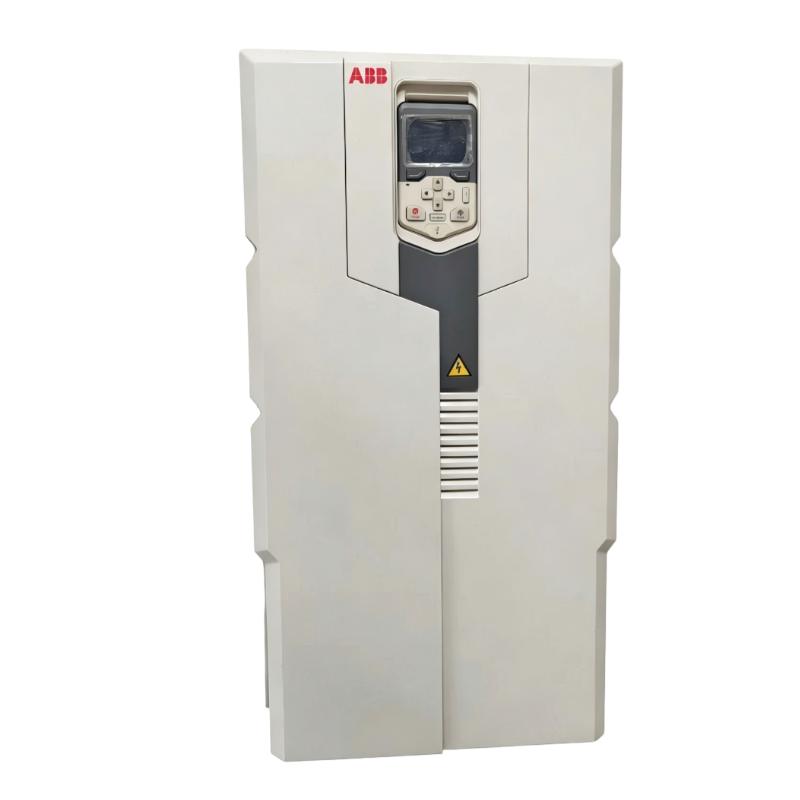

ABB ACS580-01-363A-4 3ABD00037932-D Frequency Converter
ABB ACS580-01-363A-4 3ABD00037932-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS580-01-363A-4 Product Origin:Sweden (SE) Product Dimensions:955 x 380 x 418 mm Product Weight:98 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS580-01-363A-4 3ABD00037932-D Frequency Converter Module is engineered to provide efficient and reliable motor control for high-power industrial applications. As part of the ACS580 general-purpose drive family, it combines strong performance capability with simplified operation, making it an effective solution for a wide range of automation systems.
This frequency converter is designed to help industries achieve better process control, improved energy efficiency, and enhanced equipment reliability. Its practical configuration features allow engineers to integrate advanced drive functionality without unnecessary system complexity.
With a powerful output rating and durable industrial construction, the ACS580-01-363A-4 delivers consistent performance for applications requiring dependable variable speed control and long-term operational stability.
Technical Specifications
Specification
Details
Product Model
ABB ACS580-01-363A-4
Order Code
3ABD00037932-D
Product Type
Frequency Converter Module
Drive Series
ACS580 General Purpose Drive
Rated Output Current
363 A
Rated Power
200 kW
Input Voltage
380–480 V AC
Input Phase
Three Phase
Output Frequency Range
0–500 Hz
Control Method
Scalar Control / Sensorless Vector Control
Mounting Type
Wall Mounted
Protection Class
IP21
Frame Size
R9
Cooling Method
Forced Air Cooling
Dimensions (H × W × D)
955 × 380 × 418 mm
Weight
98.00 kg (216.05 lb)
Recommended Related Models
Model
Product Type
Application
ABB ACS580-01-293A-4
Frequency Converter
High-performance industrial motor control
ABB ACS580-01-430A-4
Frequency Converter
Larger motor drive applications
ABB ACS880-01-363A-3
Industrial Drive
Advanced industrial automation systems
ABB ACS580-01-246A-4
Frequency Converter
Medium-to-high power applications
Popular Related Models
Model
Product Type
Main Feature
ABB ACS580-01-073A-4
Frequency Converter
Compact industrial drive solution
ABB ACS580-01-106A-4
Frequency Converter
Reliable general-purpose motor control
ABB ACS580-01-145A-4
Frequency Converter
Flexible manufacturing applications
ABB ACS580-01-206A-4
Frequency Converter
Efficient process automation control
ABB ACS580-01-430A-4
Frequency Converter
High-capacity industrial operation
Industrial Applications and System Integration
The ABB ACS580-01-363A-4 3ABD00037932-D Frequency Converter Module is a high-capacity industrial drive designed for reliable motor control in demanding automation environments. With a 363 A output current rating and 200 kW power capability, this frequency converter provides stable performance for large-scale motor-driven equipment requiring accurate speed regulation and efficient energy management.
Designed for flexible industrial deployment, the ACS580-01-363A-4 supports applications where operational reliability, simplified commissioning, and long-term system efficiency are critical. Its robust architecture makes it suitable for manufacturing facilities, infrastructure projects, and process industries.
Application Area
Description
Pumping Systems
Provides precise flow control for water treatment, industrial pumping, and circulation processes
Ventilation and Cooling Systems
Optimizes fan operation while improving energy efficiency
Conveyor Equipment
Enables smooth motor acceleration and controlled material movement
Heavy Industrial Machinery
Supports large motors used in continuous production environments
Compressors
Maintains stable motor operation under changing load conditions
Process Automation Systems
Delivers accurate motor control for industrial processes
The ACS580-01-363A-4 offers a dependable solution for engineers seeking improved process control, reduced energy consumption, and reliable operation in high-power applications.
Performance Advantages and Engineering Benefits
The ABB ACS580-01-363A-4 combines advanced drive technology with a practical design approach, providing users with efficient motor management and simplified system operation.
Advantage
Description
High Power Performance
Designed for demanding applications requiring up to 200 kW motor control capability
Precise Speed Regulation
Provides accurate motor speed and torque management for stable operation
Energy Saving Capability
Helps optimize energy usage by matching motor speed with process requirements
Reliable Industrial Operation
Built for continuous-duty environments requiring long-term stability
Flexible Control Functions
Supports various motor control methods for different application needs
Simplified Maintenance
Designed for easy configuration, monitoring, and service procedures
Automation Compatibility
Supports integration into modern industrial control systems
With its combination of performance, reliability, and flexibility, this frequency converter helps improve equipment efficiency while supporting modern industrial automation requirements.
Technical FAQs
1. What motor applications are suitable for the ABB ACS580-01-363A-4?
This frequency converter is suitable for large AC motor applications including pumps, fans, conveyors, compressors, and industrial machinery.
2. What type of control technology does this drive support?
The ACS580-01-363A-4 supports advanced motor control methods including scalar control and sensorless vector control.
3. Can this frequency converter be integrated with PLC systems?
Yes. The drive can communicate with industrial automation systems through compatible communication interfaces and optional fieldbus modules.
4. What input voltage range does the ACS580-01-363A-4 support?
The drive is designed for three-phase industrial power networks within the 380–480 V AC voltage range.
5. Does this model support constant torque applications?
Yes. It is suitable for constant torque loads such as conveyors, mixers, and heavy-duty machinery.
6. How does the drive improve motor efficiency?
The frequency converter adjusts motor speed according to actual process requirements, reducing unnecessary energy consumption.
7. What diagnostic features are available?
The drive includes monitoring functions, fault diagnostics, and operational feedback features to improve system reliability.
8. Can communication modules be added for industrial networking?
Yes. Optional communication solutions can be used to connect the drive with various automation and supervisory systems.
9. Is the ACS580-01-363A-4 suitable for replacing older frequency converters?
Yes. Its flexible configuration and industrial compatibility make it suitable for modernization and retrofit projects.
10. Can the drive operate in demanding industrial environments?
Yes. The unit is designed for reliable performance in continuous industrial applications with appropriate installation conditions.
