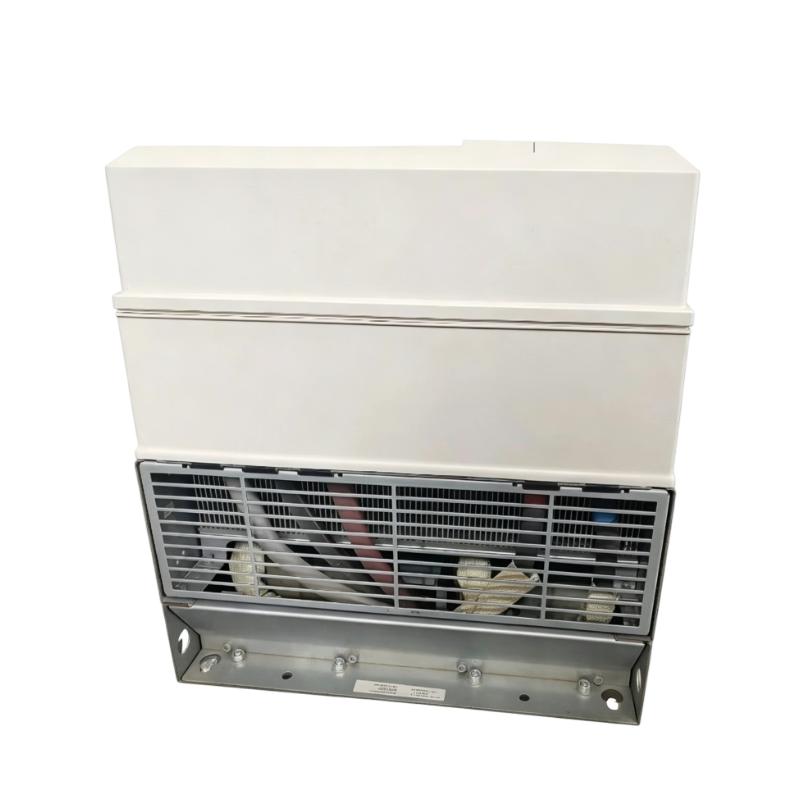

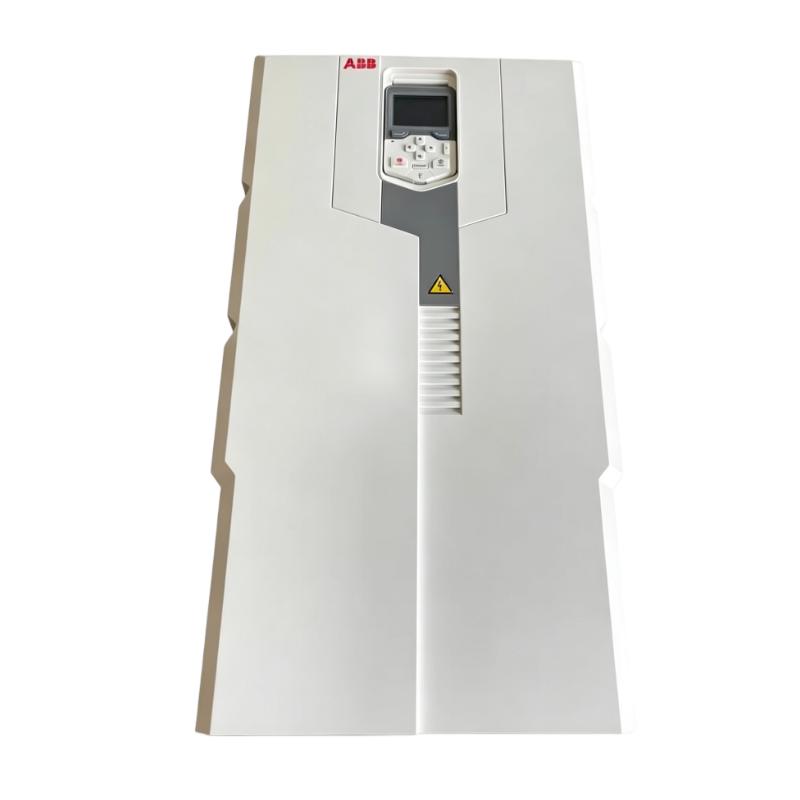

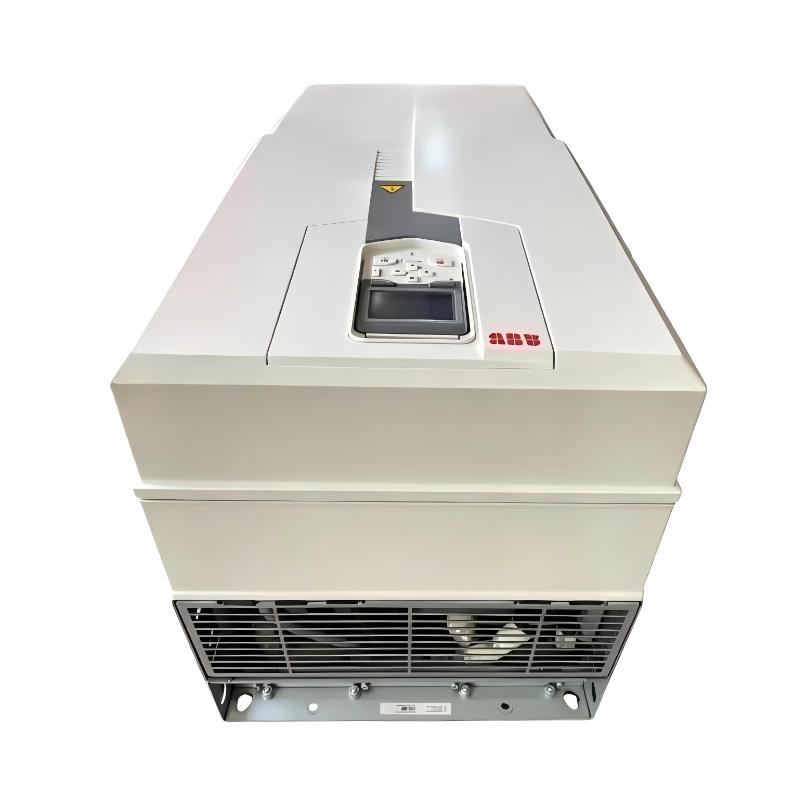

ABB ACS580-01-363A-4 3AUA0000080509 Frequency Converter
ABB ACS580-01-363A-4 3AUA0000080509 Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS580-01-363A-4 Product Origin:Sweden (SE) Product Dimensions:955 x 380 x 418 mm Product Weight:97 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS580-01-363A-4 3AUA0000080509 Frequency Converter Module is designed to deliver reliable motor control performance for high-power industrial applications. As part of the ACS580 product family, it provides a balance between advanced drive technology and simplified operation.
This frequency converter helps industrial users achieve better process control, improved energy management, and increased equipment reliability. Its robust construction and flexible configuration options make it suitable for applications where operational efficiency and uptime are critical.
Engineered for modern industrial environments, the ACS580-01-363A-4 provides dependable performance for automation systems requiring precise motor control and consistent operation.

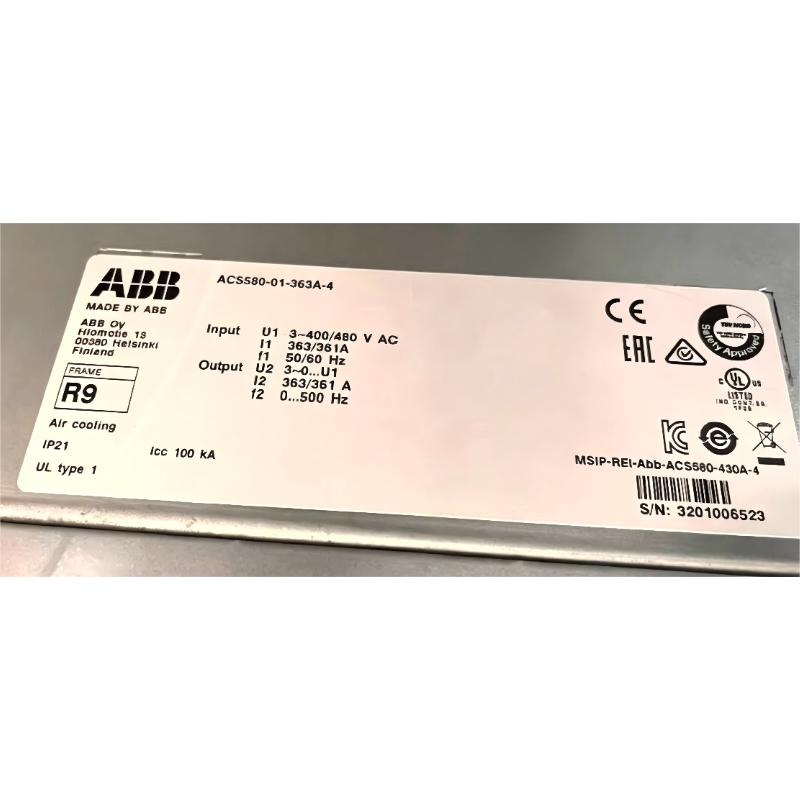

Technical Specifications
Specification
Details
Product Model
ABB ACS580-01-363A-4
Order Code
3AUA0000080509
Product Type
Frequency Converter Module
Drive Series
ACS580 General Purpose Drive
Rated Output Current
363 A
Rated Power
200 kW
Input Voltage
380–480 V AC
Input Phase
Three Phase
Output Frequency Range
0–500 Hz
Control Method
Scalar Control / Sensorless Vector Control
Mounting Type
Wall Mounted
Protection Class
IP21
Frame Size
R9
Cooling Method
Forced Air Cooling
Dimensions (H × W × D)
955 × 380 × 418 mm
Weight
97.00 kg (213.85 lb)
Recommended Related Models
Model
Product Type
Application
ABB ACS580-01-293A-4
Frequency Converter
Industrial motor control applications
ABB ACS580-01-430A-4
Frequency Converter
High-power motor systems
ABB ACS880-01-363A-3
Industrial Drive
Advanced automation applications
ABB ACS580-01-246A-4
Frequency Converter
Medium and high-power equipment
Popular Related Models
Model
Product Type
Main Feature
ABB ACS580-01-073A-4
Frequency Converter
Compact industrial drive solution
ABB ACS580-01-106A-4
Frequency Converter
Reliable general-purpose control
ABB ACS580-01-145A-4
Frequency Converter
Flexible machinery applications
ABB ACS580-01-206A-4
Frequency Converter
Efficient process control
ABB ACS580-01-293A-4
Frequency Converter
High-performance motor regulation
Industrial Applications and Operating Environments
The ABB ACS580-01-363A-4 3AUA0000080509 Frequency Converter Module is a high-power industrial drive designed for reliable and efficient motor control in demanding automation environments. With advanced speed regulation capability and strong output performance, it provides a dependable solution for large motor applications that require stable operation, energy optimization, and precise process control.
This frequency converter is widely used in industries where continuous operation, reduced energy consumption, and simplified system management are essential. Its flexible design allows it to support a wide range of industrial equipment and automation systems.
Application Area
Description
Pumping Systems
Provides efficient motor control for water supply, wastewater treatment, and industrial circulation applications
HVAC Equipment
Supports fan and ventilation control to improve system efficiency
Conveyor Systems
Enables smooth acceleration, deceleration, and speed adjustment for material handling equipment
Manufacturing Machinery
Delivers reliable motor regulation for automated production processes
Compressors
Maintains stable operation under different load conditions
Process Equipment
Suitable for mixers, extruders, and continuous industrial production systems
The ACS580-01-363A-4 offers a practical drive solution for industries requiring reliable performance, flexible integration, and long-term operational stability.
Performance Advantages and Product Highlights
The ABB ACS580-01-363A-4 combines powerful motor control technology with a user-friendly design approach. It is engineered to improve equipment efficiency while simplifying installation, commissioning, and maintenance.
Advantage
Description
High Output Capability
Provides 363 A rated current for demanding industrial motor applications
Energy Efficiency Improvement
Helps reduce energy usage by optimizing motor speed according to actual process requirements
Accurate Motor Control
Delivers stable speed and torque regulation for various operating conditions
Reliable Industrial Performance
Designed for continuous operation in demanding environments
Flexible Application Support
Suitable for variable torque and constant torque loads
Easy Configuration
Simplifies setup and parameter adjustment during commissioning
Automation Compatibility
Supports integration into modern industrial control systems
With its combination of performance, flexibility, and durability, this frequency converter helps improve production efficiency and maintain stable industrial operations.
Technical FAQs
1. What applications are suitable for the ABB ACS580-01-363A-4?
The drive is suitable for large industrial applications including pumps, fans, conveyors, compressors, and production machinery.
2. What motor types can be controlled by this frequency converter?
The ACS580-01-363A-4 is designed for controlling compatible AC motors commonly used in industrial environments.
3. Does this frequency converter support vector control?
Yes. The drive supports sensorless vector control for improved motor response and torque performance.
4. Can the ACS580-01-363A-4 communicate with PLC systems?
Yes. The drive can be integrated into automation systems using compatible communication solutions.
5. What input voltage is required for operation?
The unit is designed for three-phase 380–480 V AC industrial power supplies.
6. Can this model handle constant torque applications?
Yes. It can be used for constant torque equipment such as conveyors, mixers, and heavy-duty machinery.
7. What protection functions are available?
The drive includes monitoring, fault diagnostics, overload protection, and operational safety functions.
8. How are drive parameters configured?
Parameters can be adjusted according to motor specifications, load characteristics, and application requirements.
9. Can this drive be used in retrofit projects?
Yes. Its flexible design makes it suitable for replacing older frequency converters in industrial systems.
10. Does the ACS580-01-363A-4 support remote monitoring?
Yes. With compatible communication options, the drive can be connected to supervisory and monitoring systems.
