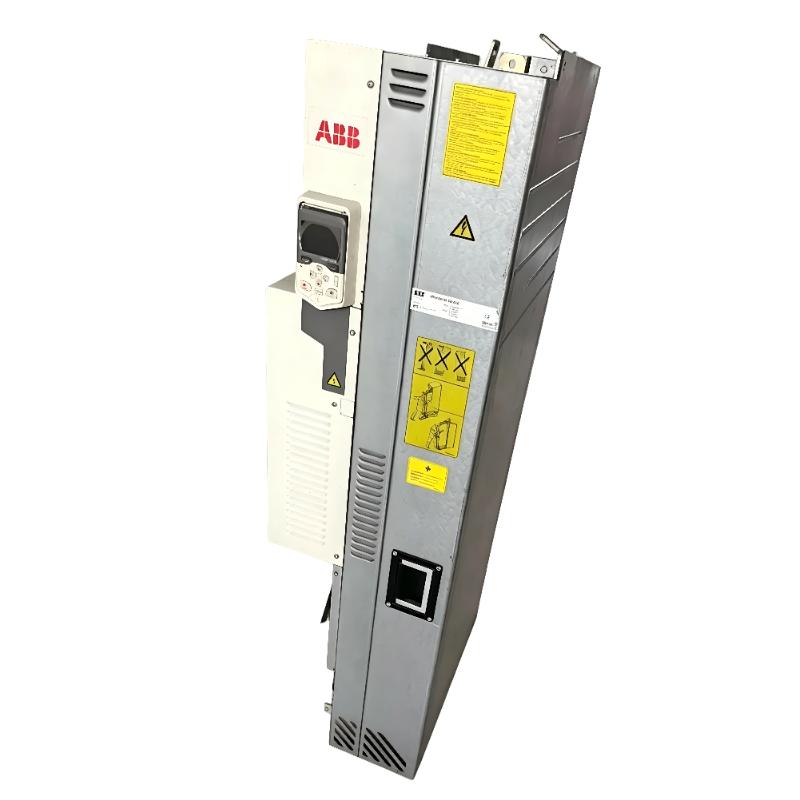

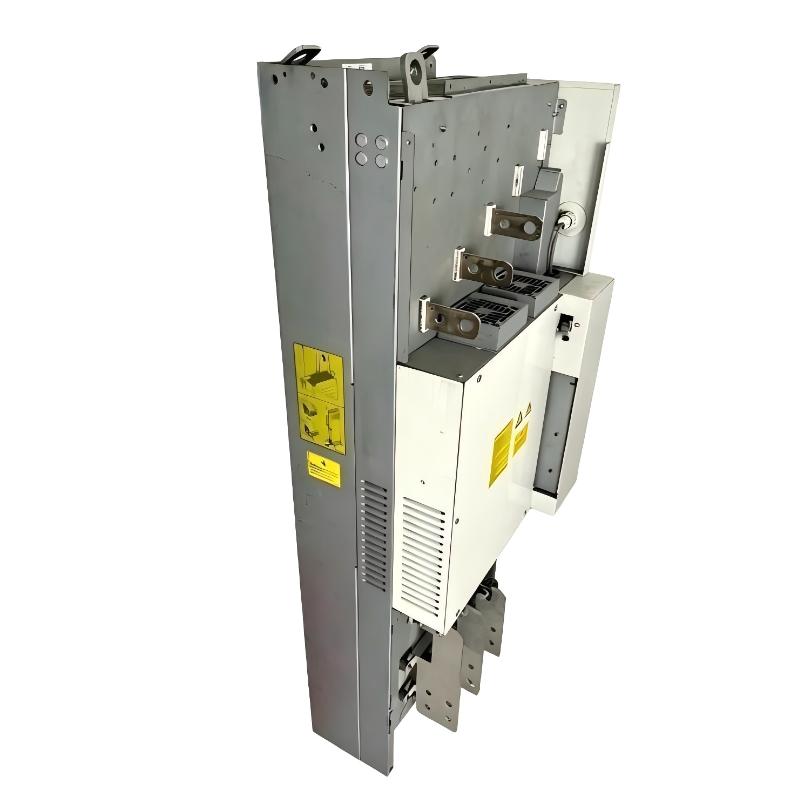

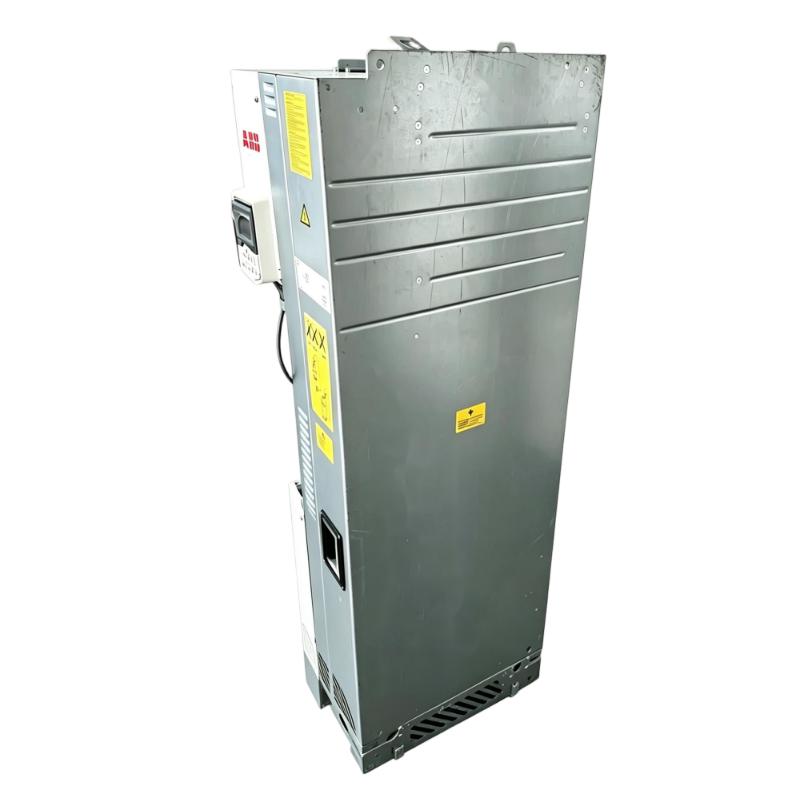

ABB ACS580-04-505A-4 3ABD00036867-D Frequency Converter
ABB ACS580-04-505A-4 3ABD00036867-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS580-04-505A-4 Product Origin:Sweden (SE) Product Dimensions:1462 x 345 x 529 mm Product Weight:161 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS580-04-505A-4 3ABD00036867-D Frequency Converter Module is engineered for high-performance motor control in industrial applications requiring powerful output capability and dependable operation. As part of the ACS580-04 drive family, it provides a practical combination of advanced control functions, modular cabinet installation, and reliable industrial performance.
This frequency converter is designed to help engineers achieve efficient motor management while maintaining system flexibility. Its robust architecture supports demanding applications across manufacturing, infrastructure, and process industries where uptime and productivity are critical.
With its high current rating and industrial-grade construction, the ACS580-04-505A-4 delivers consistent control performance for large motors and complex automation environments.
Technical Specifications
Specification
Details
Product Model
ABB ACS580-04-505A-4
Order Code
3ABD00036867-D
Product Type
Frequency Converter Module
Drive Series
ACS580-04 General Purpose Drive

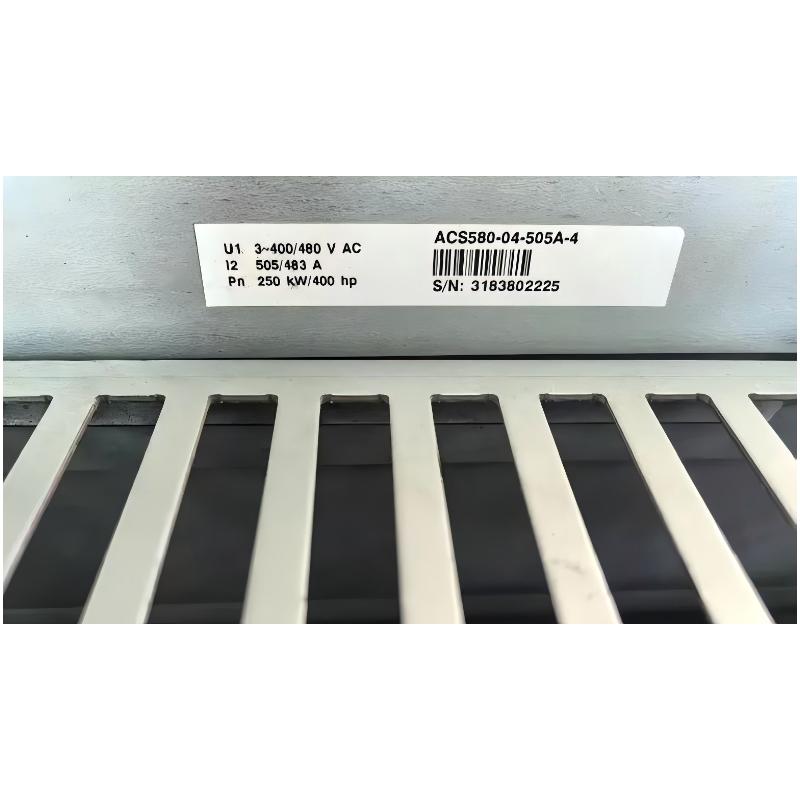

Rated Output Current
505 A
Rated Power
250 kW
Input Voltage
380–480 V AC
Input Phase
Three Phase
Output Frequency Range
0–500 Hz
Control Method
Scalar Control / Sensorless Vector Control
Mounting Type
Cabinet Installation
Protection Class
IP00
Frame Size
R10
Cooling Method
Forced Air Cooling
Dimensions (H × W × D)
1462 × 345 × 529 mm
Weight
161.00 kg (354.94 lb)
Recommended Related Models
Model
Product Type
Application
ABB ACS580-04-585A-4
Frequency Converter
Higher capacity industrial drive systems
ABB ACS580-04-650A-4
Frequency Converter
Large motor applications
ABB ACS880-04-505A-3
Industrial Drive Module
Advanced performance applications
ABB ACS580-01-430A-4
Frequency Converter
General industrial motor control
Popular Related Models
Model
Product Type
Main Feature
ABB ACS580-04-361A-4
Frequency Converter
Industrial cabinet drive solution
ABB ACS580-04-505A-4
Frequency Converter
High-power motor control capability
ABB ACS580-04-585A-4
Frequency Converter
Heavy-duty industrial operation
ABB ACS580-04-650A-4
Frequency Converter
Large-scale process applications
ABB ACS880-04-505A-3
Industrial Drive Module
Advanced automation performance
Heavy-Duty Industrial Applications
The ABB ACS580-04-505A-4 3ABD00036867-D Frequency Converter Module is a high-power industrial drive solution designed for cabinet installations and demanding motor control applications. With a rated output current of 505 A and 250 kW power capability, this frequency converter provides reliable performance for large-scale industrial equipment requiring accurate speed regulation, efficient energy management, and continuous operation.
Designed for industrial environments where reliability and process stability are essential, the ACS580-04 series offers a flexible solution for controlling variable torque and constant torque applications. Its modular construction allows convenient integration into customized control cabinets and automation systems.
Application Area
Description
Large Pump Systems
Provides efficient motor control for water processing, industrial circulation, and infrastructure applications
Industrial Fans and Blowers
Optimizes airflow control while improving energy efficiency
Conveyor Systems
Supports smooth motor operation for heavy material handling equipment
Compressors
Maintains stable performance in high-power compression systems
Extruders and Processing Equipment
Provides accurate speed and torque management for production machinery
Industrial Automation Systems
Enables reliable integration into large-scale manufacturing processes
The ACS580-04-505A-4 is designed for industries that require dependable drive performance, simplified operation, and long-term system reliability.
Key Advantages and Technical Benefits
The ABB ACS580-04-505A-4 combines high-power motor control capability with practical engineering features, helping users achieve efficient operation and improved production performance.
Advantage
Description
High Current Output
Supports demanding motor applications with 505 A rated output current
Powerful Industrial Performance
Designed for 250 kW motor control applications
Cabinet Installation Design
Suitable for integration into customized electrical cabinets
Energy Optimization
Helps reduce energy consumption through precise motor speed adjustment
Reliable Process Control
Provides stable speed and torque regulation for industrial loads
Flexible Application Support
Handles both variable torque and constant torque operations
Simplified System Integration
Designed for easy connection with industrial automation environments
With its strong electrical performance and robust design, this frequency converter helps improve operational efficiency while reducing equipment stress and maintenance requirements.
Technical FAQs
1. What type of motors can the ABB ACS580-04-505A-4 control?
The frequency converter is designed for compatible AC motors used in industrial applications, including induction motors in heavy-duty systems.
2. What is the rated output current of this frequency converter?
The ACS580-04-505A-4 provides a rated output current of 505 A for high-power motor applications.
3. Does this model support sensorless vector control?
Yes. The drive supports advanced motor control functions including sensorless vector control for improved performance.
4. Can the ACS580-04-505A-4 be integrated with PLC systems?
Yes. The frequency converter supports industrial communication options for integration with PLC and automation platforms.
5. What type of installation is required for this drive module?
The ACS580-04-505A-4 is designed for cabinet installation as a drive module solution.
6. Can this frequency converter operate constant torque loads?
Yes. It is suitable for constant torque applications such as conveyors, compressors, and heavy processing equipment.
7. What protection features are available in this drive?
The drive includes monitoring functions, fault diagnostics, overload protection, and operational protection features.
8. How are operating parameters configured?
Parameters can be adjusted according to motor characteristics, application requirements, and system control strategies.
9. Can additional communication functions be added?
Yes. Optional communication solutions can be used for industrial networking and remote monitoring.
10. Is this model suitable for industrial modernization projects?
Yes. Its flexible design makes it suitable for upgrading existing motor control systems and improving process efficiency.
