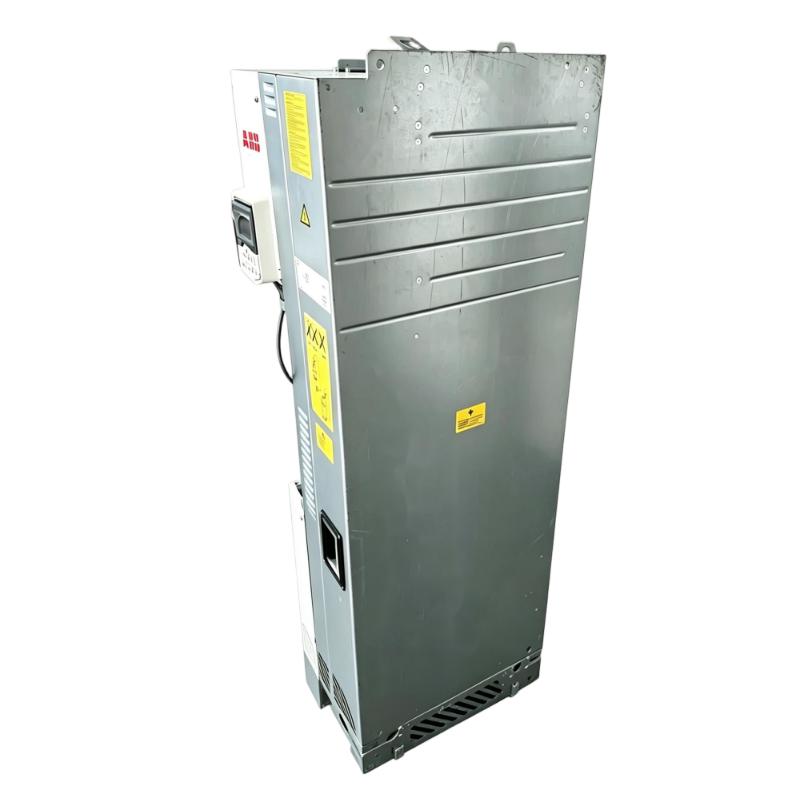

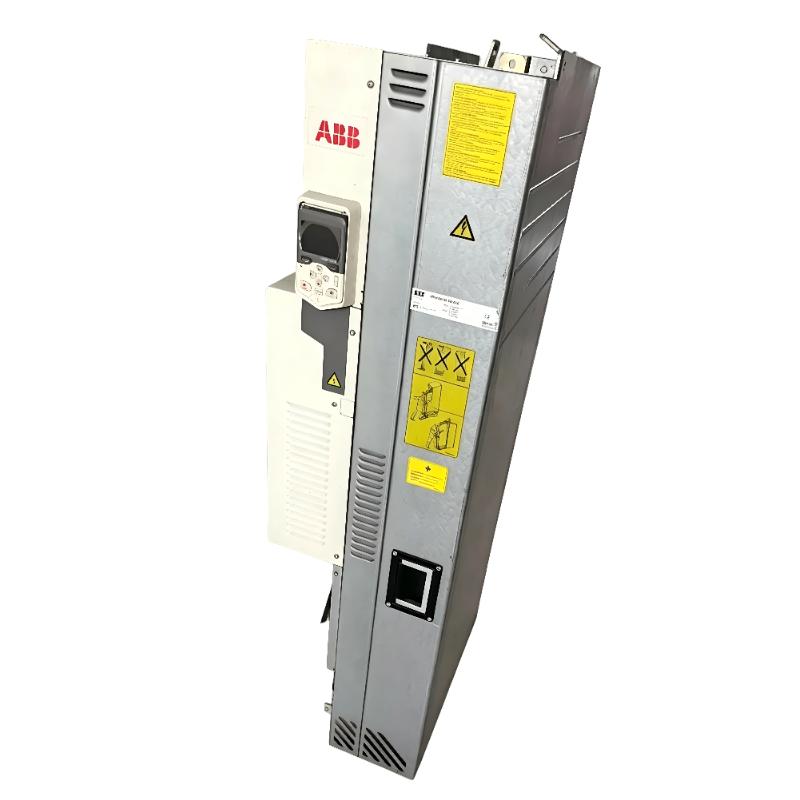

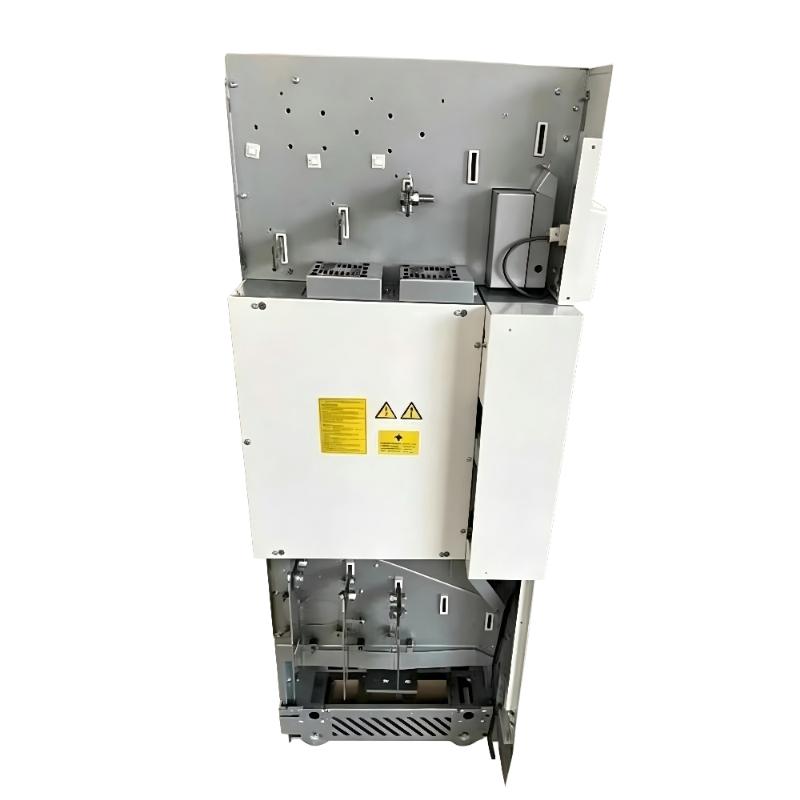

ABB ACS580-04-505A-4 3AUA0000170509 Frequency Converter
ABB ACS580-04-505A-4 3AUA0000170509 Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS580-04-505A-4 Product Origin:Sweden (SE) Product Dimensions:1462 x 350 x 529 mm Product Weight:161 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS580-04-505A-4 3AUA0000170509 Frequency Converter Module is engineered to provide efficient and reliable motor control for large-scale industrial applications. As part of the ACS580-04 drive family, it combines high-power performance with a modular structure that supports flexible installation and system customization.
This frequency converter is designed for industries that demand consistent operation, improved energy efficiency, and precise motor management. Its robust design allows it to perform effectively in applications where production stability and equipment reliability are critical.
By providing advanced control capability with simplified operation, the ACS580-04-505A-4 helps engineers create efficient automation solutions while reducing system complexity and maintenance requirements.
Technical Specifications
Specification
Details
Product Model
ABB ACS580-04-505A-4
Order Code
3AUA0000170509
Product Type
Frequency Converter Module
Drive Series
ACS580-04 General Purpose Drive
Rated Output Current
505 A
Rated Power
250 kW
Input Voltage
380–480 V AC
Input Phase
Three Phase
Output Frequency Range
0–500 Hz
Control Method
Scalar Control / Sensorless Vector Control
Mounting Type
Cabinet Installation
Protection Class
IP00
Frame Size
R10
Cooling Method
Forced Air Cooling
Dimensions (H × W × D)
1462 × 350 × 529 mm
Weight
161.00 kg (354.94 lb)
Recommended Related Models
Model
Product Type
Application
ABB ACS580-04-585A-4
Frequency Converter
Higher power industrial drive systems
ABB ACS580-04-650A-4
Frequency Converter
Large motor and process applications
ABB ACS880-04-505A-3
Industrial Drive Module
Advanced industrial motor control
ABB ACS580-04-361A-4
Frequency Converter
Medium and high-power cabinet applications
Popular Related Models
Model
Product Type
Main Feature
ABB ACS580-04-293A-4
Frequency Converter
Flexible industrial drive solution
ABB ACS580-04-361A-4
Frequency Converter
Reliable cabinet installation design
ABB ACS580-04-505A-4
Frequency Converter
High-power motor control performance
ABB ACS580-04-585A-4
Frequency Converter
Heavy-duty industrial operation
ABB ACS580-04-650A-4
Frequency Converter
Large-scale automation applications
Industrial Applications and System Deployment
The ABB ACS580-04-505A-4 3AUA0000170509 Frequency Converter Module is a high-performance industrial drive designed for large motor control applications requiring stable operation, efficient energy management, and reliable process performance. With a 505 A rated output current and 250 kW power capability, this frequency converter provides a powerful solution for demanding industrial environments where accurate speed control and long-term reliability are essential.
Designed with a modular cabinet installation concept, the ACS580-04-505A-4 offers flexibility for integration into customized electrical systems. It is suitable for industries that require dependable motor regulation, improved operational efficiency, and simplified maintenance.
Application Area
Description
Industrial Pump Systems
Provides precise speed control for large pumping equipment in water, manufacturing, and process industries
Fan and Blower Applications
Optimizes airflow control while improving energy efficiency
Conveyor Equipment
Supports smooth acceleration and stable operation for heavy material handling systems
Compressor Systems
Delivers reliable motor control for high-load compression equipment
Manufacturing Machinery
Provides accurate speed and torque regulation for automated production lines
Process Industry Equipment
Suitable for mixers, extruders, centrifuges, and continuous processing systems
The ACS580-04-505A-4 is an ideal choice for industrial users looking for a reliable drive solution that combines high power capability with flexible system integration.
Key Advantages and Performance Features
The ABB ACS580-04-505A-4 delivers strong motor control performance with a practical design focused on efficiency, reliability, and ease of operation. It helps industries improve productivity while maintaining stable performance in demanding applications.
Advantage
Description
High Current Output
Supports large motor applications with a rated output current of 505 A
Powerful Drive Capability
Designed for high-power industrial motor control requirements
Efficient Energy Management
Helps reduce energy consumption through optimized motor speed control
Cabinet Integration Flexibility
Suitable for installation in customized electrical cabinets
Stable Motor Performance
Provides accurate speed and torque regulation under different load conditions
Reliable Industrial Operation
Designed for continuous-duty applications requiring long service life
Simplified Configuration
Enables easier commissioning and parameter adjustment
With its combination of advanced control functions and robust construction, this frequency converter provides a dependable foundation for modern industrial automation systems.
Technical FAQs
1. What type of motors can the ABB ACS580-04-505A-4 control?
The frequency converter is designed for compatible AC motors used in industrial automation, manufacturing, and process applications.
2. What is the rated output current of this frequency converter?
The ACS580-04-505A-4 provides a rated output current of 505 A for high-power motor control applications.
3. Does this model support sensorless vector control?
Yes. The drive supports advanced motor control functions to improve speed accuracy and torque response.
4. Can this frequency converter be integrated with PLC systems?
Yes. The drive can be connected with industrial automation systems through compatible communication solutions.
5. What input voltage range does this model support?
The unit is designed for three-phase 380–480 V AC industrial power systems.
6. Is this frequency converter suitable for constant torque applications?
Yes. It can be used for constant torque loads such as conveyors, compressors, and heavy processing equipment.
7. What protection functions are available in the drive?
The unit provides fault monitoring, overload protection, diagnostic functions, and operational protection features.
8. How are parameters configured for different applications?
Parameters can be adjusted according to motor specifications, load characteristics, and required control performance.
9. Can additional communication options be installed?
Yes. Optional communication solutions can be used for industrial networking and remote monitoring.
10. Is the ACS580-04-505A-4 suitable for system upgrades?
Yes. Its flexible design makes it suitable for replacing older drive systems and improving overall equipment performance.
