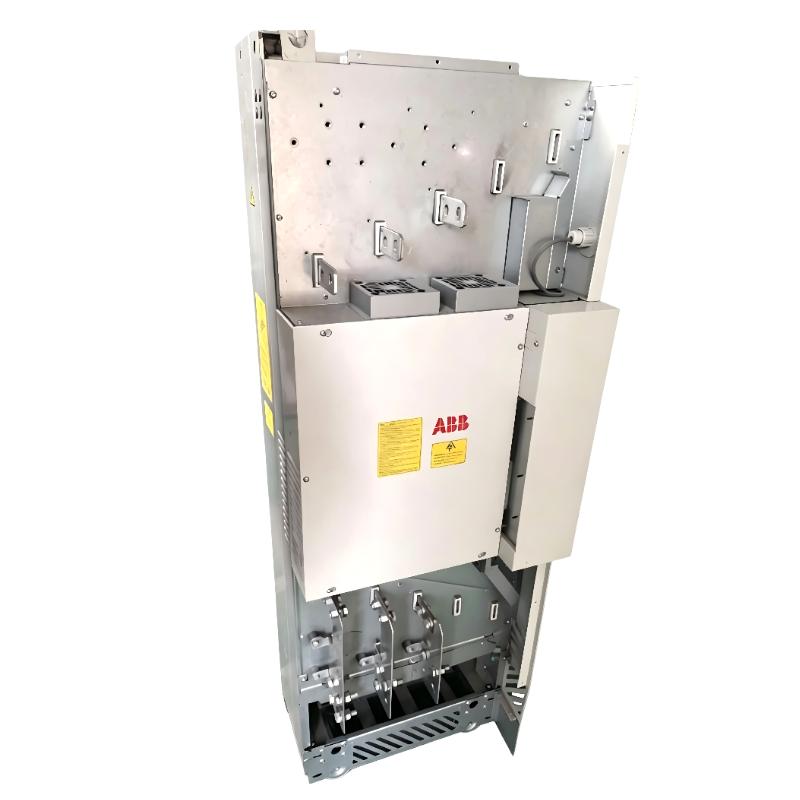

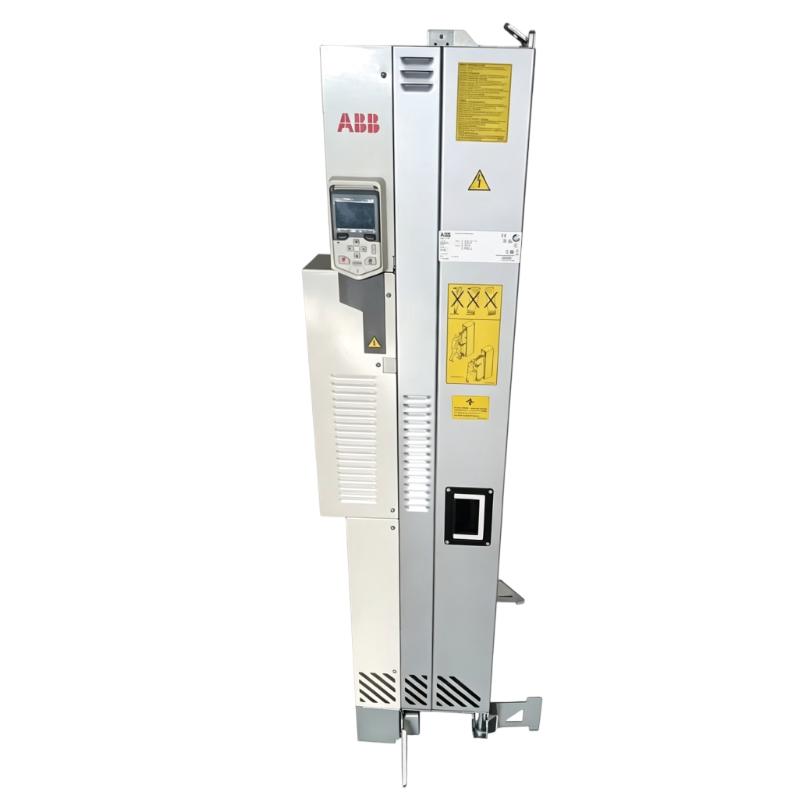

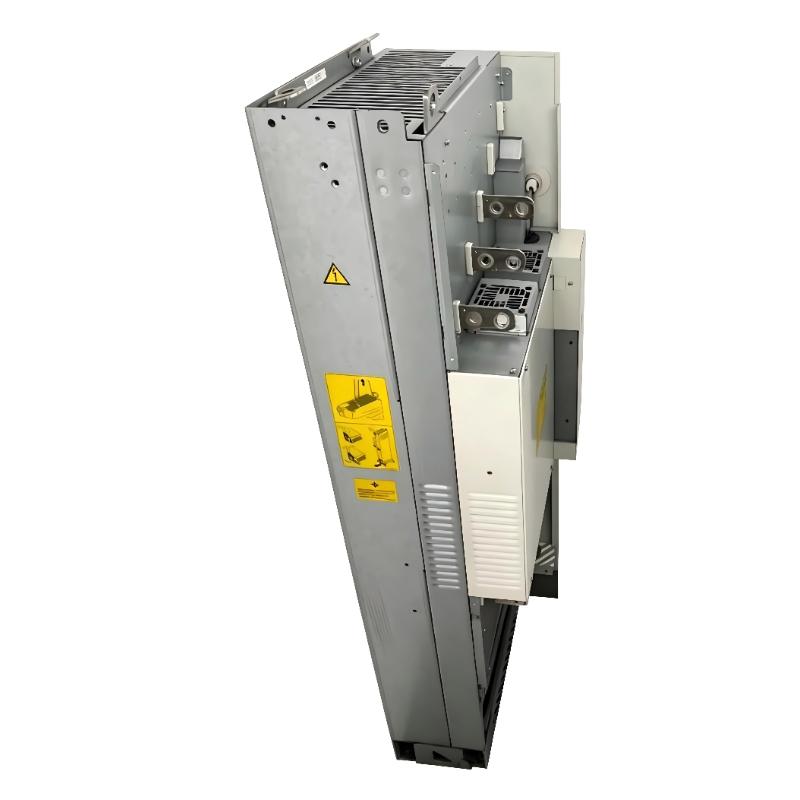

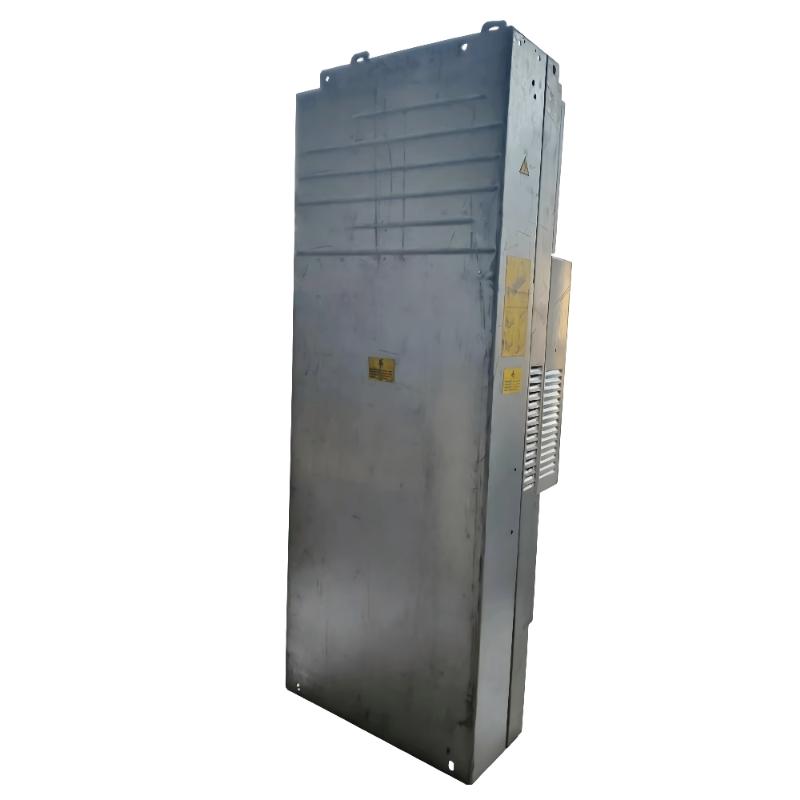

ABB ACS580-04-585A-4 3AUA0000170521 Frequency Converter
ABB ACS580-04-585A-4 3AUA0000170521 Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS580-04-585A-4 Product Origin:Sweden (SE) Product Dimensions:1462 x 350 x 529 mm Product Weight:161 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS580-04-585A-4 3AUA0000170521 Frequency Converter Module is engineered for demanding industrial applications requiring powerful motor control and reliable operation. As part of the ACS580-04 drive family, it provides a practical combination of high output capability, modular cabinet design, and simplified drive management.
This frequency converter is developed for industries where process efficiency, operational stability, and equipment reliability are critical. Its advanced control functions support precise motor regulation while helping users optimize energy consumption and maintain consistent production performance.
With its high current capacity and industrial-grade construction, the ACS580-04-585A-4 provides a dependable solution for large machinery, infrastructure systems, and heavy-duty automation applications.
Technical Specifications
Specification
Details
Product Model
ABB ACS580-04-585A-4
Order Code
3AUA0000170521
Product Type
Frequency Converter Module
Drive Series
ACS580-04 General Purpose Drive
Rated Output Current
585 A
Rated Power
315 kW
Input Voltage
380–480 V AC
Input Phase
Three Phase
Output Frequency Range
0–500 Hz
Control Method
Scalar Control / Sensorless Vector Control
Mounting Type
Cabinet Installation
Protection Class
IP00
Frame Size
R10
Cooling Method
Forced Air Cooling
Dimensions (H × W × D)
1462 × 350 × 529 mm
Weight
161.00 kg (354.94 lb)
Recommended Related Models
Model
Product Type
Application
ABB ACS580-04-505A-4
Frequency Converter
High-power industrial motor control
ABB ACS580-04-650A-4
Frequency Converter
Larger industrial drive applications
ABB ACS880-04-585A-3
Industrial Drive Module
Advanced motor control systems
ABB ACS580-01-430A-4
Frequency Converter
General industrial automation
Popular Related Models
Model
Product Type
Main Feature
ABB ACS580-04-293A-4
Frequency Converter
Flexible industrial drive solution
ABB ACS580-04-361A-4
Frequency Converter
Reliable cabinet drive application
ABB ACS580-04-505A-4
Frequency Converter
High-power motor management
ABB ACS580-04-585A-4
Frequency Converter
Heavy-duty industrial performance
ABB ACS580-04-650A-4
Frequency Converter
Large-scale process control
Industrial Applications and System Integration
The ABB ACS580-04-585A-4 3AUA0000170521 Frequency Converter Module is a high-performance industrial drive designed for large motor applications that demand reliable operation, precise control, and efficient energy management. With a rated output current of 585 A and 315 kW power capability, this frequency converter provides a powerful solution for heavy-duty industrial equipment and continuous production environments.
Designed for cabinet installation, the ACS580-04-585A-4 offers a flexible modular structure that allows engineers to build customized drive systems for different industrial requirements. It is well suited for applications involving variable torque and constant torque loads where stable motor performance and long-term reliability are essential.
Application Area
Description
Large Pumping Systems
Provides efficient speed control for water treatment, industrial circulation, and process pumping applications
Heavy-Duty Conveyor Systems
Supports smooth motor operation for bulk material handling and production lines
Compressor Equipment
Delivers stable control for high-power compression systems
Industrial Fans and Blowers
Helps optimize airflow control while improving energy efficiency
Extrusion and Processing Machinery
Maintains accurate speed and torque regulation for manufacturing processes
Industrial Automation Systems
Provides dependable motor control for complex production environments
The ACS580-04-585A-4 is designed for industries that require high-power motor control, simplified system integration, and dependable performance during continuous operation.
Advanced Performance Advantages
The ABB ACS580-04-585A-4 combines powerful drive technology with practical engineering features to deliver efficient and reliable motor management. Its robust design helps improve process stability while reducing operational complexity.
Advantage
Description
High Current Performance
Provides 585 A rated output current for demanding industrial motor applications
Large Power Capability
Supports motors up to 315 kW for heavy industrial processes
Cabinet Installation Flexibility
Designed for integration into customized electrical cabinets
Energy Efficiency Improvement
Optimizes motor speed according to actual load requirements
Reliable Torque Control
Maintains stable motor operation under changing process conditions
Simplified Commissioning
Provides practical configuration features for easier setup
Industrial Durability
Designed for long-term operation in demanding environments
With its combination of high-power capability and flexible control features, the ACS580-04-585A-4 helps industries achieve improved productivity, reduced energy waste, and reliable automation performance.
Technical FAQs
1. What motor types can the ABB ACS580-04-585A-4 control?
The frequency converter is designed for compatible AC motors, including induction motors used in industrial automation and process applications.
2. What is the rated output current of this frequency converter?
The ACS580-04-585A-4 provides a rated output current of 585 A for high-power motor control systems.
3. Does this model support sensorless vector control?
Yes. The drive supports advanced motor control functions to improve speed accuracy and torque response.
4. Can the ACS580-04-585A-4 be integrated with PLC systems?
Yes. The drive can be connected with industrial automation systems through compatible communication solutions.
5. What type of installation is required for this drive module?
The unit is designed for cabinet installation as a modular frequency converter solution.
6. Can this frequency converter operate constant torque applications?
Yes. It is suitable for applications such as conveyors, compressors, mixers, and heavy processing equipment.
7. What protection functions are included in the drive?
The unit provides fault monitoring, overload protection, diagnostic functions, and operational protection features.
8. How are operating parameters configured?
Parameters can be adjusted according to motor specifications, application requirements, and desired control performance.
9. Can communication functions be expanded?
Yes. Optional communication solutions can be added for industrial networking and remote monitoring.
10. Is the ACS580-04-585A-4 suitable for industrial modernization projects?
Yes. Its flexible design allows integration into upgraded automation systems and replacement of older drive solutions.
