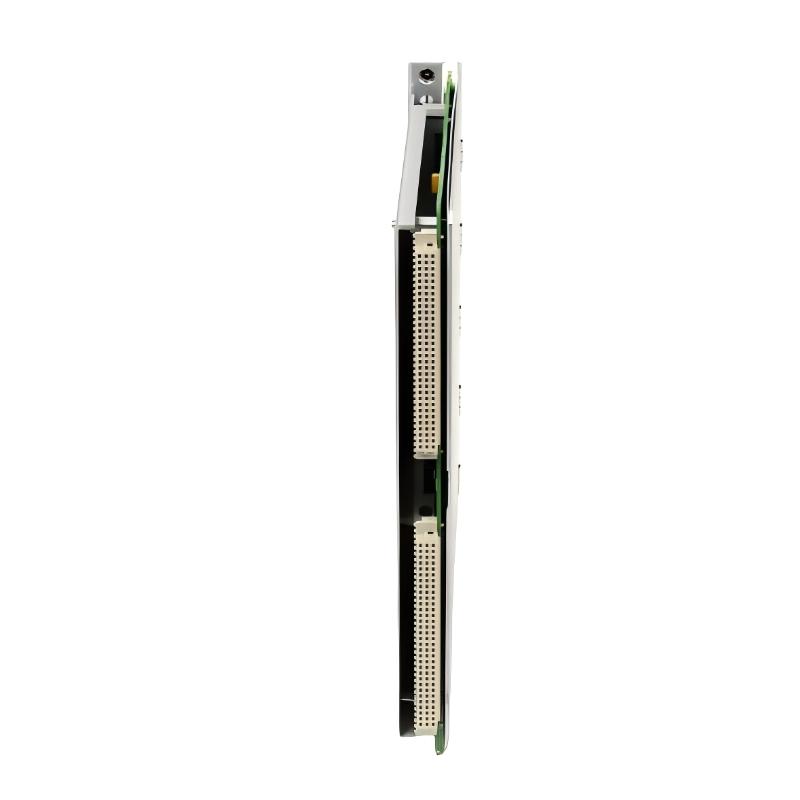

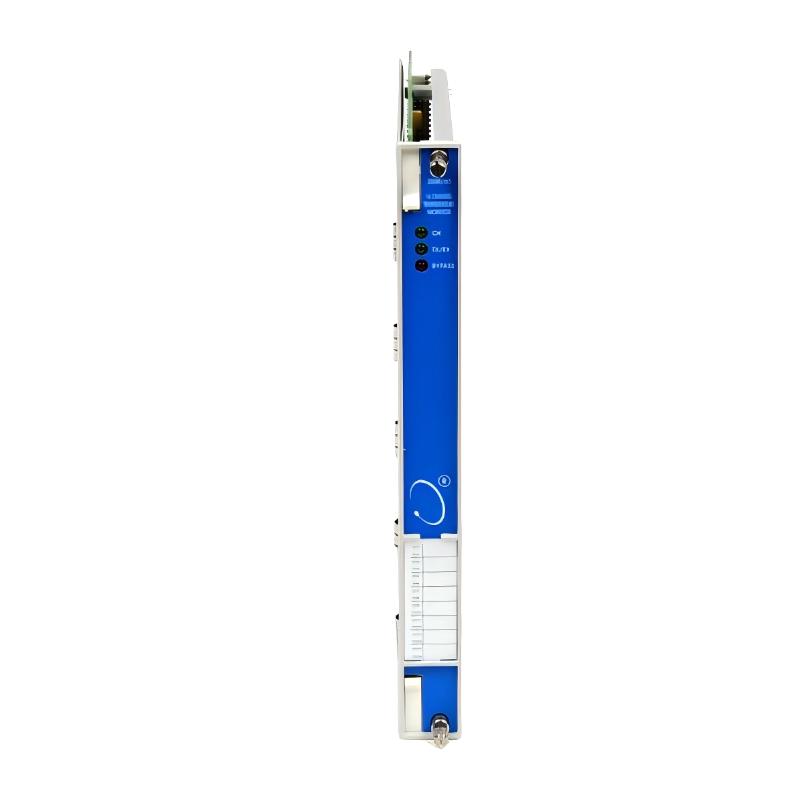

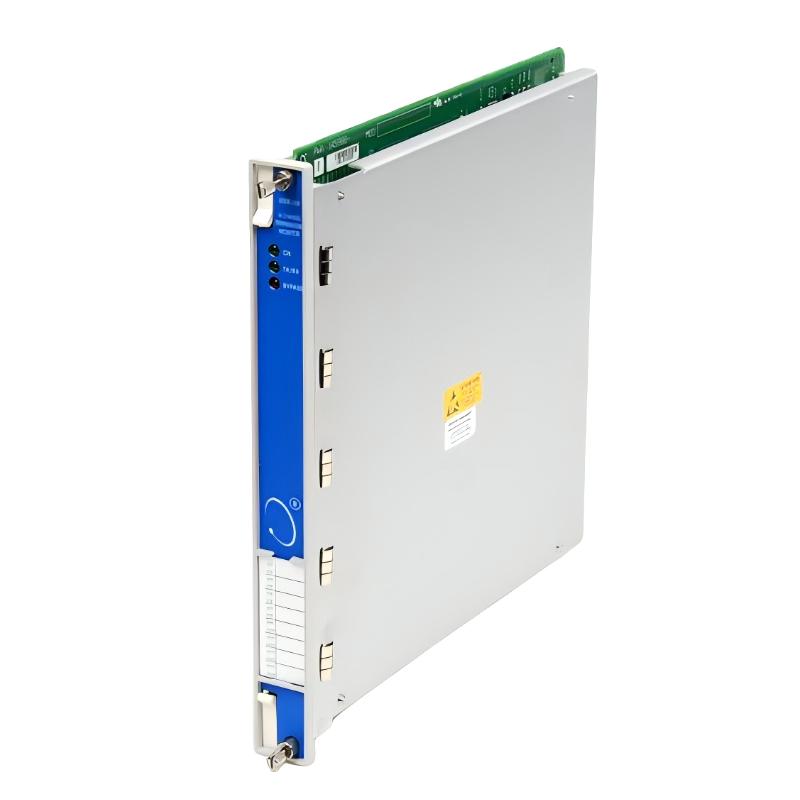

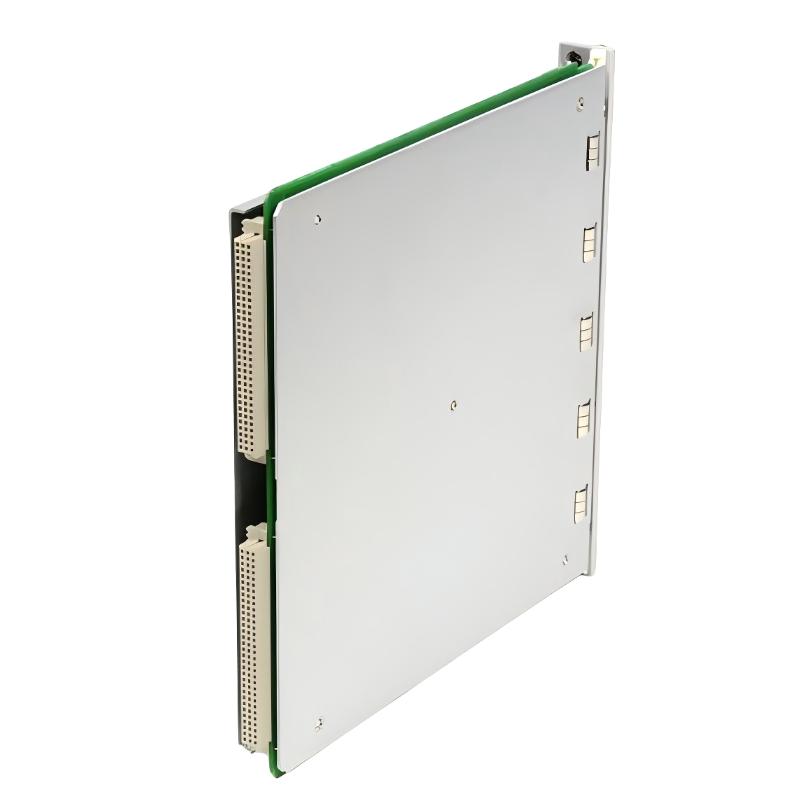

Bently Nevada 3500/50-01-00 133442-01 Tachometer Module

Applications: Precision Speed Measurement for Machinery Protection Systems

The Bently Nevada 3500/50-01-00 133442-01 Tachometer Module is designed to provide accurate rotational speed measurement and overspeed monitoring for critical rotating machinery. As an essential component of the Bently Nevada 3500 monitoring platform, this module delivers dependable speed detection and machine protection functions for industrial applications requiring continuous operation.

The tachometer module is widely used in turbines, compressors, pumps, generators, and other high-performance rotating equipment where precise speed feedback is required. It helps operators monitor shaft speed conditions, identify abnormal rotational behavior, and improve equipment safety through reliable measurement performance.

With its compact modular design and proven monitoring capability, the 3500/50-01-00 Tachometer Module provides an efficient solution for industries focused on operational stability, machinery reliability, and advanced condition monitoring.

Advantages: Reliable Overspeed Detection with Flexible Monitoring Capability

The Bently Nevada 3500/50 Tachometer Module combines accurate signal processing with robust industrial design to support demanding rotating equipment applications.

Key advantages include:

• High-Precision Speed Monitoring
  Provides accurate rotational speed measurement for critical machinery where reliable speed feedback is essential.
• Overspeed Protection Capability
  Supports monitoring functions that help protect equipment from dangerous speed conditions and unexpected operating changes.
• Fast Signal Response
  Designed to process speed-related signals quickly, supporting timely protection decisions in high-speed machinery applications.
• Compact Rack Integration
  The modular design allows efficient installation within existing 3500 system configurations.
• Continuous Operation Reliability
  Built for industrial environments requiring stable long-term performance and dependable monitoring.
• Improved Equipment Safety
  Accurate speed monitoring helps reduce operational risks and supports effective machinery protection strategies.

Technical FAQs: Engineering Questions About Tachometer Monitoring

Q1: What is the primary function of the Bently Nevada 3500/50-01-00 Tachometer Module?
A: The module measures rotating shaft speed and provides monitoring functions for speed-related machinery protection applications.

Q2: What type of equipment uses tachometer monitoring modules?
A: Typical applications include turbines, compressors, generators, pumps, and other rotating machines requiring accurate speed measurement.

Q3: How does the tachometer module detect rotational speed?
A: It receives pulse signals from compatible speed sensors and converts them into accurate rotational speed information.

Q4: What is the importance of overspeed monitoring in rotating machinery?
A: Overspeed monitoring helps prevent mechanical damage by detecting excessive rotational speed conditions before they become hazardous.

Q5: Can the 3500/50-01-00 monitor multiple speed-related parameters?
A: The module supports configurable speed monitoring functions depending on the connected sensor type and system setup.

Q6: What sensors are typically connected to a tachometer module?
A: Compatible speed sensors, magnetic pickups, and other approved rotational measurement devices can be used with the module.

Q7: How does the module support machinery protection systems?
A: It provides reliable speed data that can be used for alarms, shutdown logic, and operational monitoring.

Q8: Can the tachometer module be integrated into an existing Bently Nevada 3500 rack?
A: Yes, it is designed for integration within compatible Bently Nevada 3500 machinery protection systems.

Q9: What factors affect tachometer measurement accuracy?
A: Sensor installation quality, signal stability, target condition, and proper system configuration influence measurement accuracy.

Q10: Why is real-time speed monitoring important in industrial machinery?
A: Real-time speed information allows operators to maintain safe operating conditions and quickly identify abnormal machine behavior.
