Where It Excels in Industrial Use

• Continuous Axial Displacement Monitoring

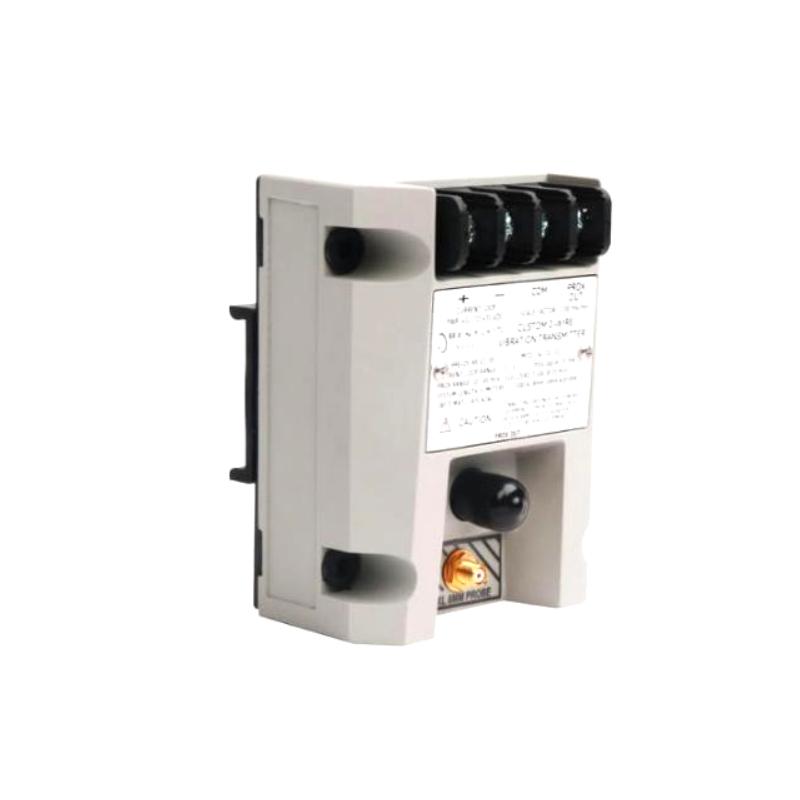

The Bently Nevada 991-25-70-01-01 Thrust Transmitter is engineered to provide accurate shaft axial position (thrust) monitoring for compressors, steam turbines, centrifugal pumps, fans, and industrial motors. Its continuous 4–20 mA output supports reliable machinery protection and predictive maintenance strategies.

• OEM Equipment Integration
Designed specifically for original equipment manufacturers (OEMs), the transmitter combines signal conditioning and Proximitor functionality into a compact package, reducing installation time and simplifying system architecture.

• Process Control Applications
Its industry-standard analog output allows seamless integration with PLC, DCS, and SCADA systems, providing dependable axial position feedback for critical rotating equipment.

• Industrial Reliability Programs
Widely applied in power generation, petrochemical, oil & gas, chemical processing, and manufacturing facilities where continuous shaft position monitoring improves equipment availability and reduces maintenance costs.

Key Strengths at a Glance

• 25-0-25 mil Measurement Range
Configured for a 25-0-25 mil full-scale axial displacement range, providing precise shaft thrust monitoring for critical machinery.

• 7-Meter Transducer System Compatibility
Designed to operate with compatible 3300 NSv 7-meter proximity probe systems, ensuring stable and repeatable measurement performance.

• Integrated Proximitor Electronics
Signal conditioning electronics are built directly into the transmitter, eliminating the need for a separate external Proximitor Sensor.

• 4–20 mA Loop-Powered Output
Supplies a reliable two-wire current output while also providing a PROX OUT diagnostic connection for maintenance and verification.

Technical FAQs

1. What is the primary function of the 991-25-70-01-01 Thrust Transmitter?
It continuously measures shaft axial displacement and converts it into a proportional 4–20 mA output signal for machinery monitoring systems.

2. Which probe system is compatible with this transmitter?
It is designed for use with compatible Bently Nevada 3300 NSv proximity probes and matching 7-meter extension cable systems.

3. What does the "25" designation represent?
It specifies a full-scale measurement range of 25-0-25 mils for axial position monitoring.

4. Does the transmitter require a separate Proximitor Sensor?
No. Integrated Proximitor electronics are incorporated inside the transmitter housing.

5. What output signal is provided?
The transmitter delivers a loop-powered 4–20 mA analog output proportional to shaft thrust position.

6. Can it connect directly to a PLC or DCS?
Yes. Its industry-standard 4–20 mA output is intended for direct integration with industrial automation systems.

7. What is the purpose of the PROX OUT terminal?
It provides a buffered dynamic signal and gap voltage for diagnostic measurements and machinery analysis.

8. Which types of machinery typically use this transmitter?
Typical applications include centrifugal compressors, turbines, pumps, industrial motors, and process fans.

9. What should be verified before replacing the transmitter?
Confirm the measurement range, system length, probe compatibility, mounting configuration, power requirements, and output specifications.

10. How does this transmitter improve equipment reliability?
Continuous monitoring of shaft thrust movement enables early detection of abnormal axial displacement, helping prevent bearing damage and unexpected shutdowns.
