Where It Excels in Industrial Use

• Continuous Axial Shaft Position Measurement

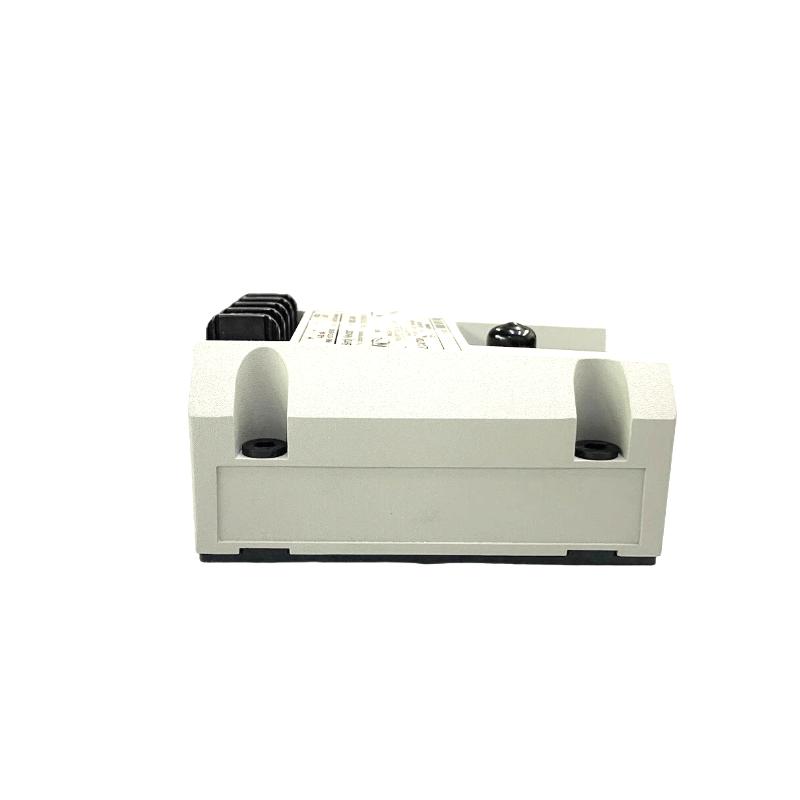

The Bently Nevada 991-25-70-02-00 Thrust Transmitter is engineered for continuous monitoring of shaft axial displacement in centrifugal compressors, steam turbines, pumps, motors, and industrial fans. It converts proximity probe signals into a stable 4–20 mA output for machinery protection and process automation.

• OEM Rotating Equipment Integration
Designed for OEM applications, the transmitter integrates Proximitor signal conditioning into a compact housing, reducing wiring requirements while simplifying installation and commissioning.

• Industrial Control System Connectivity
Its industry-standard analog output allows seamless integration with PLC, DCS, and SCADA platforms, providing reliable shaft thrust data for predictive maintenance and equipment diagnostics.

• Reliable Performance in Demanding Environments
Built with fully potted electronics and industrial-grade construction, the transmitter performs consistently in oil & gas, petrochemical, power generation, mining, and process manufacturing facilities.

Key Strengths at a Glance

• 25-0-25 mil Full-Scale Range
Configured with a 25-0-25 mil (±0.6 mm) measurement range for accurate axial shaft position monitoring on critical rotating equipment.

• 7-Meter Transducer System Compatibility
Designed for use with compatible 3300 NSv 7-meter proximity probe systems, ensuring dependable measurement stability and repeatability.

• Bulkhead Mounting Configuration

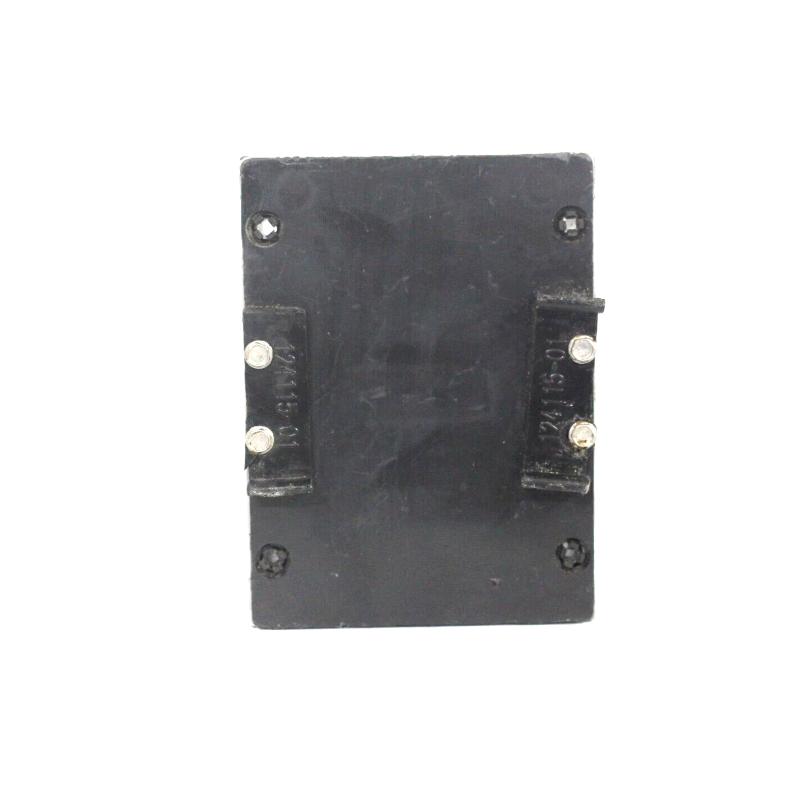

The -02 mounting option includes bulkhead mounting screws, providing secure installation for machinery panels and OEM equipment.

• Integrated Proximitor Electronics
Combines signal conditioning, PROX OUT diagnostics, and a two-wire loop-powered design into a single enclosure, reducing hardware requirements and improving system reliability.

Technical FAQs

1. What is the primary function of the 991-25-70-02-00 Thrust Transmitter?
It continuously measures shaft axial displacement and converts it into a proportional 4–20 mA signal for machinery monitoring and protection systems.

2. Which probe system is compatible with this transmitter?
It is designed for use with compatible Bently Nevada 3300 NSv proximity probes and a matching 7-meter transducer system.

3. What does the "25" option indicate?
It specifies a full-scale measurement range of 25-0-25 mils (±0.6 mm) for axial shaft position monitoring.

4. What does the "-02" mounting option represent?
The -02 option specifies bulkhead screw mounting, allowing secure installation on equipment panels or machinery frames.

5. Does the transmitter require an external Proximitor Sensor?
No. The transmitter incorporates integrated Proximitor electronics, eliminating the need for separate signal conditioning hardware.

6. What output signal does the transmitter provide?
It supplies a loop-powered 4–20 mA analog output proportional to shaft axial displacement.

7. What is the purpose of the PROX OUT terminal?
It provides a buffered dynamic signal and gap voltage for diagnostics, testing, and machinery analysis.

8. Can it interface directly with PLC or DCS systems?
Yes. Its standard 4–20 mA output is intended for direct connection to industrial automation and control systems.

9. Which rotating machines commonly use this transmitter?
It is commonly installed on compressors, turbines, industrial pumps, motors, and process fans requiring continuous thrust position monitoring.

10. How does this transmitter improve equipment reliability?
By continuously monitoring shaft axial movement, it enables early detection of abnormal thrust conditions, reducing the risk of bearing damage and unplanned shutdowns.
