Where It Excels in Industrial Use

• High-Accuracy Axial Position Monitoring

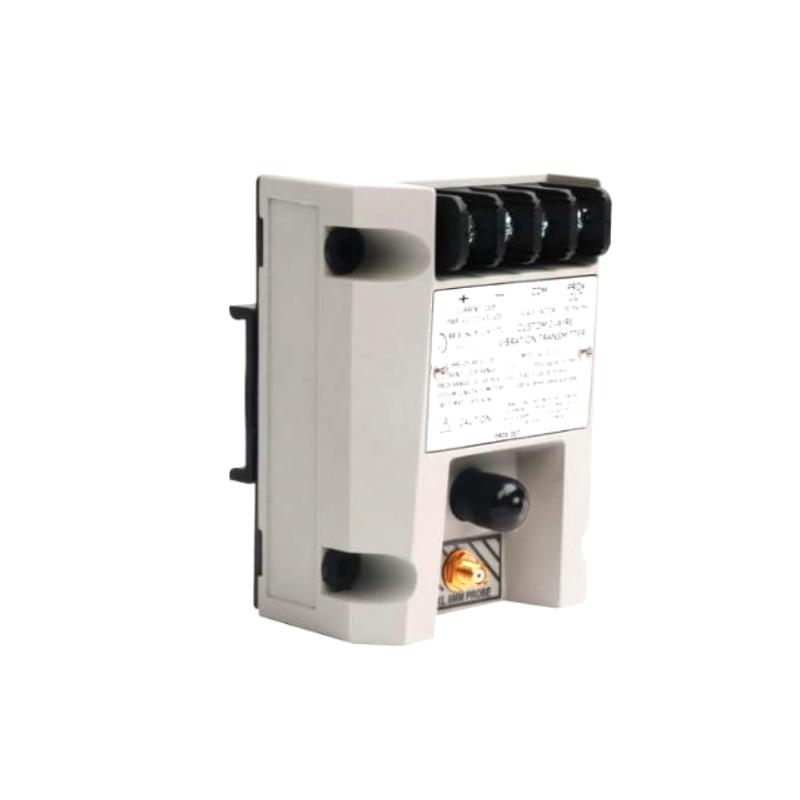

The Bently Nevada 991-25-70-02-01 Thrust Transmitter is designed to continuously monitor shaft axial displacement in turbines, centrifugal compressors, pumps, motors, and fans. It converts proximity probe signals into a reliable 4–20 mA output, enabling effective machinery protection and process control.

• OEM Machinery Integration
Its integrated Proximitor electronics reduce installation complexity by eliminating the need for a separate signal conditioner, making it ideal for original equipment manufacturers and compact control panels.

• Plant-Wide Condition Monitoring
Designed for seamless integration with PLC, DCS, and SCADA systems, the transmitter supplies continuous thrust position data to support predictive maintenance and improve equipment reliability.

• Industrial Process Applications
Suitable for demanding environments including oil & gas, petrochemical, power generation, pulp & paper, mining, and general manufacturing where dependable shaft position monitoring is essential.

Key Strengths at a Glance

• 25-0-25 mil Measurement Range
Configured with a full-scale 25-0-25 mil measurement range for precise axial shaft displacement monitoring.

• 7-Meter Transducer System Compatibility
Designed to operate with compatible 3300 NSv 7-meter proximity probe systems, ensuring accurate and repeatable measurements.

• Bulkhead Mounting Configuration
The -02 mounting option provides secure bulkhead installation for machinery panels and OEM equipment cabinets.

• Integrated Signal Conditioning
Combines Proximitor electronics, PROX OUT diagnostics, and loop-powered operation in a compact enclosure for simplified installation and dependable long-term performance.

Technical FAQs

1. What is the primary function of the 991-25-70-02-01 Thrust Transmitter?
It continuously measures shaft axial displacement and converts it into a proportional 4–20 mA signal for machinery monitoring systems.

2. Which proximity probe family is compatible with this transmitter?
It is designed for compatible Bently Nevada 3300 NSv proximity probes with a matching 7-meter transducer system.

3. What does the 25-0-25 mil range represent?
It defines the transmitter's calibrated measurement span for monitoring shaft thrust movement with high accuracy.

4. Does this transmitter require an external Proximitor Sensor?
No. The signal conditioning electronics are integrated directly into the transmitter housing.

5. What does the "-02" mounting option indicate?
It specifies a bulkhead mounting configuration for secure installation on machinery or control panels.

6. What output signal does the transmitter provide?
It provides a standard two-wire, loop-powered 4–20 mA analog output suitable for industrial automation systems.

7. What is the function of the PROX OUT terminal?
It supplies a buffered dynamic signal and gap voltage for diagnostics, calibration, and machinery analysis.

8. Can the transmitter interface directly with a PLC or DCS?
Yes. It is specifically designed for direct integration with PLC, DCS, and SCADA platforms using its 4–20 mA output.

9. Which rotating machines commonly use this transmitter?
Typical applications include centrifugal compressors, steam turbines, industrial pumps, motors, and process fans.

10. How does this transmitter improve equipment reliability?
Continuous axial position monitoring enables early detection of abnormal shaft movement, helping prevent bearing damage and unplanned shutdowns.
