Where It Excels in Industrial Use

• Critical Rotating Equipment Thrust Monitoring
The Bently Nevada 991-25-70-03-05 Thrust Transmitter is designed for continuous axial position measurement on centrifugal compressors, turbines, pumps, motors, and other rotating machinery where accurate thrust monitoring is essential. It converts shaft displacement signals into a reliable 4–20 mA output for direct connection to machinery control systems.

• OEM Machinery Control Applications
Developed for OEM equipment manufacturers, this transmitter combines compact construction with integrated signal conditioning, helping simplify machinery monitoring designs while reducing additional hardware requirements.

• Industrial Automation and Condition Monitoring
The transmitter provides a standardized analog signal compatible with PLC, DCS, and SCADA systems, supporting predictive maintenance programs and continuous equipment health evaluation.

• Hazardous Area Industrial Installations
With the -05 approval configuration, the transmitter is suitable for demanding industrial environments requiring certified operation, including oil & gas, petrochemical, power generation, and process industries.

Key Strengths at a Glance

• 25-0-25 mil Axial Position Range
Provides accurate thrust position measurement with a ±25 mil range, allowing reliable monitoring of shaft axial movement in critical machinery applications.

• 7-Meter 3300 NSv System Compatibility
Designed for use with Bently Nevada 3300 NSv proximity probes and matching extension cables, ensuring stable signal transmission and consistent measurement performance.

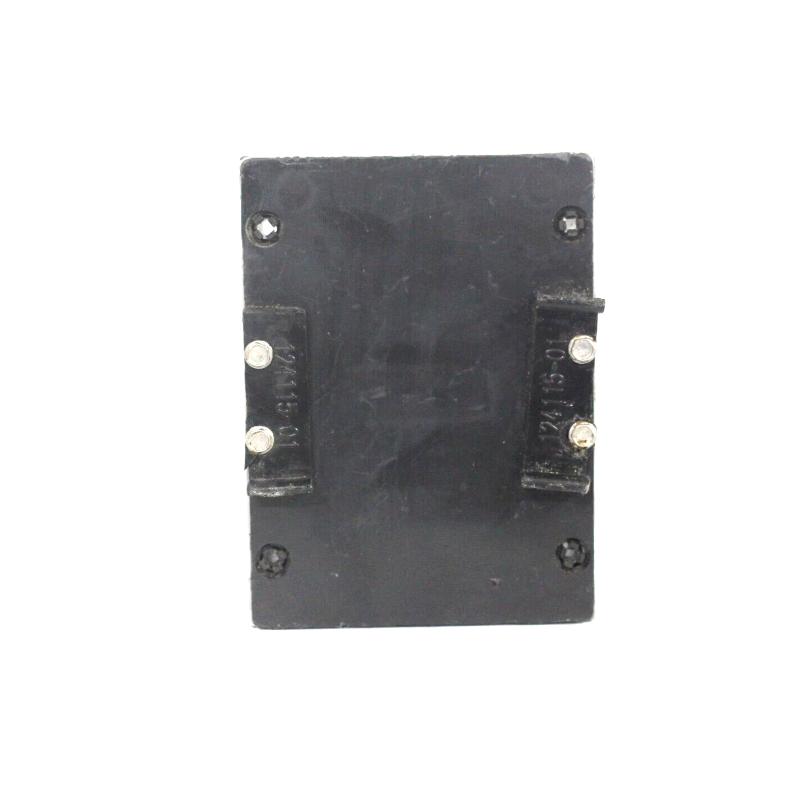

• DIN Rail Mounting Design
The -03 configuration includes DIN rail clips and screws, allowing convenient installation inside OEM control cabinets and industrial monitoring panels.

• Hazardous Area Certification Option
The -05 option supports certified applications requiring additional protection approval, improving installation flexibility across global industrial facilities.

Technical FAQs

1. What is the main purpose of the Bently Nevada 991-25-70-03-05?
It measures shaft axial displacement and converts the measurement into a proportional 4–20 mA signal for machinery monitoring and protection systems.

2. Which probe system works with this thrust transmitter?
It is designed to operate with Bently Nevada 3300 NSv proximity probes and their matching extension cable systems.

3. What does the 25-0-25 mil specification indicate?
It represents the transmitter's calibrated axial position measurement range for monitoring thrust movement around the shaft operating position.

4. Does the transmitter require a separate Proximitor Sensor?
No. The 991 series transmitter integrates Proximitor electronics internally, eliminating the requirement for an external unit.

5. What type of output signal does this model provide?
It provides a standard two-wire loop-powered 4–20 mA output proportional to measured shaft axial position.

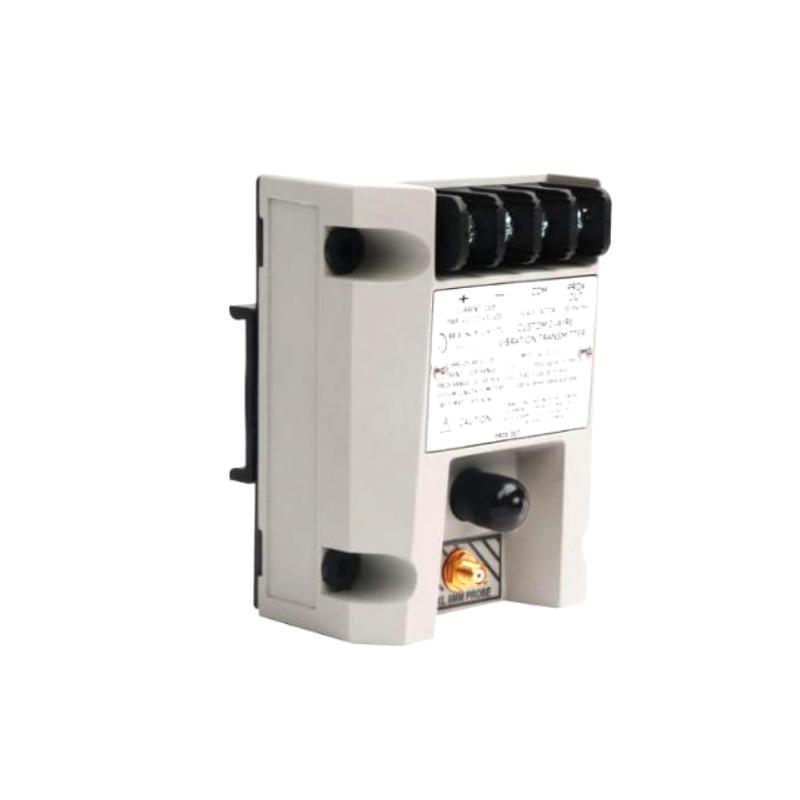

6. What is the function of the PROX OUT signal?
The PROX OUT connection provides a dynamic signal and gap voltage output for diagnostic testing and machinery analysis.

7. Can this transmitter connect directly to a PLC or DCS system?
Yes. The 4–20 mA output allows direct connection with industrial control and monitoring systems.

8. What industries commonly use this transmitter?
It is commonly applied in oil & gas, petrochemical, power generation, compressor packages, and industrial rotating equipment.

9. What does the "-03" code represent in the model number?
The -03 option identifies the DIN rail mounting configuration with clips and screws.

10. What does the "-05" approval option provide?
The -05 option identifies the transmitter version with specific hazardous-area certification features for approved industrial installations.
