Where It Excels in Industrial Use

• Reliable Axial Position Monitoring for Critical Machinery

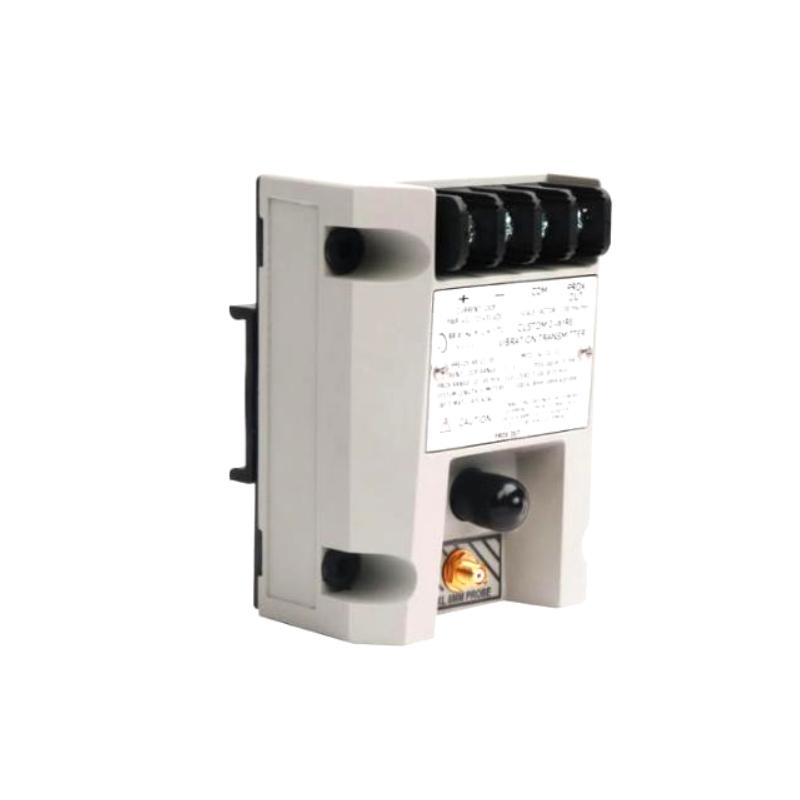

The Bently Nevada 991-25-XX-02-05 Thrust Transmitter is designed for continuous shaft axial displacement monitoring on centrifugal compressors, pumps, motors, fans, and other rotating equipment. It converts 3300 NSv proximity probe measurements into a proportional 4–20 mA output signal for machinery control and protection systems.

• OEM Machinery Package Integration
Developed for OEM applications, this transmitter provides a compact monitoring solution by combining signal conditioning and proximity electronics into one device, reducing the need for additional external hardware and simplifying equipment design.

• Industrial Automation and Condition Monitoring
The standard 4–20 mA output allows direct connection with PLC, DCS, and SCADA platforms, providing continuous thrust position feedback for predictive maintenance and operational reliability improvement.

• Certified Industrial Installation Environments
The -05 approval configuration supports applications requiring hazardous-area certification, making it suitable for demanding industries such as oil & gas, petrochemical, power generation, and process manufacturing.

Key Strengths at a Glance

• 25-Series Axial Displacement Measurement
Configured for the 25 mil class thrust measurement range, providing accurate shaft axial position monitoring for rotating machinery protection applications.

• 5 m / 7 m System Flexibility
The 991 series supports compatible 3300 NSv proximity probe systems with matching extension cable configurations, allowing flexible installation based on machinery requirements.

• Bulkhead Mounting Configuration

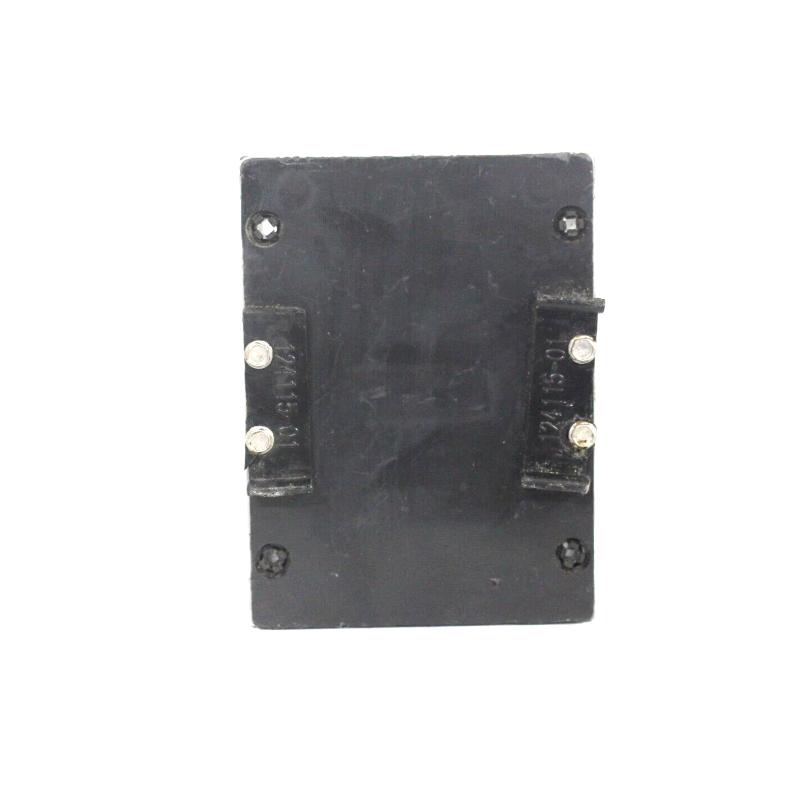

The -02 mounting option provides bulkhead screw installation, offering secure mechanical mounting for OEM panels and industrial equipment enclosures.

• Integrated Proximitor Electronics
Built-in proximity signal conditioning eliminates the requirement for a separate Proximitor Sensor while maintaining accurate measurement conversion and diagnostic capability.

Technical FAQs

1. What is the main purpose of the Bently Nevada 991-25-XX-02-05?
It measures shaft axial displacement and converts the measurement into a 4–20 mA signal for machinery monitoring and control applications.

2. Which sensor system is compatible with this transmitter?
It is designed to work with Bently Nevada 3300 NSv proximity probes and compatible extension cable systems.

3. What does the 25 option represent in the model number?
The 25 option identifies the transmitter configuration designed for 25-class axial displacement measurement.

4. Does the transmitter require an external Proximitor Sensor?
No. The transmitter integrates proximity signal conditioning electronics internally.

5. What output signal does the transmitter provide?
It provides a standard two-wire loop-powered 4–20 mA output proportional to shaft axial position.

6. What is the function of the PROX OUT signal?
The PROX OUT connection provides a dynamic signal and gap voltage output for diagnostic testing and machinery analysis.

7. Can this transmitter connect directly to PLC and DCS systems?
Yes. The 4–20 mA output is designed for direct connection to industrial automation systems.

8. What types of machinery use the 991 thrust transmitter?
Typical applications include centrifugal compressors, industrial pumps, motors, turbines, and fans requiring thrust monitoring.

9. What does the -02 configuration specify?
The -02 option identifies the bulkhead mounting configuration using mounting screws.

10. What does the -05 suffix indicate?
The -05 suffix identifies the transmitter version with specific agency approval options for industrial installations.
