Brand:Bently Nevada PLC Item No.:89416-01 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.11 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

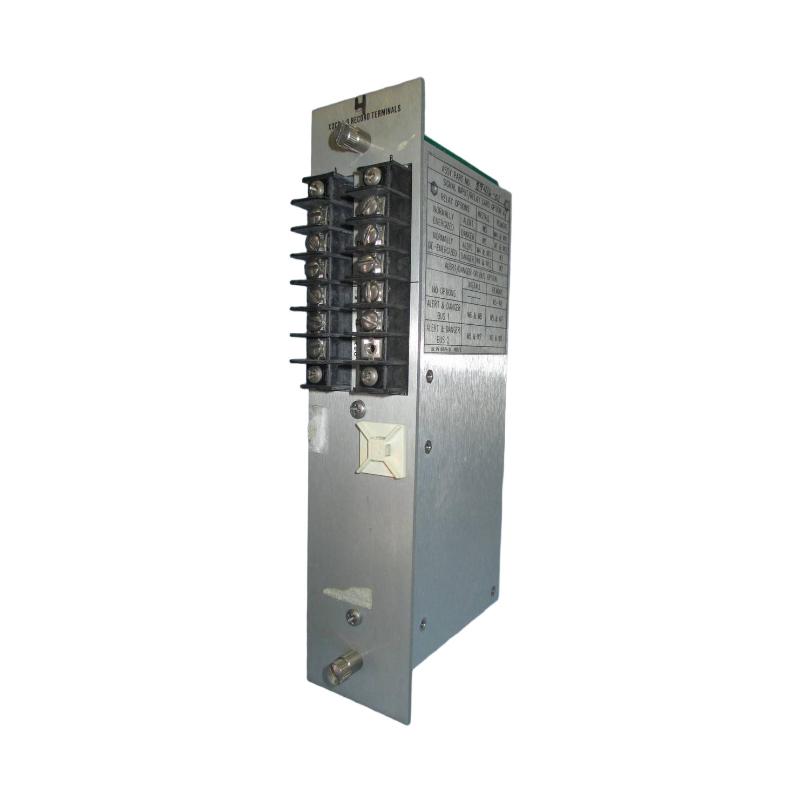

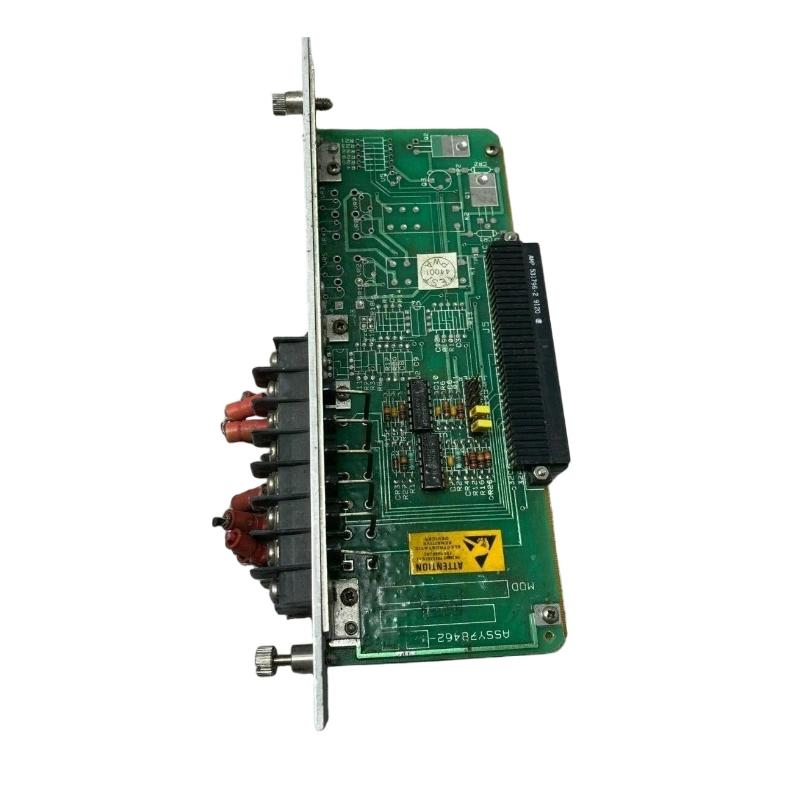

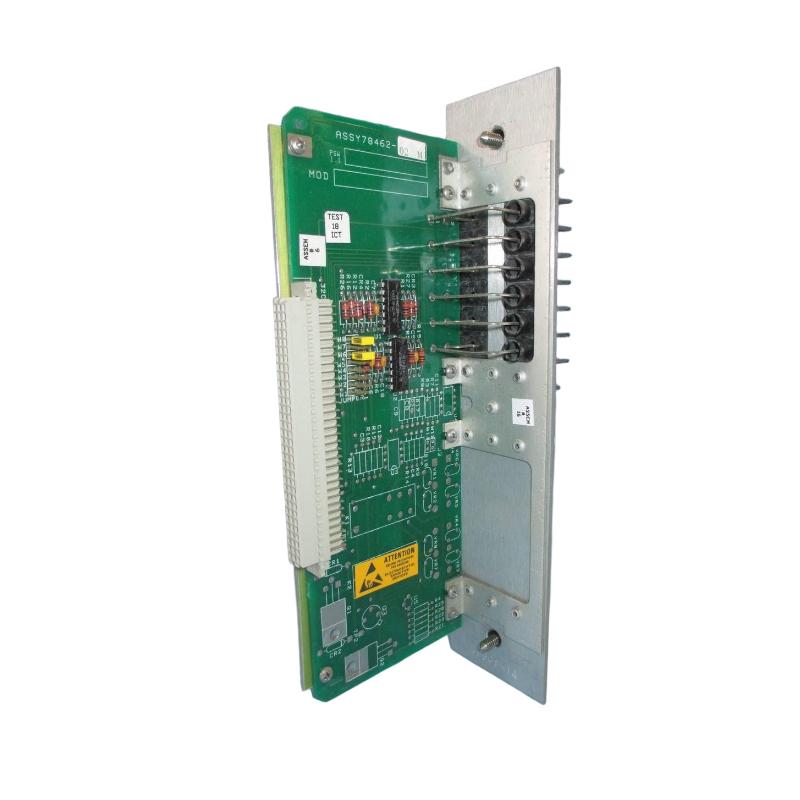

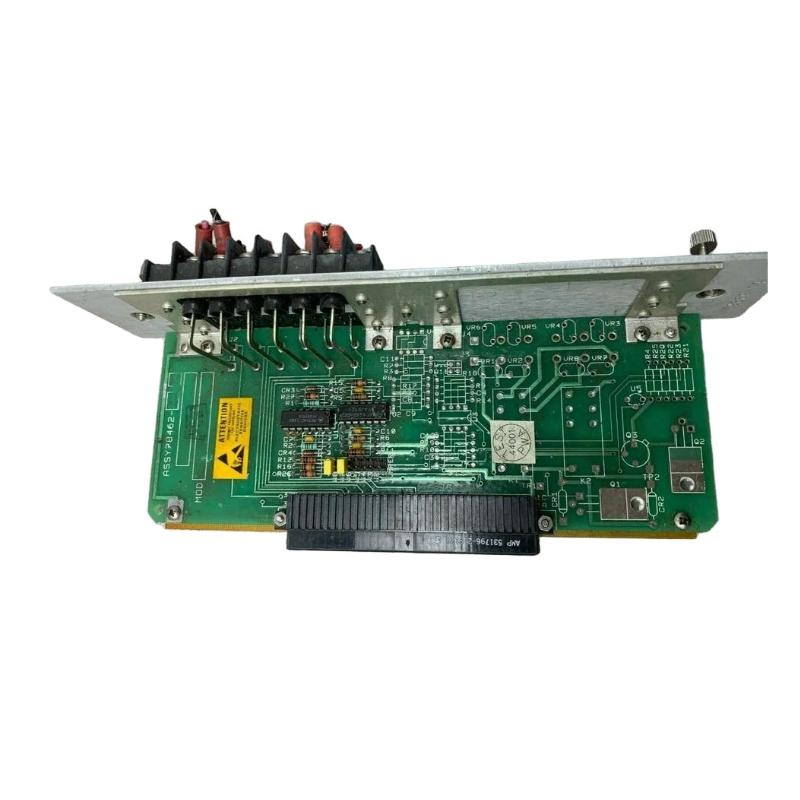

The Bently Nevada 89416-01 XDCR I/O Record Terminal is a dependable interface component developed for industrial machinery monitoring applications. It provides an efficient connection point between field-mounted transducers and monitoring equipment, helping maintain accurate signal transmission and organized system wiring. Its robust design supports reliable long-term operation in demanding industrial environments while simplifying installation and maintenance procedures.
Designed to complement Bently Nevada vibration monitoring solutions, the 89416-01 supports high-speed signal acquisition, flexible communication capabilities, and dependable transducer connectivity. It is an excellent choice for facilities seeking reliable machinery protection and condition monitoring performance across a wide range of rotating equipment applications.
Technical Specifications
Specification
Details
Manufacturer
Bently Nevada
Model
89416-01
Product Type
XDCR I/O Record Terminal
Function
Transducer Signal Interface and Record Terminal
Supported Sensors
Proximity Probes, Accelerometers
Input Signal Types
±10 V, 4–20 mA (system dependent)
Maximum Sampling Rate
Up to 200 kHz
Supply Voltage
24 VDC
Maximum Current Consumption
500 mA
Communication
RS-232, RS-485
Mounting Method
DIN Rail or Panel Mount
Protection Rating
IP67
Operating Temperature
-40°C to +70°C
Storage Temperature
-55°C to +85°C
Dimensions
100 × 150 × 30 mm
Weight
Approx. 0.50 kg
Recommended Companion Models
Model
Product Name
330180-90-00
3300 XL Proximitor Sensor
330103-00-05-10-02-05
3300 XL 8 mm Proximity Probe
3500/42M-01-00
Proximitor/Seismic Monitor Module
3500/22M-01-01-00
Transient Data Interface Module
Frequently Selected Alternatives
Model
Product Name
82926-01
XDCR I/O Record Terminal
84145-01
Transducer Interface Module
84147-01
Signal Interface Module
84149-01
Transducer Terminal Assembly
Where It Excels in Industrial Use
• Transducer Signal Termination
The Bently Nevada 89416-01 XDCR I/O Record Terminal is designed to provide secure field termination for transducer signals within machinery monitoring systems. It simplifies wiring between vibration sensors and monitoring equipment while ensuring dependable signal integrity.
• Machinery Condition Monitoring Systems
The terminal is commonly used in rotating equipment monitoring applications involving proximity probes, accelerometers, and other vibration transducers installed on turbines, compressors, motors, generators, and pumps.
• Industrial Data Acquisition
Supporting multiple analog signal formats, the XDCR I/O Record Terminal enables efficient collection and transmission of machinery condition data for protection, diagnostics, and predictive maintenance programs.
• Control System Integration
Designed for seamless integration with Bently Nevada monitoring platforms, the terminal provides an organized interface for connecting field instrumentation to monitoring racks and industrial automation systems.
Key Strengths at a Glance
• Dedicated Transducer Interface
Optimized for connecting proximity probes and vibration transducers while maintaining reliable signal quality throughout the monitoring system.
• High-Speed Signal Processing Capability
Supports high-frequency signal acquisition suitable for machinery vibration analysis and transient event monitoring.
• Flexible Communication Options
Compatible with industrial communication interfaces including RS-232 and RS-485 for simplified system connectivity.
• Industrial-Grade Construction
Built for continuous operation in demanding industrial environments with robust mechanical construction and dependable electrical performance.
Technical FAQs
1. What is the primary purpose of the Bently Nevada 89416-01?
It serves as a transducer I/O record terminal that provides secure signal termination and interface functions within machinery monitoring systems.
2. Which sensors are compatible with this terminal?
It supports proximity probes, accelerometers, and other compatible vibration transducers used in Bently Nevada monitoring applications.
3. Does this terminal perform vibration analysis?
No. It functions as a signal interface and termination device. Signal processing is performed by the associated monitoring equipment.
4. Can it be integrated with machinery protection systems?
Yes. It is intended to operate as part of a complete Bently Nevada machinery monitoring and protection solution.
5. What signal types can the terminal accommodate?
It supports common analog transducer inputs, including voltage and current signals, depending on the connected monitoring system configuration.
6. Does the unit require external power?
Yes. The terminal operates with an external DC power supply as specified by the monitoring system design.
7. What communication interfaces are available?
The unit supports RS-232 and RS-485 communication interfaces for industrial connectivity.
8. Is the terminal suitable for continuous industrial operation?
Yes. It is designed for continuous service in industrial condition monitoring installations.
9. What should be verified before replacing the terminal?
Users should confirm the model number, wiring configuration, communication requirements, mounting arrangement, and compatibility with the installed monitoring system.
10. Which industries commonly use this product?
It is widely used in power generation, petrochemical processing, oil and gas, mining, marine, and heavy manufacturing facilities where rotating equipment monitoring is critical.
