Where It Excels in Industrial Use

• Armored Velocity Sensor Interconnect

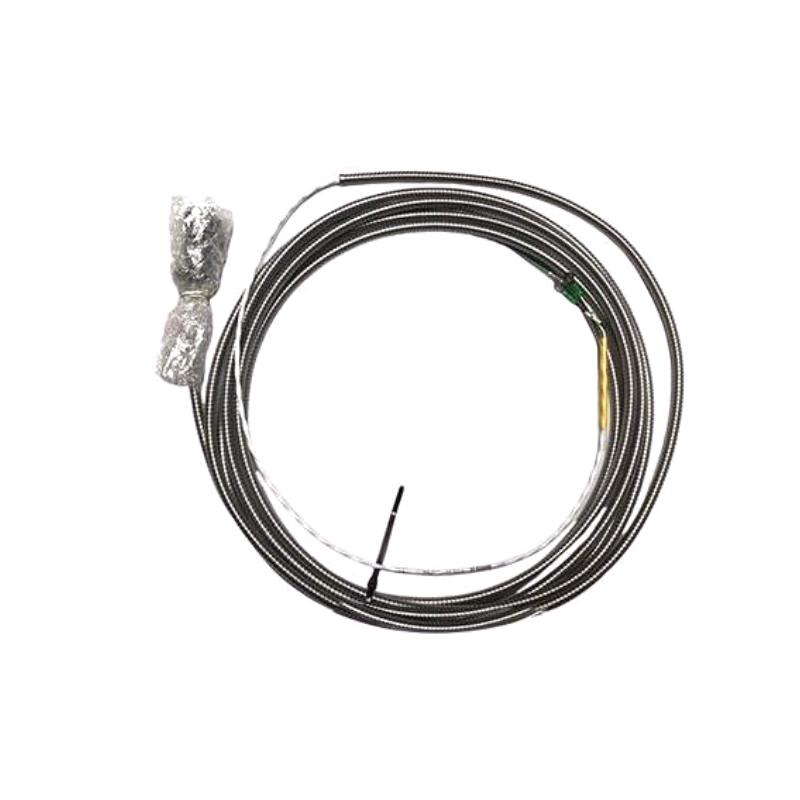

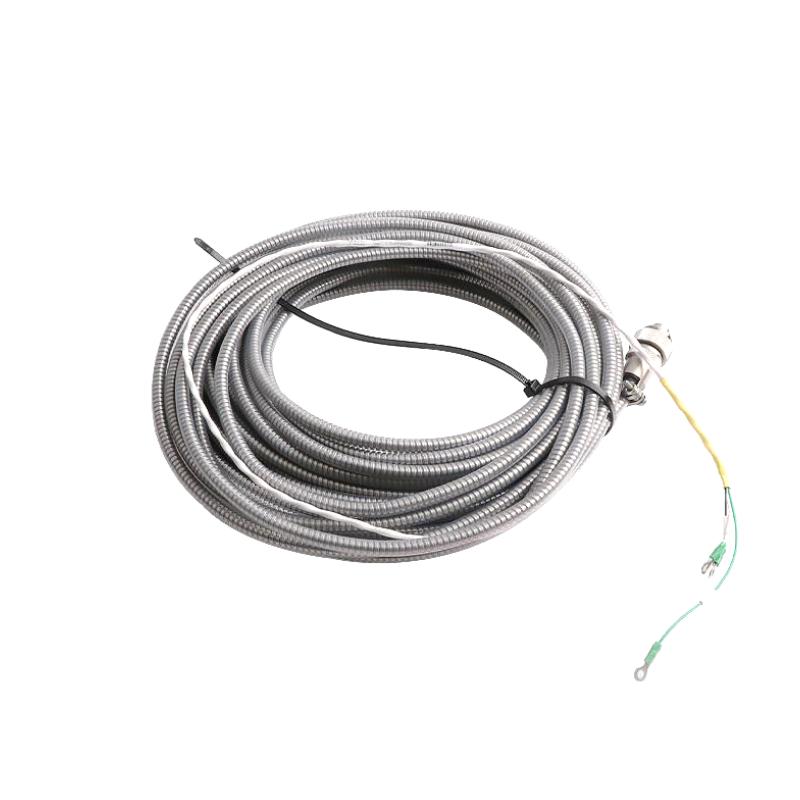

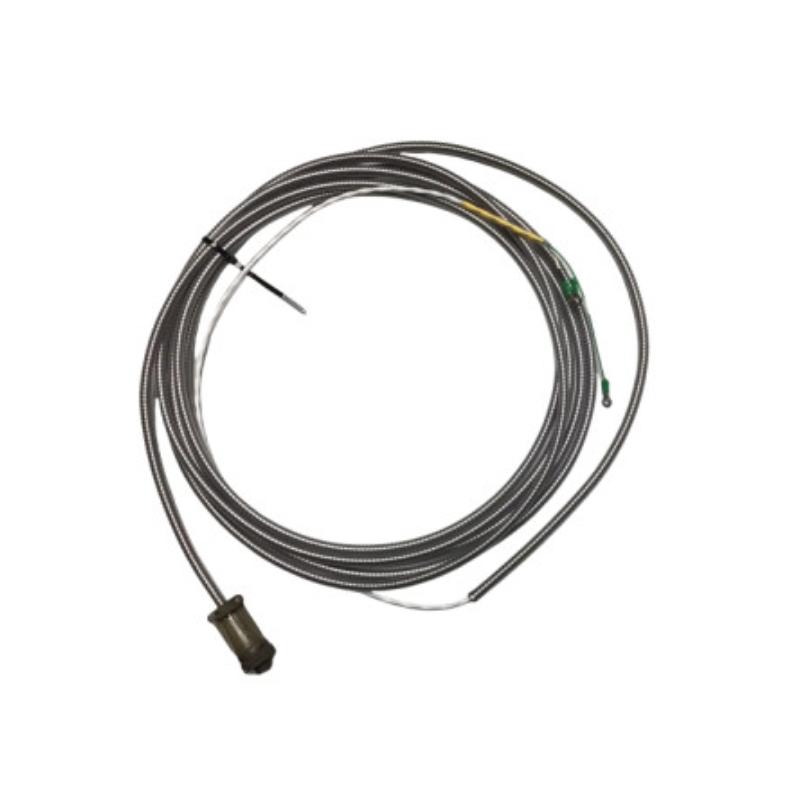

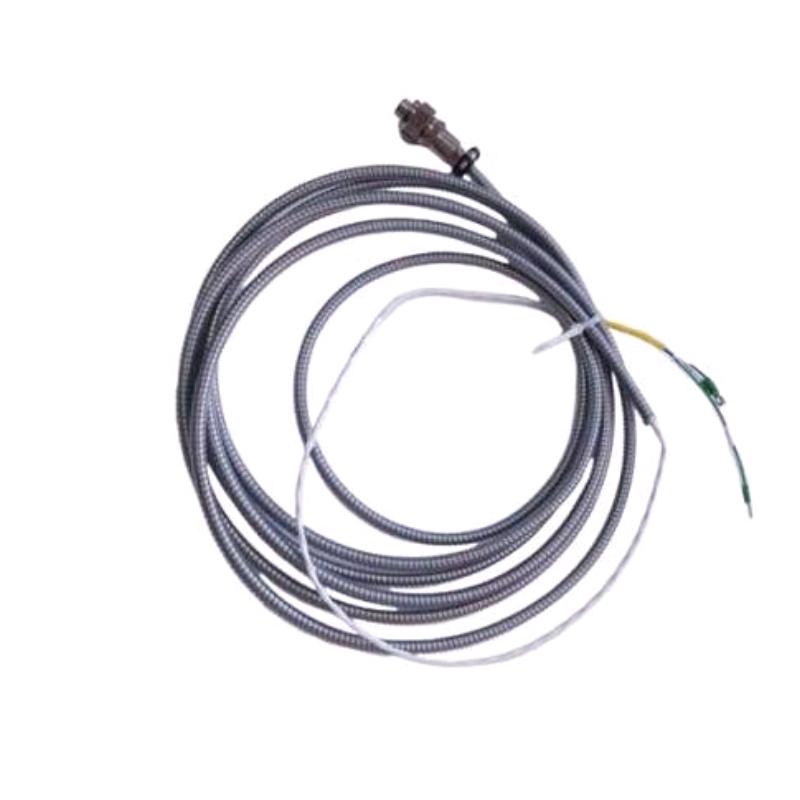

The Bently Nevada 84661-40 Velomitor Interconnect Cable is designed to connect Bently Nevada Velomitor piezo-velocity sensors to vibration monitoring systems. It provides a rugged, shielded signal connection for industrial machinery condition monitoring applications.

• Critical Rotating Machinery Monitoring
The cable is used with rotating equipment such as turbines, compressors, pumps, motors, and generators where reliable velocity vibration signals are required for machinery protection and predictive maintenance.

• Harsh Industrial Environments
The 84661 series uses an armored construction with shielded conductors, providing improved protection against abrasion, mechanical stress, and electrical interference. The cable family is specified as a flexible stainless-steel armored version of the standard 9571 shielded cable.

• Extended Sensor-to-Monitor Installation
The “-40” suffix indicates a 40 ft (approximately 12.2 m) cable length, providing additional routing distance between field-mounted Velomitor sensors and monitoring cabinets.

Key Strengths at a Glance

• 40 ft (≈12.2 m) Armored Velomitor Interconnect Cable

• Two-Conductor Twisted Shielded 22 AWG Cable

• Flexible Stainless Steel Armored Protection

• Moisture-Resistant Female Socket Connector at Sensor End

• Terminal / Ring Lug Termination at Monitor End

• Designed for Velomitor Velocity Sensor Applications

Technical FAQs

1. What is the primary function of the Bently Nevada 84661-40?
It provides the electrical connection between a Velomitor velocity sensor and a compatible Bently Nevada vibration monitoring system.

2. What does the "-40" suffix represent?
The suffix identifies the cable length: 40 ft (approximately 12.2 m).

3. What type of cable construction is used?
The cable uses a two-conductor twisted, shielded 22 AWG armored cable designed for velocity signal transmission.

4. What connector is installed at the sensor end?
A moisture-resistant female socket connector is provided for connection to compatible Velomitor sensors.

5. What termination is provided at the monitor end?
The cable terminates with terminal/ring lugs for connection to monitoring equipment.

6. Is the 84661-40 an active electronic device?
No. It is a passive interconnect cable and does not contain signal conditioning electronics.

7. Is it compatible with the 21128 Velocity Transducer Housing Assembly?
No. The 84661 series is intended for direct Velomitor sensor interconnection. The 89477 series is used for installations requiring the 21128 housing connection.

8. Which sensors are commonly paired with this cable?
Typical applications include Bently Nevada Velomitor velocity sensors such as the 330500 series and compatible velocity monitoring systems.

9. What environmental conditions can it withstand?
Published specifications for the 84661-40 list an industrial operating temperature range around -50°C to +120°C from supplier documentation.

10. What should be verified before replacement?
Check:

• Sensor model compatibility
• Required cable length
• Connector configuration
• Armor requirement
• Monitoring system input wiring
