Brand:Bently Nevada PLC Item No.: IC693MDL655F Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

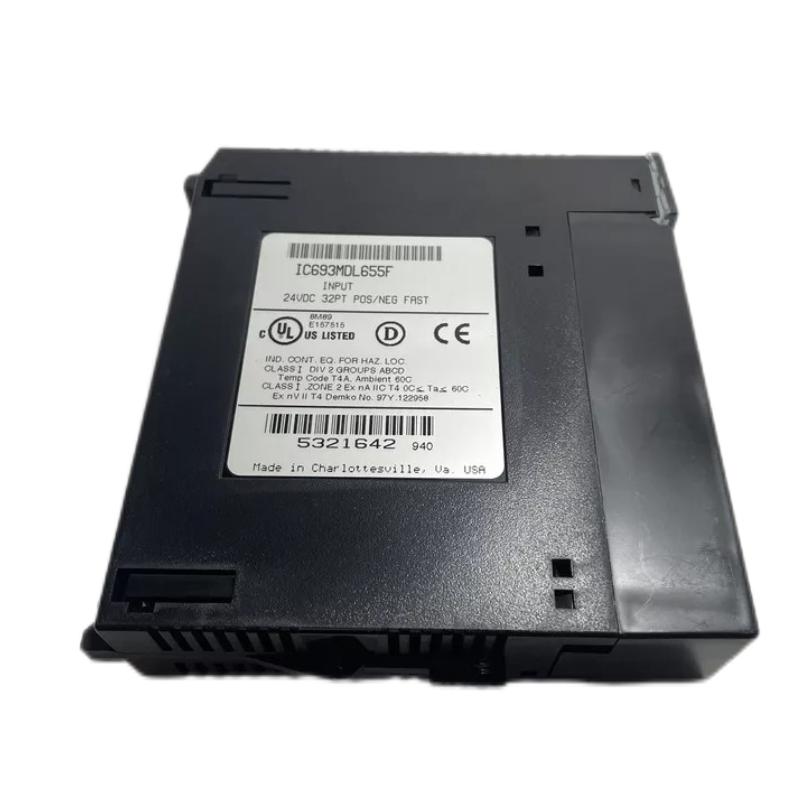

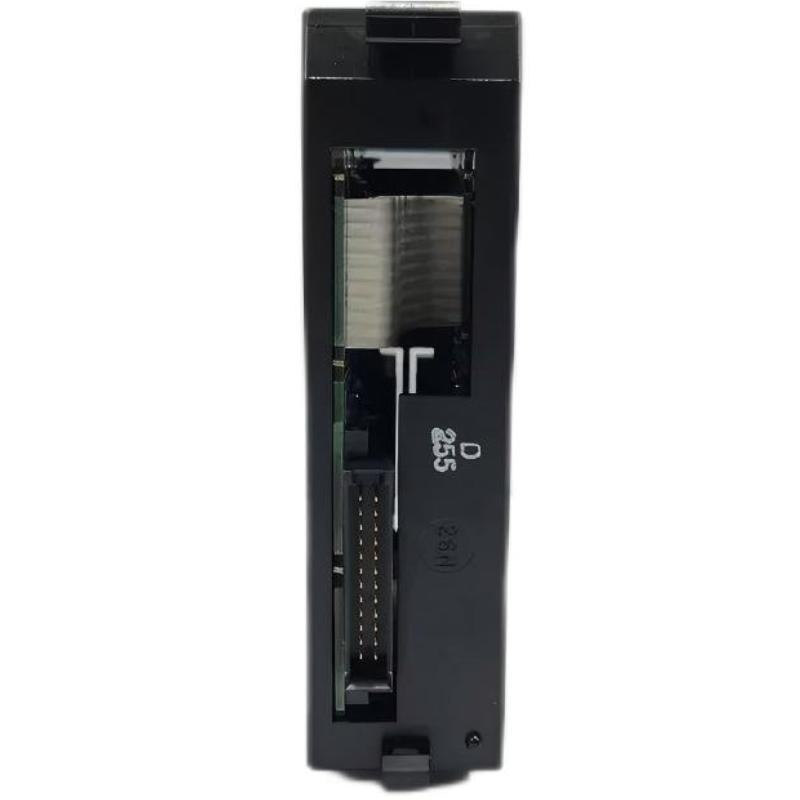

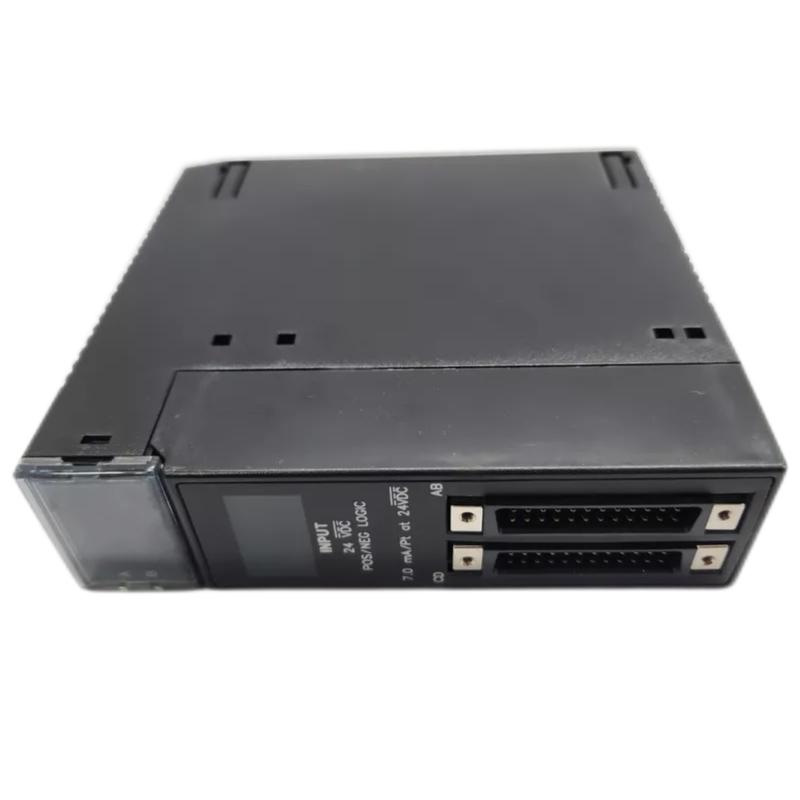

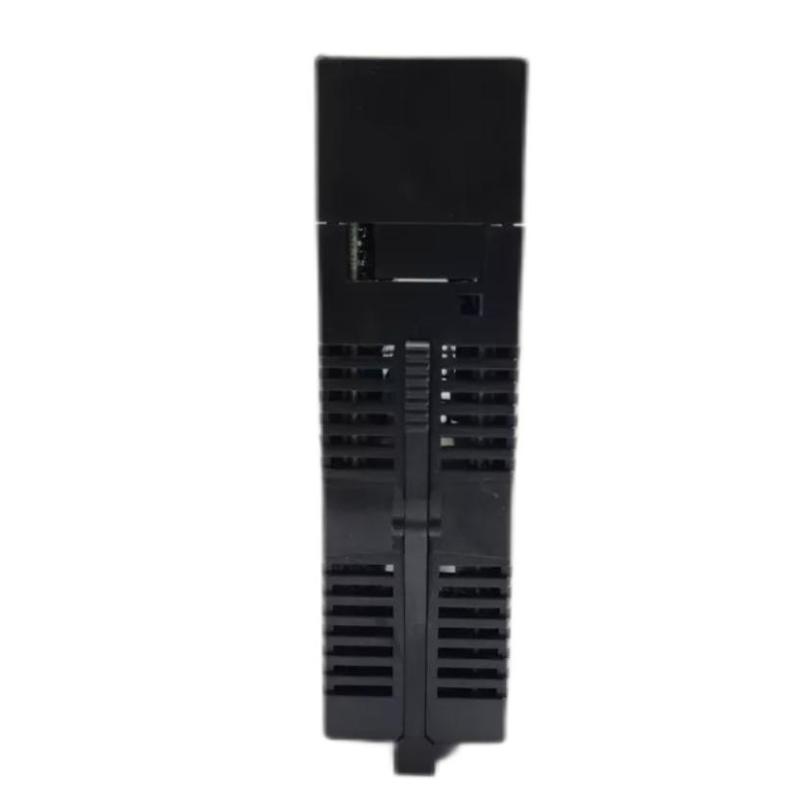

The GE IC693MDL655F Discrete Input Module is a high-density 24 VDC input solution designed for GE Fanuc Series 90-30 PLC automation systems. With 32 input channels and flexible positive/negative logic support, it provides a reliable interface between industrial field devices and PLC control logic.
Engineered for demanding manufacturing environments, the IC693MDL655F combines compact installation, channel-level diagnostics, and electrical isolation to deliver stable signal acquisition for machine control and process automation applications.
Its four-group input architecture makes it an effective choice for applications requiring multiple discrete signals, including production machinery, material handling systems, and industrial equipment monitoring.
Supports both positive logic and negative logic configurations
Four isolated input groups with eight channels each
Wide 0 to 30 VDC input voltage range
Optical isolation between field devices and PLC logic
Individual LED indicators for every input channel
High-density design saves PLC rack space
Compatible with GE Fanuc Series 90-30 controllers
Reliable signal acquisition for industrial environments
Suitable for long-term automation system maintenance
Technical FAQs
1. What is the primary function of the GE IC693MDL655F?
The IC693MDL655F is a 24 VDC digital input module designed to collect discrete ON/OFF signals from field devices and transfer them into a GE Fanuc Series 90-30 PLC system.
2. How many input channels are available on the IC693MDL655F?
The module provides 32 discrete input points arranged into four isolated groups of eight inputs.
3. Does the module support both sourcing and sinking devices?
Yes. The IC693MDL655F supports positive logic and negative logic wiring configurations, allowing connection with different industrial sensor types.
4. What input voltage range does the module accept?
The module accepts 0 to 30 VDC input signals, with 24 VDC as the nominal operating voltage.
5. What field devices can be connected to this input module?
Typical devices include proximity switches, pushbuttons, selector switches, limit switches, and relay contacts used in industrial control systems.
6. How does electrical isolation improve system reliability?
Optical isolation separates field wiring from PLC logic circuits, reducing the impact of electrical noise, voltage transients, and wiring faults.
7. What PLC platform is compatible with the IC693MDL655F?
The module is designed specifically for GE Fanuc Series 90-30 PLC systems and installs into compatible I/O slots.
8. How are input states displayed?
Each input point includes an LED status indicator, allowing technicians to quickly verify field signal conditions during operation and troubleshooting.
9. What is the typical response time of the input module?
The module provides approximately 2 ms maximum ON response time and 2 ms maximum OFF response time.
10. Why is a 32-point input module useful in PLC applications?
A high-density 32-point input module allows more field devices to be connected within a single rack position, reducing cabinet space requirements and simplifying system design.
