Brand:GE Fanuc PLC Item No.:IC693MDL740G Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

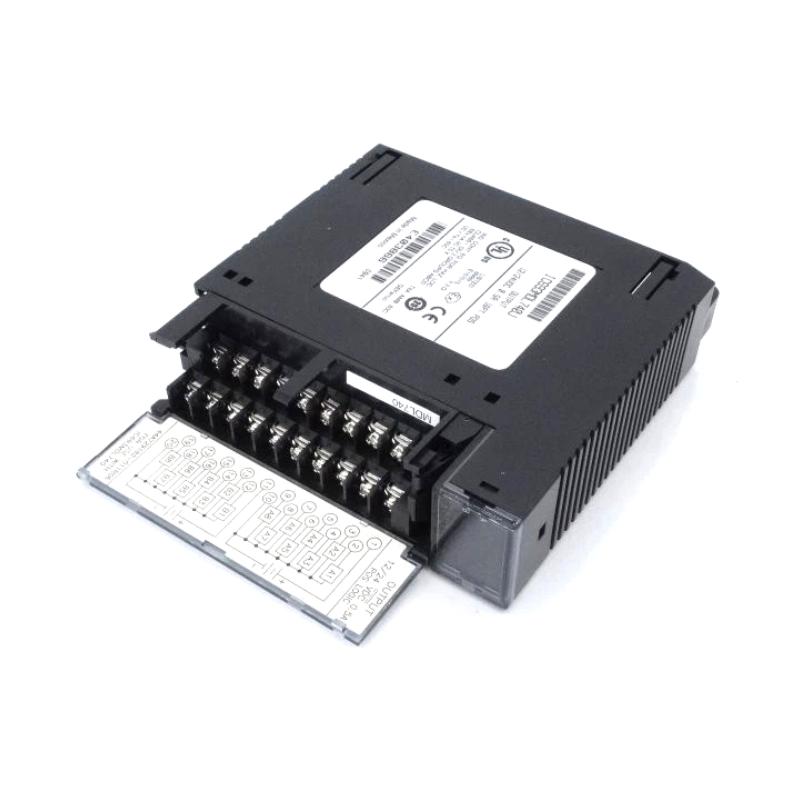

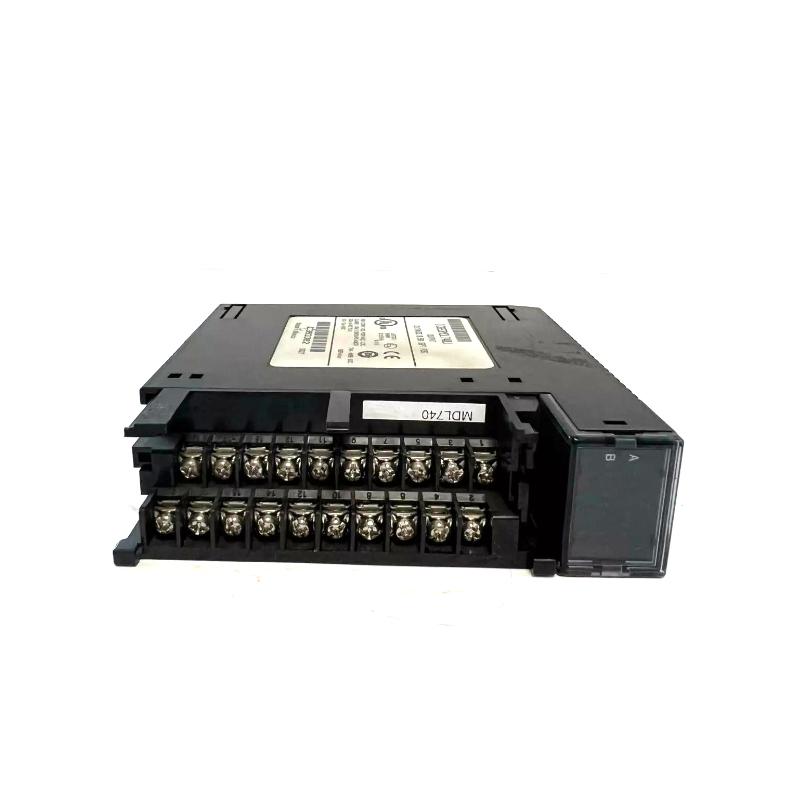

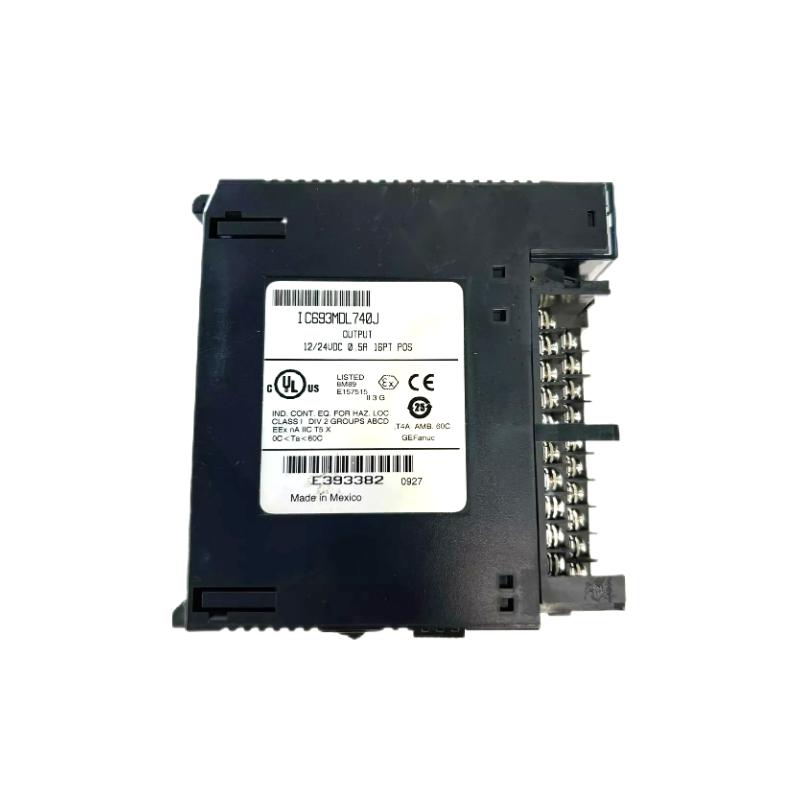

The GE IC693MDL740G Discrete Output Module is a reliable 12/24 VDC positive logic output solution developed for GE Fanuc Series 90-30 PLC platforms. Designed for industrial control applications, it provides 16 discrete output channels for interfacing PLC logic with external DC-powered devices.
With its sourcing output design, dual eight-point grouping, and individual channel diagnostics, the IC693MDL740G offers a practical balance between flexibility and dependable performance. It is widely applied in automation systems where accurate control of actuators, indicators, and switching devices is essential.
The module remains a valuable component for modernization projects, replacement programs, and long-term maintenance of Series 90-30 based control systems.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC693MDL740G
Product Type
Discrete Output Module
PLC Platform
Series 90-30
Output Type
12/24 VDC Positive Logic (Sourcing)
Number of Outputs
16 Points
Output Groups
2 Groups × 8 Outputs
Rated Voltage
12/24 VDC
Output Voltage Range
12 to 24 VDC (+20%, -15%)
Output Current
0.5 A Maximum per Point
Current per Common
2 A Maximum
Inrush Current
4.78 A for 10 ms
Output Voltage Drop
1 V Maximum
Off-State Leakage Current
1 mA Maximum
Isolation
1500 VAC Field Side to Logic Side
Group Isolation
500 VAC Between Groups
Response Time
2 ms Maximum ON/OFF
Indicators
16 Output Status LEDs
Power Consumption
Approx. 110 mA from 5 VDC Backplane
Connection Type
Removable Terminal Block
Mounting Type
Single Series 90-30 I/O Slot
Dimensions
Approx. 128 × 50 × 130 mm
Weight
Approx. 0.30 kg
Recommended Companion Models
Model
Product Name
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693PWR321
Series 90-30 Power Supply Module
IC693MDL645F
Series 90-30 24 VDC Discrete Input Module
IC693MDL753F
Series 90-30 32-Point 12/24 VDC Output Module
Frequently Selected Alternatives
Model
Product Name
IC693MDL741
Series 90-30 12/24 VDC Negative Logic Output Module
IC693MDL742
Series 90-30 12/24 VDC 1A Positive Logic Output Module
IC693MDL754
Series 90-30 32-Point Relay Output Module
IC200MDL740G
VersaMax 12/24 VDC Positive Logic Output Module
Where It Excels in Industrial Use
GE Fanuc Series 90-30 PLC automation systems
Industrial actuator and solenoid control applications
Two isolated output groups with eight channels each
Compatible with a wide range of DC field devices
Supports sourcing output operation for industrial loads
Individual LED indicators for output monitoring
Optical isolation between field circuits and PLC logic
Compact single-slot Series 90-30 installation
Suitable for controlling solenoids, starters, and indicators
Proven reliability for long-term industrial automation use
Technical FAQs
1. What is the main function of the GE IC693MDL740G?
The IC693MDL740G is a 12/24 VDC positive logic discrete output module designed for GE Fanuc Series 90-30 PLC systems. It provides 16 output channels for controlling external DC devices such as solenoids, relays, and indicators.
2. How many output points are available on the IC693MDL740G?
The module provides 16 output points arranged in two groups of eight outputs, with each group having a common power connection.
3. What type of output logic does this module use?
The IC693MDL740G uses positive logic (sourcing) output operation, supplying current from the user power source to connected loads.
4. What types of devices can be controlled by this module?
Typical applications include controlling motor starters, DC solenoids, indicator lamps, relays, and other 12/24 VDC industrial loads.
5. What is the maximum current capacity per output?
Each output channel supports a maximum current of 0.5 A, while each output common supports up to 2 A.
6. Does the IC693MDL740G require an external field power supply?
Yes. The connected field devices require an external user-supplied DC power source because the module switches the load power rather than generating it.
7. How does the module protect the PLC system?
The module provides electrical isolation between field-side circuits and PLC logic circuits, helping reduce the impact of electrical noise and field wiring disturbances.
8. How are output states displayed?
Each output channel has an individual LED indicator that shows the current ON/OFF status of the corresponding output point.
9. What PLC platform is compatible with the IC693MDL740G?
The module is designed for GE Fanuc Series 90-30 PLC systems and can be installed in compatible 5-slot or 10-slot baseplate I/O positions.
10. Why is the IC693MDL740G still widely used?
Its simple DC output architecture, high compatibility, and dependable performance make it a practical choice for maintaining existing Series 90-30 automation installations.
