Compact Industrial Drive Solution Introduction

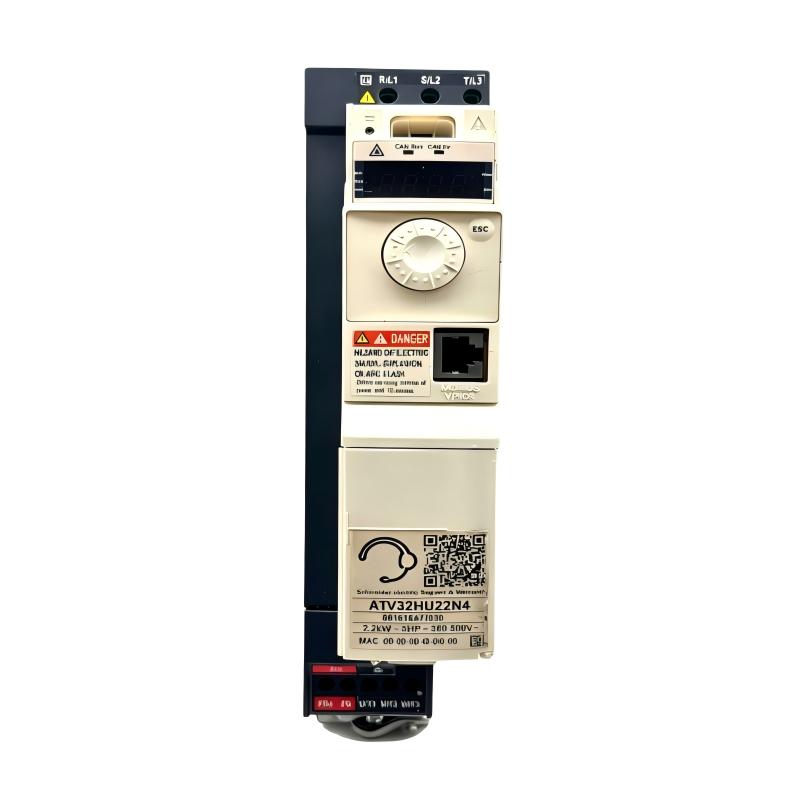

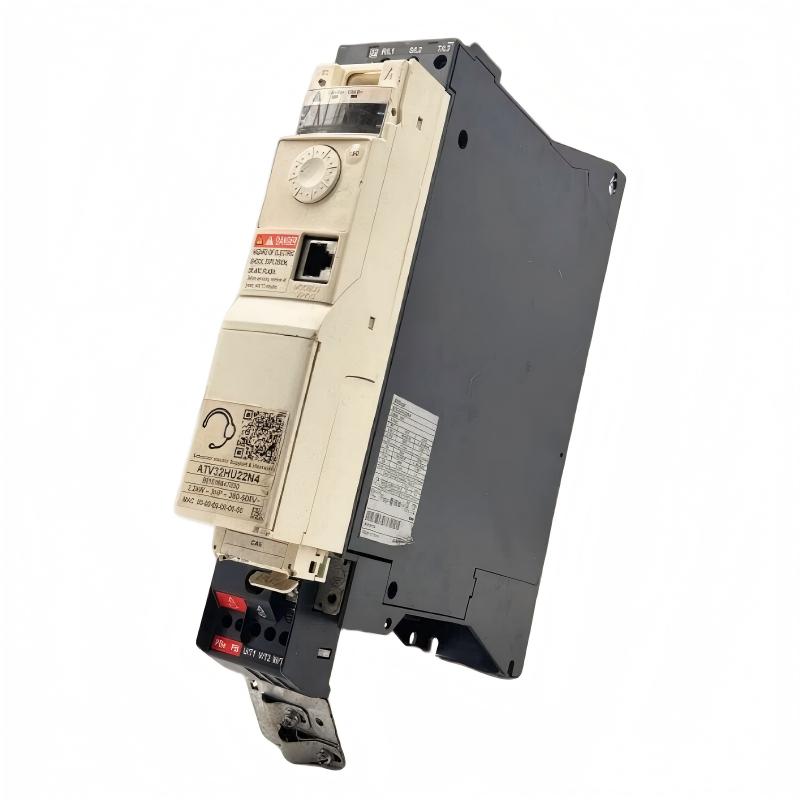

The Schneider ATV32HU22N4 Variable Speed Drive is a reliable AC drive solution developed for efficient motor control in industrial automation applications. Designed with a 2.2 kW power rating and a compact structure, it provides stable performance for machines requiring accurate speed adjustment and dependable operation.

The drive combines advanced control technology, flexible configuration options, and space-saving installation advantages. Its compact footprint allows manufacturers to optimize control cabinet layouts while maintaining excellent motor performance.

The ATV32HU22N4 is a valuable solution for improving production efficiency, enhancing machine reliability, and supporting modern automation requirements in various industrial sectors.

Technical Specifications

Specification	Details
Product Type	Variable Speed Drive
Manufacturer	Schneider Electric
Model	ATV32HU22N4
Product Series	Altivar 32
Rated Power	2.2 kW
Motor Power Capacity	3 HP
Input Voltage	380–500 V AC
Input Phase	Three-phase
Rated Output Current	5.5 A
Control Method	Sensorless Vector Control
Motor Compatibility	Asynchronous Motors and Synchronous Motors
Communication Interface	Modbus, CANopen
Mounting Type	Wall-mounted
Protection Class	IP20
Cooling Method	Heat Sink Cooling
Dimensions (H × W × D)	60 × 325 × 245 mm
Weight	3.00 kg (6.61 lb)

Recommended Related Models

Model	Product Type	Description
Schneider ATV32HU15N4	Variable Speed Drive	Compact motor control solution for lower-power industrial applications.
Schneider ATV32HU30N4	Variable Speed Drive	Designed for applications requiring higher motor capacity.
Schneider ATV320U22N4B	Variable Speed Drive	Modern Altivar series drive for advanced automation systems.
Schneider ATV32HU40N4	Variable Speed Drive	Suitable for larger industrial machine applications.

Popular Related Models

Model	Product Type	Application Focus
Schneider ATV32HU22N4	Variable Speed Drive	Industrial machine automation and motor control
Schneider ATV320U22N4B	Variable Speed Drive	Modern automation drive systems
Schneider ATV32HU15N4	Variable Speed Drive	Compact industrial equipment
Schneider ATV630U22N4	Variable Speed Drive	Process control and energy management applications

Industrial Application Areas

The Schneider ATV32HU22N4 Variable Speed Drive is a compact and high-performance motor control solution designed for industrial automation systems that require accurate speed management, reliable operation, and efficient machine control. As part of the Altivar 32 series, this drive provides advanced motor regulation technology for applications where precision, flexibility, and space optimization are essential.

With its slim design and intelligent control functions, the ATV32HU22N4 helps improve equipment efficiency, reduce mechanical stress, and maintain stable operation across a wide range of industrial environments.

Application Area	Description
Machine Automation	Provides precise motor control for automated production equipment and industrial machinery.
Conveyor Systems	Enables smooth acceleration, braking, and speed adjustment for material handling systems.
Packaging Equipment	Supports reliable motor operation for packaging, assembly, and production lines.
Pump and Fan Systems	Improves energy efficiency through optimized variable-speed operation.
Industrial Processing Machines	Delivers stable control performance for demanding manufacturing applications.

Advanced Motor Control Advantages

The Schneider ATV32HU22N4 combines intelligent drive technology with a compact mechanical structure to provide reliable motor management for modern industrial systems. Its flexible configuration and efficient control capability make it a practical choice for automation engineers and machine builders.

Advantage	Description
Precise Speed Regulation	Provides accurate motor speed and torque control for improved machine performance.
Compact Installation Design	Slim structure allows efficient integration into electrical cabinets.
Energy Optimization	Helps reduce power consumption by adjusting motor operation according to load requirements.
Flexible Automation Integration	Supports communication functions for connection with industrial control systems.
Reliable Operation Protection	Provides monitoring and protection features to improve system stability.

Technical FAQs

1. What is the main function of the Schneider ATV32HU22N4?
The ATV32HU22N4 is a variable speed drive designed to regulate motor speed, torque, and operating performance in industrial applications.

2. What motor power rating does the ATV32HU22N4 support?
This model is designed for motor applications with a rated power of 2.2 kW.

3. What types of motors can be controlled by this drive?
The drive supports both asynchronous motors and synchronous motors for flexible industrial applications.

4. Is the ATV32HU22N4 suitable for automated machinery?
Yes. It is designed for machine automation systems requiring precise and stable motor control.

5. Does this drive support advanced motor control functions?
Yes. It provides advanced control features to improve motor response and operating efficiency.

6. Can the ATV32HU22N4 be integrated with PLC systems?
Yes. It supports industrial communication functions for integration with automation control systems.

7. Does this model include motor protection functions?
Yes. The drive includes monitoring and protection features to help maintain reliable operation.

8. What applications commonly use the ATV32HU22N4?
It is commonly used in conveyors, packaging equipment, pumps, fans, and industrial machinery.

9. Can the drive parameters be adjusted for different applications?
Yes. Parameters can be configured according to motor characteristics and specific application requirements.

10. What should be checked before replacing an existing variable speed drive?
Motor specifications, voltage requirements, control settings, communication configuration, and installation conditions should be confirmed.
