Brand:GE Fanuc PLC Item No.:IC693CMM321-JJ Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

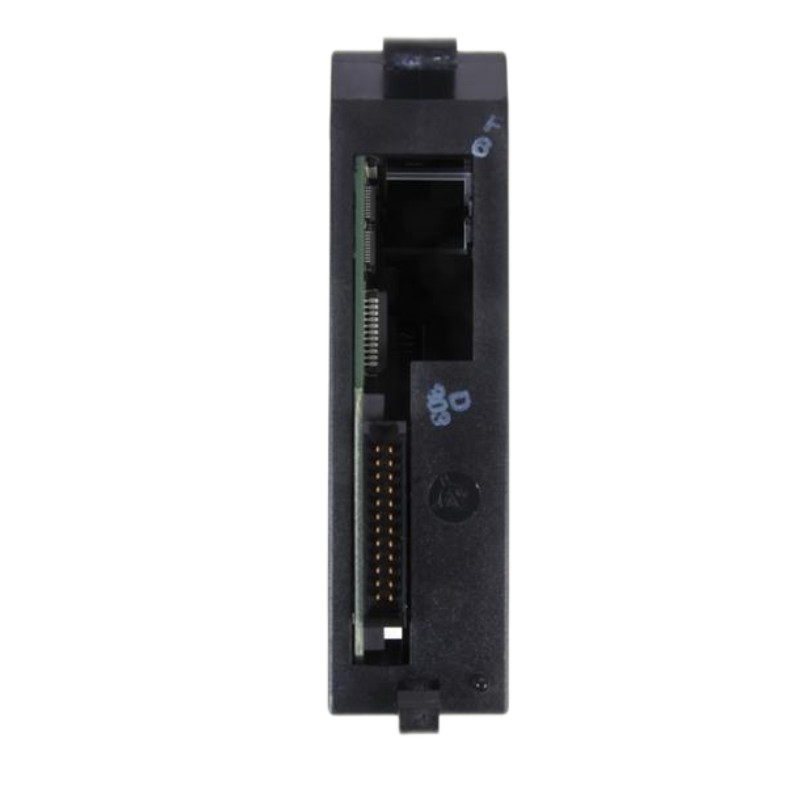

The GE IC693CMM321-JJ Ethernet Communication Module is a dedicated Ethernet networking solution for the GE Fanuc Series 90-30 PLC platform. Designed to connect controllers directly to industrial Ethernet networks, it enables efficient communication with supervisory systems, operator interfaces, engineering workstations, and other PLCs through standard TCP/IP protocols.
Supporting both client and server communication modes, the IC693CMM321-JJ allows flexible data exchange while maintaining dependable network performance. Its ability to handle multiple simultaneous server connections makes it an ideal choice for manufacturing facilities, process plants, and machine automation systems where reliable communication is essential.
With robust diagnostics, proven Series 90-30 compatibility, and straightforward integration into existing control architectures, the IC693CMM321-JJ continues to be a trusted solution for maintaining and expanding legacy GE automation networks.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC693CMM321-JJ
Product Type
Ethernet Communication Module
PLC Platform
Series 90-30
Communication Protocol
Ethernet TCP/IP
Communication Modes
Client / Server
Ethernet Speed
10 Mbps
Maximum Server Connections
16
Ethernet Port
1 × AAUI Network Port
Station Manager Port
1 × RS-232 (RJ-11)
Software Loader Port
1 × RS-485 (15-Pin D-Sub)
Status Indicators
OK, LAN, SER, STAT
Installation
Single I/O Slot
Compatible CPU Firmware
Version 6.50 or later (full functionality)
External Accessories
AAUI Cable and External Ethernet Transceiver
Operating Temperature
0°C to +60°C
Dimensions
Approx. 130 × 130 × 30 mm
Weight
Approx. 0.50 kg
Recommended Companion Models
Model
Product Name
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693PWR321
Series 90-30 Power Supply Module
IC693CHS391N
Series 90-30 10-Slot CPU Baseplate
IC693MDL655F
Series 90-30 32-Point Discrete Input Module
Frequently Selected Alternatives
Model
Product Name
IC693CMM302
Series 90-30 Genius Communications Module
IC693BEM331
Series 90-30 Genius Bus Controller Module
IC695ETM001
RX3i Ethernet Interface Module
IC695CPE330
RX3i PACSystems CPU with Embedded Ethernet
Where It Excels in Industrial Use
GE Fanuc Series 90-30 PLC Ethernet networking
Factory-wide industrial Ethernet communication
SCADA and HMI integration
PLC-to-PLC data exchange
Distributed manufacturing control systems
Process automation networks
Industrial data acquisition applications
Remote monitoring and diagnostics
Legacy Series 90-30 modernization projects
Multi-controller communication architectures
Key Strengths at a Glance
Ethernet TCP/IP communication for Series 90-30 PLCs
Supports both client and server communication modes
Up to 16 simultaneous server connections
High-speed 10 Mbps Ethernet networking
Compatible with GE Fanuc COMMREQ instructions
Enables PLC-to-PLC and PLC-to-host communication
Built-in diagnostic LED indicators
Supports online diagnostics and maintenance utilities
Single-slot installation simplifies system expansion
Proven networking solution for industrial automation systems
Technical FAQs
1. What is the primary function of the GE IC693CMM321-JJ?
The IC693CMM321-JJ is an Ethernet communication module that enables GE Fanuc Series 90-30 PLCs to communicate over Ethernet TCP/IP networks with PLCs, HMIs, SCADA systems, and host computers.
2. Does the module support both client and server communications?
Yes. It operates as both an Ethernet client and server. As a client, it initiates communications using the COMMREQ function block, while as a server it responds to requests from external devices.
3. How many simultaneous Ethernet connections are supported?
The module supports up to 16 simultaneous server connections, making it suitable for communication with multiple industrial devices at the same time.
4. Which PLC family is compatible with this module?
The IC693CMM321-JJ is designed exclusively for the GE Fanuc Series 90-30 PLC platform.
5. What communication ports are available?

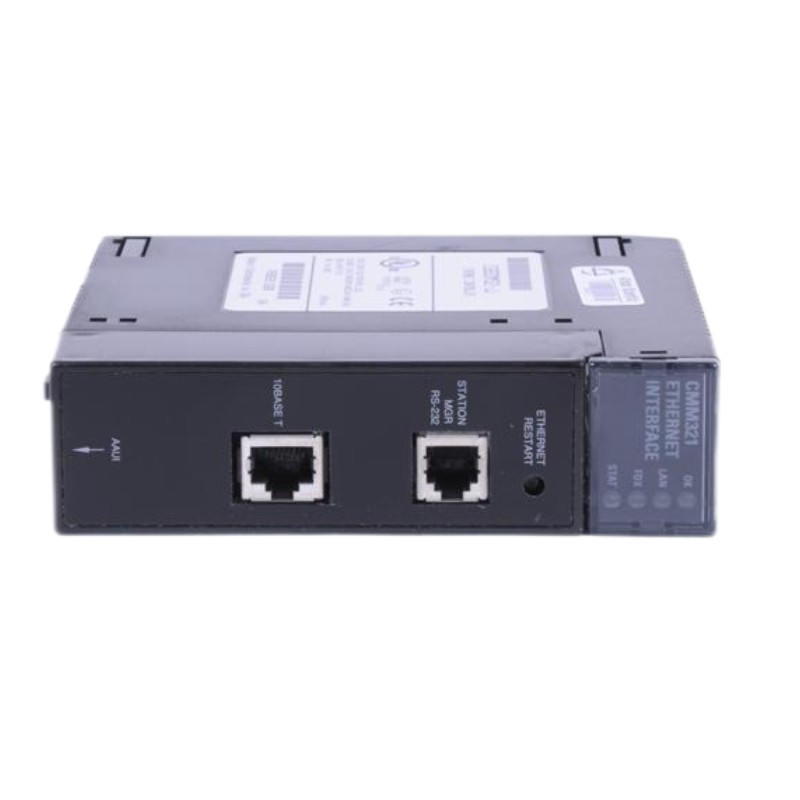

The module provides one AAUI Ethernet port, one RS-232 Station Manager port (RJ-11), and one RS-485 Software Loader port.
6. What Ethernet speed does the module support?
The Ethernet interface supports 10 Mbps Ethernet (10Base5/10Base2/10BaseT through an external AAUI transceiver) for industrial networking applications.
7. Can two Ethernet modules be installed in one PLC system?
Yes. Up to two IC693CMM321 modules can be installed in a compatible Series 90-30 baseplate, depending on the system configuration.
8. Does the module include diagnostic features?
Yes. Four front-panel LEDs (OK, LAN, SER, and STAT) provide operating status and communication diagnostics for troubleshooting and maintenance.
9. Is an external Ethernet transceiver required?
Yes. The AAUI network interface requires an external Ethernet transceiver and AAUI cable for connection to the Ethernet LAN.
10. What applications commonly use the IC693CMM321-JJ?
The module is widely used for PLC networking, SCADA connectivity, HMI communications, industrial data acquisition, remote diagnostics, and plant-wide Ethernet integration.
