Brand:GE Fanuc PLC Item No.: IC200UEX012 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

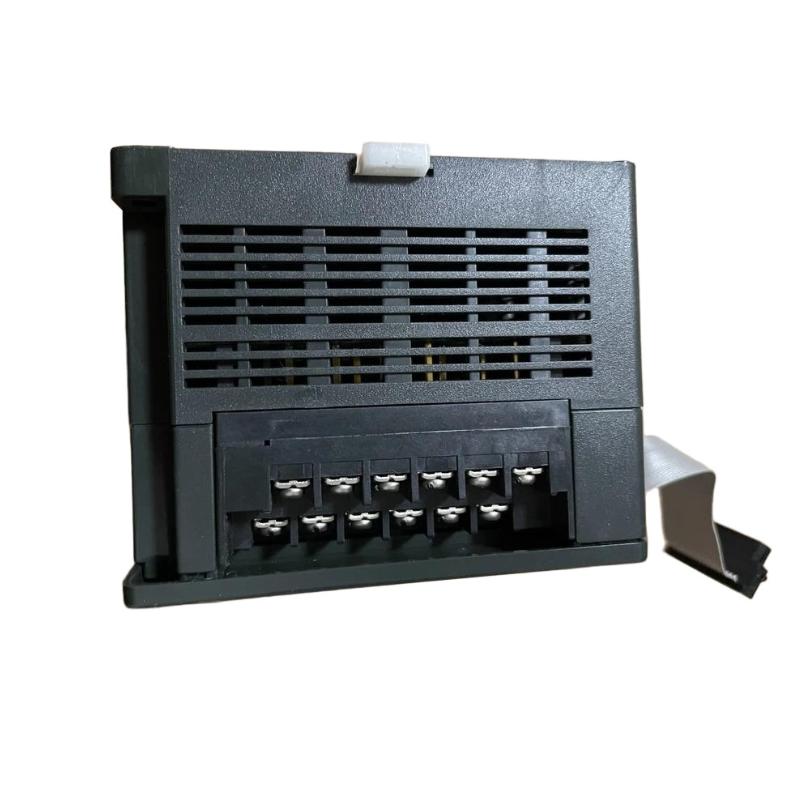

The GE IC200UEX012 Expansion Unit Module is a VersaMax Micro PLC expansion component designed to increase the digital control capability of compact automation systems. By adding eight 24 VDC inputs and six relay outputs, the module allows machine builders and system integrators to connect additional sensors, switches, actuators, and control devices without changing the main PLC controller.
With flexible input logic selection and relay-based output switching, the IC200UEX012 supports a broad range of industrial applications. Its integrated power functionality and compact design make it especially valuable for equipment requiring additional I/O points while maintaining efficient cabinet space usage.
Built for dependable VersaMax Micro system expansion, the IC200UEX012 combines practical connectivity, reliable signal handling, and flexible device control, making it a strong choice for automation upgrades and machine control improvements.
Technical Specifications
Parameter
Details
Model
IC200UEX012
Product Type
Expansion Unit Module
Series
GE VersaMax Micro
I/O Capacity
14 Points
Digital Inputs
8 × 24 VDC Inputs
Input Logic
Positive Logic / Negative Logic
Digital Outputs
6 × Relay Outputs
Output Type
Normally Open Form A Relay
Relay Rating
2 A Maximum
Output Voltage Range
5–30 VDC / 5–250 VAC
External Power Supply
24 VDC Nominal
Auxiliary 24 VDC Output
200 mA Maximum
Input Voltage Range
0–30 VDC
Input Current
Approx. 7.5 mA per Point
Input Response Time
0.5–20 ms
Relay Response Time
15 ms Maximum
Isolation Voltage
1500 V RMS Field Side to Logic Side
Terminal Type
Removable Screw Terminal Blocks
Installation Type
VersaMax Micro Expansion Connection
Dimensions
Approx. 90 × 95 × 76 mm
Weight
Approx. 290 g
Recommended Companion Models
Model
Product Name
IC200CPUE05
VersaMax Micro CPU Controller Module
IC200PWR002G
VersaMax Expanded Power Supply Module
IC200UEX011
VersaMax Micro 14-Point Expansion Unit with AC Power
IC200MDL650J
VersaMax 32-Point Discrete Input Module
Frequently Selected Alternatives
Model
Product Name
IC200UEX013
VersaMax Micro 14-Point Expansion Unit with 12 VDC Inputs
IC200UEX014
VersaMax Micro 14-Point Expansion Unit with 24 VDC Outputs
IC200UEX011
VersaMax Micro 14-Point Expansion Unit with 120/240 VAC Power
IC200UEX010
VersaMax Micro 14-Point Expansion Unit with AC Inputs and Outputs
Where It Excels in Industrial Use
• Designed for GE VersaMax Micro PLC systems, the IC200UEX012 provides a compact expansion solution that increases available I/O capacity for machine automation, equipment control, and standalone industrial applications.
• Suitable for packaging machines, material handling systems, assembly equipment, and production automation applications where additional digital input monitoring and relay output control are required.
• Ideal for compact control architectures that need extra field connections without replacing the existing PLC controller, helping engineers extend system capability while maintaining a small installation footprint.
• Commonly applied in industrial environments where reliable 24 VDC signal processing, flexible relay switching, and straightforward PLC expansion are essential for efficient operation.
Key Strengths at a Glance
• Provides 14 additional I/O points with eight 24 VDC positive/negative logic inputs and six normally open relay outputs for flexible field device integration.
• Supports six Form A relay outputs rated up to 2 A, allowing direct control of devices such as motor starters, solenoids, and industrial indicators.
• Includes an isolated 24 VDC output supply up to 200 mA, allowing convenient power support for connected input devices and field components.
• Uses removable screw terminal connections with protective covers, improving installation efficiency and simplifying maintenance procedures in industrial control panels.
Technical FAQs
1. What type of module is the GE IC200UEX012?
The GE IC200UEX012 is a VersaMax Micro PLC 14-point expansion unit with integrated 24 VDC power input, eight DC inputs, and six relay outputs.
2. How many input and output points does the IC200UEX012 provide?
The module provides eight 24 VDC digital inputs and six normally open relay outputs, for a total of 14 configurable I/O points.
3. What type of input signals are supported by the IC200UEX012?
The module supports 24 VDC positive logic and negative logic input signals from devices such as pushbuttons, limit switches, and proximity sensors.
4. What types of devices can be connected to the relay outputs?
The relay outputs can control industrial devices including solenoid valves, motor starters, contactors, and indicator equipment within the specified electrical limits.
5. What power supply does the IC200UEX012 require?
The expansion unit requires a nominal 24 VDC power input for operation.
6. Does the IC200UEX012 provide isolated field power?
Yes, the module provides an isolated 24 VDC output supply with a maximum capacity of 200 mA for input circuits and user devices.
7. What is the maximum relay output rating of the IC200UEX012?
Each relay output supports up to 2 A switching capability for supported AC or DC loads.
8. Is the IC200UEX012 compatible with VersaMax Micro PLC controllers?
Yes, the module is designed specifically for GE VersaMax Micro PLC expansion applications.
9. What isolation protection does the IC200UEX012 provide?
The module provides field-side to logic-side isolation and separation between input groups to improve system protection.
10. What should be checked before installing an IC200UEX012?
Engineers should verify PLC compatibility, available expansion capacity, power requirements, field wiring configuration, and output load specifications before installation.
