Brand:Schneider PLC Item No.:ATV340D18N4 Product Origin:France Product Dimensions:180 x 385 x 249 mm Product Weight:10.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

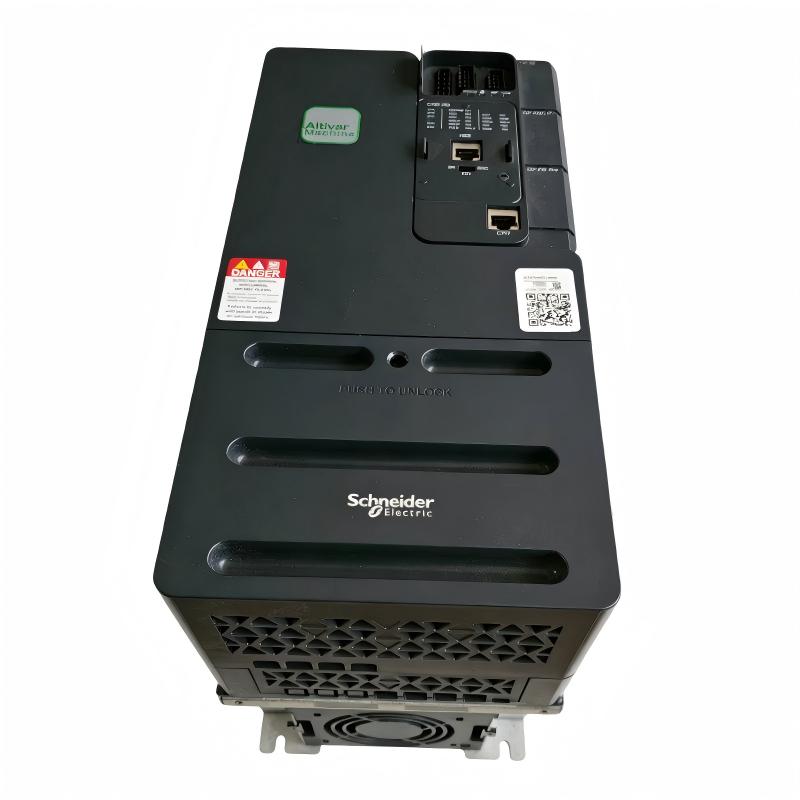

The Schneider ATV340D18N4 Variable Speed Drive is an advanced industrial motor controller designed for high-performance machine automation applications.
Modern production equipment requires reliable motor control to maintain accuracy, efficiency, and consistent operation. The ATV340D18N4 provides powerful speed and torque management functions, helping machines achieve smooth operation and improved process stability.
Designed as part of the Altivar Machine ATV340 family, this drive delivers strong dynamic performance for applications where fast response and precise control are essential. Its compact cabinet installation design allows efficient use of control panel space while maintaining excellent industrial reliability.
For machine builders, system integrators, and maintenance professionals, the Schneider ATV340D18N4 provides a dependable solution for optimizing motor-driven equipment and improving overall automation performance.
Technical Specifications
Parameter
Details
Manufacturer
Schneider Electric
Model Number
ATV340D18N4
Product Type
Variable Speed Drive
Series
Altivar Machine ATV340
Rated Power
18.5 kW
Rated Voltage
380–480 V AC
Phase
Three Phase
Motor Control Type
Variable Frequency Motor Control
Application
Industrial Machine Automation
Installation Type
Cabinet Mount
Communication Capability
Industrial Communication Expansion Supported
Protection Rating
IP20
Dimensions
180 x 385 x 249 mm
Weight
10.20 kg (22.49 lb)
Operating Environment
Industrial Automation Applications
Recommended Related Models
Model
Product Type
Description
Schneider ATV340D15N4
Variable Speed Drive
15 kW drive for industrial machine applications
Schneider ATV340D15N4E
Variable Speed Drive
Ethernet-enabled drive for advanced automation integration
Schneider ATV340D22N4
Variable Speed Drive
Higher power model for demanding motor control applications
Schneider ATV630D18N4
Variable Speed Drive
Process-focused drive for industrial motor applications
Popular Related Models
Model
Category
Schneider ATV340D18N4
Variable Speed Drive
Schneider ATV340D15N4
Altivar Machine Drive
Schneider ATV340D22N4
Industrial Motor Drive
Schneider ATV630D18N4
Process Variable Speed Drive
Schneider ATV320D18N4C
Compact Variable Speed Drive
Applications
The Schneider ATV340D18N4 Variable Speed Drive is a high-performance motor control solution designed for demanding industrial machine applications. It provides precise speed adjustment, reliable torque control, and efficient motor operation for automation systems requiring stable and accurate performance.
The ATV340D18N4 is widely used in:
Application Area
Description
Industrial Machinery
Provides accurate motor control for automated production equipment
Conveyor Systems
Improves material handling performance through flexible speed regulation
Packaging Equipment
Supports precise motion control for high-speed production processes
Material Processing Systems
Maintains stable motor operation under changing workloads
Machine Automation
Enables efficient integration into modern industrial control systems
The Schneider ATV340D18N4 is an excellent choice for machine manufacturers, automation engineers, and industrial users who need reliable drive performance, improved productivity, and long-term operational stability.
Advantages
The Schneider ATV340D18N4 Variable Speed Drive combines advanced motor control technology with a robust industrial design to deliver excellent performance in demanding automation environments.
Advantage
Description
High Dynamic Performance
Provides fast response for acceleration, deceleration, and load changes
Precise Motor Regulation
Maintains accurate speed and torque control during operation
Energy Optimization
Helps improve motor efficiency and reduce unnecessary energy consumption
Flexible Integration
Supports connection with industrial automation systems
Reliable Industrial Operation
Designed for continuous use in challenging production environments
Simplified Commissioning
Reduces setup time through flexible parameter configuration
With powerful control capability and dependable operation, the ATV340D18N4 helps improve machine efficiency, reduce maintenance requirements, and increase production reliability.
Technical FAQs
Q1: What is the main function of the Schneider ATV340D18N4 Variable Speed Drive?
A: The drive controls motor speed, torque, and operating performance by adjusting output frequency and voltage.
Q2: What type of motors can the ATV340D18N4 control?
A: It is designed for industrial applications using asynchronous motors and synchronous motors.
Q3: What industries commonly use the ATV340D18N4?
A: It is commonly used in machine manufacturing, packaging, conveyors, material handling, and industrial automation applications.
Q4: What should be checked before installing this variable speed drive?
A: Verify power supply conditions, motor specifications, wiring requirements, environmental conditions, and application parameters.
Q5: What are common causes of drive faults?
A: Common causes include motor overload, incorrect parameters, wiring problems, insufficient cooling, and unstable power supply.
Q6: How can technicians troubleshoot unstable motor operation?
A: Check motor settings, acceleration and deceleration parameters, control signals, load conditions, and diagnostic information.
Q7: Why is correct motor parameter configuration important?
A: Proper configuration improves speed accuracy, torque performance, motor efficiency, and system protection.
Q8: Can the ATV340D18N4 be integrated into industrial automation networks?
A: Yes, it supports communication options for integration with modern automation architectures.
Q9: What maintenance is recommended for this variable speed drive?
A: Regular inspection of cooling performance, electrical connections, operating parameters, and fault history is recommended.
Q10: What precautions should be taken when replacing an ATV340D18N4 drive?
A: Confirm model compatibility, save existing parameters, disconnect power safely, and verify system operation after replacement.
