Brand:Schneider PLC Item No.:ATV340D18N4E Product Origin:France Product Dimensions:180 x 385 x 249 mm Product Weight:10.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

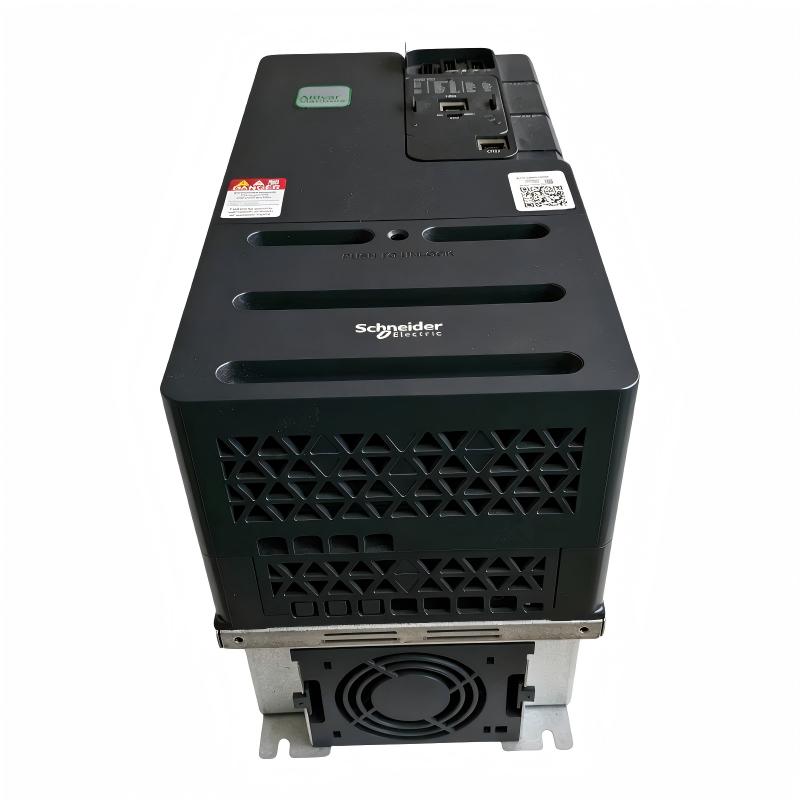

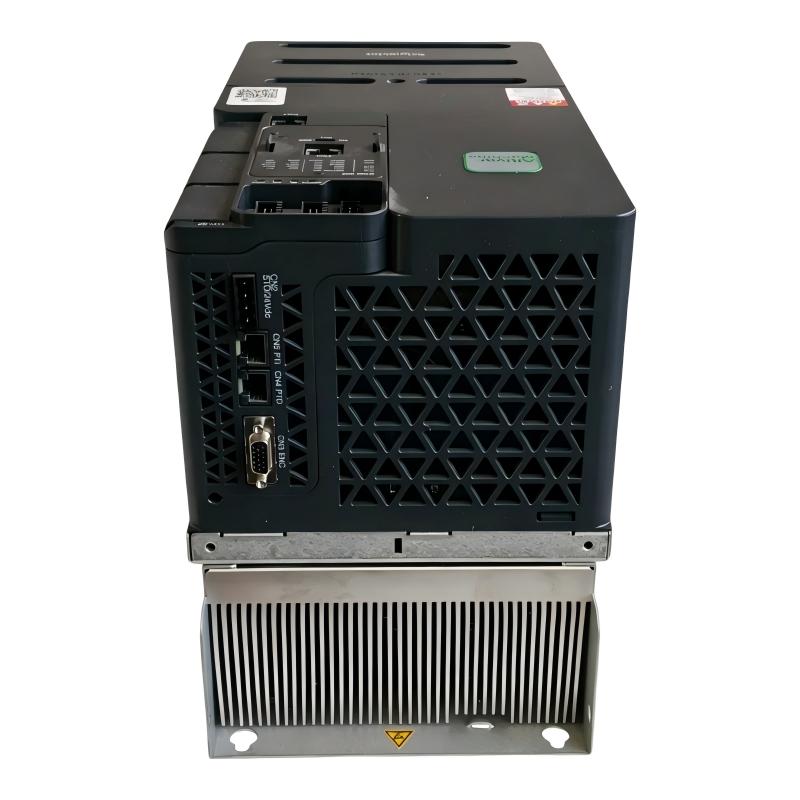

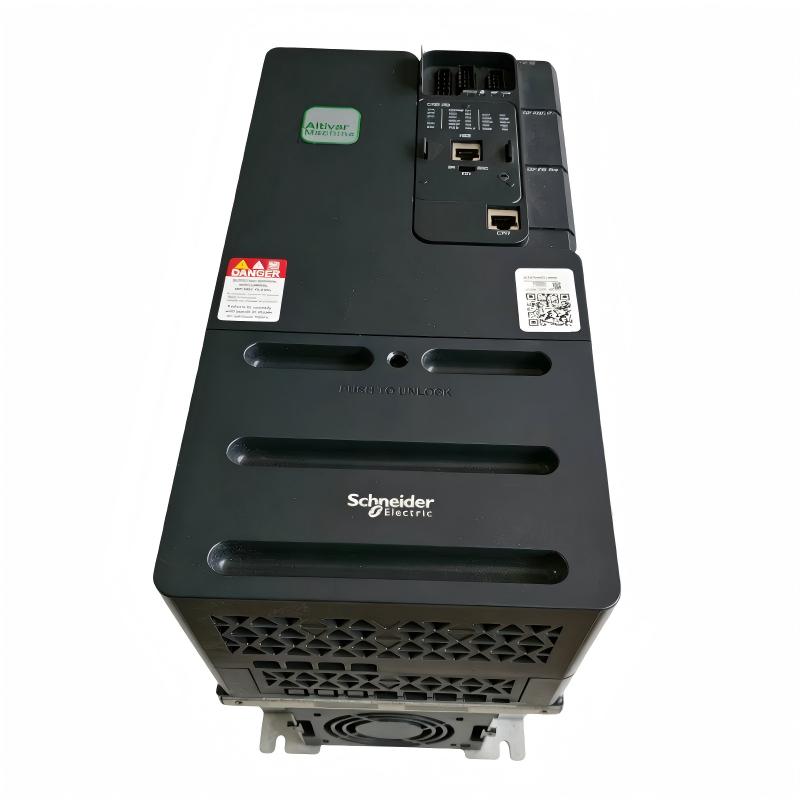

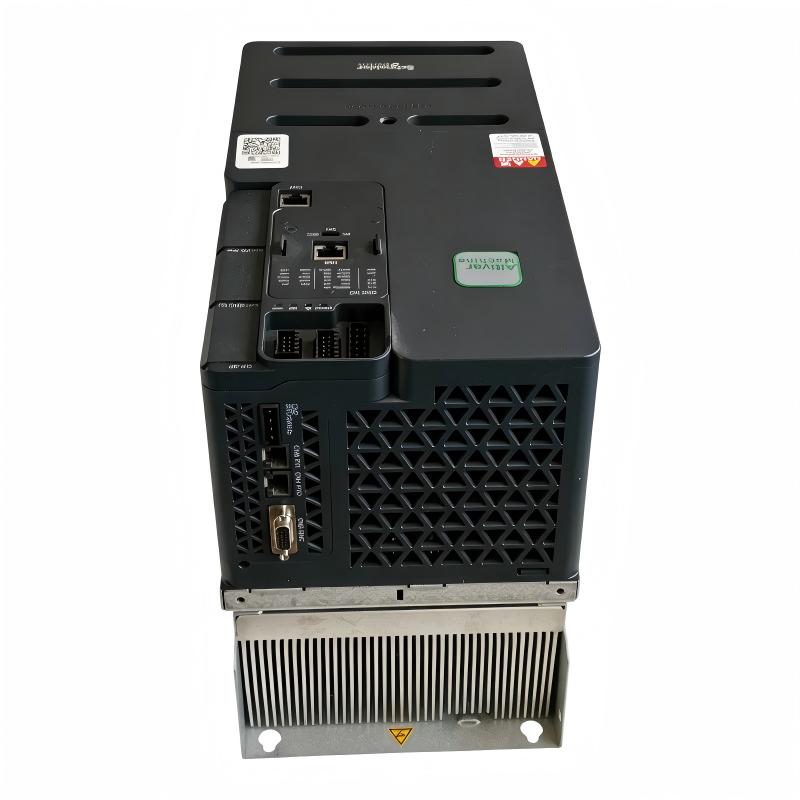

The Schneider ATV340D18N4E Variable Speed Drive is a powerful motor control device designed for modern industrial automation and machine applications.
In advanced manufacturing environments, accurate motor control is essential for maintaining production quality, improving energy efficiency, and reducing equipment downtime. The ATV340D18N4E provides reliable variable frequency control, allowing machines to operate smoothly with precise speed and torque management.
Designed as part of the Altivar Machine ATV340 family, this drive delivers excellent performance for applications requiring high dynamic response and stable operation. Its compact cabinet mounting design allows efficient installation while maintaining strong control capability.
For automation engineers and industrial equipment manufacturers, the Schneider ATV340D18N4E provides a dependable solution for optimizing machine performance, improving production efficiency, and supporting long-term operational reliability.
Technical Specifications
Parameter
Details
Manufacturer
Schneider Electric
Model Number
ATV340D18N4E
Product Type
Variable Speed Drive
Series
Altivar Machine ATV340
Rated Power
18.5 kW
Normal Duty Power
22 kW
Rated Voltage
380–480 V AC
Phase
Three Phase
Communication Function
Ethernet Communication Capability
Motor Control Type
Variable Frequency Motor Control
Application
Industrial Machine Automation
Installation Type
Cabinet Mount
Protection Rating
IP20
Dimensions
180 x 385 x 249 mm
Weight
10.20 kg (22.49 lb)
Operating Environment
Industrial Automation Applications
Recommended Related Models
Model
Product Type
Description
Schneider ATV340D15N4E
Variable Speed Drive
15 kW drive for machine automation applications
Schneider ATV340D22N4E
Variable Speed Drive
Higher power model for demanding industrial equipment
Schneider ATV320U18N4C
Variable Speed Drive
Compact drive solution for general automation systems
Schneider ATV630D18N4
Variable Speed Drive
Process drive for industrial motor applications
Popular Related Models
Model
Category
Schneider ATV340D18N4E
Variable Speed Drive
Schneider ATV340D15N4E
Altivar Machine Drive
Schneider ATV340D22N4E
Industrial Motor Drive
Schneider ATV630D18N4
Process Variable Speed Drive
Schneider ATV320U18N4C
Compact Variable Speed Drive
Applications
The Schneider ATV340D18N4E Variable Speed Drive is a high-performance industrial motor control solution designed for demanding automation and machine applications. It provides precise speed adjustment, reliable torque control, and efficient motor management for equipment requiring stable and accurate operation.
The ATV340D18N4E is widely used in:
Application Area
Description
Industrial Machinery
Provides advanced motor control for automated production equipment
Conveyor Systems
Maintains smooth material transportation and speed regulation
Packaging Equipment
Supports precise motion control for high-speed production lines
Material Processing Machines
Improves motor performance under changing load conditions
Factory Automation Systems
Enables reliable integration into modern industrial control environments
The Schneider ATV340D18N4E is an ideal choice for machine builders, system integrators, and industrial operators looking for dependable variable speed control and improved equipment performance.
Advantages
The Schneider ATV340D18N4E Variable Speed Drive combines powerful motor control functions with a compact industrial design to deliver efficient and reliable operation in challenging environments.
Advantage
Description
High-Performance Motor Regulation
Provides accurate speed and torque control for industrial motors
Excellent Dynamic Response
Quickly adapts to load variations and changing production requirements
Energy Saving Operation
Optimizes motor efficiency and reduces unnecessary power consumption
Flexible Communication Capability
Supports integration with industrial automation networks
Robust Industrial Design
Suitable for continuous operation in demanding applications
Simplified Commissioning
Makes parameter setup and system adjustment easier for engineers
With advanced control technology and reliable performance, the Schneider ATV340D18N4E helps improve machine productivity, reduce operating costs, and increase automation system reliability.
Technical FAQs
Q1: What is the main function of the Schneider ATV340D18N4E Variable Speed Drive?
A: The drive controls motor speed, torque, and acceleration by adjusting output frequency and voltage to match application requirements.
Q2: What type of motors can the ATV340D18N4E control?
A: It is designed for industrial applications using asynchronous motors and synchronous motors.
Q3: What applications are suitable for the ATV340D18N4E?
A: It is commonly used in conveyors, packaging machines, material handling equipment, and industrial automation systems.
Q4: What should be checked before installing this variable speed drive?
A: Verify the power supply, motor specifications, wiring configuration, installation environment, and required operating parameters.
Q5: What are common causes of ATV340D18N4E drive faults?
A: Common causes include motor overload, incorrect parameter settings, poor wiring connections, overheating, and unstable power conditions.
Q6: How can technicians troubleshoot motor control problems?
A: Check motor data settings, control commands, input signals, load conditions, and drive diagnostic information.
Q7: Why is correct motor tuning important for this drive?
A: Proper motor tuning improves speed accuracy, torque response, efficiency, and overall control performance.
Q8: Can the ATV340D18N4E communicate with automation controllers?
A: Yes, it supports industrial communication functions for integration with automation and control systems.
Q9: What maintenance is recommended for this variable speed drive?
A: Regular inspection of cooling conditions, electrical connections, operating parameters, and fault history is recommended.
Q10: What precautions should be followed when replacing this drive?
A: Confirm the correct replacement model, back up configuration settings, disconnect power safely, and test system operation after installation.
