Brand:Schneider PLC Item No.:ATV340U75N4E Product Origin:France Product Dimensions:110 x 270 x 234 mm Product Weight:3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

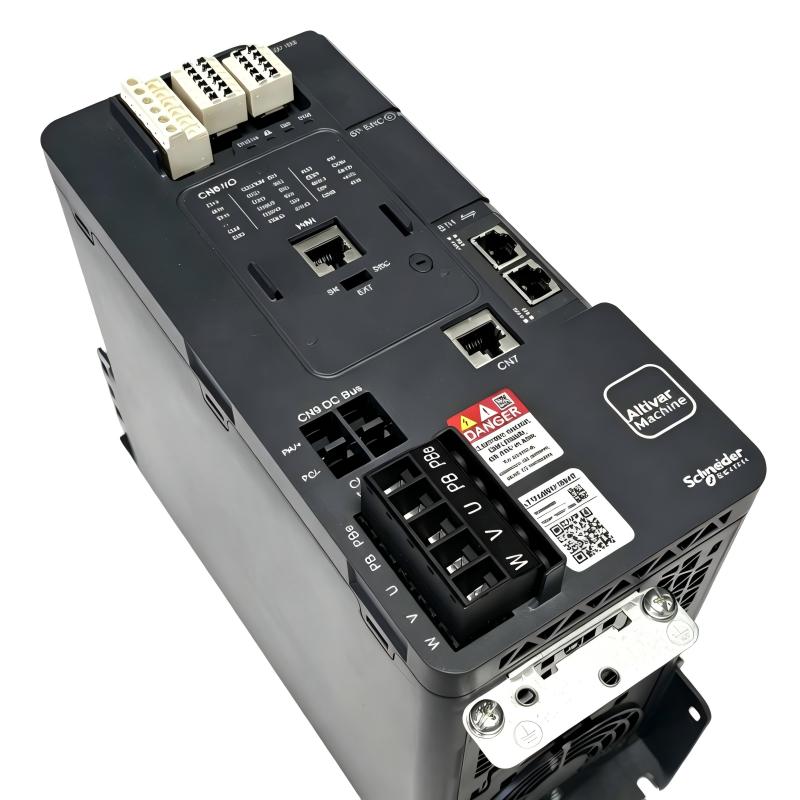

The Schneider ATV340U75N4E Variable Speed Drive is a compact industrial motor controller designed for modern automation and machine control applications.
In manufacturing environments, efficient motor management is essential for maintaining stable production and improving equipment performance. The ATV340U75N4E provides precise speed control and reliable operation, allowing machines to achieve smoother movement, improved process consistency, and better energy utilization.
Designed as part of the Altivar Machine ATV340 series, this drive delivers strong performance in applications requiring fast response, accurate control, and reliable communication capability. Its compact structure makes it suitable for control cabinets where installation space is limited.
For automation engineers and machine manufacturers, the Schneider ATV340U75N4E provides a dependable solution for optimizing motor-driven equipment, improving operational efficiency, and supporting long-term industrial reliability.
Technical Specifications
Parameter
Details
Manufacturer
Schneider Electric
Model Number
ATV340U75N4E
Product Type
Variable Speed Drive
Series
Altivar Machine ATV340
Rated Power
7.5 kW
Rated Voltage
380–480 V AC
Phase
Three Phase
Communication Function
Ethernet Communication Capability
Motor Control Type
Variable Frequency Motor Control
Application
Industrial Machine Automation
Installation Type
Cabinet Mount
Protection Rating
IP20
Dimensions
110 x 270 x 234 mm
Weight
3.00 kg (6.61 lb)
Operating Environment
Industrial Automation Applications
Recommended Related Models
Model
Product Type
Description
Schneider ATV340U55N4E
Variable Speed Drive
5.5 kW compact drive for machine automation
Schneider ATV340D11N4E
Variable Speed Drive
Higher power model for advanced motor control applications
Schneider ATV320U75N4C
Variable Speed Drive
Compact drive for general industrial equipment
Schneider ATV630U75N4
Variable Speed Drive
Process drive for industrial motor applications
Popular Related Models
Model
Category
Schneider ATV340U75N4E
Variable Speed Drive
Schneider ATV340U55N4E
Altivar Machine Drive
Schneider ATV340D11N4E
Industrial Motor Drive
Schneider ATV320U75N4C
Compact Variable Speed Drive
Schneider ATV630U75N4
Process Variable Speed Drive
Applications
The Schneider ATV340U75N4E Variable Speed Drive is a compact and high-performance motor control solution designed for industrial machine automation applications. It provides accurate motor speed regulation, smooth operation, and efficient energy management for equipment requiring reliable variable frequency control.
The ATV340U75N4E is widely used in:
Application Area
Description
Industrial Machinery
Provides precise motor control for automated production equipment
Conveyor Systems
Maintains stable speed regulation for material transportation applications
Packaging Equipment
Supports accurate motion control for automated packaging processes
Machine Tools
Delivers reliable speed and torque management for precision machinery
Factory Automation Systems
Enables efficient motor integration into modern control environments
The Schneider ATV340U75N4E is an excellent choice for machine builders, system integrators, and industrial users seeking a compact drive solution with dependable performance and flexible automation capability.
Advantages
The Schneider ATV340U75N4E Variable Speed Drive combines advanced motor control technology with a compact industrial design to provide efficient and reliable operation.
Advantage
Description
Precise Motor Regulation
Provides accurate speed and torque control for industrial motors
Compact Installation Design
Saves cabinet space while maintaining powerful drive functions
Energy Efficient Operation
Optimizes motor performance and reduces unnecessary energy consumption
Fast Dynamic Response
Quickly adapts to changing loads and production requirements
Flexible Automation Integration
Supports connection with modern industrial control systems
Reliable Industrial Performance
Designed for continuous operation in demanding environments
With stable control performance and flexible application capability, the ATV340U75N4E helps improve machine efficiency, reduce downtime, and enhance overall production reliability.
Technical FAQs
Q1: What is the main function of the Schneider ATV340U75N4E Variable Speed Drive?
A: The drive controls motor speed, torque, and operating performance by adjusting output frequency and voltage according to application requirements.
Q2: What motor power is supported by the ATV340U75N4E?
A: The ATV340U75N4E is designed for 7.5 kW industrial motor applications.
Q3: What types of applications are suitable for this variable speed drive?
A: It is suitable for conveyors, packaging machines, machine tools, material handling systems, and industrial automation equipment.
Q4: What should be checked before installing the ATV340U75N4E?
A: Verify the power supply, motor specifications, wiring configuration, installation conditions, and required operating parameters.
Q5: What are common causes of drive faults?
A: Common causes include motor overload, incorrect settings, wiring problems, insufficient cooling, and unstable power supply.
Q6: How can technicians troubleshoot unstable motor operation?
A: Check motor parameters, control commands, acceleration settings, load conditions, and drive diagnostic information.
Q7: Why is parameter configuration important for this drive?
A: Correct parameter settings improve motor control accuracy, efficiency, and system protection performance.
Q8: Can the ATV340U75N4E be integrated with industrial automation systems?
A: Yes, it supports communication functions for integration with automation controllers and industrial networks.
Q9: What maintenance is recommended for this variable speed drive?
A: Regular inspection of cooling conditions, electrical connections, operating parameters, and fault records is recommended.
Q10: What precautions should be taken when replacing this drive?
A: Confirm the correct model, save existing parameters, disconnect power safely, and test the motor system after installation.
