Brand:Schneider PLC Item No.:LXM32MD18N4 Product Origin:France Product Dimensions:68 x 270 x 237 mm Product Weight:2.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

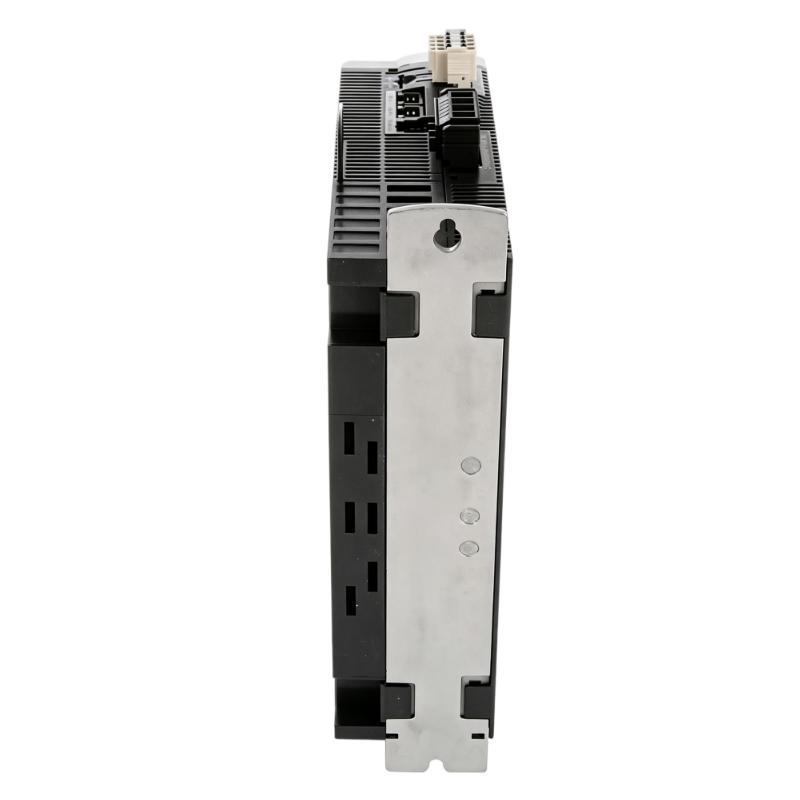

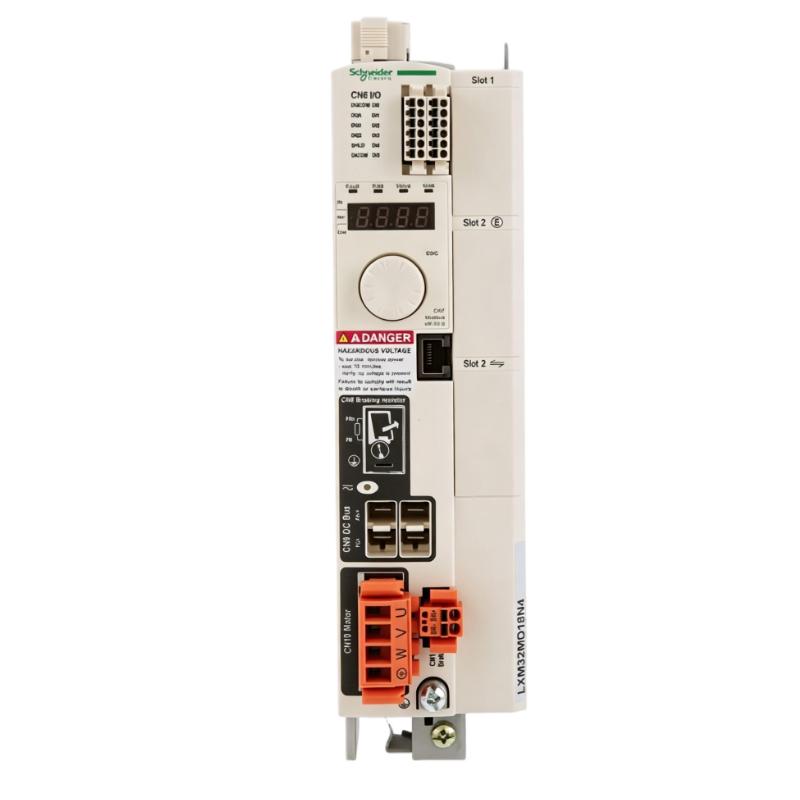

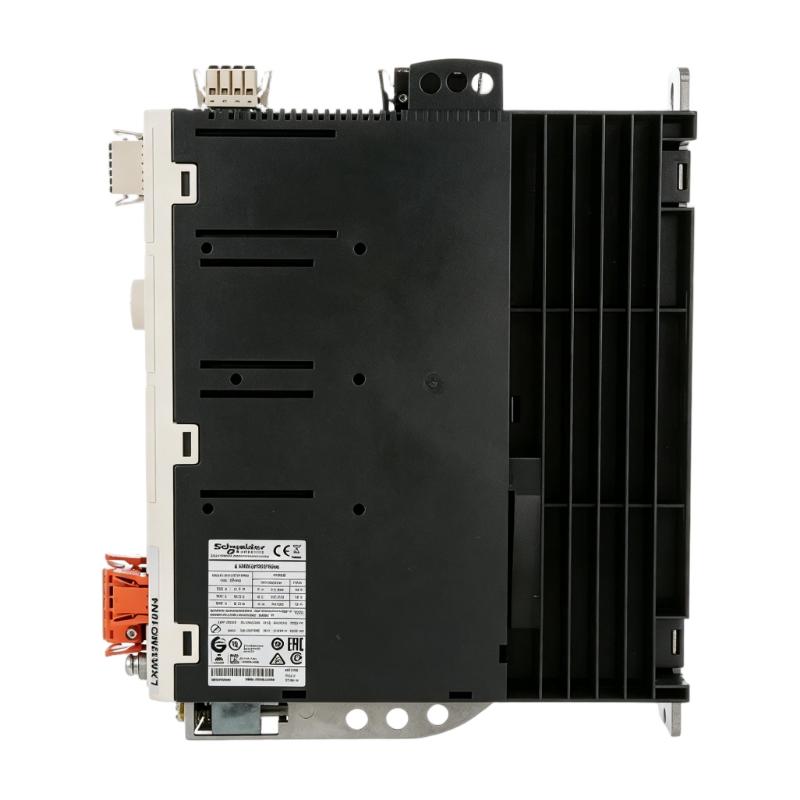

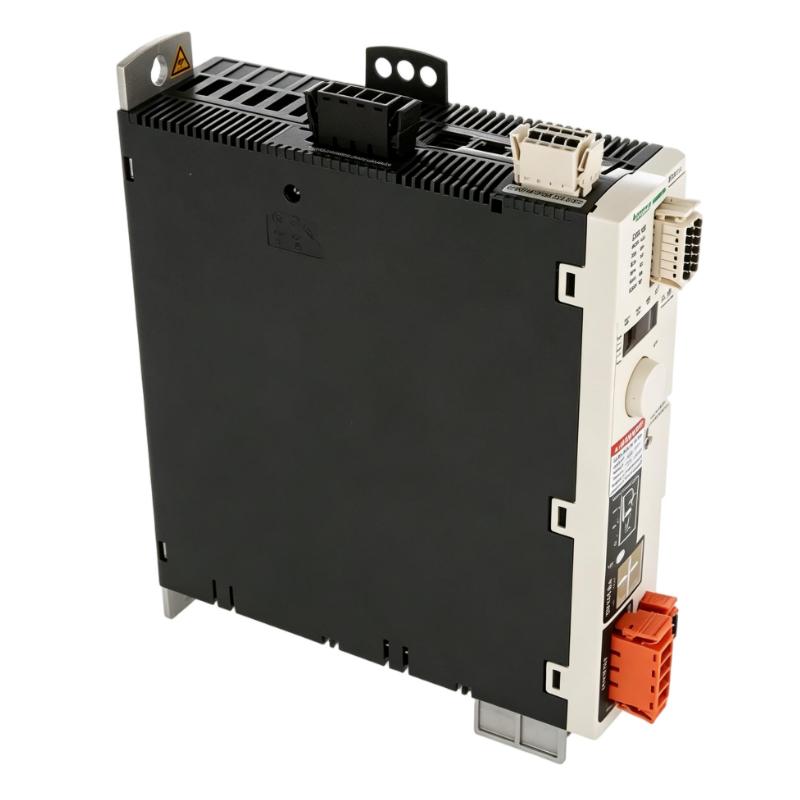

The Schneider LXM32MD18N4 Motion Servo Drive is a professional industrial motion control solution developed for applications requiring high accuracy and reliable servo performance.
Modern automation equipment relies on precise motion control to achieve faster production speeds, improved product consistency, and reduced mechanical stress. The LXM32MD18N4 provides accurate servo management, allowing machines to perform complex movements with excellent stability.
Its compact design helps optimize control cabinet space while maintaining advanced motion functions. The drive is suitable for applications where fast positioning, smooth operation, and dependable performance are essential.
For automation engineers, machine manufacturers, and system integrators, the Schneider LXM32MD18N4 provides a reliable solution for improving motion system efficiency and supporting long-term industrial operation.
Technical Specifications
Parameter
Details
Manufacturer
Schneider Electric
Model Number
LXM32MD18N4
Product Type
Motion Servo Drive
Series
Lexium 32
Rated Power
1.8 kW
Rated Voltage
208–480 V AC
Phase
Three Phase
Control Function
Servo Position, Speed, and Torque Control
Application
Industrial Motion Automation
Installation Type
Cabinet Mount
Drive Design
Compact Book Style
Dimensions
68 x 270 x 237 mm
Weight
2.10 kg (4.63 lb)
Operating Environment
Industrial Automation Applications
Recommended Related Models
Model
Product Type
Description
Schneider LXM32MD10N4
Motion Servo Drive
Compact servo drive for lower power motion applications
Schneider LXM32MD30N4
Motion Servo Drive
Higher capacity servo drive for advanced automation
Schneider BMH0702P11A2A
Servo Motor
Servo motor designed for industrial motion systems
Schneider BMH1003P16A2A
Servo Motor
High-performance servo motor for automation equipment
Popular Related Models
Model
Category
Schneider LXM32MD18N4
Motion Servo Drive
Schneider LXM32MD10N4
Lexium 32 Servo Drive
Schneider LXM32MD30N4
Industrial Servo Drive
Schneider BMH Series
Servo Motor
Schneider Lexium 32 Series
Motion Control System
Applications
The Schneider LXM32MD18N4 Motion Servo Drive is a high-performance servo control device designed for industrial automation systems requiring precise positioning, fast response, and stable motion performance.
As part of the Lexium 32 motion control family, the LXM32MD18N4 provides accurate control of servo motor speed, torque, and position, making it suitable for advanced machinery where motion accuracy directly affects production quality.
The Schneider LXM32MD18N4 is widely used in:
Application Area
Description
CNC Machinery
Provides precise axis control for machining and positioning applications
Packaging Equipment
Supports high-speed and accurate movement control
Robotics Systems
Enables reliable servo motion and coordinated operation
Material Handling Equipment
Improves positioning accuracy and movement efficiency
Automated Production Lines
Provides stable motion control for continuous manufacturing
With excellent servo performance and flexible integration capability, the LXM32MD18N4 is an ideal choice for machine builders, system integrators, and industrial automation professionals.
Advantages
The Schneider LXM32MD18N4 Motion Servo Drive combines advanced motion control technology with a compact industrial design to deliver reliable performance in demanding automation environments.
Advantage
Description
High Precision Control
Provides accurate position, speed, and torque management
Fast Response Performance
Enables quick reaction to motion commands and load changes
Compact Installation Design
Saves control cabinet space while maintaining strong performance
Smooth Motor Operation
Improves machine movement stability and reduces vibration
Flexible System Integration
Supports connection with industrial automation platforms
Efficient Commissioning
Simplifies setup, tuning, and maintenance procedures
The Schneider LXM32MD18N4 helps manufacturers improve machine accuracy, increase productivity, and achieve more reliable motion system operation.
Technical FAQs
Q1: What is the main function of the Schneider LXM32MD18N4 Motion Servo Drive?
A: The servo drive controls servo motor operation by managing position, speed, and torque for precise motion applications.
Q2: What applications are suitable for the LXM32MD18N4?
A: It is suitable for CNC machines, robotics, packaging equipment, and automated manufacturing systems.
Q3: What type of motors can be connected to the LXM32MD18N4?
A: It is designed for compatible Schneider servo motors used in industrial motion control systems.
Q4: What should be checked before installing this servo drive?
A: Verify power requirements, motor compatibility, feedback wiring, control signals, and application parameters.
Q5: What are common causes of servo drive faults?
A: Common causes include incorrect parameter settings, motor overload, feedback errors, communication problems, and wiring faults.
Q6: How can technicians troubleshoot positioning errors?
A: Check feedback signals, motor tuning parameters, mechanical alignment, control commands, and diagnostic information.
Q7: Why is servo motor tuning important?
A: Proper tuning improves motion response, positioning accuracy, stability, and overall machine performance.
Q8: Can the LXM32MD18N4 be integrated with PLC control systems?
A: Yes, it can work with compatible industrial automation controllers for coordinated motion control.
Q9: What maintenance is recommended for this servo drive?
A: Regular inspection of wiring connections, cooling conditions, motor feedback, and operating parameters is recommended.
Q10: What precautions should be taken when replacing this servo drive?
A: Confirm the replacement model, save configuration settings, disconnect power safely, and verify system operation after installation.
