Brand:Schneider PLC Item No.:MCSESU053FNO Product Origin:France Product Dimensions:26 x 79 x 102 mm Product Weight:0.125 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

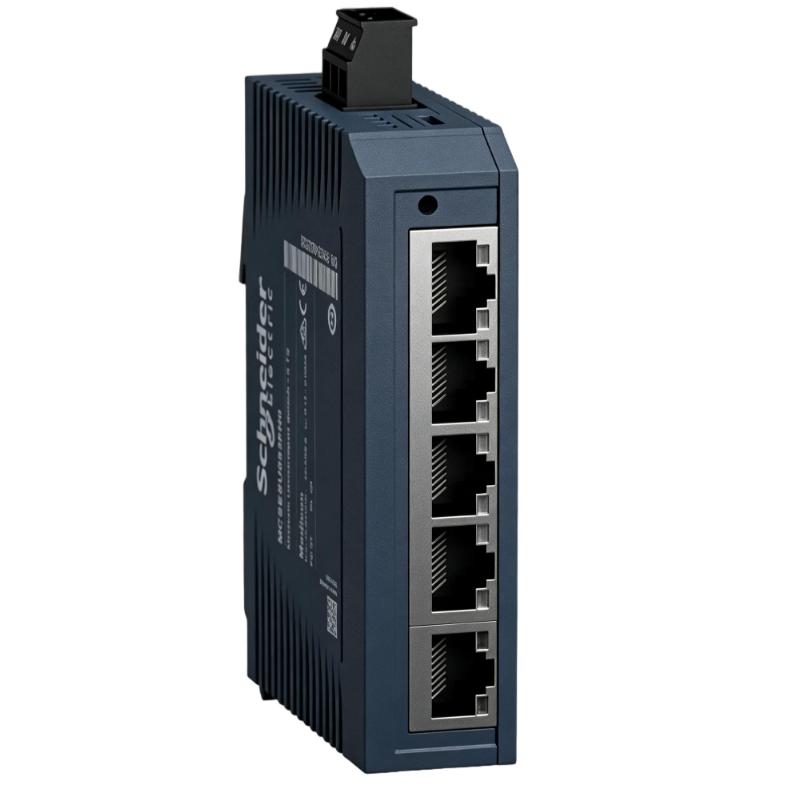

The Schneider MCSESU053FNO Ethernet TCP/IP Unmanaged Switch is a compact industrial communication solution designed for reliable connectivity in automation environments.
As industrial systems become increasingly connected, stable Ethernet communication between controllers, machines, and field devices has become essential. The MCSESU053FNO provides a straightforward networking method that allows automation equipment to exchange data efficiently without complicated configuration procedures.
Its compact design makes it suitable for installation in control cabinets where space efficiency and reliable operation are important. The switch helps simplify network expansion while maintaining stable communication performance for industrial applications.
For automation engineers and system integrators, the Schneider MCSESU053FNO provides an effective networking solution that supports efficient machine communication and dependable industrial operations.
Technical Specifications
Parameter
Details
Manufacturer
Schneider Electric
Model Number
MCSESU053FNO
Product Type
Ethernet TCP/IP Unmanaged Switch
Series
Modicon Networking
Communication Protocol
Ethernet TCP/IP
Ethernet Ports
5 Copper Ethernet Ports
Transmission Speed
10/100BASE-TX
Connection Type
RJ45 Copper Connection
Installation Type
DIN Rail Mount
Power Supply
12–24 V DC
Power Consumption
1.30 W
Protection Rating
IP30
Dimensions
26 x 79 x 102 mm
Weight
0.13 kg (0.28 lb)
Operating Environment
Industrial Automation Applications
Recommended Related Models
Model
Product Type
Description
Schneider MCSESU083FNO
Ethernet TCP/IP Unmanaged Switch
Eight-port industrial Ethernet switch for larger automation networks
Schneider MCSESU053F1CU0
Ethernet Unmanaged Switch
Ethernet switch with copper and fiber communication capability
Schneider BMXNOC0401
Ethernet Communication Module
Network communication module for Modicon PLC systems
Schneider BMXNOE0100
Ethernet Communication Module
Ethernet interface module for industrial automation
Popular Related Models
Model
Category
Schneider MCSESU053FNO
Ethernet TCP/IP Unmanaged Switch
Schneider MCSESU083FNO
Industrial Ethernet Switch
Schneider BMXNOC0401
Ethernet Communication Module
Schneider BMXNOE0100
PLC Ethernet Module
Schneider Modicon Networking Series
Industrial Communication Products
Applications
The Schneider MCSESU053FNO Ethernet TCP/IP Unmanaged Switch is a compact industrial networking device designed to provide reliable Ethernet communication between PLC systems, industrial controllers, HMIs, and field automation equipment. It offers a simple plug-and-play networking solution for applications requiring stable data transmission and efficient industrial connectivity.
The MCSESU053FNO is widely used in:
Application Area
Description
Industrial Automation Networks
Provides Ethernet communication between automation devices
PLC Control Systems
Connects PLCs, HMIs, remote I/O, and industrial controllers
Machine Automation
Supports reliable communication inside automated equipment
With its small footprint and reliable Ethernet performance, the Schneider MCSESU053FNO is suitable for machine builders, system integrators, and maintenance engineers who need a simple and dependable industrial network solution.
Advantages
The Schneider MCSESU053FNO Ethernet TCP/IP Unmanaged Switch combines industrial reliability with easy installation, making it an efficient networking component for automation applications.
Advantage
Description
Plug-and-Play Operation
Enables quick installation without complex network configuration
Stable Ethernet Communication
Provides reliable data exchange between connected devices
Compact Industrial Design
Saves valuable space inside control cabinets
Low Maintenance Requirement
Simplifies network management and troubleshooting
Flexible Device Connection
Supports connection of multiple Ethernet-based devices
Industrial Reliability
Designed for continuous operation in automation environments
The Schneider MCSESU053FNO helps improve industrial communication efficiency while reducing system installation complexity, making it a practical choice for modern automation projects.
Technical FAQs
Q1: What is the main function of the Schneider MCSESU053FNO?
A: The MCSESU053FNO is an unmanaged Ethernet switch used to connect multiple industrial devices through an Ethernet TCP/IP network.
Q2: What communication protocol does the MCSESU053FNO support?
A: It supports Ethernet TCP/IP communication for industrial networking applications.
Q3: How many devices can be connected through this unmanaged switch?
A: The switch provides multiple Ethernet ports for connecting PLCs, HMIs, controllers, and other network devices.
Q4: What are common causes of Ethernet communication failure?
A: Common causes include damaged cables, incorrect connections, power supply problems, and network device faults.
Q5: How can technicians troubleshoot unstable network communication?
A: Check Ethernet cables, power status, connection indicators, network topology, and connected automation devices.
Q6: Why choose an unmanaged switch for industrial automation?
A: Unmanaged switches provide simple installation, reliable communication, and low maintenance for basic industrial networks.
Q7: Can the MCSESU053FNO be used with PLC systems?
A: Yes, it can connect Ethernet-enabled PLC systems with other automation devices.
Q8: What should be checked before replacing this Ethernet switch?
A: Verify network requirements, cable connections, power supply compatibility, and installation conditions.
Q9: What maintenance is required for an industrial Ethernet switch?
A: Regular inspection of Ethernet cables, power connections, and communication indicators is recommended.
Q10: What problems may occur when network communication is interrupted?
A: Communication delays, device disconnection, and automation system interruptions may occur.
