Brand:GE Fanuc PLC Item No.: IC693CHS391J Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

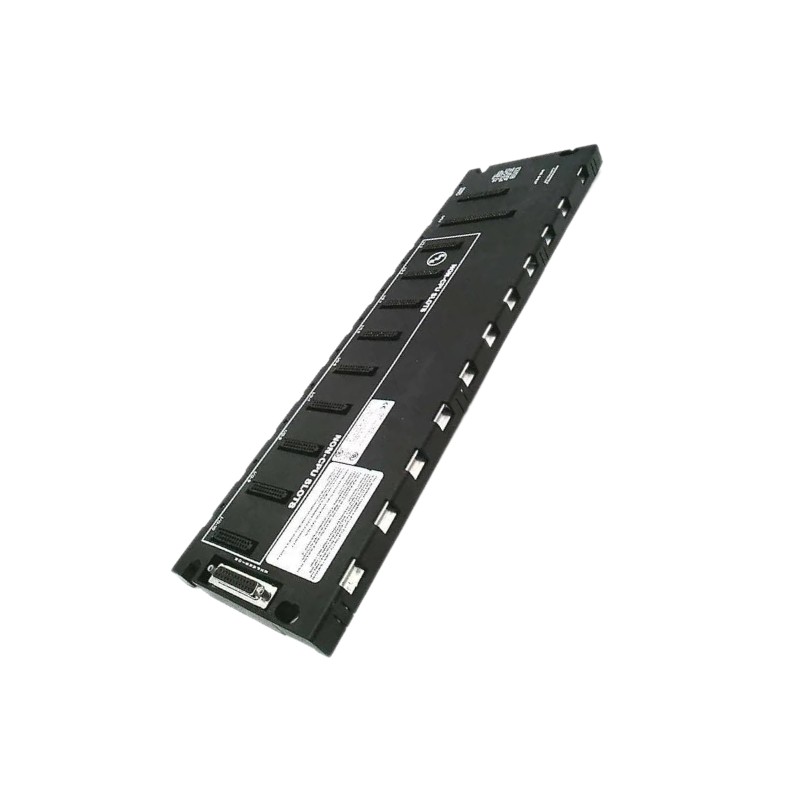

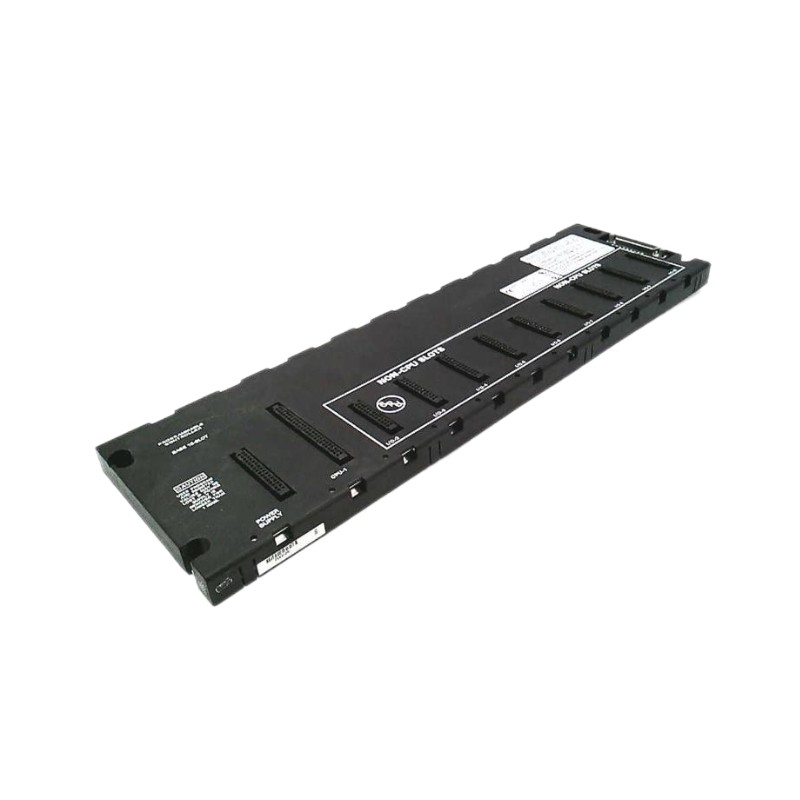

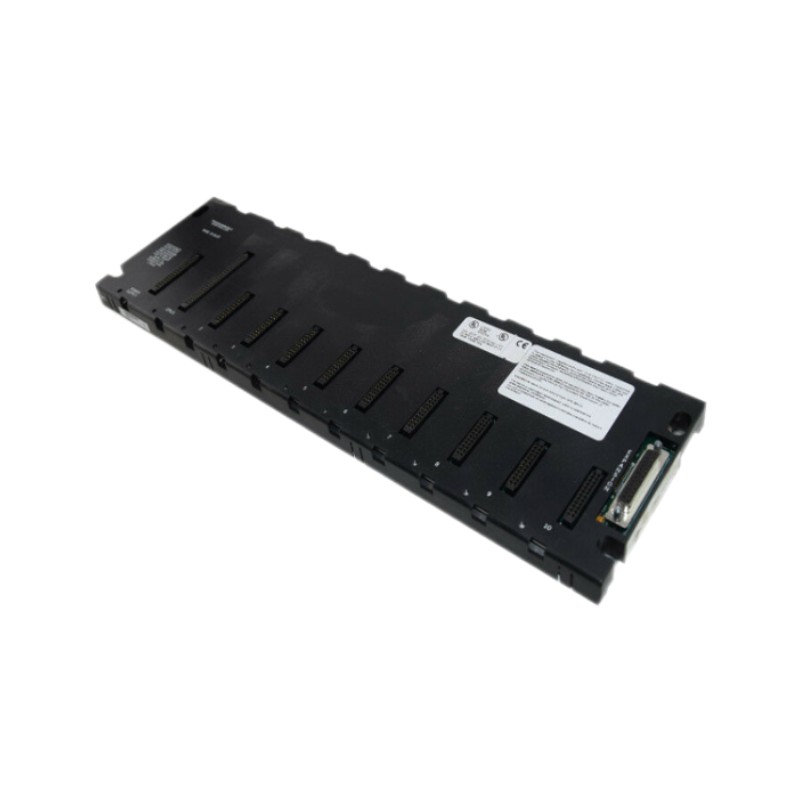

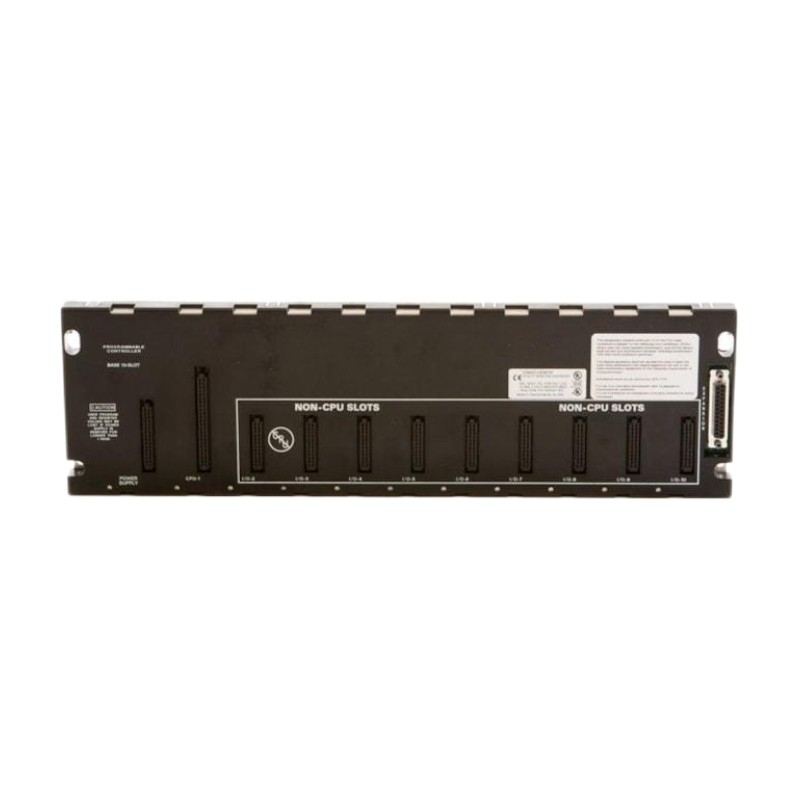

The GE IC693CHS391J CPU Baseplate is the central mounting platform for GE Series 90-30 PLC systems, providing a robust infrastructure for integrating CPUs, power supplies, communication modules, and I/O modules into a unified automation solution. Its modular design simplifies system assembly while supporting reliable backplane communication between installed components.
Engineered for demanding industrial environments, the IC693CHS391J offers ten module positions and seamless support for local and expansion system configurations. The dedicated CPU and power supply locations ensure proper system architecture while allowing the remaining slots to accommodate a wide variety of Series 90-30 modules.
With proven reliability, straightforward installation, and long-term compatibility with legacy GE automation platforms, the IC693CHS391J remains an excellent choice for new system builds, maintenance projects, and modernization of existing PLC installations.
Technical Specifications
Parameter
Details
Model
IC693CHS391J
Product Type
CPU Baseplate
Series
GE Series 90-30
Baseplate Type
Main CPU Baseplate
Number of Slots
10
Power Supply Slot
1 Dedicated Left Slot
CPU Slot
1 Dedicated CPU Slot
I/O / Option Slots
9
Expansion Interface
25-Pin Female D-Sub Connector
Maximum Expansion Distance
Up to 50 ft (Expansion), Up to 700 ft (Remote)
Compatible CPUs
Model 331 and Later
Internal Power Consumption
420 mA @ 5 VDC
Backplane Function
Power Distribution & Module Communication
Mounting Method
Panel Mounted
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
443 × 130 × 142 mm
Weight
Approx. 2.2 kg
Recommended Companion Models
Model
Product Name
IC693CPU374
Series 90-30 CPU Module
IC693PWR321S
Series 90-30 Power Supply Module
IC693BEM331
Series 90-30 Genius Bus Controller Module
IC693MDL645D
Series 90-30 24 VDC Discrete Input Module
Frequently Selected Alternatives
Model
Product Name
IC693CHS391M
Series 90-30 10-Slot CPU Baseplate
IC693CHS393
Series 90-30 10-Slot Remote Baseplate
IC693CHS399
Series 90-30 10-Slot Expansion Baseplate
IC693CHS397
Series 90-30 5-Slot CPU Baseplate
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693CHS391J serves as a 10-slot CPU baseplate, providing a reliable foundation for installing CPUs, power supplies, I/O modules, and communication modules within industrial automation systems.
• Suitable for manufacturing facilities, packaging equipment, water treatment plants, material handling systems, and process automation applications that require a scalable and modular PLC architecture.
• Ideal for building new Series 90-30 control systems or expanding existing installations by supporting multiple local and expansion racks with dependable backplane communication.
• Commonly deployed in legacy GE automation platforms where long-term reliability, flexible module configuration, and easy maintenance are essential for continuous production.
Key Strengths at a Glance
• Provides 10 module positions, including a dedicated left-side power supply slot and a dedicated CPU slot, allowing efficient system organization.
• Supports Series 90-30 CPUs Model 331 and later, offering compatibility with a broad range of GE PLC processors and option modules.
• Includes a 25-pin D-sub expansion connector for connecting additional expansion or remote baseplates, enabling flexible system growth.
• Features an integrated backplane with reliable module interconnection, reducing installation complexity while ensuring dependable communication between installed PLC components.
Technical FAQs
1. What type of product is the GE IC693CHS391J?
The IC693CHS391J is a 10-slot CPU baseplate for GE Series 90-30 programmable logic controller systems.
2. How many module slots are available on the IC693CHS391J?
The baseplate provides one dedicated power supply slot, one CPU slot, and nine additional slots for I/O or option modules.
3. Which PLC family supports the IC693CHS391J?
The IC693CHS391J is designed specifically for GE Series 90-30 PLC systems.
4. Can the IC693CHS391J support expansion racks?
Yes. The integrated expansion connector allows connection to compatible expansion or remote baseplates.
5. Where is the power supply installed?
The power supply must be installed in the dedicated leftmost slot designed exclusively for Series 90-30 power supply modules.
6. Which modules can be installed after the CPU slot?
The remaining slots support a variety of Series 90-30 I/O modules, communication modules, and intelligent option modules.
7. Does the IC693CHS391J contain active electronic circuitry?
No. The baseplate primarily provides mechanical mounting, backplane communication, and power distribution for installed modules.
8. Is the CPU slot interchangeable with standard I/O slots?
No. The CPU slot is specifically designated for compatible CPU modules and cannot be used as a general-purpose I/O slot.
9. What connector is used for expansion?
The baseplate uses a 25-pin female D-sub connector for expansion and remote rack connections.
10. What should be verified before replacing an IC693CHS391J?
Engineers should confirm CPU compatibility, rack configuration, expansion cable connections, installed module arrangement, and power supply compatibility before replacement.
