Introduction

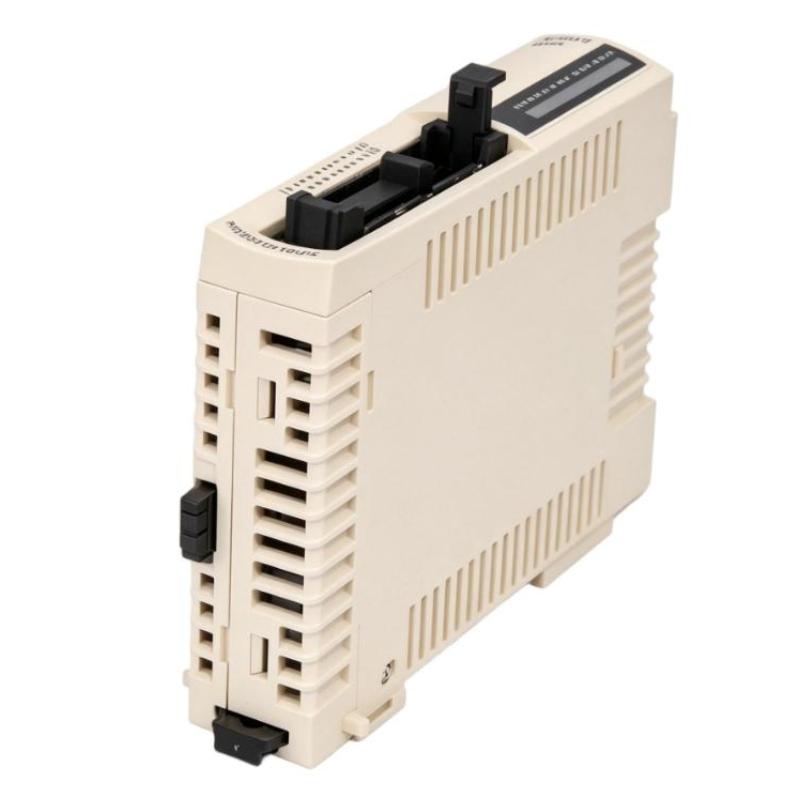

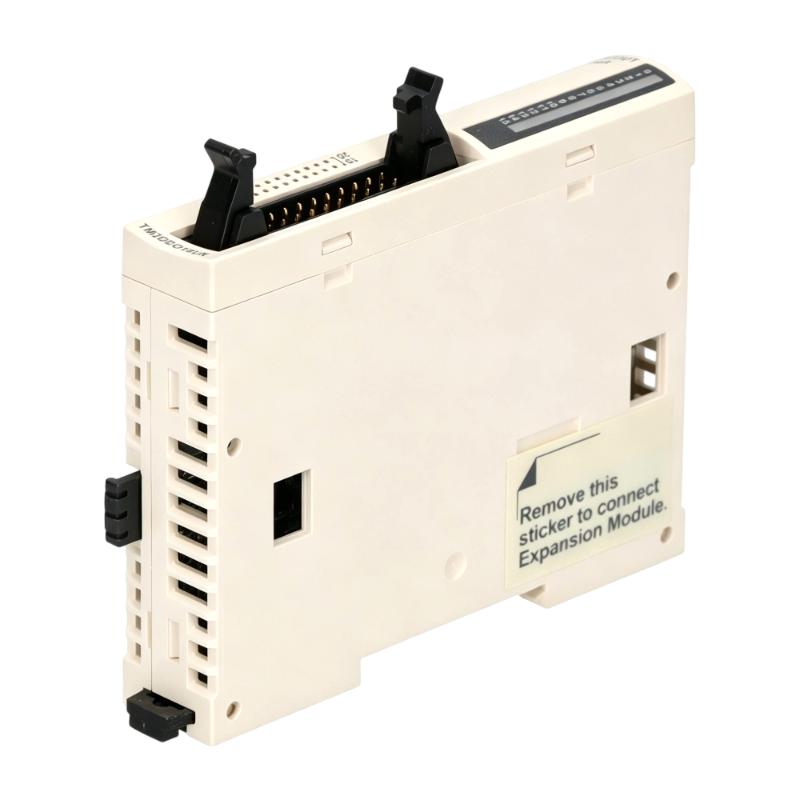

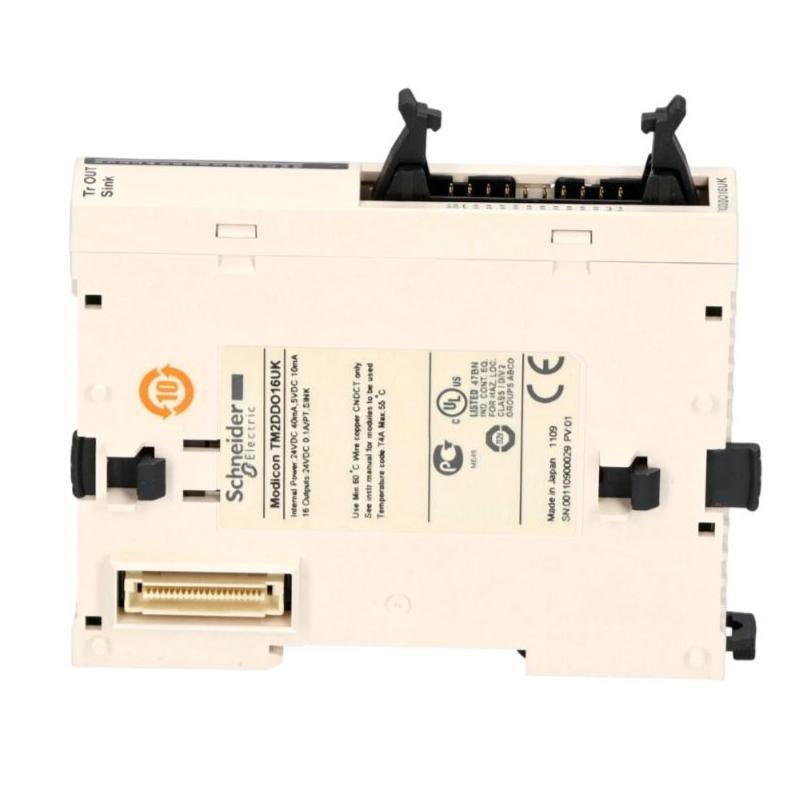

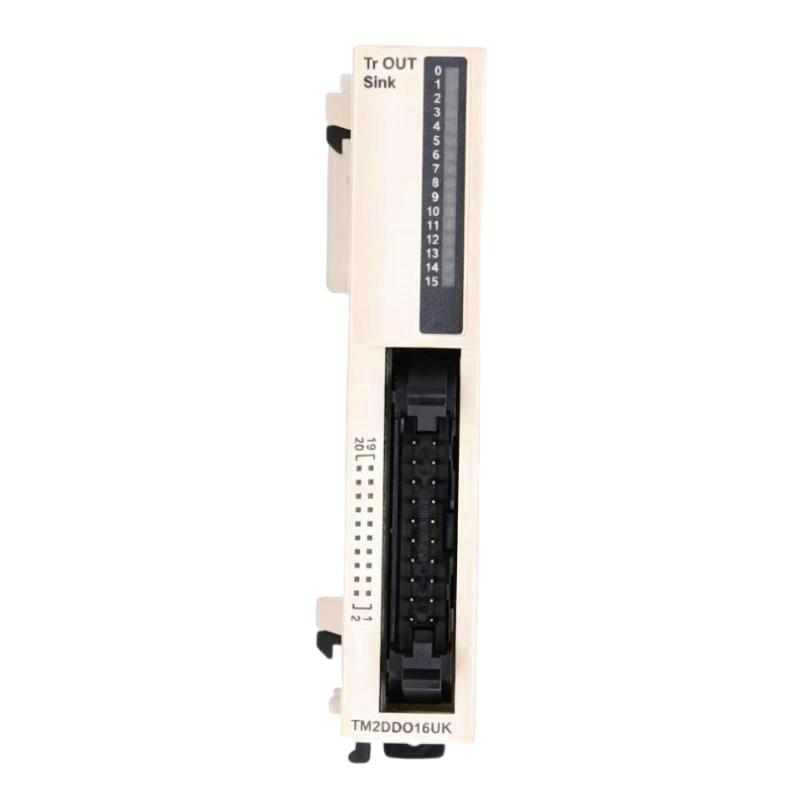

The Schneider TM2DDO16UK Discrete Output Module is a reliable digital output expansion component designed for industrial PLC automation systems.

Modern manufacturing equipment requires accurate and dependable control of multiple field devices. Digital output modules provide the connection between PLC controllers and external equipment, allowing automated systems to manage machines, actuators, and operational signals efficiently.

The TM2DDO16UK offers a practical solution for applications that require additional output channels while maintaining a compact installation structure. Its transistor output technology supports fast and reliable switching, making it suitable for various industrial automation environments.

For machine builders, maintenance engineers, and automation professionals, the Schneider TM2DDO16UK provides a dependable method to enhance PLC functionality and improve overall system flexibility.

Technical Specifications

Parameter	Details
Manufacturer	Schneider Electric
Model Number	TM2DDO16UK
Product Type	Discrete Output Module
Series	Modicon TM2
Output Type	Transistor Output
Number of Outputs	16 Channels
Output Voltage	24 V DC
Output Logic	Sink Type
Connection Type	HE10 Connector
Installation Type	DIN Rail Mount
Application	Industrial Digital Output Control
Dimensions	81.3 x 90 x 21.4 mm
Weight	0.07 kg (0.15 lb)
Operating Environment	Industrial Automation Applications

Recommended Related Models

Model	Product Type	Description
Schneider TM2DDI16DT	Discrete Input Module	Digital input expansion module for automation systems
Schneider TM2DDO32TK	Discrete Output Module	Higher channel output expansion solution
Schneider TM2DRA16RT	Relay Output Module	Relay-based digital output expansion module
Schneider TM2AMI8HT	Analog Input Module	Analog signal acquisition module

Popular Related Models

Model	Category
Schneider TM2DDO16UK	Discrete Output Module
Schneider TM2DDI16DT	Digital Input Module
Schneider TM2DDO32TK	Digital Output Module
Schneider TM2DRA16RT	Relay Output Module
Schneider Modicon TM2 Series	PLC Expansion Module

Applications

The Schneider TM2DDO16UK Discrete Output Module is a compact digital output expansion module designed for industrial automation systems requiring reliable control of external devices. It provides 16 transistor output channels for controlling actuators, relays, indicators, and other field equipment in PLC-based applications.

Designed for Modicon automation platforms, the TM2DDO16UK helps expand controller output capability while maintaining efficient signal management and flexible system configuration. Its compact design makes it suitable for machine automation projects where space-saving installation and dependable output control are important.

The Schneider TM2DDO16UK is widely used in:

Application Area	Description
Machine Automation	Controls digital actuators and field devices in automated equipment
Packaging Systems	Provides output control for motors, valves, and indicators
Industrial Control Panels	Expands PLC digital output capacity
Material Handling Equipment	Supports reliable control of conveyors and mechanical components
Factory Automation	Provides flexible output management for production systems

The Schneider TM2DDO16UK is an ideal solution for automation engineers and system integrators who require stable digital output expansion and efficient PLC system integration.

Advantages

The Schneider TM2DDO16UK Discrete Output Module combines compact installation, reliable transistor output performance, and flexible integration capability for industrial automation applications.

Advantage	Description
16-Channel Output Expansion	Provides additional digital output points for PLC systems
Fast Switching Performance	Supports efficient control of high-speed automation processes
Compact Module Design	Saves valuable space inside control cabinets
Reliable Transistor Outputs	Provides stable operation for industrial field devices
Flexible System Expansion	Allows automation systems to increase output capacity
Easy Maintenance	Simplifies troubleshooting and replacement procedures

With dependable output control and efficient installation characteristics, the Schneider TM2DDO16UK helps improve machine performance and supports reliable industrial automation operations.

Technical FAQs

Q1: What is the main function of the Schneider TM2DDO16UK?
A: The TM2DDO16UK is a discrete output module used to expand PLC output capability and control external digital devices.

Q2: How many output channels does the TM2DDO16UK provide?
A: It provides 16 transistor output channels for industrial automation applications.

Q3: What type of devices can be controlled by this output module?
A: It can control compatible digital devices such as relays, indicators, actuators, and industrial control components.

Q4: What are common causes of output module faults?
A: Common causes include wiring errors, overload conditions, incorrect configuration, and field device problems.

Q5: How can technicians troubleshoot output signal problems?
A: Check PLC configuration, module status indicators, wiring connections, power supply, and connected devices.

Q6: Why are transistor outputs used in automation systems?
A: Transistor outputs provide fast switching performance and are suitable for frequent industrial control operations.

Q7: Can the TM2DDO16UK be used for machine expansion projects?
A: Yes, it is designed to increase digital output capacity in automation and machine control systems.

Q8: What should be checked before replacing this output module?
A: Verify module compatibility, output configuration, wiring connections, and system requirements.

Q9: What maintenance is recommended for digital output modules?
A: Regular inspection of terminals, wiring conditions, module indicators, and connected loads is recommended.

Q10: What happens if an output channel fails?
A: The connected device may not operate correctly, which can affect machine sequences and automation processes.
