Introduction

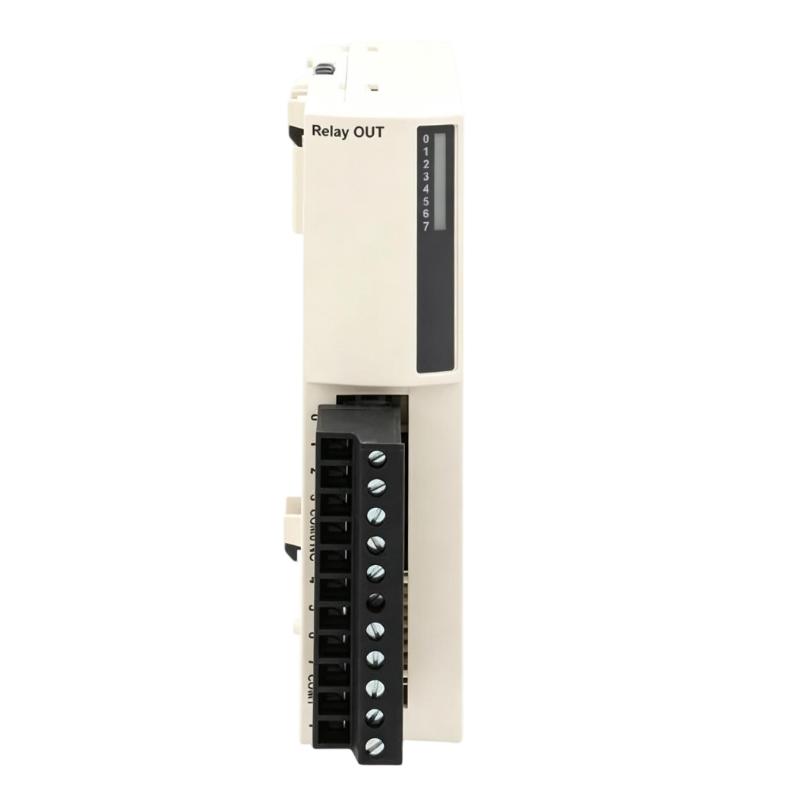

The Schneider TM2DRA8RT I/O Expansion Module is a reliable industrial automation component designed to provide additional relay output capability for PLC control systems.

As automation equipment becomes more complex, controllers often require extra output channels to manage multiple devices and processes. Expansion modules provide an efficient method to increase system capacity while maintaining the existing control architecture.

The TM2DRA8RT offers flexible relay switching performance, allowing automation systems to control a wide range of industrial devices. Its compact structure makes it suitable for control cabinets where space efficiency and reliable operation are important.

For machine builders, system integrators, and industrial maintenance teams, the Schneider TM2DRA8RT provides an effective solution for improving PLC functionality and supporting scalable automation projects.

Technical Specifications

Parameter	Details
Manufacturer	Schneider Electric
Model Number	TM2DRA8RT
Product Type	I/O Expansion Module
Series	Modicon TM2
Output Type	Relay Output
Number of Outputs	8 Channels
Output Voltage	24 V DC / 240 V AC
Output Current	Up to 2 A per Channel
Electrical Isolation	Relay Isolation
Connection Type	Screw Terminal Connection
Installation Type	DIN Rail Mount
Application	Industrial Digital Output Control
Dimensions	84.6 x 90 x 27.3 mm
Weight	0.11 kg (0.24 lb)
Operating Environment	Industrial Automation Applications

Recommended Related Models

Model	Product Type	Description
Schneider TM2DRA16RT	Relay Output Module	Provides additional relay output channels for PLC systems
Schneider TM2DDO8UT	Discrete Output Module	Transistor output expansion module for fast switching applications
Schneider TM2DDO16UK	Discrete Output Module	Digital output expansion module with more output points
Schneider TM2DDI16DT	Discrete Input Module	Digital input expansion module for automation systems

Popular Related Models

Model	Category
Schneider TM2DRA8RT	I/O Expansion Module
Schneider TM2DRA16RT	Relay Output Module
Schneider TM2DDO8UT	Transistor Output Module
Schneider TM2DDI16DT	Digital Input Module
Schneider Modicon TM2 Series	PLC Expansion Module

Applications

The Schneider TM2DRA8RT I/O Expansion Module is a compact relay output expansion device designed to increase the control capability of PLC-based automation systems. It provides additional relay output channels for managing industrial equipment such as contactors, valves, lamps, motors, and other electrical loads.

The TM2DRA8RT is designed for applications where flexible switching control and reliable electrical isolation are required. By expanding the available output points of a controller, it helps engineers build more efficient and scalable automation systems.

The Schneider TM2DRA8RT is widely used in:

Application Area	Description
Machine Automation	Controls industrial actuators, relays, and electrical components
Packaging Equipment	Provides additional output signals for automated production lines
Factory Control Systems	Expands PLC output capacity for complex control tasks
Material Handling Systems	Supports control of conveyors, motors, and mechanical devices
Industrial Equipment Upgrades	Enhances existing automation systems with additional output points

The Schneider TM2DRA8RT provides a practical solution for automation engineers who require reliable relay switching performance and flexible PLC system expansion.

Advantages

The Schneider TM2DRA8RT I/O Expansion Module combines reliable relay switching technology, compact installation, and flexible system integration to support various industrial automation requirements.

Advantage	Description
8 Relay Output Channels	Provides additional output points for automation control systems
Flexible Load Compatibility	Supports control of various AC and DC electrical devices
Electrical Isolation	Helps protect control systems from external load interference
Compact Design	Saves installation space inside control cabinets
Easy PLC Expansion	Allows automation systems to increase output capability efficiently
Reliable Switching Performance	Ensures stable operation in industrial environments

With dependable relay control and flexible application capability, the TM2DRA8RT helps improve machine functionality, simplify system upgrades, and enhance automation reliability.

Technical FAQs

Q1: What is the main function of the Schneider TM2DRA8RT?
A: The TM2DRA8RT is an I/O expansion module that adds relay output channels to compatible PLC automation systems.

Q2: How many relay output channels does the TM2DRA8RT provide?
A: The module provides 8 relay output channels for controlling external devices.

Q3: What type of loads can be controlled by relay outputs?
A: Relay outputs can control various industrial loads including contactors, valves, indicators, and electrical equipment.

Q4: What are common causes of relay output failure?
A: Common causes include excessive load current, incorrect wiring, damaged external devices, and improper configuration.

Q5: How can technicians troubleshoot an output channel that does not operate?
A: Check PLC program logic, module status, wiring connections, load conditions, and output configuration.

Q6: Why are relay outputs widely used in industrial automation?
A: Relay outputs provide flexible switching capability and can control different types of electrical loads.

Q7: Can the TM2DRA8RT be used for automation system expansion?
A: Yes, it is designed to extend the output capacity of compatible PLC systems.

Q8: What should be checked before installing this expansion module?
A: Verify PLC compatibility, wiring requirements, power conditions, and system configuration.

Q9: What maintenance is recommended for relay output modules?
A: Regular inspection of wiring terminals, connected loads, module status, and operating conditions is recommended.

Q10: What problems may occur when a relay output is overloaded?
A: Overloading may cause unstable switching, shortened component life, or failure of the output channel.
