Brand:GE Fanuc PLC Item No.:IC693MDL645E Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

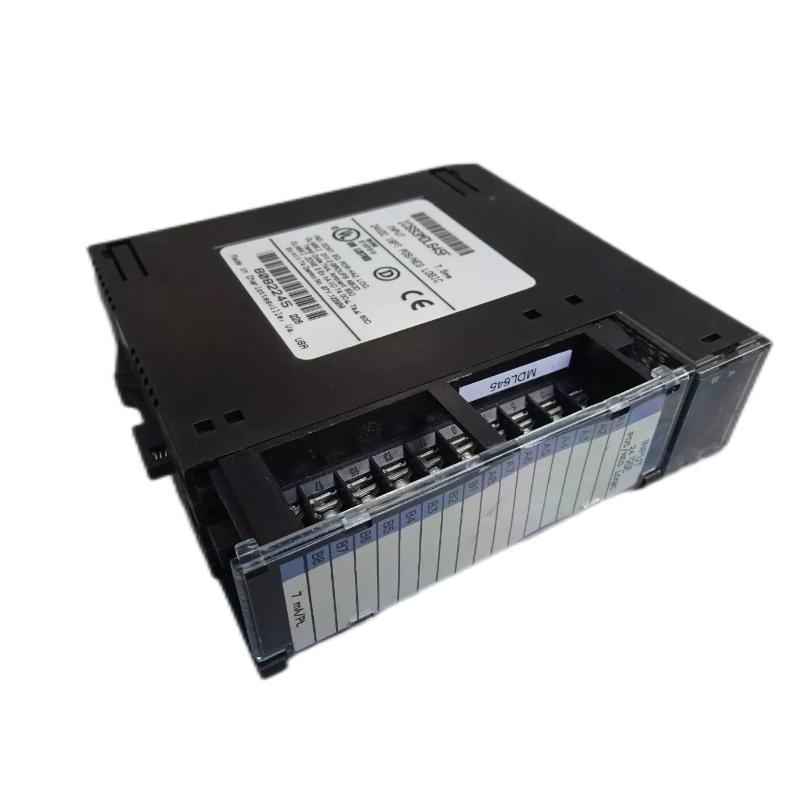

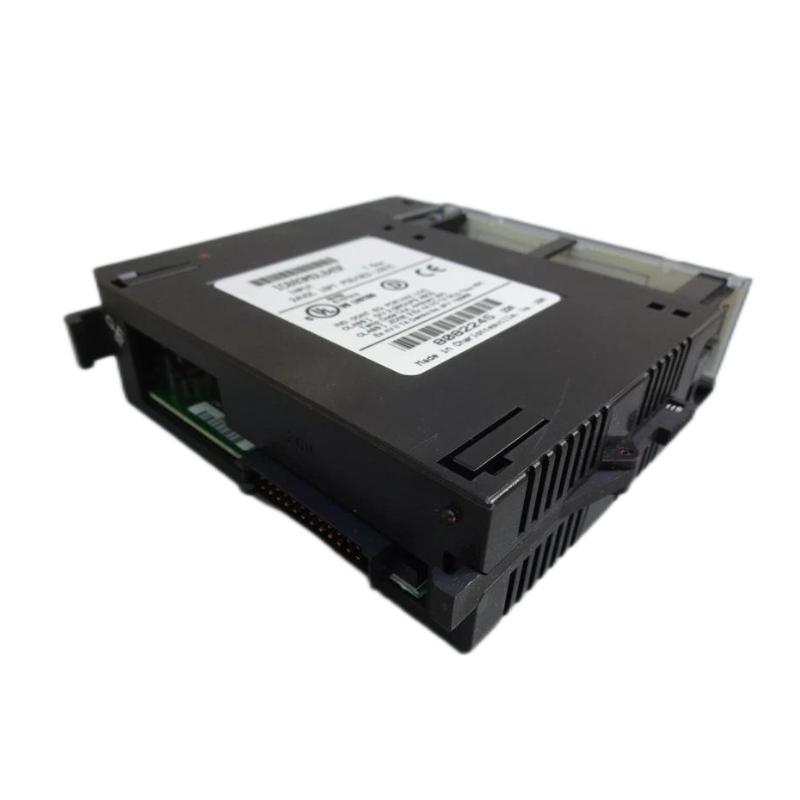

The GE IC693MDL645E Discrete Input Module is a dependable digital input solution engineered for GE Series 90-30 PLC systems. Featuring sixteen 24 VDC input channels with positive and negative logic capability, it enables accurate monitoring of field devices while offering excellent flexibility for different industrial wiring methods.
Designed for demanding automation environments, the IC693MDL645E delivers reliable signal acquisition with fast response times, robust electrical isolation, and straightforward installation. Individual LED indicators simplify diagnostics, allowing maintenance personnel to quickly identify input status and reduce system downtime.
Whether expanding an existing Series 90-30 installation or replacing legacy hardware, the IC693MDL645E provides dependable performance, proven compatibility, and long-term reliability for industrial automation applications.
Technical Specifications
Parameter
Details
Model
IC693MDL645E
Product Type
Discrete Input Module
Series
GE Series 90-30
Input Type
DC Digital Input
Number of Inputs
16 Points
Input Configuration
1 Group
Logic Type
Positive / Negative Logic
Rated Input Voltage
24 VDC
Input Voltage Range
0 to 30 VDC
Input Current
7 mA Typical
ON-State Voltage
11.5–30 VDC
OFF-State Voltage
0–5 VDC
ON Response Time
7 ms Typical
OFF Response Time
7 ms Typical
Isolation Voltage
1500 VAC (Field to Logic)
Power Consumption
80 mA @ 5 VDC; 125 mA @ 24 VDC
Status Indicators
16 Individual LEDs
Mounting
Series 90-30 Baseplate
Compatible Baseplates
5-Slot or 10-Slot Series 90-30
Dimensions
Approx. 130 × 35 × 127 mm
Weight
Approx. 0.30 kg
Recommended Companion Models
Model
Product Name
IC693CPU364
Series 90-30 CPU Module
IC693PWR330
Series 90-30 Power Supply Module
IC693CHS397
Series 90-30 5-Slot Baseplate
IC693BEM331
Series 90-30 Genius Bus Controller Module
Frequently Selected Alternatives
Model
Product Name
IC693MDL646C
Series 90-30 Fast DC Input Module
IC693MDL632
Series 90-30 125 VDC Input Module
IC693MDL640J
Series 90-30 Positive Logic Input Module
IC693MDL654
Series 90-30 High-Density DC Input Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693MDL645E provides reliable 24 VDC digital signal acquisition for industrial automation systems requiring dependable monitoring of field devices and flexible wiring configurations.
• Ideal for manufacturing equipment, packaging machinery, conveyor systems, material handling applications, and automated production lines where stable discrete input performance is essential.
• Supports direct connection to proximity sensors, pushbuttons, limit switches, selector switches, photoelectric sensors, and auxiliary relay contacts using either positive or negative logic wiring.
• Well suited for PLC modernization, I/O expansion, and maintenance projects that require seamless integration with existing GE Series 90-30 control systems.
Key Strengths at a Glance
• Provides 16 discrete 24 VDC input channels in a single input group with a common terminal for efficient field wiring.
• Supports both positive and negative logic operation, allowing compatibility with a wide range of industrial input devices.
• Offers 1500 VAC isolation between the field side and PLC logic circuitry, improving system protection against electrical interference.
• Features sixteen individual LED status indicators that provide immediate visual confirmation of each input channel during commissioning and troubleshooting.
Technical FAQs
1. What type of module is the GE IC693MDL645E?
The IC693MDL645E is a 16-point 24 VDC positive/negative logic discrete input module for the GE Series 90-30 PLC platform.
2. How many input channels does the IC693MDL645E provide?
The module provides 16 digital input channels arranged as one common input group.
3. What is the rated input voltage?
The nominal input voltage is 24 VDC, with an operating input range of 0 to 30 VDC.
4. Which field devices can be connected to this module?
It supports pushbuttons, proximity sensors, limit switches, selector switches, auxiliary contacts, and similar 24 VDC discrete input devices.
5. Does the IC693MDL645E support both sourcing and sinking wiring?
Yes. The module supports both positive logic and negative logic input configurations.
6. What is the typical input current per channel?
The typical input current is approximately 7 mA at the rated input voltage.
7. What is the typical response time?
Typical ON and OFF response times are approximately 7 milliseconds.
8. Does the module include electrical isolation?
Yes. It provides 1500 VAC isolation between the field wiring and the PLC logic circuitry.
9. Which PLC systems are compatible with the IC693MDL645E?
The module is compatible with GE Series 90-30 PLC systems using supported 5-slot or 10-slot baseplates.
10. What should be checked before replacing the IC693MDL645E?
Verify the PLC baseplate compatibility, input voltage, field wiring, logic configuration, and module addressing before installation.
