Brand:GE Fanuc PLC Item No.: IC200PWR102D Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

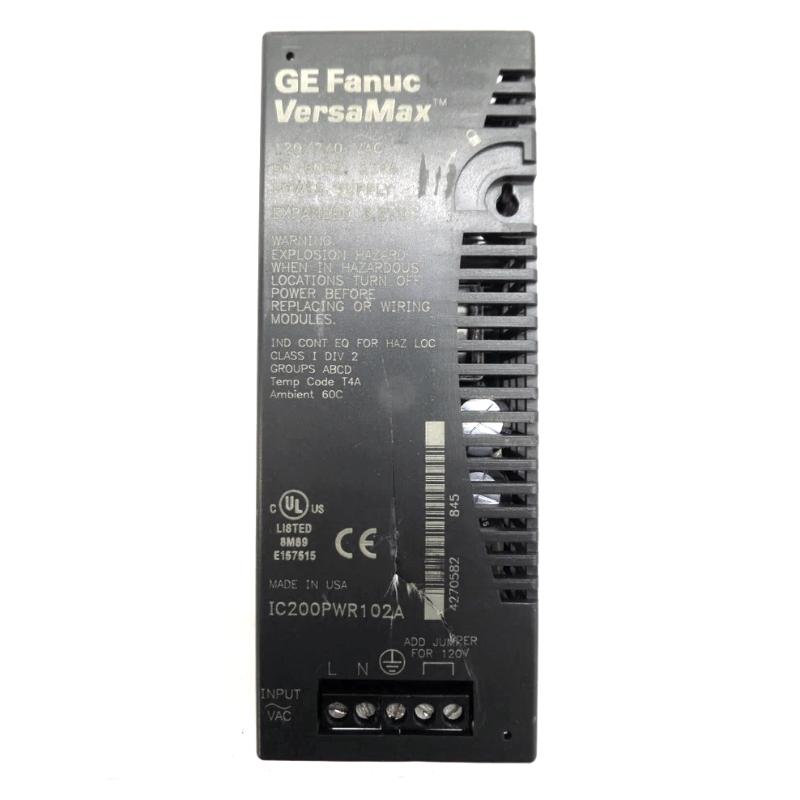

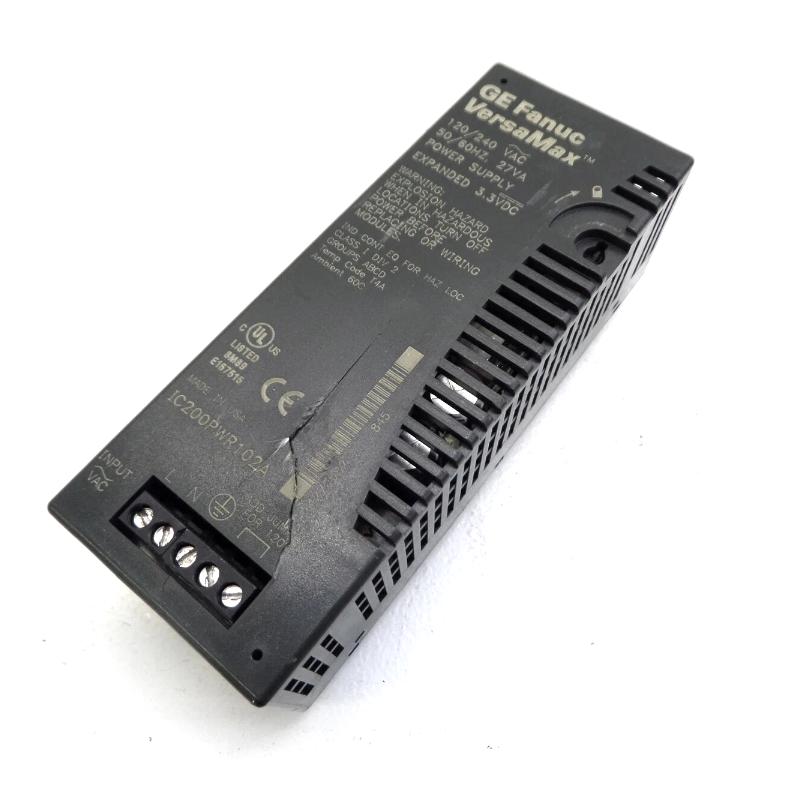

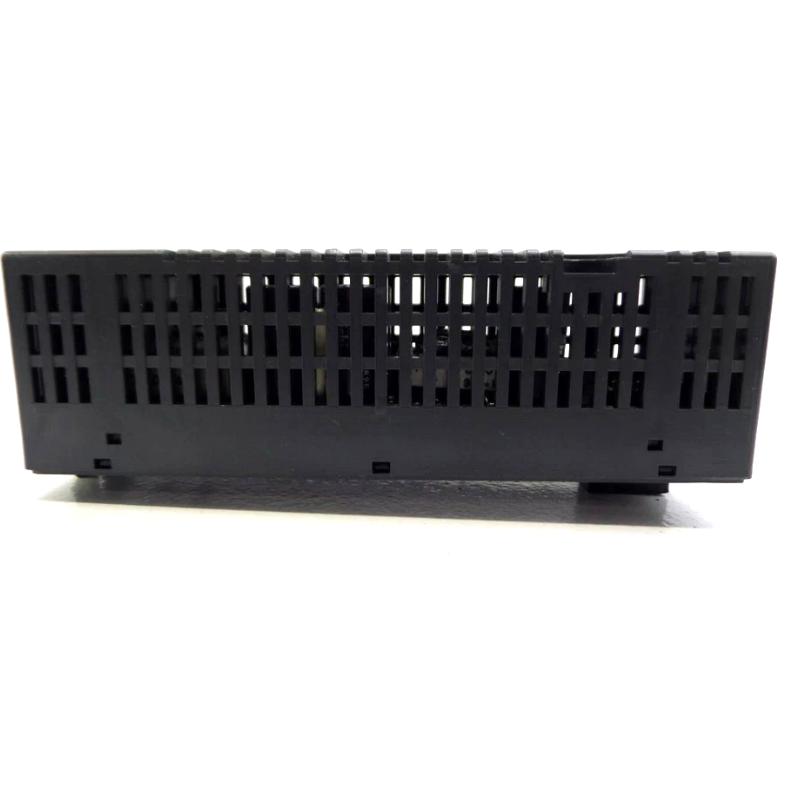

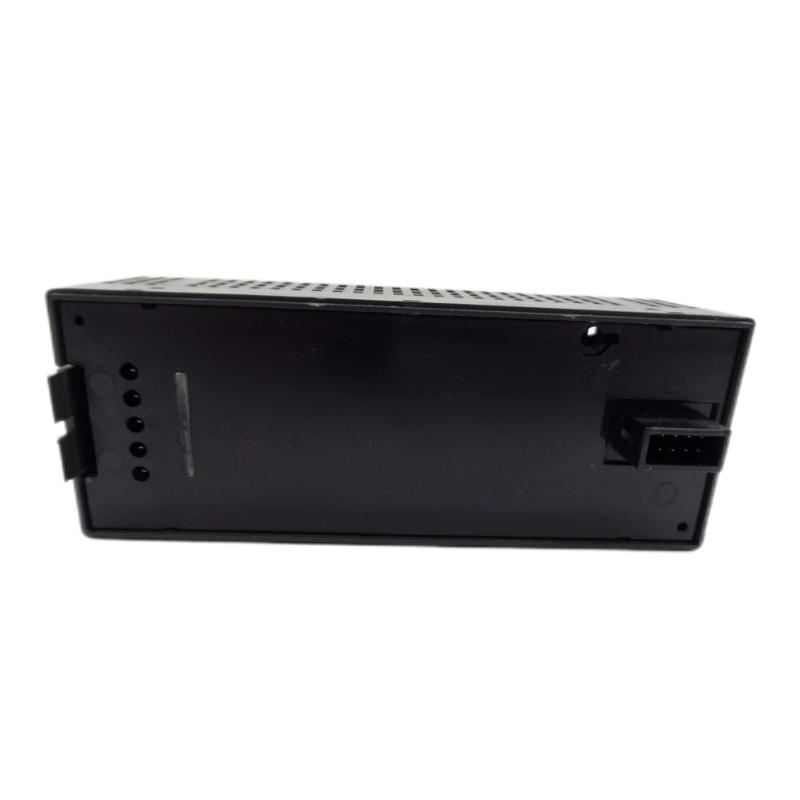

The GE IC200PWR102D Power Supply Module is a high-performance AC power solution developed for the VersaMax PLC family. It provides regulated 5 VDC and expanded 3.3 VDC backplane power for CPUs, network interface units, and distributed I/O modules, ensuring dependable system performance across a wide variety of industrial automation applications.
Supporting both 120 VAC and 240 VAC power systems through simple jumper selection, the IC200PWR102D offers installation flexibility while delivering stable output for demanding control architectures. Its ability to operate as either a primary or supplemental power supply makes it particularly valuable in scalable VersaMax installations.
With robust protection features, reliable power regulation, and seamless integration into VersaMax systems, the IC200PWR102D remains a trusted solution for machine builders, system integrators, and maintenance professionals seeking dependable long-term PLC operation.
Mounts on CPU, NIU, or Power Supply Booster Carrier
Cooling Method
Natural Convection
Operating Temperature
0°C to 60°C
Mounting Type
DIN Rail / VersaMax Carrier Mounted
Dimensions
Approx. 127 × 76 × 50 mm
Weight
Approx. 0.14 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200PWB001
VersaMax Power Supply Booster Carrier
IC200MDL650J
VersaMax Discrete Input Module
IC200ALG430F
VersaMax Analog Input Module
Frequently Selected Alternatives
Model
Product Name
IC200PWR101
VersaMax AC Power Supply Module
IC200PWR201
VersaMax 12 VDC Power Supply Module
IC200PWR202
VersaMax 12 VDC Expanded Power Supply Module
IC200PWR001
VersaMax Power Supply Module
Where It Excels in Industrial Use
• Designed for GE VersaMax PLC systems, the IC200PWR102D supplies regulated backplane power for CPUs, Network Interface Units (NIUs), and I/O modules, ensuring stable operation in demanding industrial automation environments.
• Ideal for factory automation, packaging equipment, material handling systems, water treatment facilities, machine control, and process automation applications requiring dependable AC-powered PLC installations.
• Suitable for both standalone VersaMax stations and larger distributed I/O systems where additional backplane power is required for expanded module configurations.
• Commonly used in new system installations, retrofit projects, and maintenance applications requiring reliable power distribution and long-term compatibility with the VersaMax platform.
Key Strengths at a Glance
• Accepts universal 120/240 VAC input with jumper-selectable operating mode, providing flexible deployment across industrial power systems.
• Delivers regulated 5 VDC and expanded 3.3 VDC backplane outputs with a combined maximum output current of 1.5 A, supporting high-density VersaMax configurations.
• Can function either as the primary station power supply or as a supplemental supply when installed on a VersaMax Power Supply Booster Carrier.
• Incorporates overload and short-circuit protection to improve operational reliability and reduce maintenance requirements in continuous industrial operation.
Technical FAQs
1. What type of module is the GE IC200PWR102D?
The IC200PWR102D is a VersaMax AC Power Supply Module designed to provide regulated backplane power for CPUs, NIUs, and I/O modules.
2. Which PLC platform is compatible with the IC200PWR102D?
It is designed for GE VersaMax PLC and VersaMax I/O systems.
3. What input voltage does the module support?
The module accepts 85–132 VAC (120 VAC nominal) with the jumper installed, or 176–264 VAC (240 VAC nominal) without the jumper.
4. What output voltages are provided?
The IC200PWR102D supplies regulated 5 VDC and expanded 3.3 VDC outputs for the VersaMax backplane.
5. What is the maximum output current?
The combined maximum output current is 1.5 A, including up to 1.0 A available on the 3.3 VDC output.
6. Can the module be used as a supplemental power supply?
Yes. When mounted on a VersaMax Power Supply Booster Carrier, it can operate as a supplemental power source for expanded I/O stations.
7. Does the IC200PWR102D include protection features?
Yes. It includes built-in overload and short-circuit protection to safeguard connected equipment.
8. What frequency range does the module support?
It operates with AC input frequencies from 47 to 63 Hz.
9. Is field configuration required for 120 VAC operation?
Yes. A configuration jumper must be installed when operating from a 120 VAC power source.
10. What should be checked before replacing the IC200PWR102D?
Verify the input voltage selection, jumper configuration, available backplane current capacity, module compatibility, and field wiring before installation.
