Brand:GE Fanuc PLC Item No.: IC200MDL750B Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

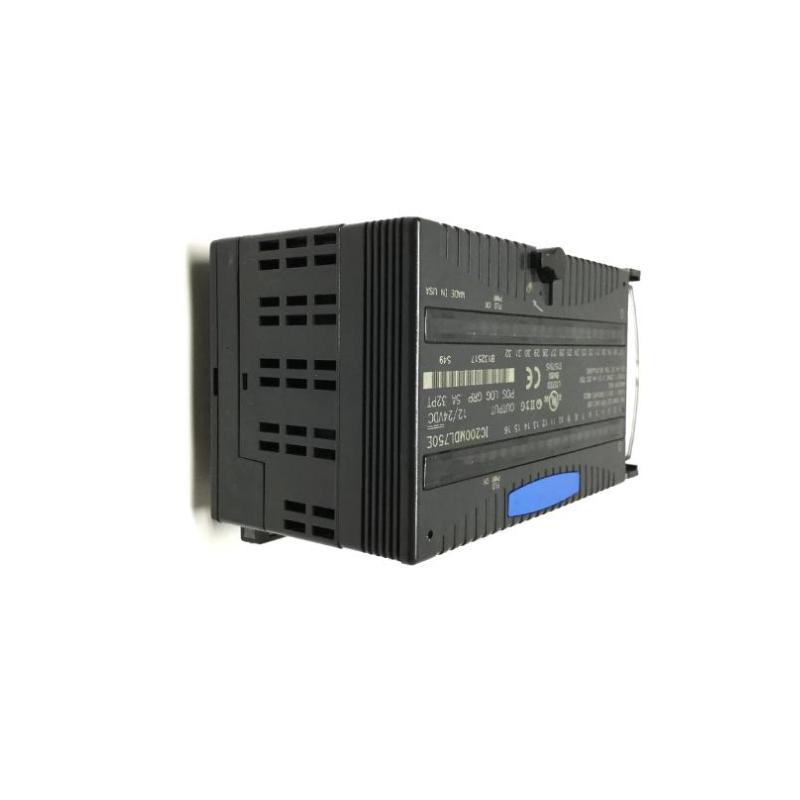

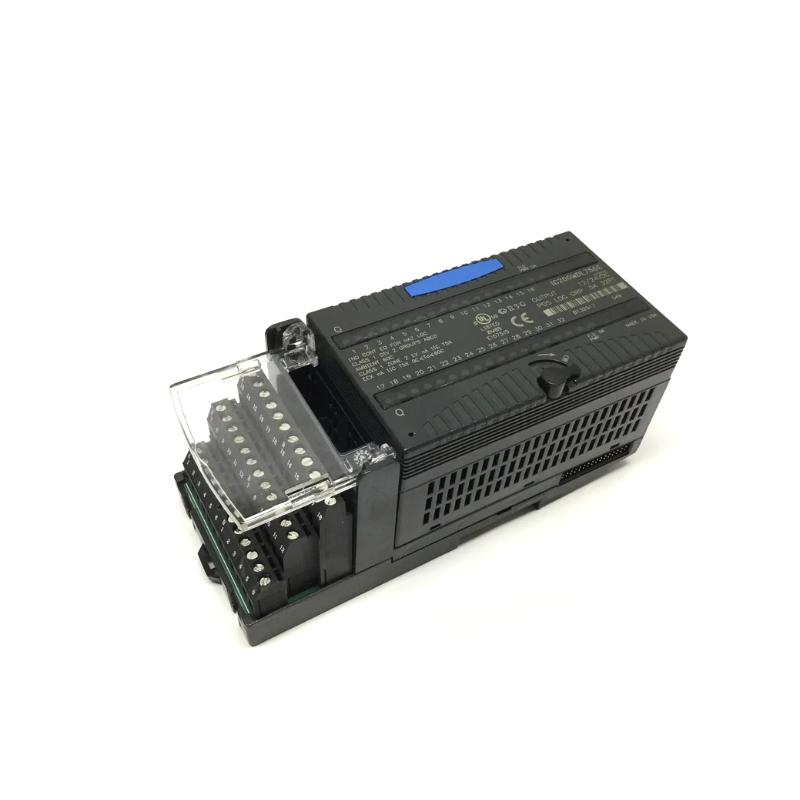

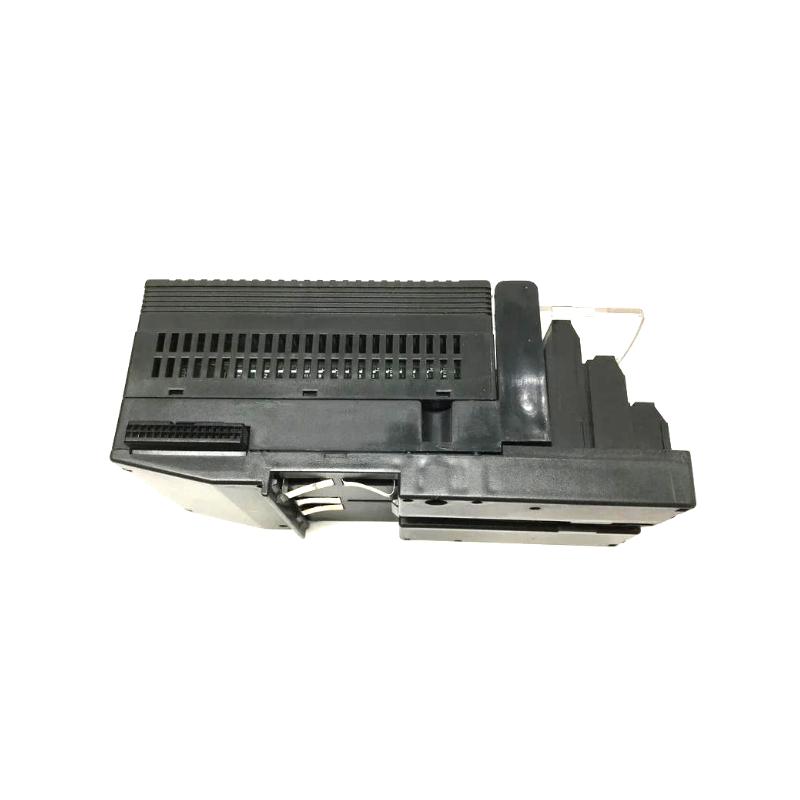

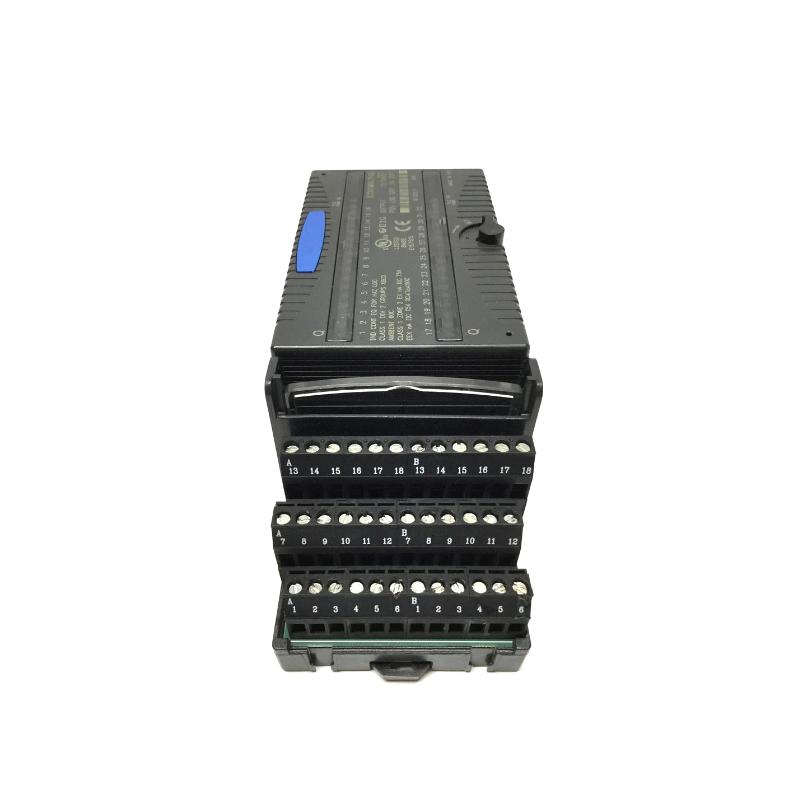

The GE IC200MDL750B Discrete Output Module is a high-density digital output solution developed for the VersaMax PLC family. Featuring 32 positive logic output channels arranged in two isolated groups, it provides reliable control of industrial field devices while maximizing output capacity within a compact footprint.
Designed for demanding automation applications, the IC200MDL750B delivers fast switching performance, dependable output current capability, and straightforward integration with VersaMax carrier systems. Individual channel status LEDs and dedicated field power diagnostics simplify commissioning and maintenance, helping minimize equipment downtime.
Whether used in manufacturing, process automation, or machine-building projects, the IC200MDL750B offers proven reliability, flexible 12/24 VDC operation, and seamless compatibility with the VersaMax automation platform.
• Designed for GE VersaMax PLC systems, the IC200MDL750B provides high-density 32-point discrete output control for industrial automation applications requiring reliable 12/24 VDC positive logic switching.
• Ideal for packaging machinery, conveyor systems, material handling equipment, automated assembly lines, and OEM machine control where multiple field devices must be controlled simultaneously.
• Suitable for driving solenoid valves, interposing relays, indicator lamps, motor starters, and other 12/24 VDC industrial loads with fast switching performance.
• Well suited for VersaMax distributed I/O installations where high output density, dependable operation, and easy system expansion are essential for long-term productivity.
Key Strengths at a Glance
• Provides 32 positive logic (sourcing) discrete outputs arranged in two isolated groups of 16 points, maximizing output capacity within a compact module.
• Supports 12 VDC and 24 VDC applications with module revision B and later, increasing compatibility across industrial control systems.
• Delivers up to 0.5 A continuous output current per channel with 2.0 A inrush capability for 100 ms, making it suitable for a wide range of industrial loads.
• Features individual channel LEDs together with FLD PWR and OK status indicators for simplified commissioning, diagnostics, and maintenance.
Technical FAQs
1. What type of module is the GE IC200MDL750B?
The IC200MDL750B is a 32-point positive logic discrete output module for the GE VersaMax PLC platform.
2. How many output channels does the IC200MDL750B provide?
The module provides 32 digital output points organized into two groups of 16 outputs.
3. What output voltage does the module support?
It supports 10.2 to 30 VDC output operation with nominal 12 VDC and 24 VDC field power.
4. What is the maximum output current per channel?
Each output can supply up to 0.5 A continuous current with a maximum 2.0 A inrush current for 100 milliseconds.
5. What does positive logic mean on the IC200MDL750B?
Positive logic outputs source current to the load by switching the positive side of the DC supply.
6. Does the module require an external field power supply?
Yes. An external 12/24 VDC power supply is required to power the connected output loads.
7. Does the IC200MDL750B include output fuses?
No. The module does not include internal output fuses, so external circuit protection should be provided where appropriate.
8. What diagnostic indicators are available?
The module includes one LED for each output point, plus FLD PWR and OK LEDs for field power and module status monitoring.
9. Which VersaMax hardware is compatible with this module?
The IC200MDL750B is compatible with VersaMax carrier bases, CPUs, and Network Interface Units (NIUs).
10. What should be verified before replacing the IC200MDL750B?
Verify the carrier type, output voltage, field wiring, load current requirements, backplane compatibility, and external DC power supply before installation.
