Brand:GE Fanuc PLC Item No.: IC200ALG260A Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

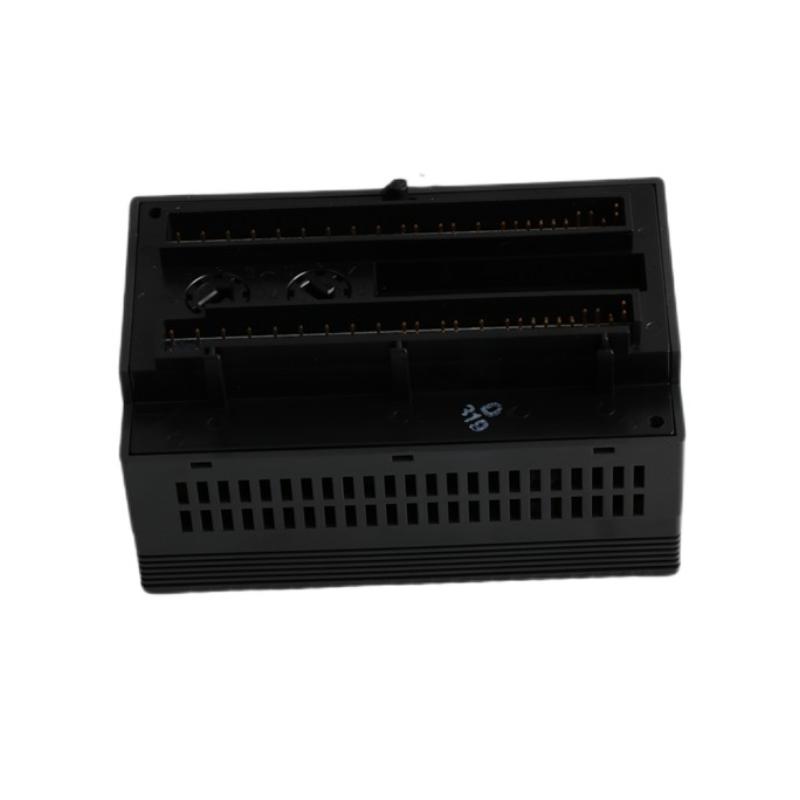

The GE IC200ALG260A Analog Input Module is a versatile signal acquisition solution developed for GE VersaMax automation systems. Designed to collect industrial voltage and current signals, it provides eight configurable analog input channels for accurate monitoring of process variables across a wide range of applications.
Supporting both 4–20 mA current loops and voltage-based measurement systems, the IC200ALG260A simplifies integration between field instruments and PLC control platforms. Its intelligent processing capabilities, configurable input parameters, and built-in diagnostics help improve operational visibility and enhance process control performance.
With reliable analog conversion, flexible configuration options, and compact VersaMax architecture compatibility, the IC200ALG260A is an effective choice for OEM machines, production equipment, and industrial automation upgrades.
Technical Specifications
Parameter
Details
Model
IC200ALG260A
Product Type
Analog Input Module
Series
GE VersaMax
Input Channels
8 Channels
Input Configuration
Single-Ended, One Group
Signal Type
Voltage / Current Analog Input
Current Input Range
4–20 mA
Voltage Input Range
±10 VDC, 0–10 VDC
Resolution
12 Bit
Input Impedance (Voltage Mode)
126 kΩ Maximum
Input Impedance (Current Mode)
200 Ω Maximum
Accuracy at 25°C
±0.3% Typical, ±0.5% Maximum Full Scale
Accuracy at 0–60°C
±1% Maximum Full Scale
Filter Response Time
5 ms
Data Update Rate
0.4 ms
Isolation
250 VAC Continuous / 1500 VAC for 1 Minute
Diagnostics
Range Monitoring, Power Loss Detection, Alarm Functions
Configuration
Carrier Jumper Selection
Backplane Current Consumption
130 mA Maximum @ 5 VDC
LED Indicators
INT PWR, OK
Mounting Type
VersaMax Carrier Mounted
Operating Temperature
0°C to 60°C
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.25 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200PWR102B
VersaMax AC Power Supply Module
IC200CHS002
VersaMax I/O Carrier Module
IC200MDL750B
VersaMax 32-Point Discrete Output Module
Frequently Selected Alternatives
Model
Product Name
IC200ALG264
VersaMax Analog Input Module
IC200ALG630
VersaMax Thermocouple Input Module
IC200ALG620
VersaMax RTD Input Module
IC200ALG432
VersaMax Analog Output Module
Where It Excels in Industrial Use
• Designed for GE VersaMax PLC systems, the IC200ALG260A provides flexible analog signal acquisition for industrial applications requiring accurate voltage and current measurement from multiple field devices.
• Ideal for process automation, water treatment systems, HVAC control, packaging machinery, manufacturing equipment, and energy management applications where reliable analog feedback is essential.
• Supports direct connection to transmitters, pressure sensors, flow meters, level sensors, and other analog instruments using standard 4–20 mA or voltage signals.
• Well suited for VersaMax distributed I/O architectures where compact installation, configurable channels, and dependable analog monitoring are required for efficient system operation.
Key Strengths at a Glance
• Provides eight single-ended analog input channels with configurable voltage or current operation for flexible field integration.
• Supports 4–20 mA current input signals and ±10 VDC / 0–10 VDC voltage ranges, allowing compatibility with a wide variety of industrial transmitters.
• Features 12-bit analog resolution with software-configurable filtering, channel range selection, and diagnostic monitoring for improved measurement stability.
• Includes input diagnostics such as over-range, under-range, loss of internal power, and alarm monitoring functions to simplify troubleshooting and improve system reliability.
Technical FAQs
1. What type of module is the GE IC200ALG260A?
The IC200ALG260A is a VersaMax 8-channel voltage/current analog input module designed for GE PLC systems.
2. How many analog input channels does the IC200ALG260A provide?
The module provides eight single-ended analog input channels arranged in one input group.
3. What input signal types are supported by this module?
The module supports 4–20 mA current signals and voltage inputs including ±10 VDC and configurable 0–10 VDC ranges.
4. What is the resolution of the IC200ALG260A?
The module provides 12-bit analog-to-digital conversion resolution for input signal processing.
5. Does the module require an external power supply for operation?
No. The module receives operating power from the VersaMax backplane, although external power may be required for connected field transmitters.
6. Can each input channel be configured independently?
Yes. Channel settings such as input mode, range selection, filtering, and alarm parameters can be configured according to application requirements.
7. What type of devices can connect to the IC200ALG260A?
The module can interface with analog transmitters, pressure sensors, flow meters, temperature transmitters, and other industrial analog output devices.
8. Does the module provide diagnostic functions?
Yes. It supports diagnostics including input over-range, under-range, open-wire conditions, and internal power monitoring.
9. What PLC family is compatible with the IC200ALG260A?
The module is designed for GE VersaMax PLC and distributed I/O systems.
10. What should be checked before replacing the IC200ALG260A?
Verify channel configuration, signal type, wiring method, transmitter power requirements, PLC compatibility, and application scaling parameters before installation.
