Brand:GE Fanuc PLC Item No.: IC693MDL930D Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

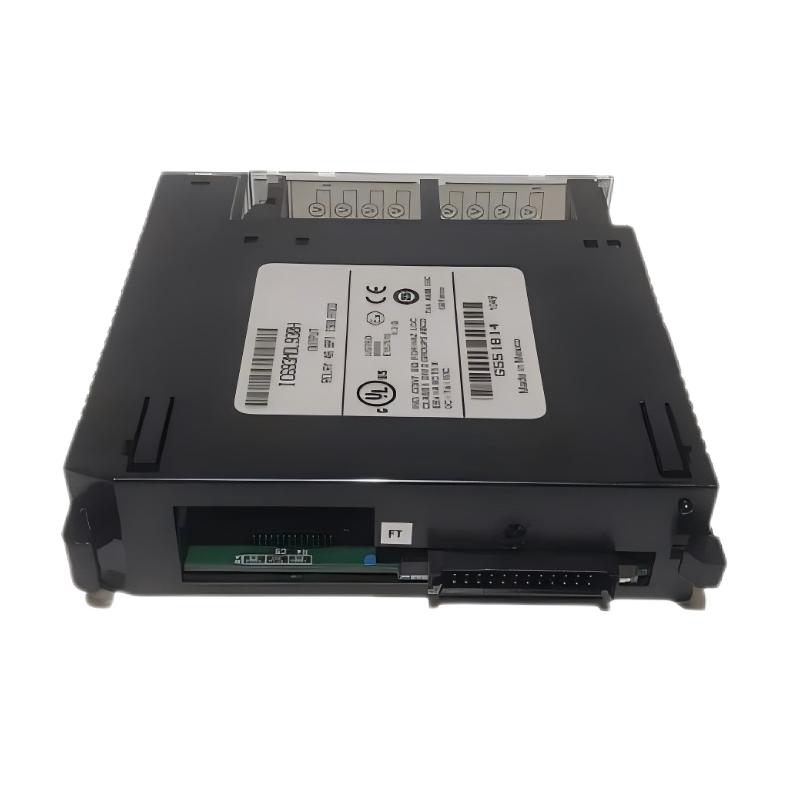

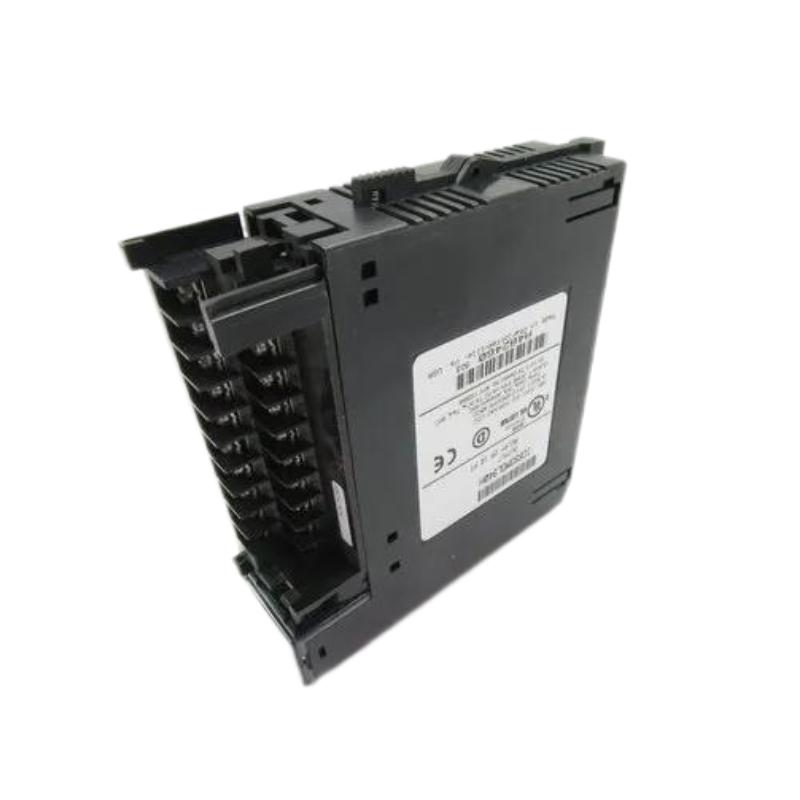

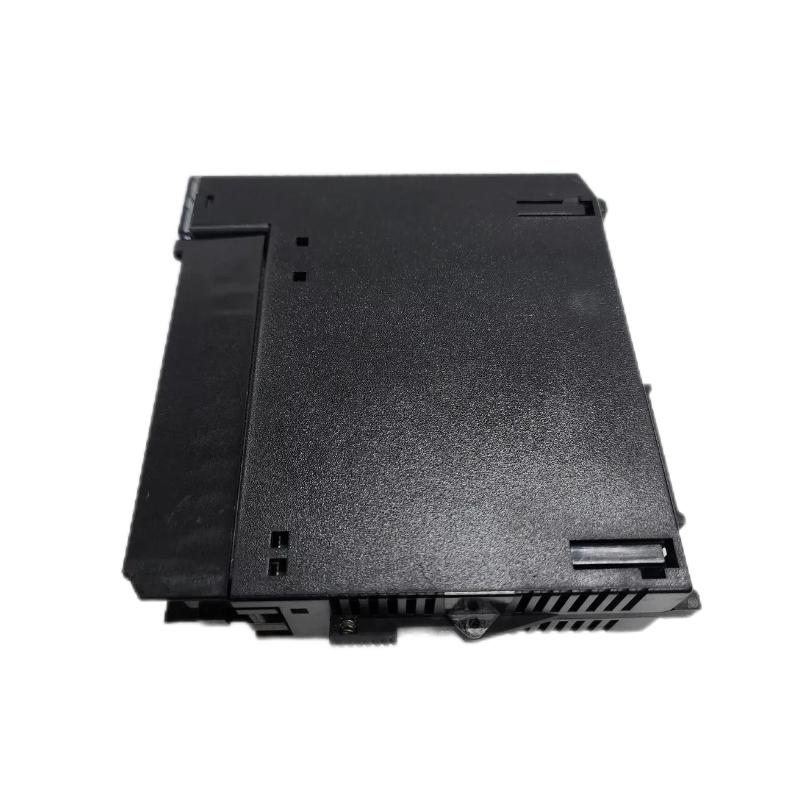

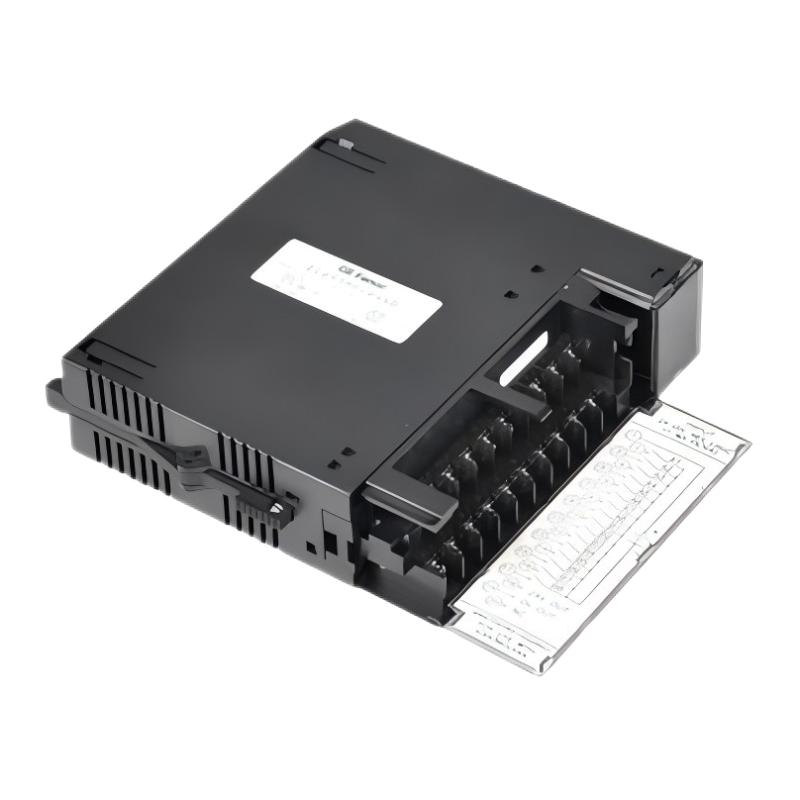

The GE IC693MDL930D Relay Output Module is a dependable discrete output solution developed for GE Series 90-30 PLC automation systems. Featuring eight individually isolated normally open relay outputs, it provides flexible control of AC and DC field devices across a wide range of industrial applications.
Designed for demanding control environments, the IC693MDL930D combines high switching capability, channel isolation, and broad voltage compatibility to simplify integration with industrial equipment. Each relay channel operates independently, allowing engineers to manage different load types while maintaining reliable system performance.
With proven Series 90-30 compatibility, robust relay switching characteristics, and straightforward maintenance features, the IC693MDL930D remains a practical choice for machine builders, system integrators, and industrial automation upgrades.
Technical Specifications
Parameter
Details
Model
IC693MDL930D
Product Type
Relay Output Module
Series
GE Series 90-30
Output Type
Isolated Relay Output
Number of Outputs
8 Points
Contact Type
Normally Open Relay
Output Voltage Range
5–30 VDC / 5–250 VAC
Rated Voltage
24 VDC / 120 VAC / 240 VAC
Maximum Output Current
4 A per Point
Pilot Duty Rating
2 A Maximum
Maximum Inrush Current
5 A
Output Isolation
Individually Isolated
Field-to-Logic Isolation
1500 VAC for 1 Minute
Response Time ON
15 ms Maximum
Response Time OFF
15 ms Maximum
Minimum Load Current
10 mA
Backplane Current Consumption
6 mA @ 5 VDC
Relay Bus Current
70 mA @ 24 VDC
Terminal Type
20-Screw Terminal Block
Mounting Type
Series 90-30 Baseplate
Operating Temperature
0°C to 60°C
Dimensions
Approx. 130 × 35 × 127 mm
Weight
Approx. 0.45 kg
Recommended Companion Models
Model
Product Name
IC693CPU364
Series 90-30 CPU Module
IC693PWR321S
Series 90-30 Power Supply Module
IC693CHS391M
Series 90-30 10-Slot Baseplate
IC693MDL645E
Series 90-30 24 VDC Discrete Input Module
Frequently Selected Alternatives
Model
Product Name
IC693MDL931
Series 90-30 Isolated Relay Output Module
IC693MDL940J
Series 90-30 Relay Output Module
IC693MDL753
Series 90-30 Discrete Output Module
IC693MDL754
Series 90-30 High-Density Relay Output Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693MDL930D provides reliable relay-based switching for industrial applications requiring flexible AC/DC load control and electrical isolation.
• Ideal for controlling motor starters, solenoid valves, contactors, indicator lamps, alarms, and other industrial devices where mechanical relay contacts provide excellent voltage compatibility.
• Suitable for manufacturing equipment, packaging systems, material handling applications, process machinery, and retrofit projects based on existing Series 90-30 automation platforms.
• Well suited for systems requiring individually isolated outputs, allowing different field loads to operate independently with improved wiring flexibility and reduced interference between channels.
Key Strengths at a Glance
• Provides eight individually isolated normally open relay output channels for versatile industrial load switching.
• Supports a wide operating range from 5–30 VDC and 5–250 VAC at 50/60 Hz, enabling compatibility with various field devices.
• Delivers up to 4 A switching capacity per output point for reliable control of industrial loads.
• Includes individual LED status indicators for quick output verification, commissioning support, and simplified troubleshooting.
Technical FAQs
1. What type of module is the GE IC693MDL930D?
The IC693MDL930D is an isolated relay output module designed for GE Series 90-30 PLC systems.
2. How many output channels are available on the IC693MDL930D?
The module provides eight individually isolated normally open relay output channels.
3. What type of loads can the IC693MDL930D control?
It can control devices such as motor starters, solenoids, contactors, indicators, and other AC or DC field loads.
4. What voltage ranges are supported by this relay output module?
The module supports 5–30 VDC and 5–250 VAC, 50/60 Hz operating ranges.
5. What is the maximum output current per relay channel?
Each relay output supports up to 4 A resistive load current.
6. Are the relay outputs electrically isolated from each other?
Yes. Each output point is individually isolated and has a separate common terminal.
7. Does the module require an external field power supply?
Yes. The connected field devices must receive power from an external AC or DC supply.
8. What diagnostic indicators are available on the module?
The module includes LED indicators showing the ON/OFF status of each relay output point.
9. Which PLC platform is compatible with the IC693MDL930D?
The module is designed for GE Series 90-30 PLC systems and can be installed in supported I/O slots.
10. What should be checked before replacing the IC693MDL930D?
Verify relay contact ratings, field voltage requirements, wiring configuration, PLC slot compatibility, and load characteristics before replacement.
