Brand:GE Fanuc PLC Item No.: IC693CHS392K Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

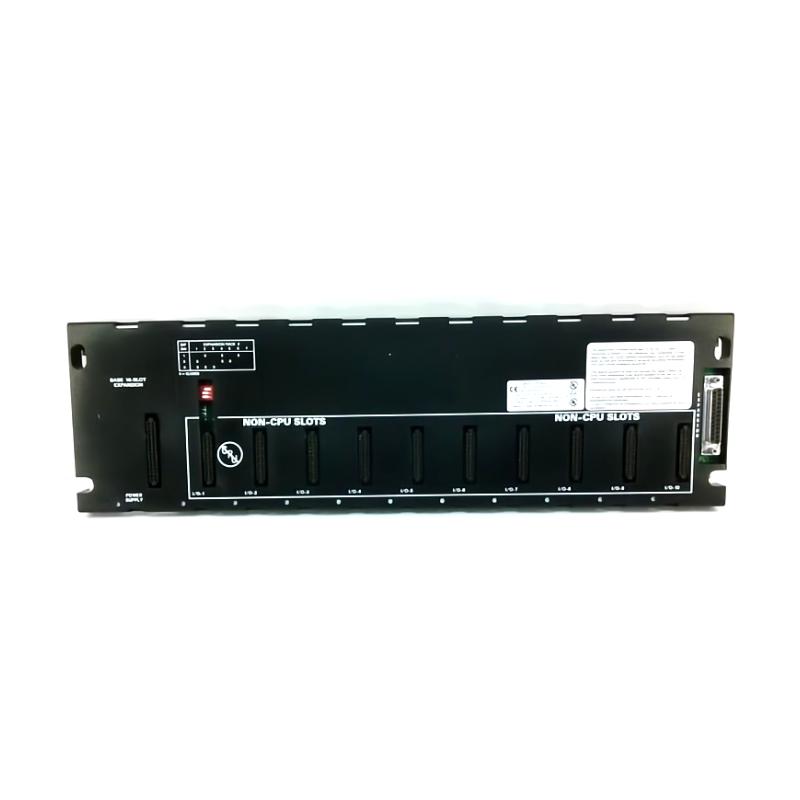

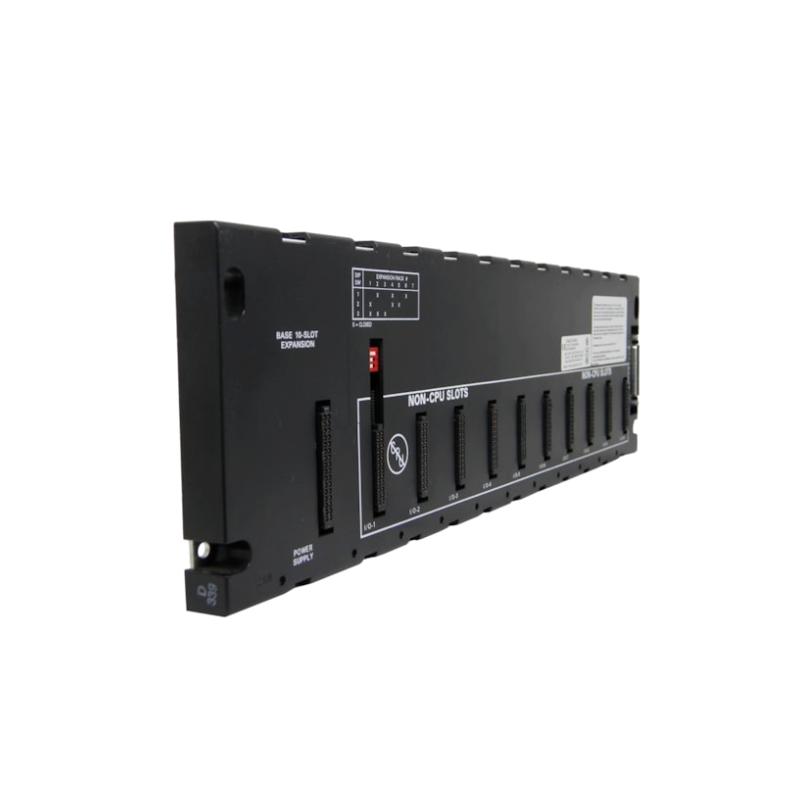

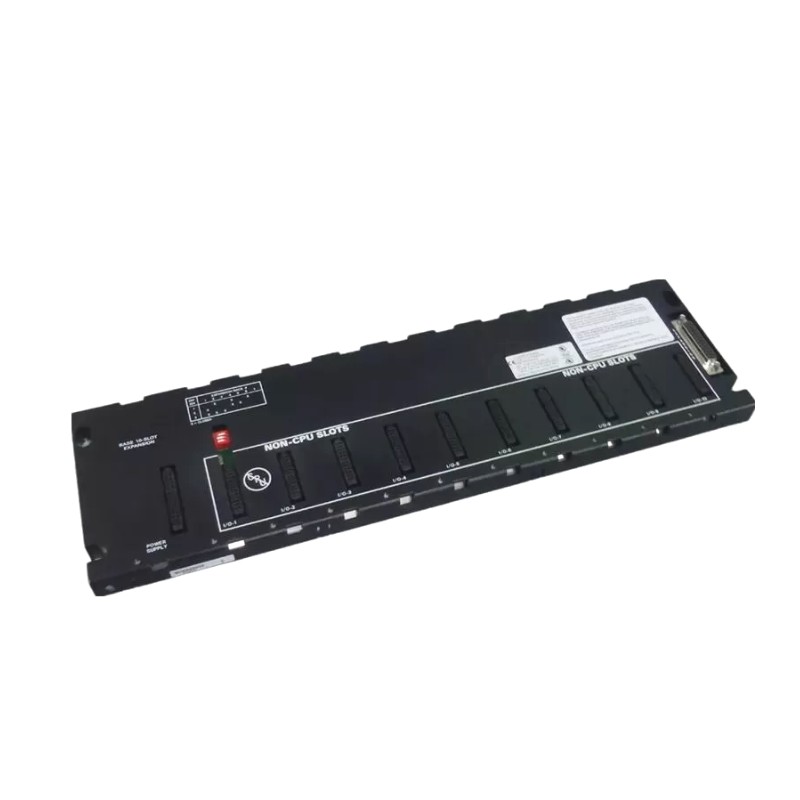

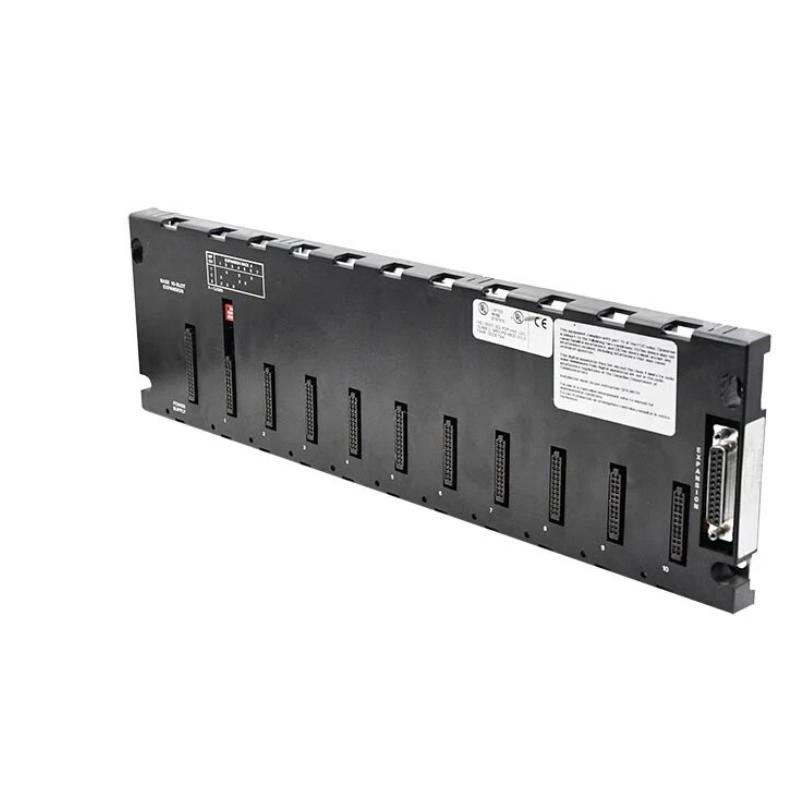

The GE IC693CHS392K Expansion Baseplate is a high-capacity rack expansion solution developed for GE Series 90-30 PLC systems. It enables engineers to extend existing automation systems by adding additional I/O modules while preserving the original CPU architecture and control strategy.
Featuring ten module slots, an integrated power supply position, and a dedicated expansion interface, the IC693CHS392K provides the flexibility required for complex industrial applications. Its modular design allows system builders to scale PLC installations according to changing production requirements.
With proven Series 90-30 compatibility, robust rack expansion capability, and straightforward installation, the IC693CHS392K remains a practical choice for industrial automation upgrades, machine expansion, and long-term maintenance projects.
Technical Specifications
Parameter
Details
Model
IC693CHS392K
Product Type
Expansion Baseplate
Series
GE Series 90-30
Rack Type
10-Slot Expansion Rack
CPU Slot
None
I/O Slots
10
Power Supply Slot
1
Expansion Connector
25-Pin Female D-Type
Power Requirement
5 VDC
Internal Current Consumption
150 mA @ 5 VDC
Rack Address Setting
DIP Switch
Maximum Expansion Cable Length
15 m (50 ft)
Maximum Expansion Racks
CPU Dependent
Mounting Method
Panel Mount
Operating Temperature
0°C to 60°C
Dimensions
Approx. 443 × 142 × 130 mm
Weight
Approx. 0.94 kg
Recommended Companion Models
Model
Product Name
IC693CPU374
Series 90-30 CPU Module
IC693PWR321S
Series 90-30 Power Supply Module
IC693CHS391M
Series 90-30 10-Slot CPU Baseplate
IC693CHS398K
Series 90-30 5-Slot Expansion Baseplate
Frequently Selected Alternatives
Model
Product Name
IC693CHS392
Series 90-30 10-Slot Expansion Baseplate
IC693CHS398
Series 90-30 5-Slot Expansion Baseplate
IC693CHS391
Series 90-30 10-Slot CPU Baseplate
IC693CHS399
Series 90-30 5-Slot Remote Baseplate
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693CHS392K provides additional rack capacity for expanding control architectures that require more I/O modules, specialty modules, and distributed system configurations.
• Ideal for manufacturing automation, packaging systems, process control equipment, material handling applications, and OEM machinery where increased I/O capacity is needed without replacing the existing CPU platform.
• Supports large-scale Series 90-30 installations by adding ten additional module slots, allowing engineers to expand system functionality while maintaining the reliability of the original PLC architecture.
• Well suited for retrofit projects and industrial upgrades requiring additional I/O racks connected to an existing CPU baseplate through the Series 90-30 expansion bus.
Key Strengths at a Glance
• Provides a 10-slot expansion rack design with one power supply slot and ten I/O module positions for flexible system expansion.
• Includes a 25-pin female D-type expansion connector for connection to CPU baseplates or additional expansion racks.
• Supports standard Series 90-30 I/O and option modules, allowing integration of digital, analog, and specialty modules within expanded control systems.
• Features rack address selection through an integrated DIP switch, simplifying multi-rack configuration and system identification.
Technical FAQs
1. What type of module is the GE IC693CHS392K?
The IC693CHS392K is a 10-slot expansion baseplate designed for GE Series 90-30 PLC systems.
2. How many module slots are available on the IC693CHS392K?
The baseplate provides ten I/O module slots plus one dedicated power supply slot.
3. Does the IC693CHS392K contain a CPU slot?
No. The IC693CHS392K is an expansion baseplate and does not include a CPU slot.
4. Which PLC family is compatible with the IC693CHS392K?
The module is compatible with GE Series 90-30 PLC systems.
5. How is the expansion baseplate connected to the PLC system?
It connects to the CPU baseplate or another expansion rack through the Series 90-30 I/O bus expansion connector.
6. What type of connector is used for rack expansion?
The IC693CHS392K uses a 25-pin female D-type expansion connector.
7. Can multiple expansion racks be installed in one system?
Yes. The number of supported expansion racks depends on the installed Series 90-30 CPU model.
8. What modules can be installed on the IC693CHS392K?
Most standard Series 90-30 I/O modules and compatible option modules can be installed on the expansion baseplate.
9. Are intelligent option modules supported on this baseplate?
Some intelligent option modules require installation on the CPU baseplate rather than an expansion baseplate.
10. What should be checked before replacing the IC693CHS392K?
Verify rack configuration, expansion cable connections, power supply compatibility, module placement, and CPU support for additional racks before replacement.
