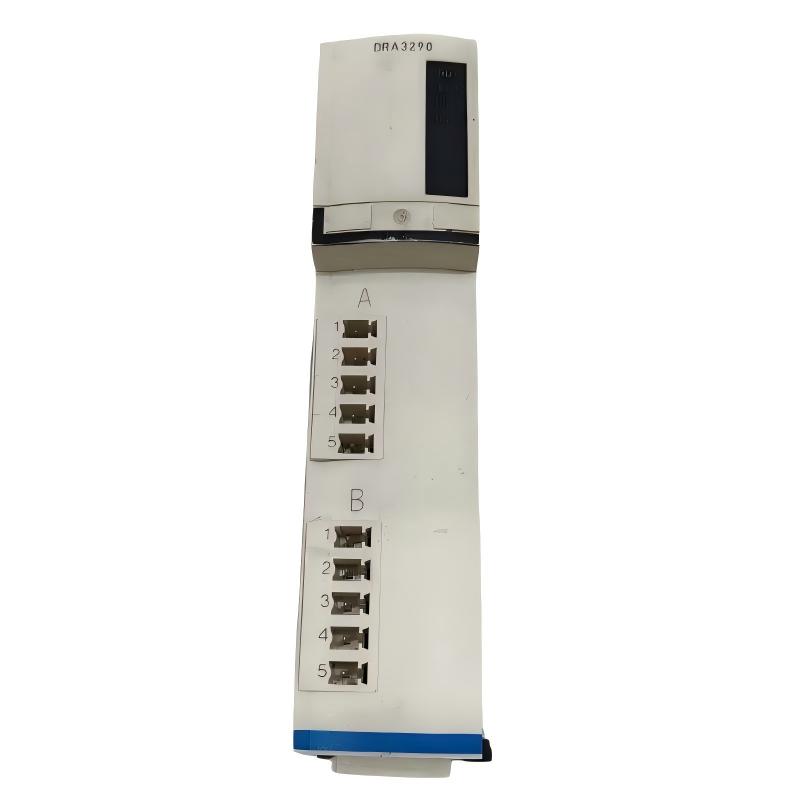

Schneider STBDRA3290 Standard Digital Output Module
Schneider STBDRA3290 Standard Digital Output Module
0.0
Points
Brand:Schneider PLC Item No.:STBDRA3290 Product Origin:France Product Dimensions:26.1 x 128.3 x 70 mm Product Weight:0.13 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider STBDRA3290 Standard Digital Output Module is a reliable industrial automation component designed to provide relay-based output control within Modicon STB distributed I/O systems.
In modern industrial environments, automation controllers often need to operate different types of field equipment with stable and flexible switching performance. Relay output modules provide an effective interface between PLC systems and external devices, allowing reliable control of various electrical loads.
The STBDRA3290 features a modular design that supports efficient integration into distributed automation architectures. Its relay technology provides greater flexibility compared with standard transistor outputs, making it suitable for applications requiring electrical isolation and compatibility with different device types.
For machine builders, automation engineers, and system integrators, the Schneider STBDRA3290 offers a dependable solution for expanding control capability, improving system flexibility, and maintaining reliable industrial operation.
Technical Specifications
Parameter
Details
Manufacturer
Schneider Electric
Model Number
STBDRA3290
Product Type
Standard Digital Output Module
Series
Modicon STB
Output Type
Relay Output
Number of Outputs
2 Channels
Output Function
Relay Contact Output
Output Voltage
24 V DC / 115-230 V AC
Output Current
7 A per Channel
Contact Type
Normally Open / Normally Closed
Switching Mode
Relay Switching
Response Time
10 ms ON to OFF / 10 ms OFF to ON
Connection Type
Removable Terminal Connector
Installation Type
Distributed I/O Mounting System
Dimensions
26.1 x 128.3 x 70 mm
Weight
0.13 kg (0.29 lb)
Operating Environment
Industrial Automation Applications
Recommended Related Models
Model
Product Type
Description
Schneider STBDRA3290K
Standard Digital Output Kit
Relay output kit with complete mounting accessories
Schneider STBDRC3210K
Relay Digital Output Module
Relay output expansion module for STB systems
Schneider STBDDO3410K
Standard Digital Output Kit
Solid-state digital output expansion module
Schneider STBDDO3600K
Digital Output Kit
Multi-channel transistor output solution
Popular Related Models
Model
Category
Schneider STBDRA3290
Standard Digital Output Module
Schneider STBDRA3290K
Relay Output Kit
Schneider STBDRC3210K
Relay Digital Output Module
Schneider STBDDO3410K
Digital Output Kit
Schneider Modicon STB Series
Distributed I/O System
Applications
The Schneider STBDRA3290 Standard Digital Output Module is a relay-based digital output solution designed for Modicon STB distributed I/O systems. It provides reliable switching control for industrial field devices and enables PLC systems to manage various electrical loads such as contactors, valves, motors, indicators, and control equipment.
The STBDRA3290 is designed for automation applications that require flexible relay switching, electrical isolation, and dependable output performance. Its relay output structure allows compatibility with different AC and DC loads, making it suitable for complex industrial control environments.
The Schneider STBDRA3290 is widely used in:
Application Area
Description
Industrial Automation
Provides relay switching control for PLC-based systems
Controls electrical equipment and automation components
Process Control
Supports reliable field device switching
Factory Equipment Upgrades
Expands output capability of existing automation systems
The Schneider STBDRA3290 provides automation engineers with a flexible output expansion solution for improving system scalability, enhancing control reliability, and simplifying industrial automation design.
Advantages
The Schneider STBDRA3290 Standard Digital Output Module combines relay switching flexibility, reliable isolation, and distributed I/O integration capability to support industrial automation applications.
Advantage
Description
Relay Output Technology
Supports control of various AC and DC loads
Electrical Isolation
Provides separation between control signals and field devices
Flexible Switching Capability
Suitable for different industrial equipment requirements
Distributed I/O Integration
Enables efficient expansion of automation systems
Stable Industrial Performance
Supports continuous operation in demanding environments
Easy System Maintenance
Simplifies troubleshooting and replacement procedures
With dependable relay control and flexible application capability, the STBDRA3290 helps improve automation system performance and provides a practical solution for industrial output expansion.
Technical FAQs
Q1: What is the main function of the Schneider STBDRA3290?
A: The STBDRA3290 is a standard digital output module used to control external devices through relay switching signals.
Q2: What type of output technology does the STBDRA3290 use?
A: It uses relay output technology to provide flexible switching control for industrial loads.
Q3: What types of devices can be controlled by this module?
A: It can control devices such as contactors, valves, indicators, motors, and other compatible electrical loads.
Q4: What are common causes of relay output failure?
A: Common causes include overload conditions, incorrect wiring, damaged external equipment, and relay contact wear.
Q5: How can technicians troubleshoot an output channel problem?
A: Check PLC logic, module status indicators, wiring connections, load conditions, and external device operation.
Q6: Why are relay outputs useful in industrial automation?
A: Relay outputs provide electrical isolation and allow control of different voltage and current types.
Q7: Can the STBDRA3290 support both AC and DC applications?
A: Yes, relay outputs provide flexibility for controlling compatible AC and DC field devices.
Q8: What should be checked before replacing this output module?
A: Verify system compatibility, wiring configuration, load requirements, and application conditions.
Q9: What maintenance is recommended for relay output modules?
A: Regular inspection of terminals, wiring connections, output status, and connected equipment is recommended.
Q10: What happens if the connected load exceeds the relay capacity?
A: Excessive load conditions may cause relay damage, unstable operation, or reduced module service life.
