Brand:GE Fanuc PLC Item No.: IC200PWR102J Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

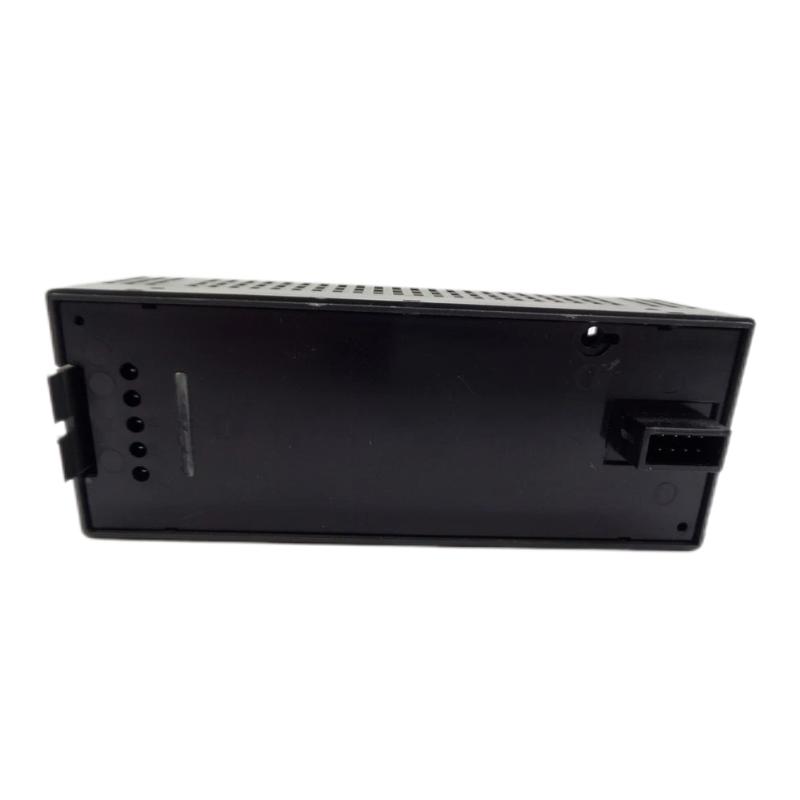

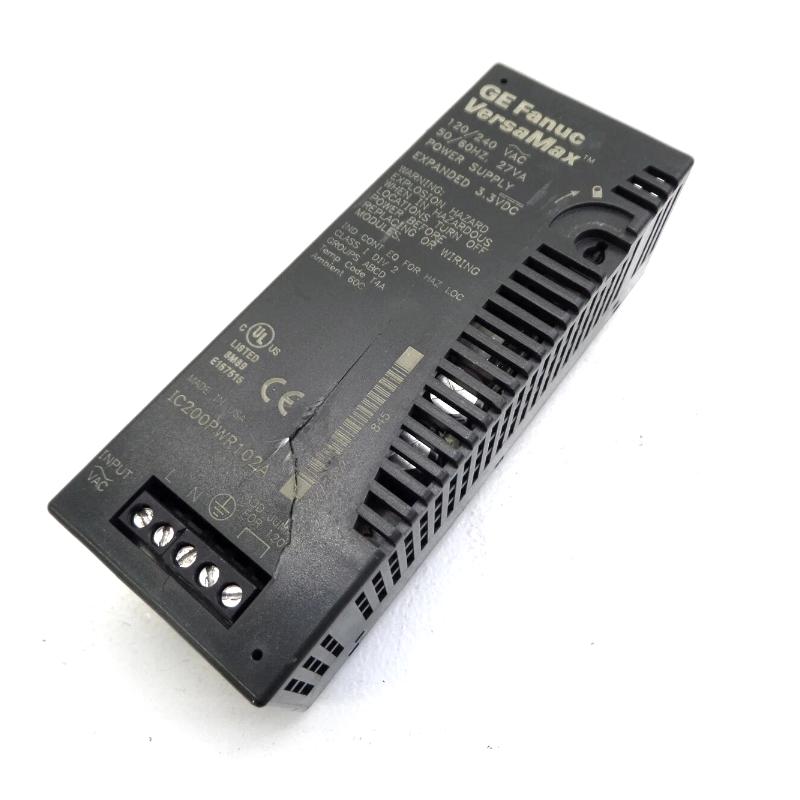

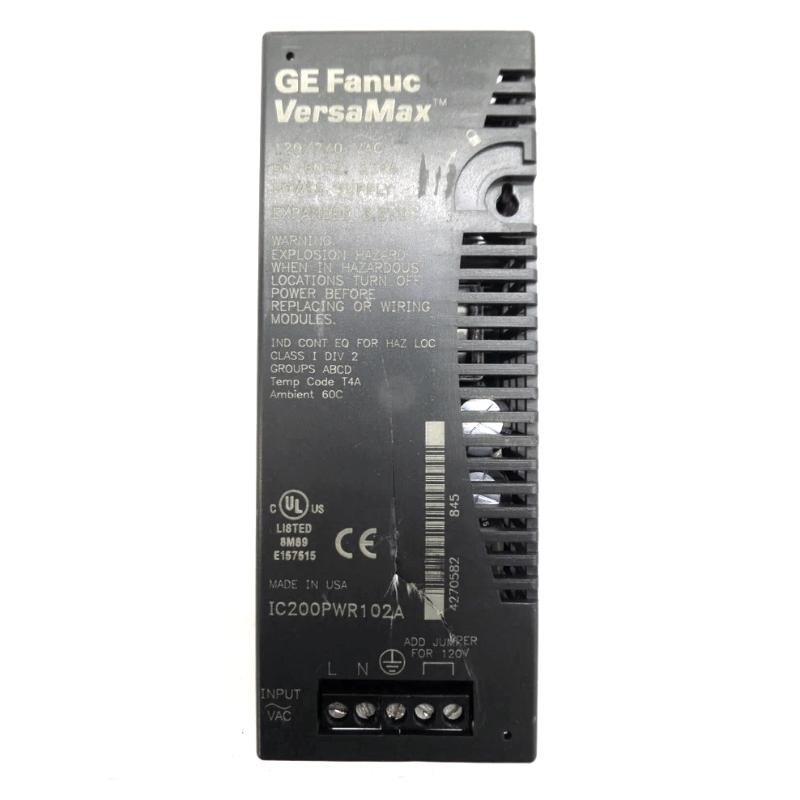

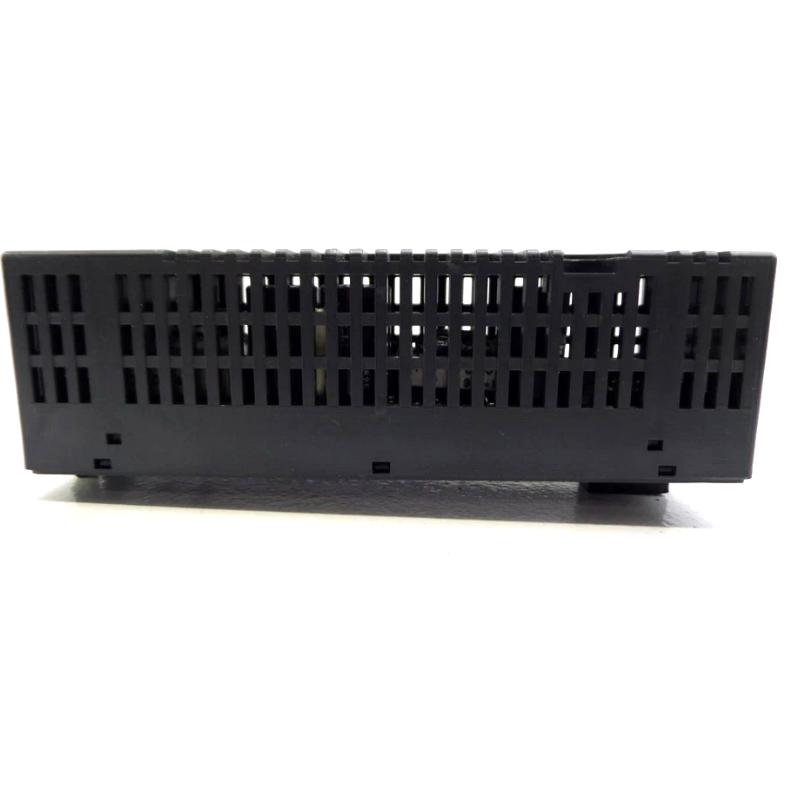

The GE IC200PWR102J Power Supply Module is a high-performance AC power solution developed for the VersaMax automation platform. Designed to deliver consistent backplane power, it supports VersaMax CPUs, network interface units, and I/O modules in a wide range of industrial control applications.
With expanded 120/240 VAC input flexibility and regulated 5 VDC and 3.3 VDC outputs, the IC200PWR102J provides a dependable foundation for scalable PLC architectures. Its ability to function as either a primary or supplemental power source makes it a practical choice for both new installations and existing system upgrades.
Combining compact design, built-in protection, and reliable electrical performance, the IC200PWR102J helps engineers maintain stable automation operations while simplifying system expansion and maintenance.
Technical Specifications
Parameter
Details
Model
IC200PWR102J
Product Type
Power Supply Module
Series
GE VersaMax
Input Voltage
85–132 VAC / 176–264 VAC
Nominal Input Voltage
120 VAC / 240 VAC
Input Frequency
47–63 Hz
Input Power
27 VA
Output Voltage
5 VDC, 3.3 VDC
Maximum Total Output Current
1.5 A
Maximum 3.3 VDC Output Current
1.0 A
Protection
Short Circuit, Overload
Hold-Up Time
20 ms
Application Mode
Primary or Supplemental Power Supply
Compatible System
VersaMax CPU, NIU, I/O Modules
Mounting Type
VersaMax Carrier / DIN Rail Mounted
Cooling Method
Natural Convection
Operating Temperature
0°C to 60°C
Dimensions
Approx. 133.4 × 49 × 39 mm
Weight
Approx. 0.14 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200CHS002
VersaMax I/O Carrier Module
IC200ALG260A
VersaMax Analog Input Module
IC200MDL750B
VersaMax Discrete Output Module
Frequently Selected Alternatives
Model
Product Name
IC200PWR102B
VersaMax Expanded AC Power Supply Module
IC200PWR102D
VersaMax Expanded AC Power Supply Module
IC200PWR101
VersaMax AC Power Supply Module
IC200PWR201
VersaMax DC Power Supply Module
Where It Excels in Industrial Use
• Designed for GE VersaMax PLC platforms, the IC200PWR102J provides stable AC power conversion for CPUs, Network Interface Units, and I/O modules in industrial automation systems.
• Ideal for factory automation, machine control, packaging equipment, process monitoring systems, and distributed I/O applications where reliable backplane power is essential.
• Suitable for system expansions and retrofit projects requiring additional VersaMax power capacity while maintaining compatibility with existing automation architectures.
• Commonly applied in OEM machinery and industrial control cabinets where compact installation, dependable output regulation, and long service life are required.
Key Strengths at a Glance
• Provides expanded 120/240 VAC input capability with regulated 5 VDC and 3.3 VDC outputs for VersaMax system modules.
• Supports both primary station power and supplemental power applications, allowing flexible system expansion for larger I/O configurations.
• Delivers up to 1.5 A total output current with integrated short-circuit and overload protection for improved operational reliability.
• Features a compact VersaMax design that simplifies cabinet installation while maintaining dependable industrial performance.
Technical FAQs
1. What type of module is the GE IC200PWR102J?
The IC200PWR102J is an expanded AC Power Supply Module designed for GE VersaMax PLC systems.
2. What PLC family is compatible with the IC200PWR102J?
The module is compatible with GE VersaMax PLC and distributed I/O systems.
3. What input voltage does the IC200PWR102J support?
It supports 85–132 VAC for 120 VAC nominal operation and 176–264 VAC for 240 VAC nominal operation.
4. What output voltages are provided by this module?
The IC200PWR102J provides regulated 5 VDC and 3.3 VDC outputs for VersaMax backplane power.
5. What is the maximum output current of the module?
The module provides up to 1.5 A total output current, with output distribution dependent on 3.3 VDC and 5 VDC loading requirements.
6. Can the IC200PWR102J be used as an additional power source?
Yes. It can be used as a supplemental power source in expanded VersaMax I/O configurations.
7. Does the module include protection functions?
Yes. The IC200PWR102J includes short-circuit and overload protection features.
8. Is jumper configuration required for voltage selection?
Yes. A jumper is used for 120 VAC operation, while 240 VAC operation uses the specified non-jumper configuration.
9. What frequency range does the power supply support?
The module supports AC input frequencies from 47 Hz to 63 Hz.
10. What should be checked before installing the IC200PWR102J?
Verify input voltage configuration, carrier compatibility, system power requirements, and connected module load before installation.
